Stilling production Line For Stainless steel /Galvanized Steel /PPGI

Product Overview

Description

Stilling production Line For Stainless steel /Galvanized Steel /PPGI



Application:It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
Advantages:Easy to operate, slitting quality is high, excellent material utilization, Stepless shearing speed regulation, etc.
Structure:It consist of uncoiler, feeding and positioning, slitting unit, recoiler, etc.
Applicable Materials:Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.



Applications of Stilling production Line For Stainless steel /Galvanized Steel /PPGI



Coil Raw Material:

Stainless Steel Coil(ss)             Galvanized Coil (GI)                       Galvalume Coil(GL)

Prepainted Galvanised Steel (PPGI)                   Prepainted Galvanlume Steel(PPGL)

Aluminium Coil and Copper coil               Low Carbon Steel Coil     Silicon Steel Coil







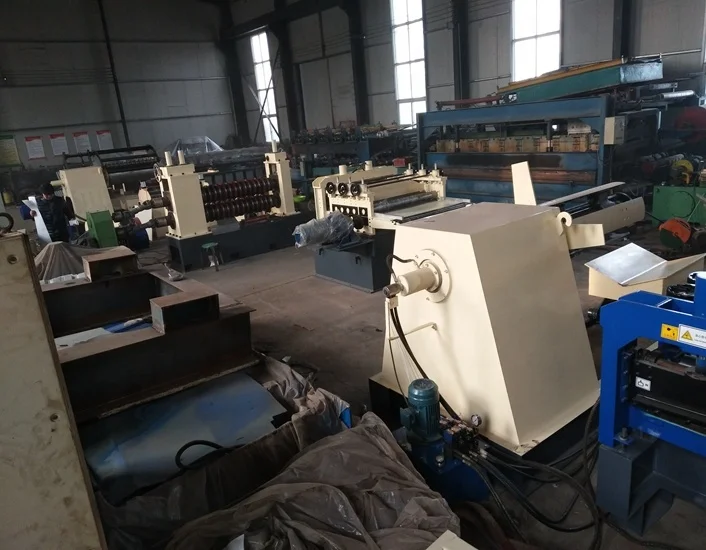

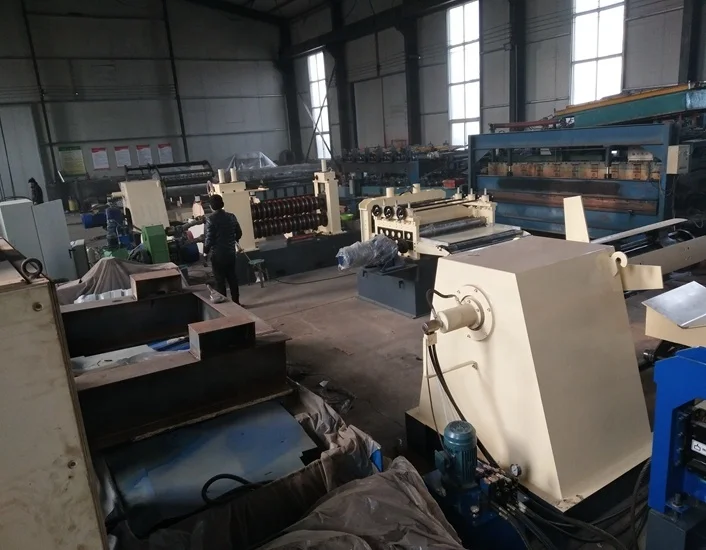

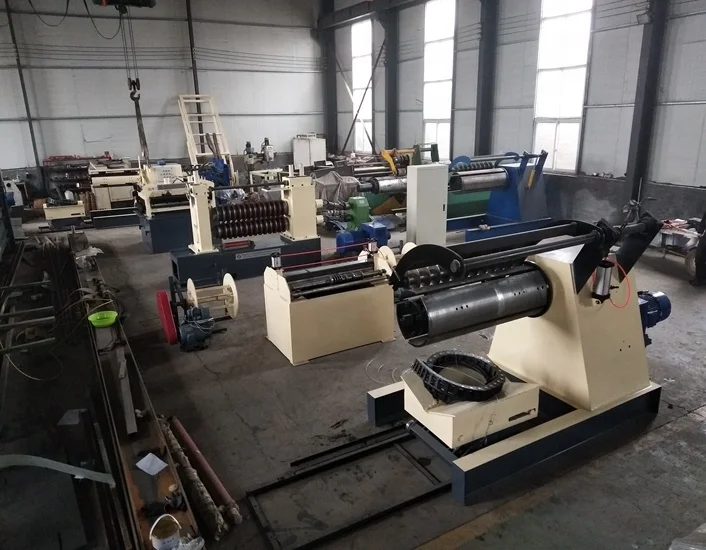

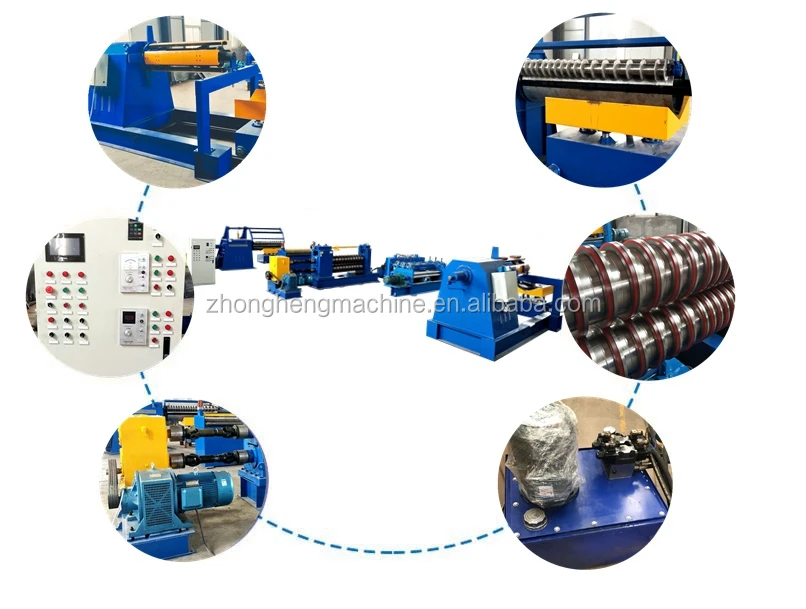

1.Machine composition

1	Loading coil Car

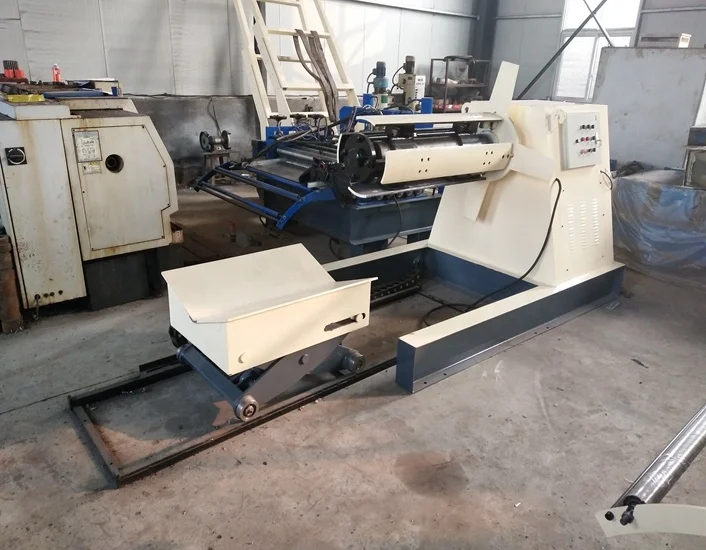

2	Decoiler 5Ton -15Ton for Option
3	Straightener Device (Optional)
4	Head Shear /pinch roll/
5	Bridge/loop pit
6	Side guide

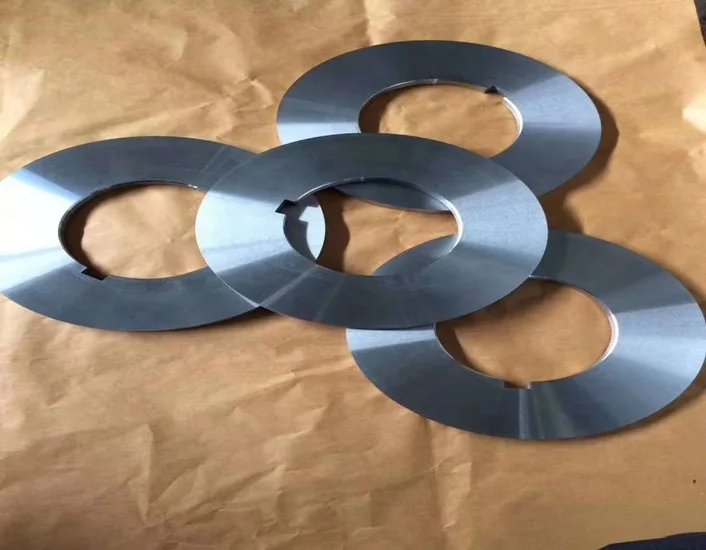

7	Mail Slitter
8	Side Guide& scrap winder
9	Bridge/Loop pit
10	Separator&Tension station
11	Recoiler and support Arm
12	Unloading coil car
13	Hydraulic system
14	Electronic controller(PLC , Control table)





2.Parameter:

a.Raw Material data:

Material thickness:0.2-3.0mm

Material width:400-1500mm

Coil I.D.: Φ508mm/Φ610mm

Coil O.D.: ≤Φ1600mm

Coil weight:15 tons max

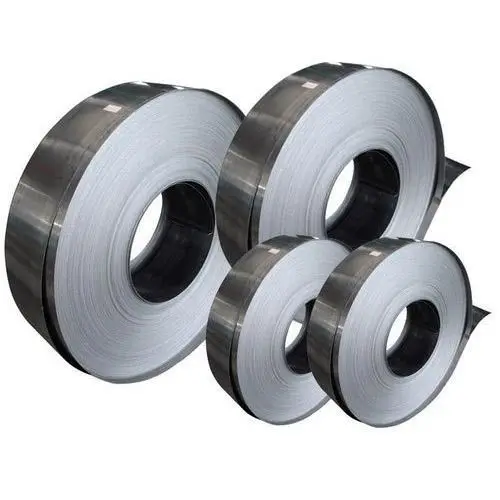

b.Finished Product:

Coil I.D.: Φ508mm

Coil O.D.: ≤Φ1600mm

Coil weight:15 tons max

Narrowest strip width slit into: 20 mm

Width cutting precision: ±0.05mm(strip thickness≤1), ±0.1mm(strip thickness>1.5mm)

Slitting Bur: 0.05 minimum, 5% of the trip thickness

Rocker: plus or minus 1 mm/m or less

Recoiling Looseness(mm) : ≤2 mm

Pcs of Slitting(Max) : 25 PCS

Line working speed: 60m/min max

Total power: Approx.120kw



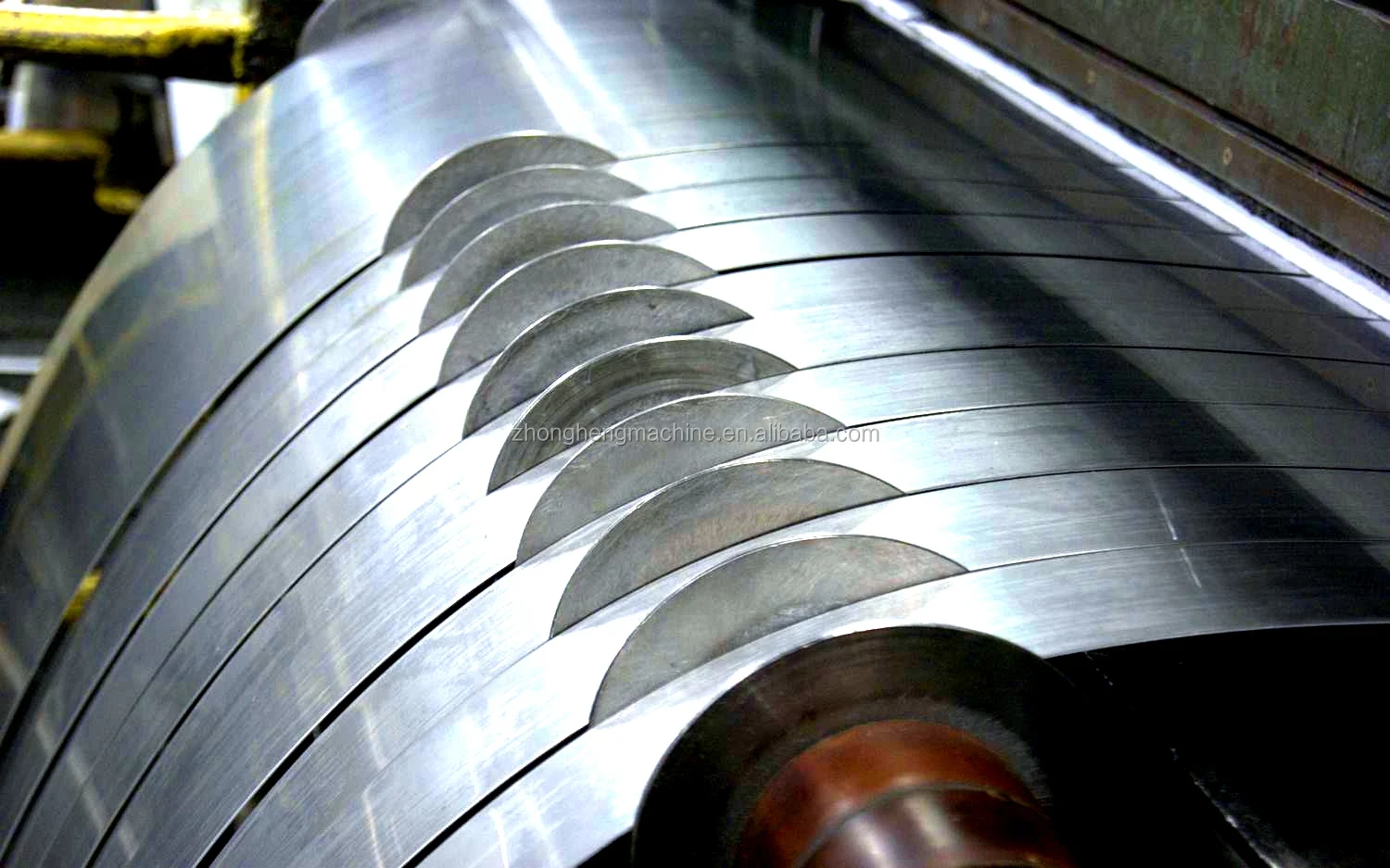

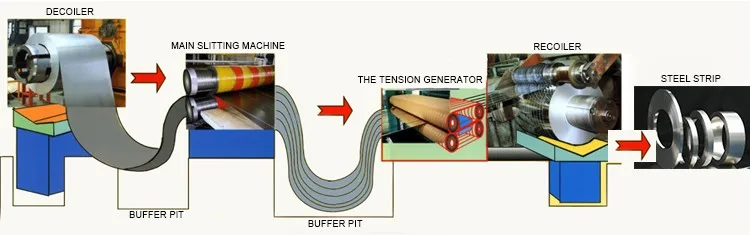

3.Detail of description of slitting line:



A steel factory need to buy several lines for different requirements or big capacity. the narrow coils/rolls are widely used in Steel Pipe Factory, Steel Structure Factory, Storage System Manufacturing Factory, combined with Roll Forming Machine, Power Punch Machine, Pipe Mills.

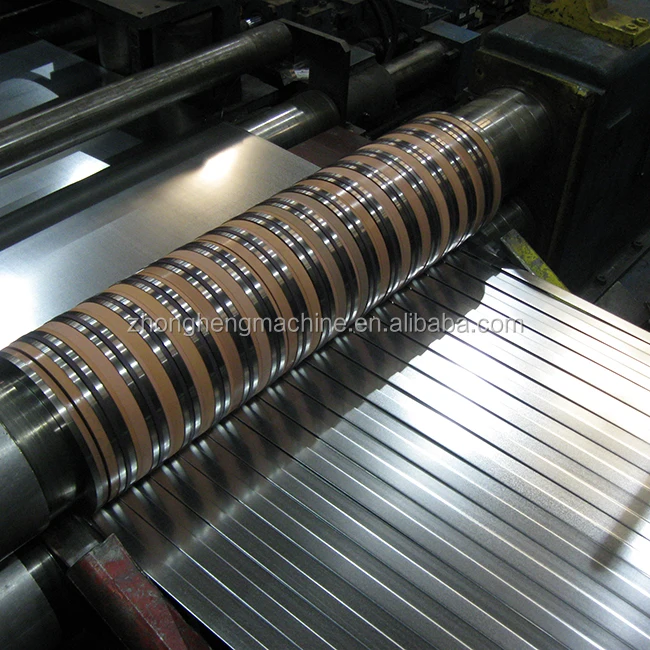

1.Function: It is used to the longitudinal cutting for the steel coils and rewinding the slit strips into coils.

2.Advantages: Convenient to operate, high cutting precision and utilization factor of the material, adopts the infinitive speed.

3.Structure: Compose of Decoiler, feeding device, slitting machine, recoiler (Rewinding) machine.

4.Material can be processed: galvanized steel, stainless steel tinplate, silicon steel ,copper and aluminum, etc.

5.lndustries can be applied to: steel factory, transformer, electrical motor, electrical equipment, car, building materials, door, packaging industries.
