Low Price Jinko Solar 400 Watt Pv Panel Home Solar Panels Halfcell JKM400M 72H V Panneaux Solaires
- Category: >>>
- Supplier: Shenzhen Meisongmao Industrial Co. Ltd.Shenzhen Ltd.
Share on (62189979093):
Product Overview
Description
Product Description
low price Jinko solar 400 watt pv panel home solar panels halfcell JKM400M-72H-V 400 watt panneaux solaires

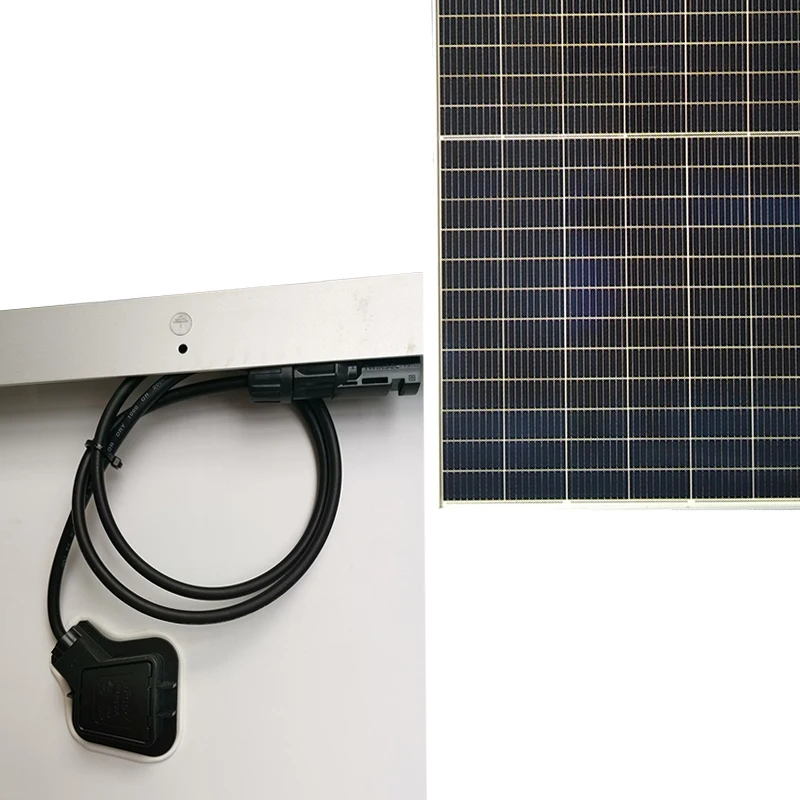

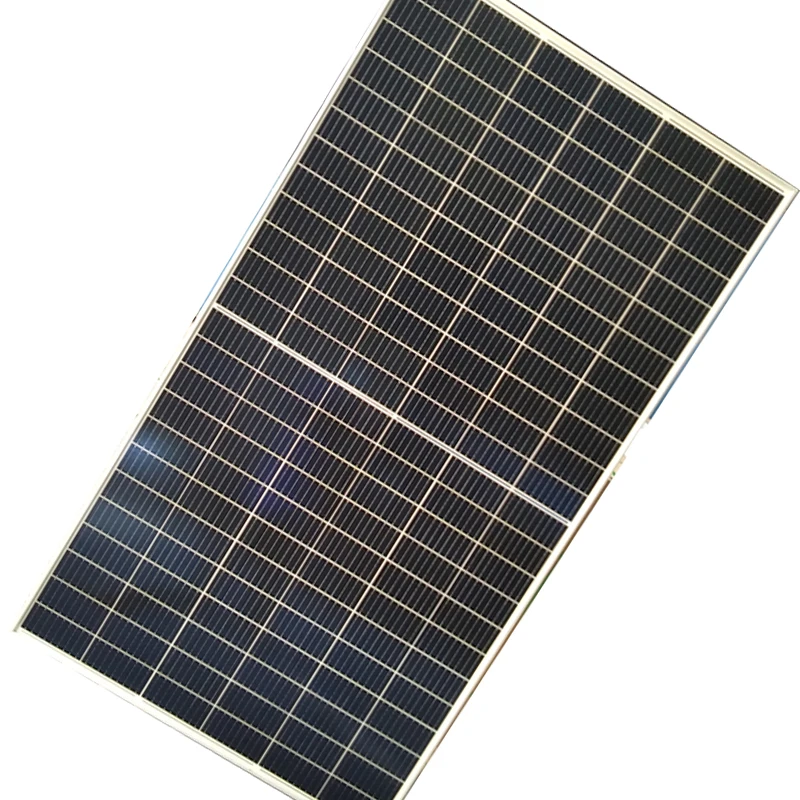

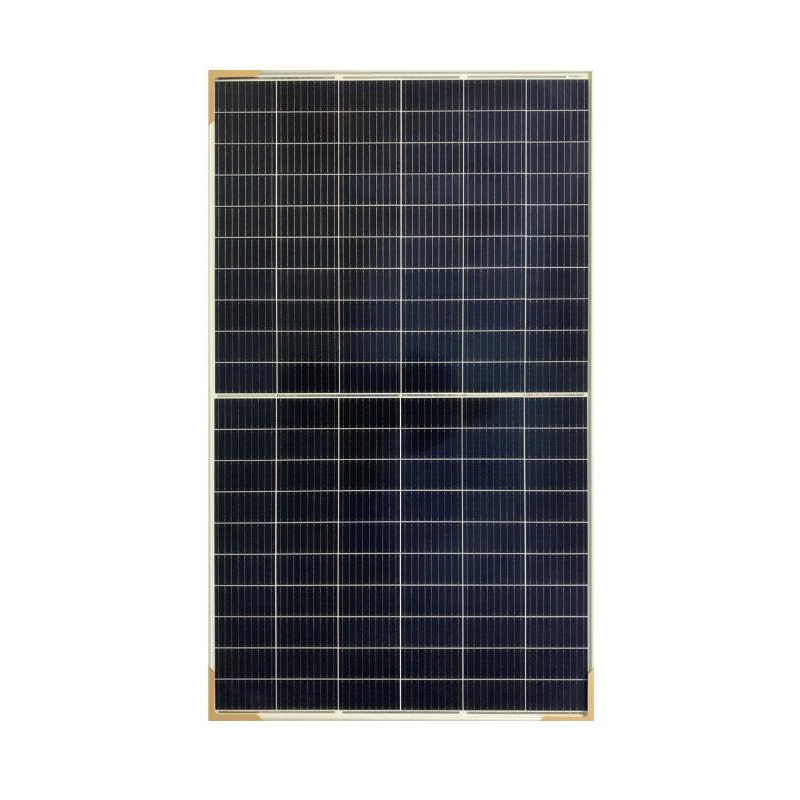

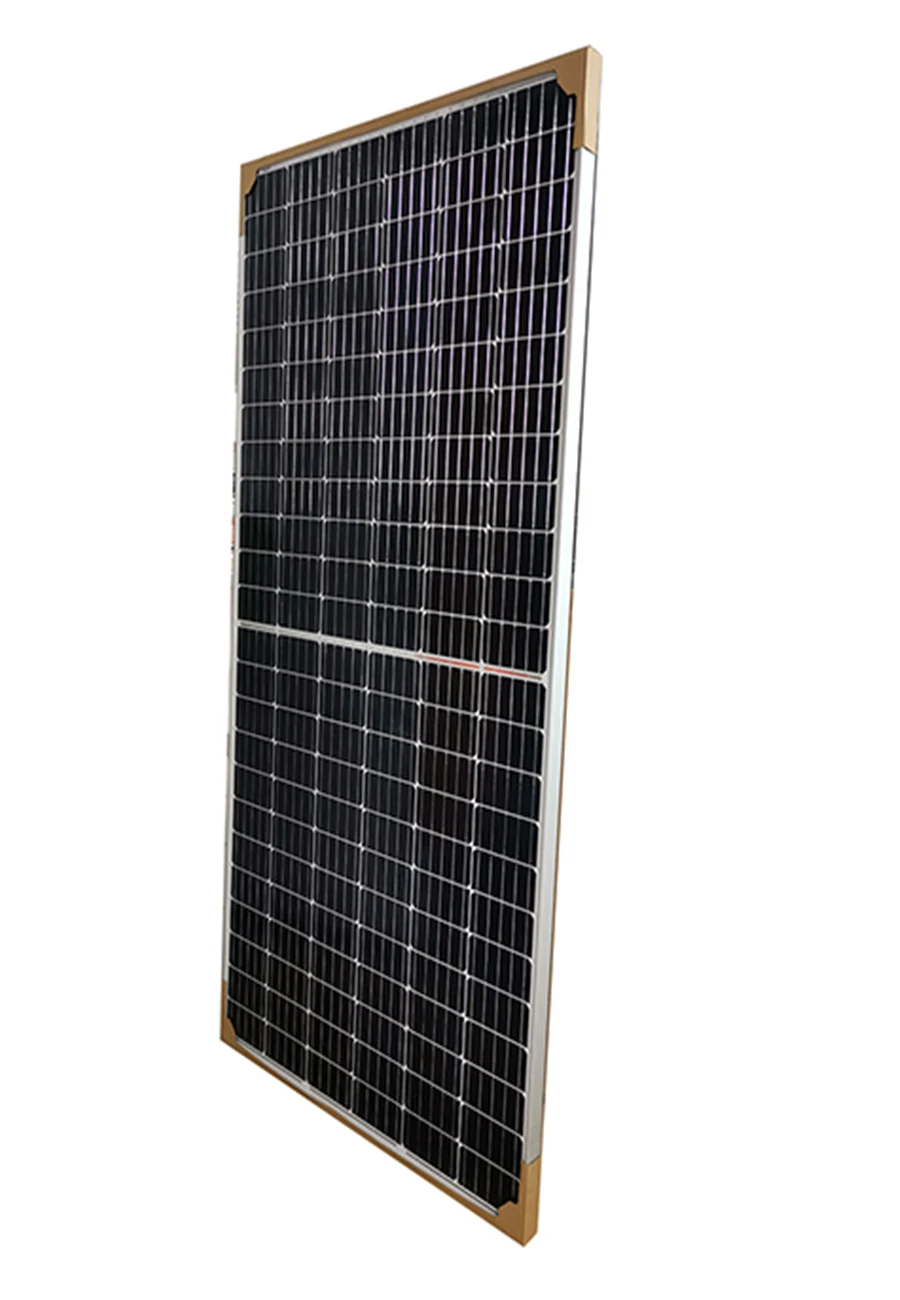

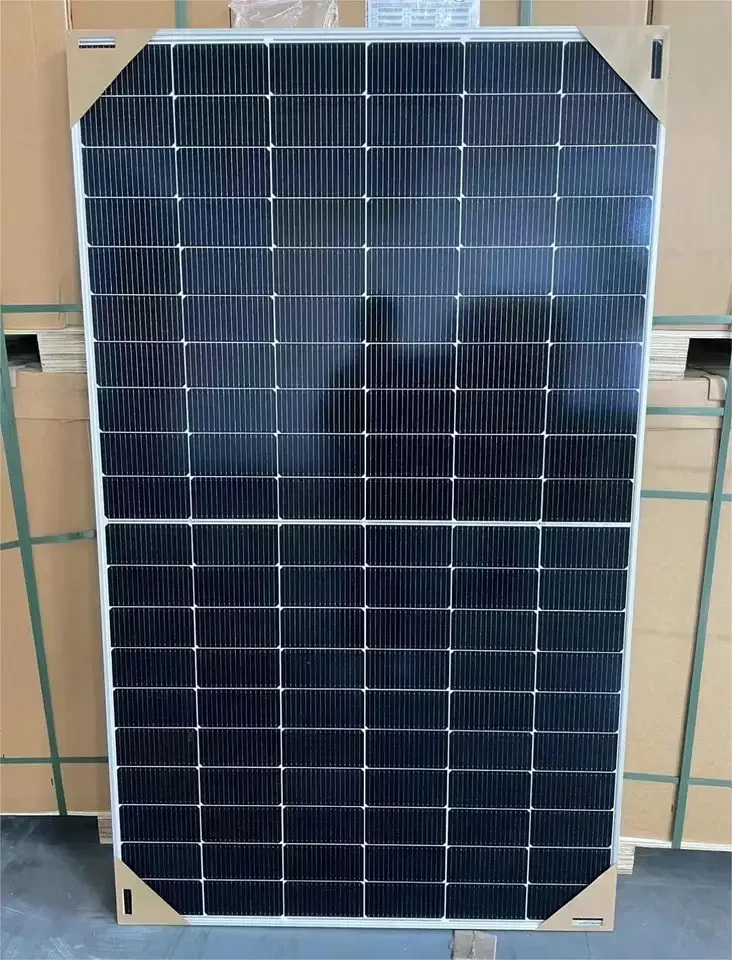

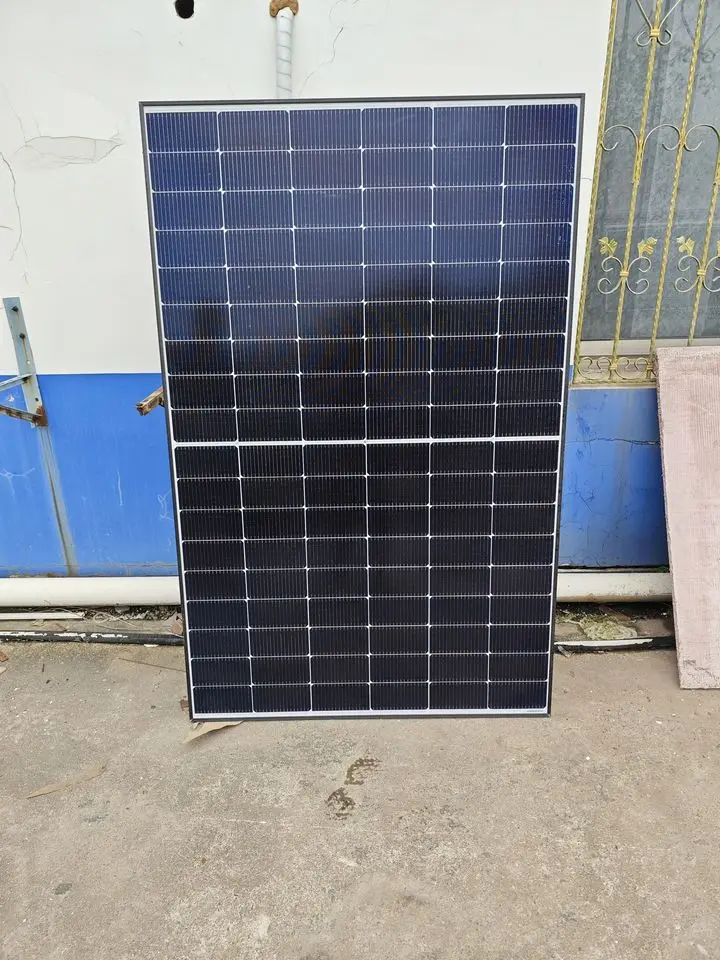

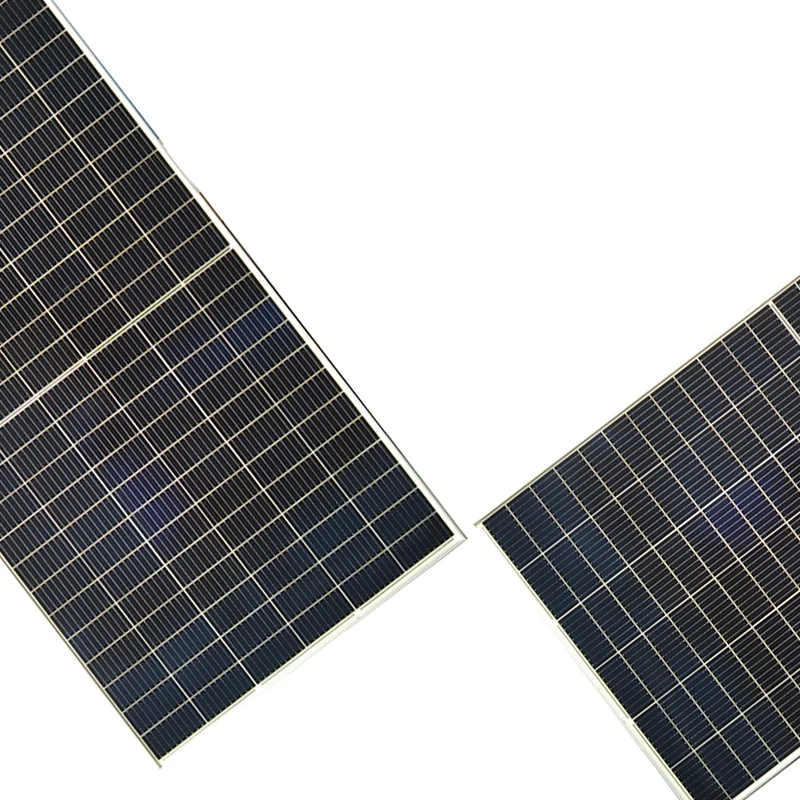

Detailed Images
Peak Power Watts-PMAX (Wp)* | 400w |
Solar Cells | Halfcells monocrystalline |

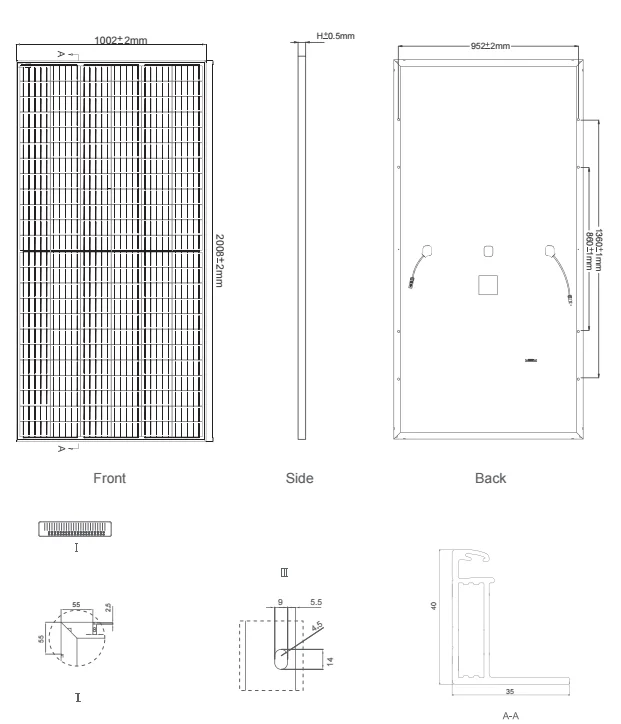

Module Dimensions | 2008 × 1002 × 40 mm |
Weight | 22.5kg |
Power Output Tolerance-PMAX (W) | 0 ~ +5 |
Maximum Power Voltage-VMPP (V) | 40.5V |
Maximum Power Current-IMPP (A) | 9.35A |
Open Circuit Voltage-VOC (V) | 48.9V |
Short Circuit Current-ISC (A) | 9.75A |
Module Eciency m (%) | 18.89% |
NOCT(Nominal Operating Cell Temperature) | 44°C (±2°C) |
Operational Temperature | -40~+85°C |

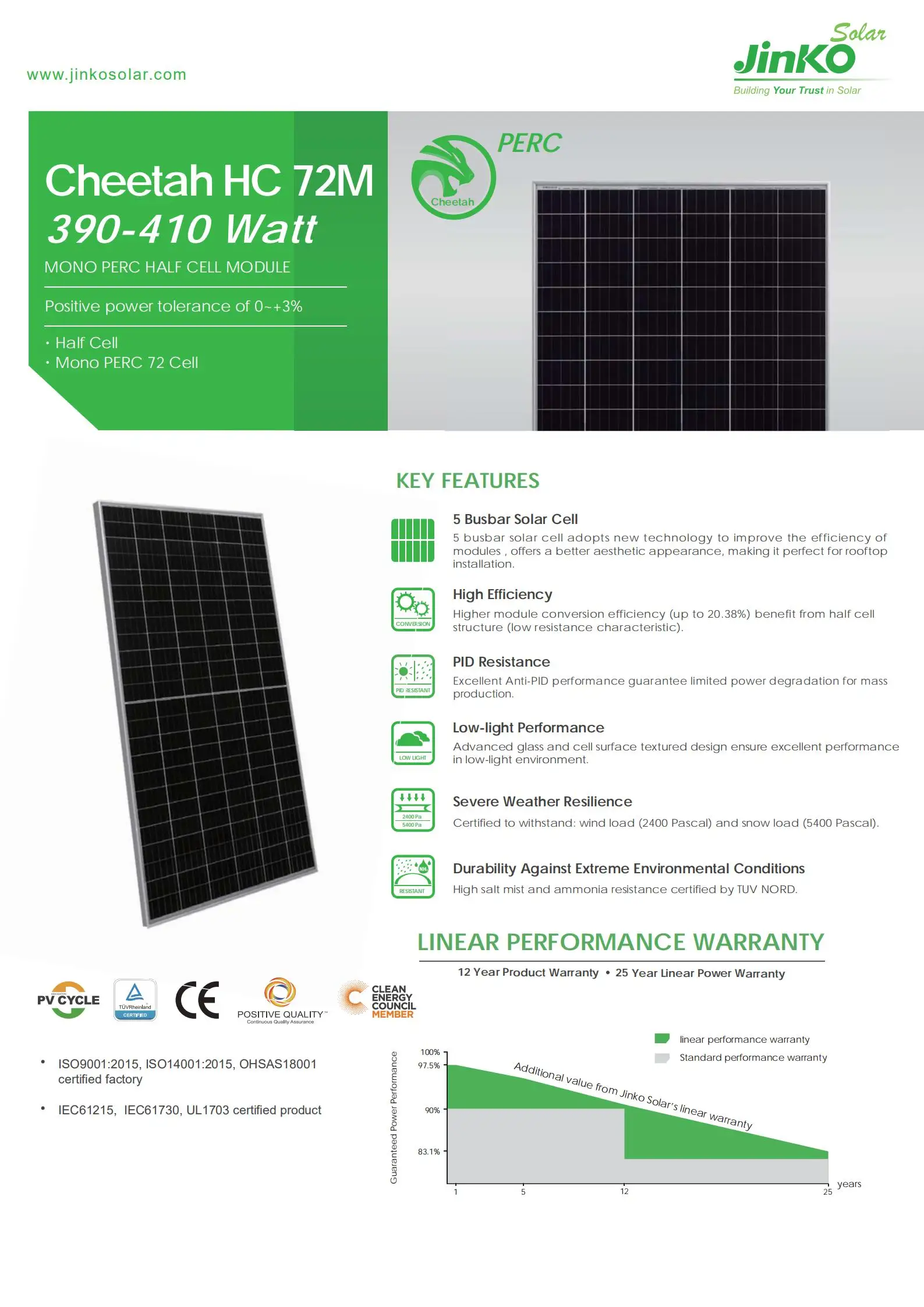

Specifications
Model Number | JKM390M-72H-V | JKM390M-72H-V | JKM395M-72H-V | JKM400M-72H-V |
Rated Power in Watts-Pmax(Wp) | 385 | 390 | 395 | 400 |
Open Circuit Voltage-Voc(V) | 49.1 | 49.3 | 49.5 | 49.8 |
Short Circuit Current-Isc(A) | 9.92 | 10.12 | 10.23 | 10.36 |
Maximum Power Voltage-Vmpp(V) | 48.0 | 41.1 | 41.4 | 41.7 |
Maximum Power Current-Impp(A) | 9.44 | 9.49 | 9.55 | 9.60 |
Module Efficiency (%) | 18.8 | 19.38 | 19.63 | 19.88 |
TEMPERATURE & MAXIMUM RATINGS
Nominal Operating Cell Temperature (NOCT) | 45°C±2°C |
Temperature Coefficient of Voc | -0.29%/°C |
Temperature Coefficient of Isc | 0.05%/°C |
Temperature Coefficient of Pmax | -0.39%/°C |
Operational Temperature | -40~+85°C |
Maximum System Voltage | 1500VDC |
Max Series Fuse Rating | 20A |
Limiting Reverse Current | 20A |

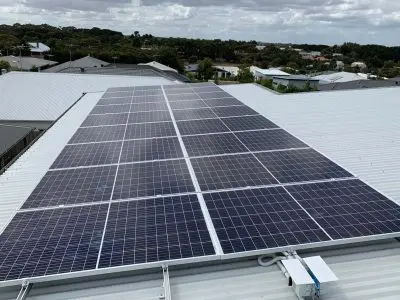

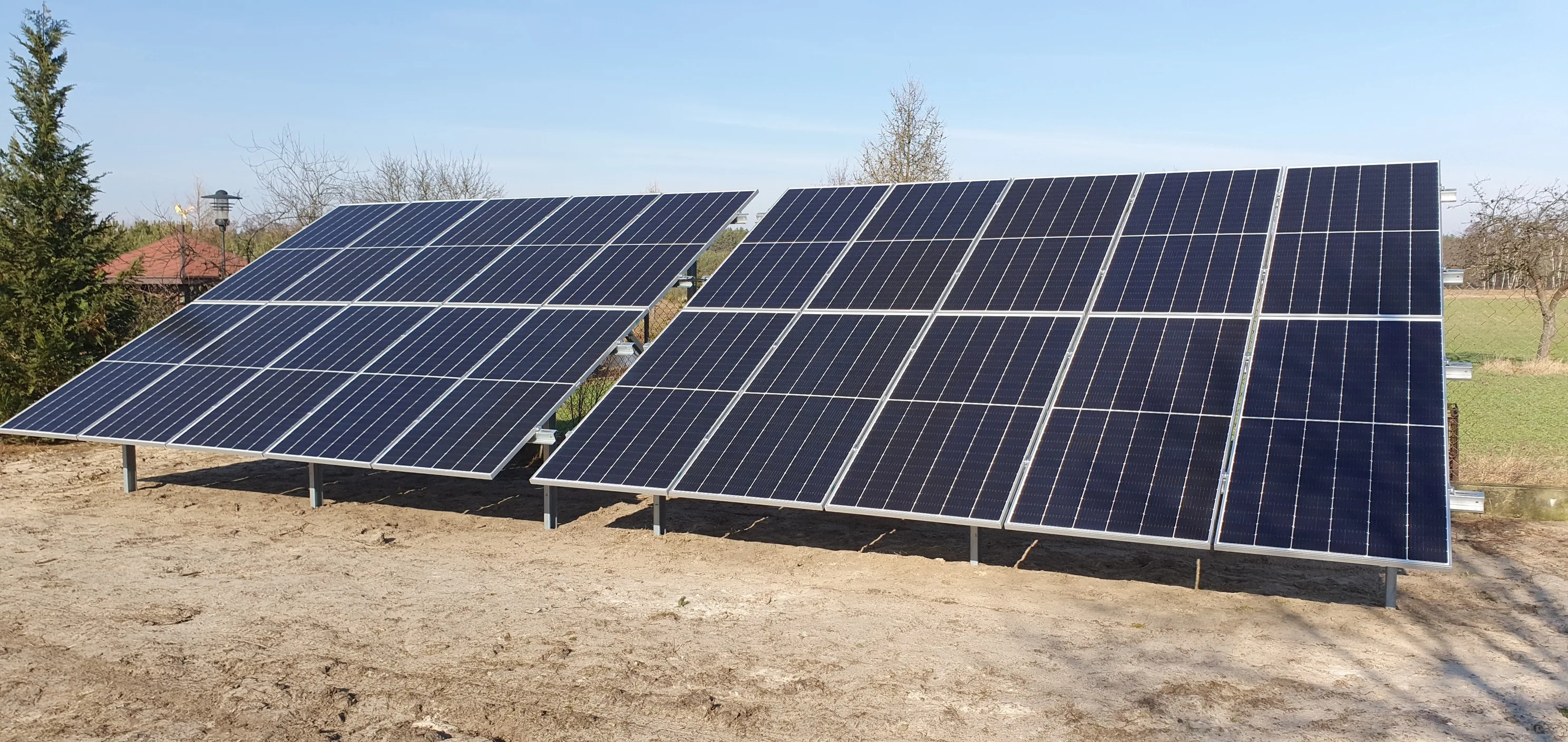

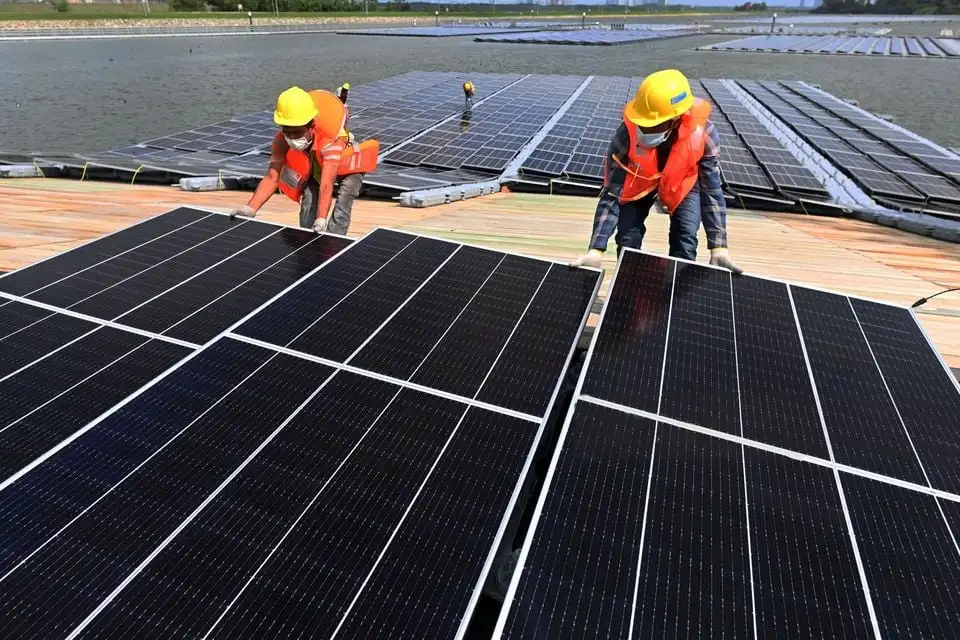

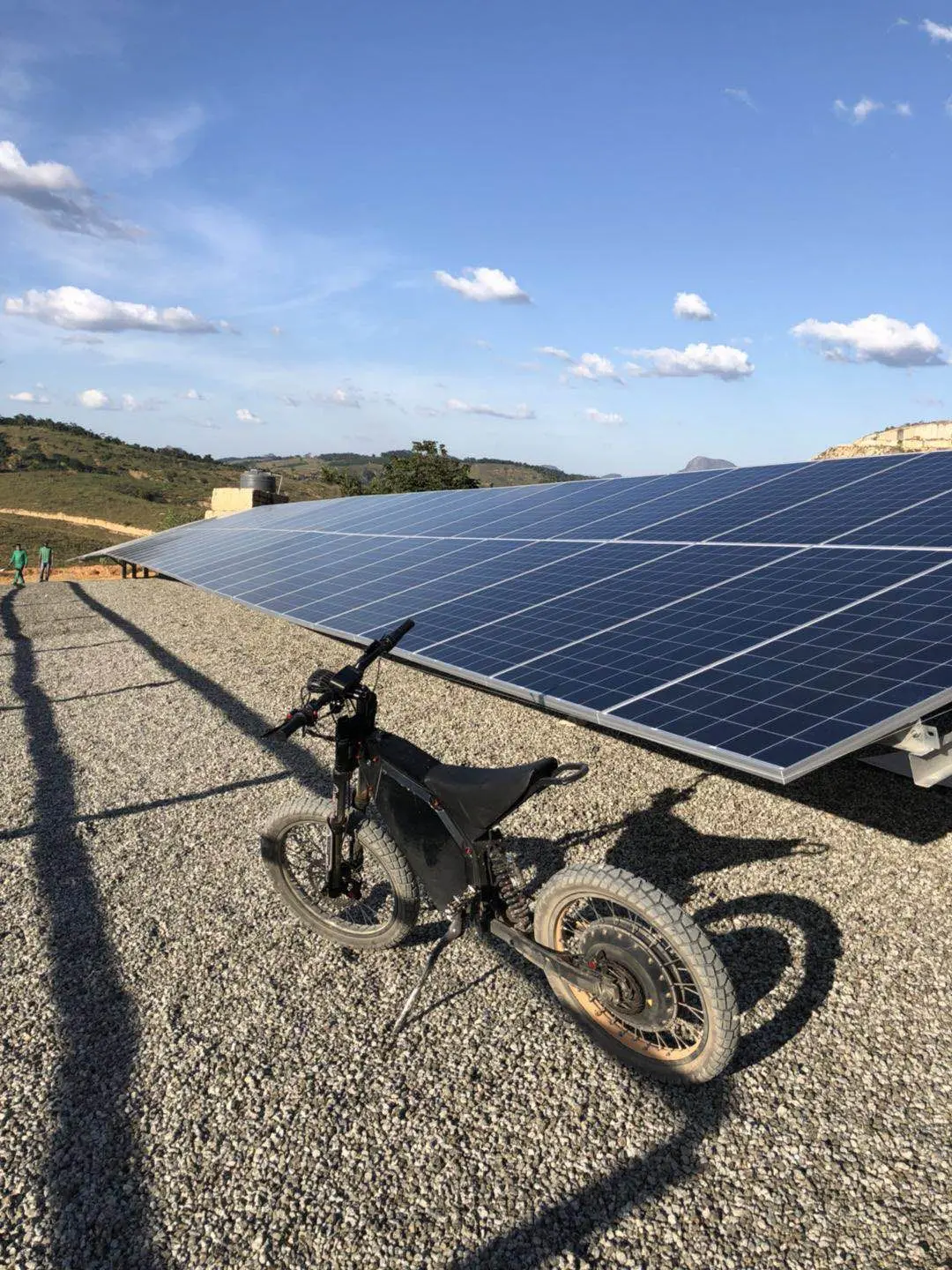

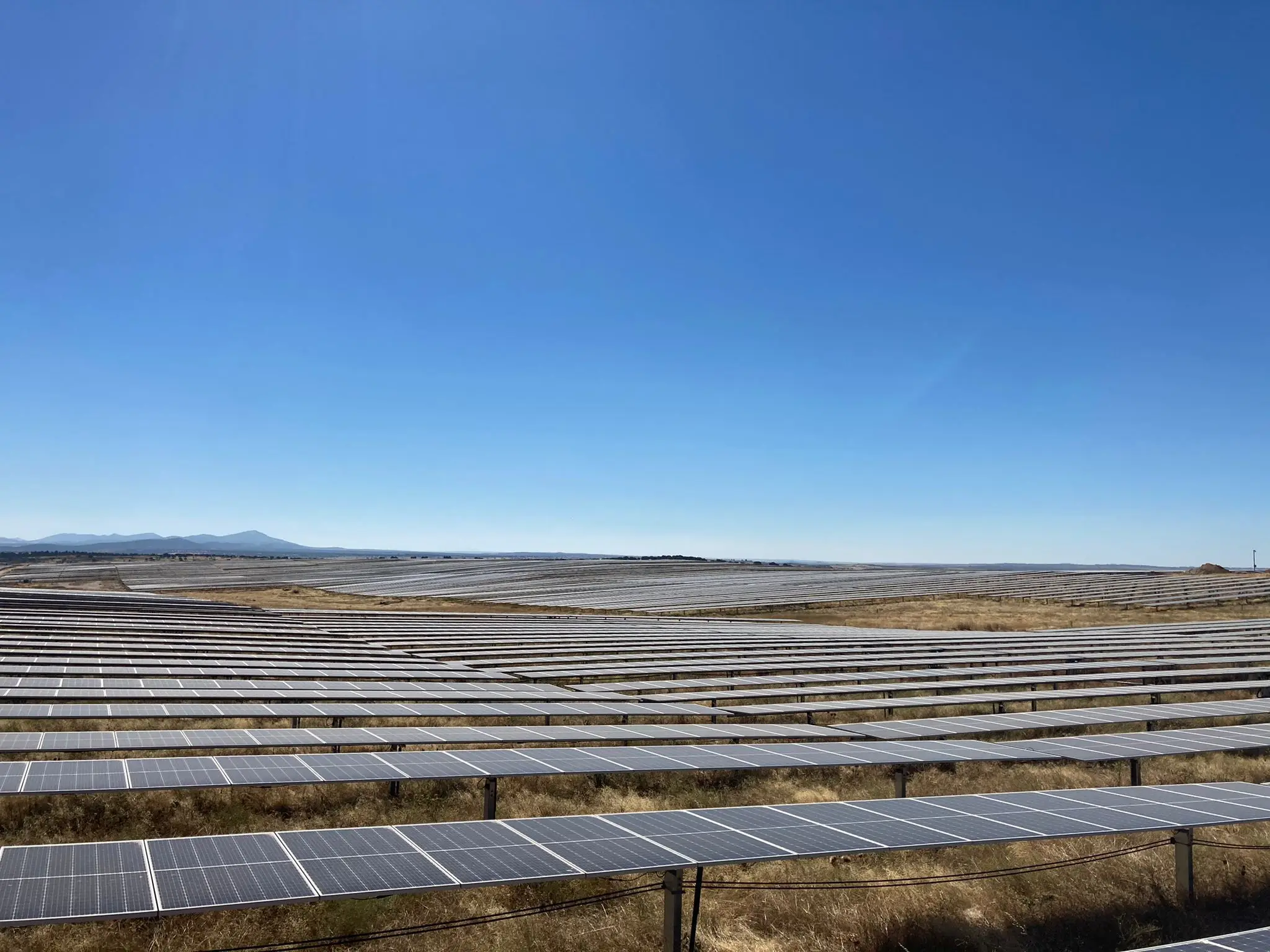

Project
We have buyers from all around the world , like Brazil , USA , Australia , Urkain , and Sweden ect .
We will ask the feedback from the buyer who bough our product every time , and we got very high praise from our buyer.

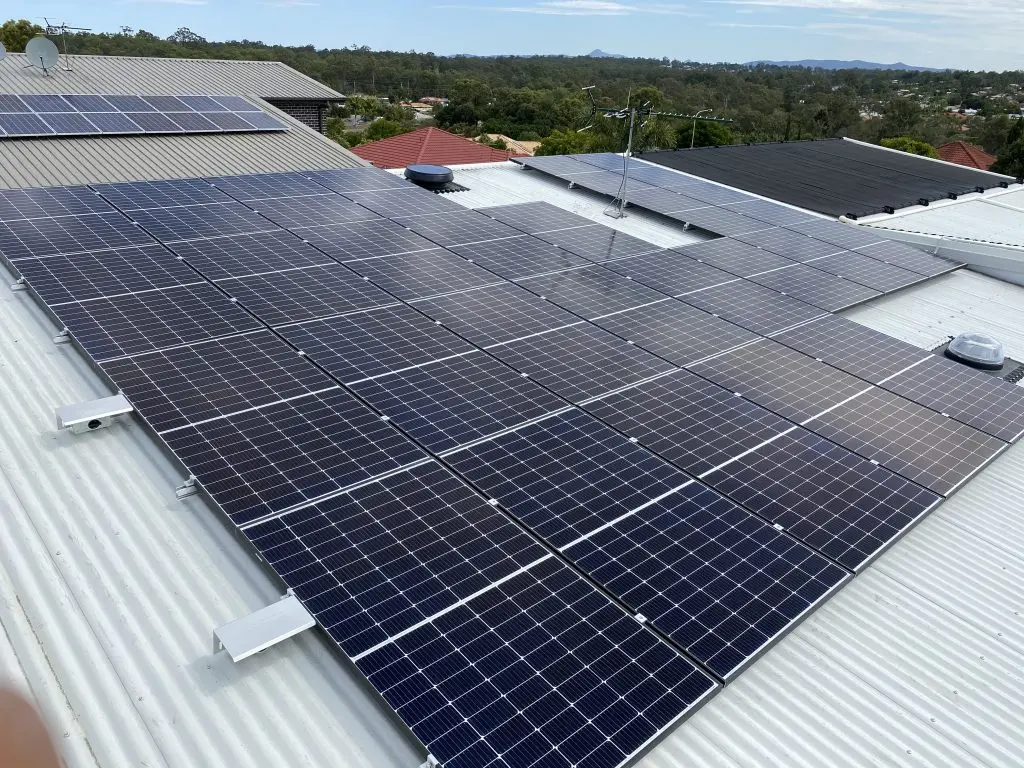

We sell the panel to huge solar farm and also the house using , also the trader ect .

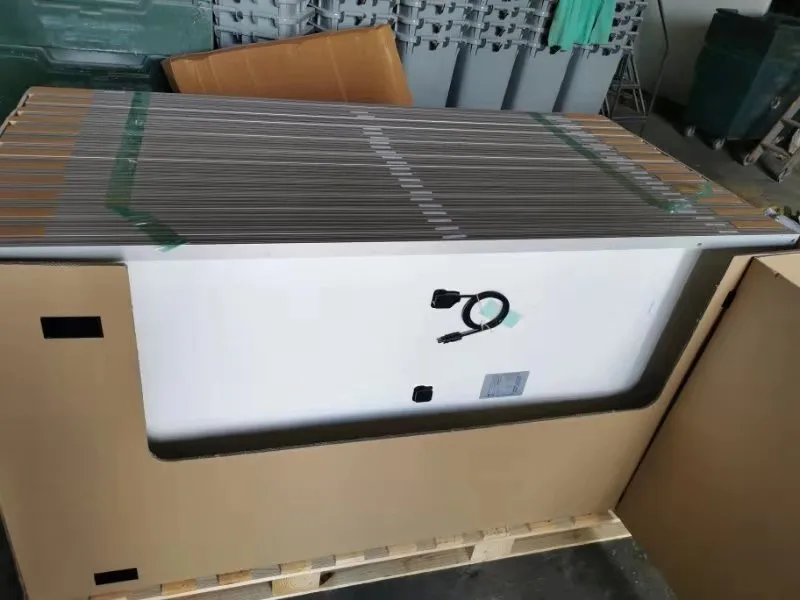

Packing & Delivery
Delievery way
We have warehouse in Ningbo , Malaysia ( Port Klang ) and Vietname ( Haiphong ) also US ( LA ) So we can ship it by sea and Train,if it's sample panel , we can ship it by air .
also you can ship it by yourself if you have forwarder ,
for US Markets , we have DDP term , ship the goods to your warehouse .
40ft | 20ft | |
Number of modules per container (pcs) | 648 | 270 |
Number of modules per pallet (pcs) | 27 | 27 |
Number of pallets per container ( pallet) | 24 | 10 |
Packaging box dimensions (LxWxH) in mm | 1980*1130*1130 | 1500VDC |
Box gross weight[kg] | 640 | 640 |
accept pay on Alibaba and also accept pay by TT
EX-work : 30% pay advance , 70% pay when loading containerFOB : 30% pay advance , 70% pay when loading container
CIF : 30% pay advance , 70% pay when see the copy of BL
Ship by express : 100% pay advance
and we can accept US Dollar and Chinese Yuan , also EURO
Why Meisongmao
brief introduction of MeisongMao
We are Shenzhen Starworld Electronics Co., Ltd. which is from Shenzhen city Guangdong Province China .
We are supplying solar panel and solar cells to all around the world , solar farm , house using , on grid , off grid .
For now , 60cells and 72cells panel and 122 halfcells also 144 halfcells solar panel is our mainly product .
What we supply is definitely high quality from tier1 brand , and also sometime we may have chance to get some special products which was promotion products ,
If you are working on solar business, let's talk and add my whatsapp also email or follow my facebook on the bottom of this webpage , I will share those news once I get .
We are supplying solar panel and solar cells to all around the world , solar farm , house using , on grid , off grid .
For now , 60cells and 72cells panel and 122 halfcells also 144 halfcells solar panel is our mainly product .
What we supply is definitely high quality from tier1 brand , and also sometime we may have chance to get some special products which was promotion products ,
If you are working on solar business, let's talk and add my whatsapp also email or follow my facebook on the bottom of this webpage , I will share those news once I get .
