Motor operated ac adapter actuator liner 3 way ball valve for water supply


( )



Product Description

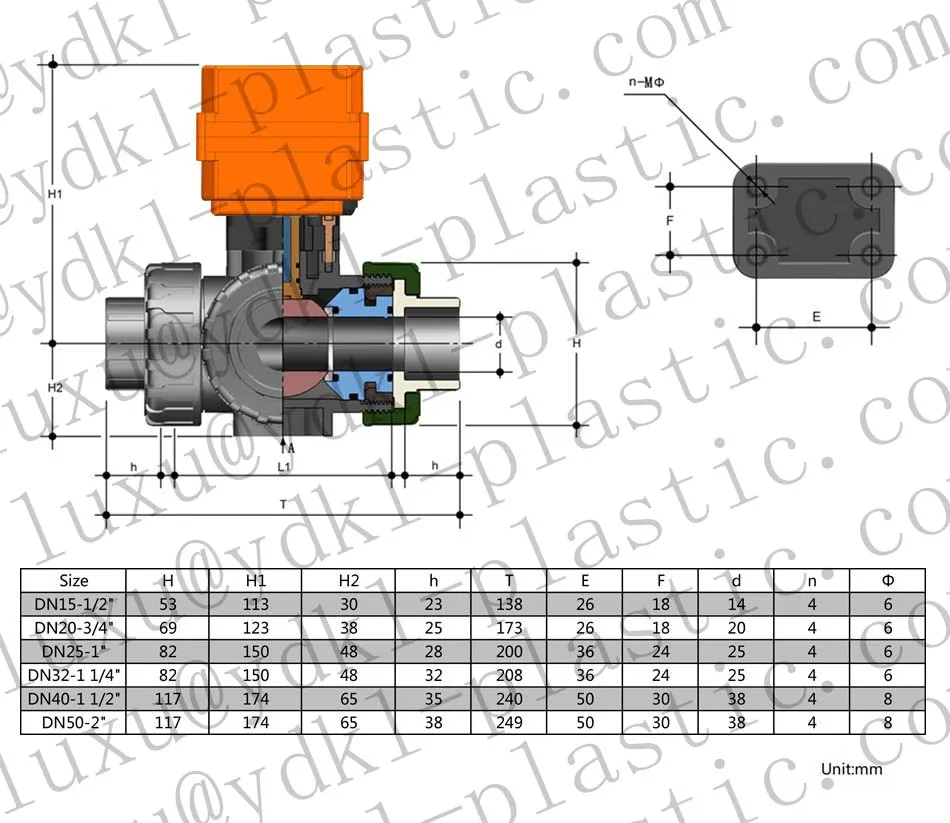

3 way ball valve














*Available body materials: PVC/PP/PVDF
*Available seal materials : EPDM and FPM
*Available size:  from 1/2" to 2" size
*100 % pressure tested at our factory
*Other Materials available (MOQ apply)
*Standard: JIS/DIN/BSPT/ANSI/NPT
*Connect with Pneumatic or Electric Actuators directly

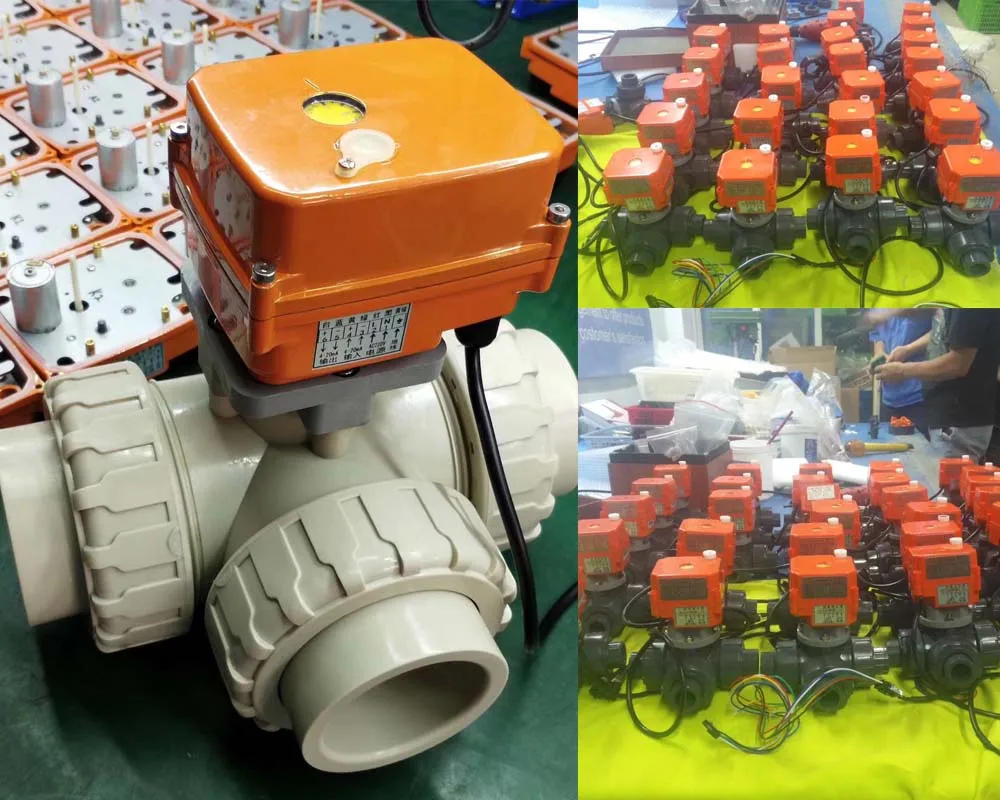

3 way ball valve

And you may leave us message for more information...







Application Case


It is a wise way to use YDKL motorized 3 way ball valve to replace to motor valve in above picture.



                                    PIPE STANDARD OF PVC PIPE

















































































































Normal size    Mean outside diameter mm
 B.S. ANSI. JIS DIN
 1/2'' 21.2 21.34 22.00 20
 3/4''26.6  26.67 26.00 25
 1'' 33.4 33.40 32.00 32
 1-1/4'' 42.1 42.16 38.00 40
 1-1/2'' 48.1 48.26 48.00 50
 2'' 60.2 60.28 60.00 63
 2-1/2'' 75.2 73.03 76.00 75
 3'' 88.7 88.90 89.00 90
 4'' 114.1 114.3 114 110
 5'' 140 - 140 140
 6'' 160 168.3 165 160
 8'' 225 219.1 216 200
 10'' 200 273.1 267 250
 12'' 315 223.9 318 315




Design Advantages:


1. Extra-large diameter shaft is reinforced by additional resin and eliminates stem breaks.
2. Concentric machined ball.
3. Union ends for ease of piping and removal.


4. Machined end connector ensure the precision of size.


5. Stainless insert of shaft are more durable and easy to connect with actuator directly.

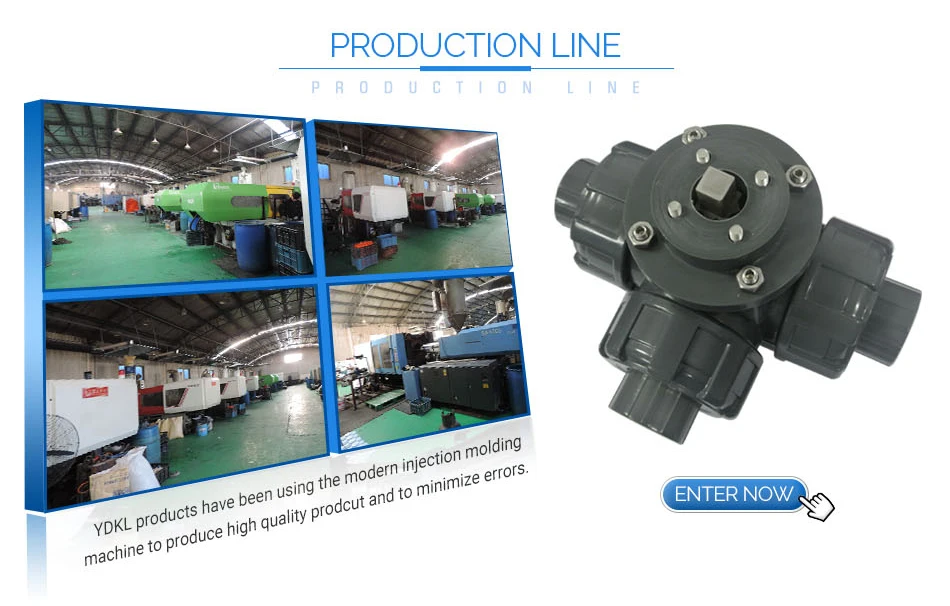

Production Line


3 way ball valve

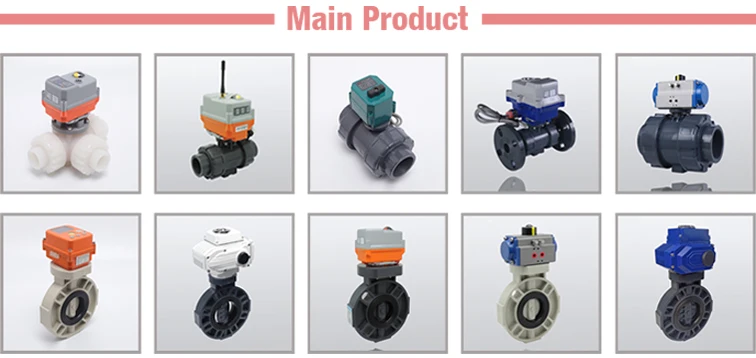

Products Catalog


motor operated ac adapter actuator liner 3 way ball valve for water supply





Company Profile





.jpg





.jpg









15 years of continuous efforts and breakthroughs


Just to make you more satisfied with the products






Let's make money together !





-717_10





FAQ









motor operated ac adapter actuator liner 3 way ball valve for water supplyQ:Are you trading company or manufacturer ?
A:We are professional manufacturer,specialized in VALVES for many years.
Q:How about OEM or ODM?
A:YDKL have experienced technical team,which can design the valve according to customized request.
Q:How long is your delivery time?
A:Generally,It is 7 days for the conventional product in stock,otherwise it is 20-30 days after deposit.Urgent order can be negotiable.
Q:Do you provide samples ?
A:Absolutely! But we consider to receive small amount of sample fee as a sign of sincerely cooperation and will compensate it in products for your future order.
Q:Can I have my own Logo on the product?
A:Yes, sure,if your quantity is considerable,we would like to engraved your logo in the products.
