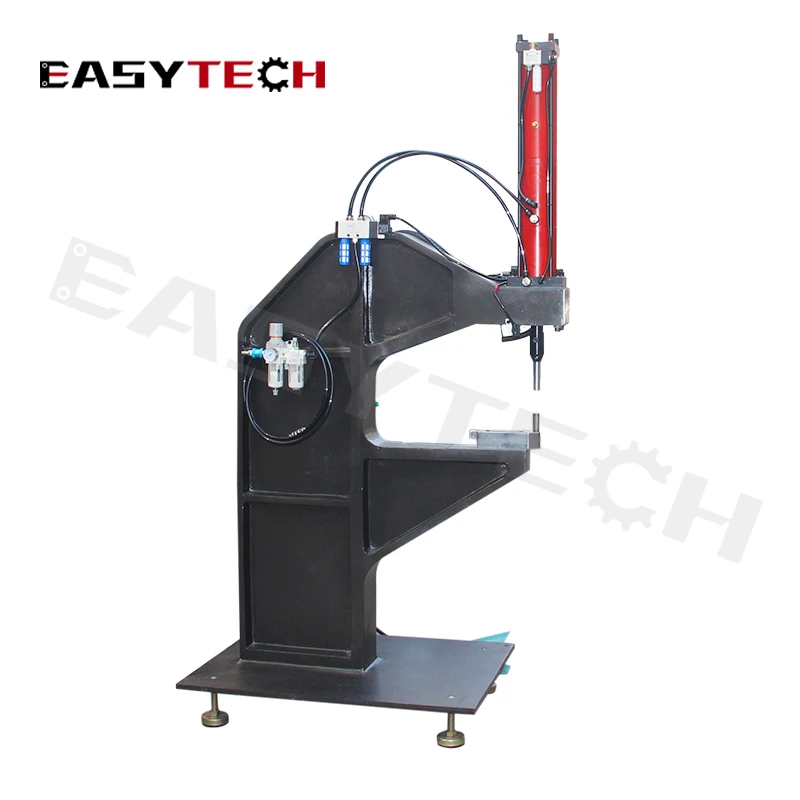

Factory direct rivet tool pneumatic hand press machine riveting orbital nut bolted riveter
- Category: >>>
- Supplier: Dongguan Easytech Automation Mechanical And Electrical Equipment Co. Ltd.
Share on (62190226181):
Product Overview
Description
| Model | ETJSTQ-16 | ETJSTQ-18 |
| Drive Model | Pneumatic(2-7bar) | Pneumatic(2-7bar) |
| Output Pressure | 0.5-5T | 1-8T |
| Throat Depth | 500mm | 500mm |
| Security Unit | yes | yes |
| Limit Block | yes | yes |
| Power | 0.02KW | 0.02KW |
| Net Weight | 450KG | 500KG |
| Pressure Consumption | 1.5L/Time | 2L/Time |
| Pressure Differential | +/-1% | +/-1% |
| Holding Time | 1-5S | 1-5S |
| Down Speed | 100mm/s | 100mm/s |
| Throat Height | 365mm | 365mm |

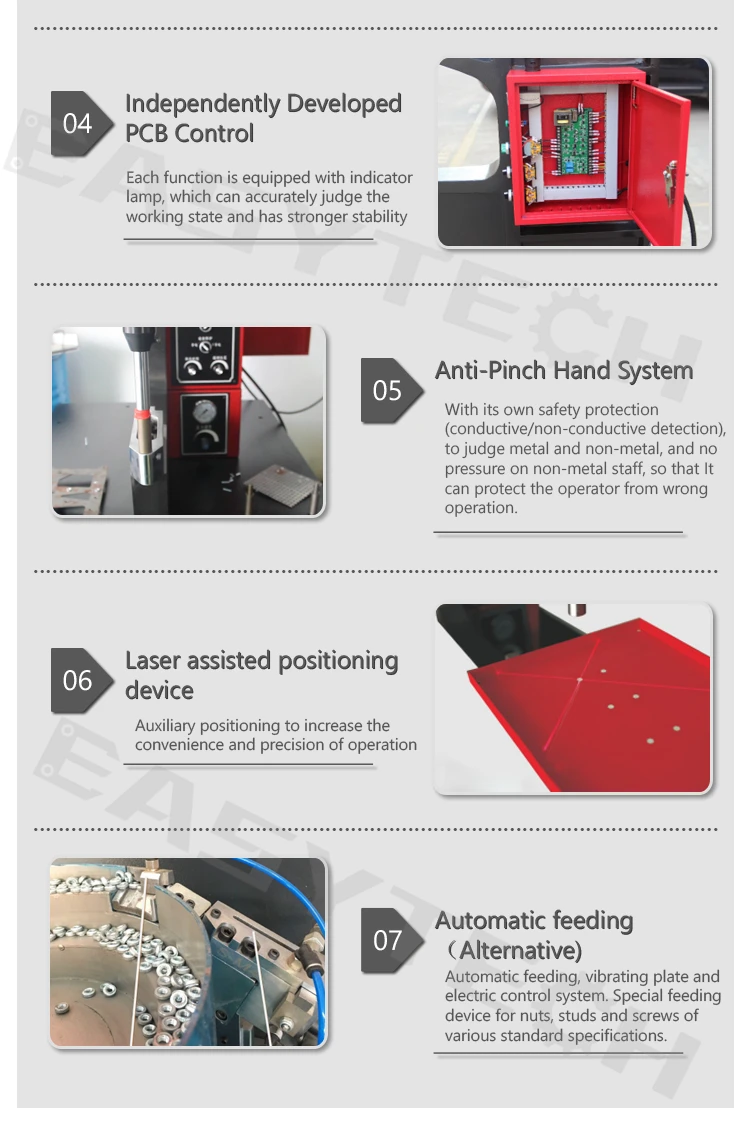

| Laser Positioning | yes | yes |
| Anti-Rotation | yes | yes |
| Voltage | 220V | 220V |

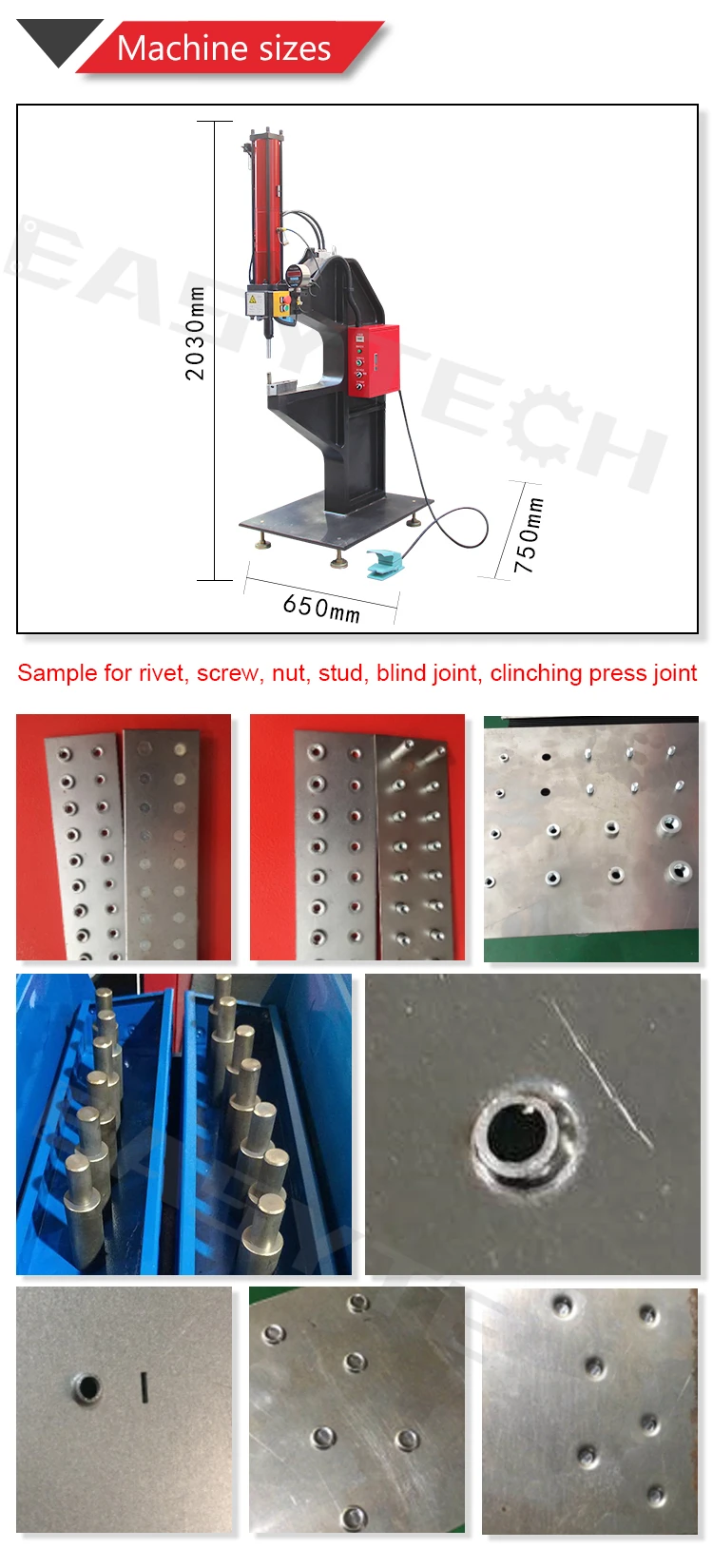

| Dimension(L*W*H) | 1100mm*650mm*2030mm | 1100mm*650mm*2030mm |
Pneumatic type and hydraulic type,
1, Drive mode is different.
2, The maximum pressure is 8T for pneumatic type and 6T for hydraulic type.
3, Hydraulic pressure riveting machine can be equipped with automatic feeding device, high automation. Pneumatic type can only add the automatic feeding nut.
4, Pneumatic section and hydraulic section slightly different parameters. Choose the suitable type according to your requirements.
