ETCR014 High Accuracy Sharp-nose Pliers AC Leakage Current Sensor of High Harmonic Current Measure Power Factor Detection
1.Introducion:
The ETCR014 needle-nose pliers current sensor uses Permalloy magnetic core, which has the characteristics of small volume, high precision, good stability and strong anti-interference ability. It is suitable for measurement of leakage current, current, power and energy of AC with high accuracy and small phase error in electric power, communication, meteorology, industrial and mining enterprises, etc. It can be connected to various high-precision digital multimeters or data loggers and is very convenient to use.
2.Technical Specifications:
* Measurement range: AC 0.00mA~100A
* Resolution: AC 0.01mA
* Accuracy grade: 1.0%FS(50Hz/60Hz; 23°C±2°C)
* Standard turns ratio: 2500:1 (optional 2000:1; 1000:1)
* Phase error: ≤2°(50Hz/60Hz; 23°C±2°C)
* Reference load: RL: 0-300mA≤300Ω; 0~10A≤10Ω; 0~100A≤1Ω
* Weight: 194g

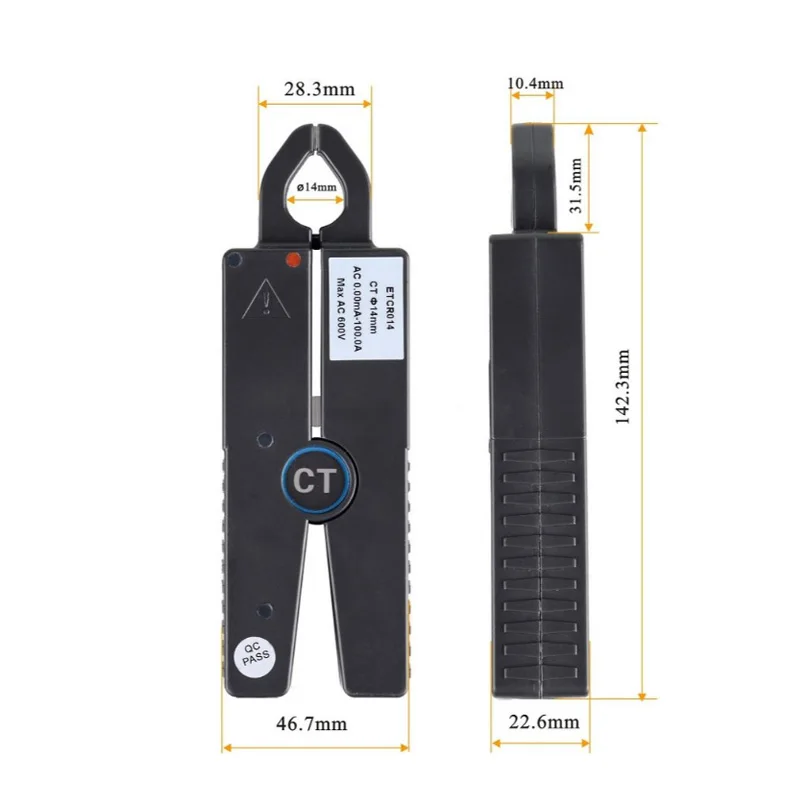

* Dimensions: Length, width, height: 142.3mm × 46.7mm × 22.6mm
* Clamp size: φ14mm
* Detection method: Clamp CT
* Output method: Current sensing output
* Output interface: φ3.5mm audio plug
* Output line: 2-core shielded cable, length 2m
* Current frequency: 45Hz~60Hz (measured current frequency)
* Frequency characteristics: 10Hz~100kHz
* Wire position: The tested wire is in the center of the jaws
* Line voltage: AC 600V circuit test
* Working temperature and humidity: -20 °C ~ 50 °C; 80% rh below
* Storage temperature and humidity: -10 °C ~ 60 °C; 70% rh below
* Insulation strength: AC3700V/rms (between core and shell)
* Suitable for safety regulations: IEC1010-1, IEC1010-2-032, Pollution Degree 2, CAT III (600V)
