Versatile EPON OEO Repeater EPON Amplifier
- Category: >>>
- Supplier: Shanghai Baudcom Communication Device Co. Ltd.
Share on (62190442186):
Product Overview
Description
Product:Versatile PON OEO Repeater EPON Amplifier
Overview
PON technology has been applied more and more widely in the domains of private network communication such as electric power, coal mining, broadcast and television, and army. As we know, the transmission distance in a PON system is restricted within 20km scope. Owing to the restriction of OLT transmission distance, the quantity of ONU devices has to be reduced in order to lengthen the transmission distance, which results in great waste of OLT interfaces and optical fiber resources occupied by OLT. Furthermore, the optical power is often small but the transmission distance typically exceeds 20km in these applications, in particular, the optical fiber resources may very possibly become inadequate at the entrances of optical fiber to communities or key clients.
BAUDCOM’s EPON OEO repeater amplifier is an optical transmission equipment which magnify and reshape signals during optical transmission process. The EPON repeater amplifier can provide 3R (i.e. re-amplification, reshaping and retiming) regeneration to signals during optical transmission, amplify weak input of optical signals, complete regeneration of electrical signals, and make transmission distance of PON become longer and support more extended users.The PON OEO fiber repeater/amplifier device can effectively save OLT quantity and lengthen network transmission distance. The OEO fiber repeater equipement have been widely applied for long-distance transmission in various optical communication applications.
Its advantages include in small size of optical signals, being economical and safe, and simple installation etc. Therefore, it can be applied in various optical transmission fields.
Features
Ø In accord with IEEE802.3ah and Chinese communication industrial standard (YD/T 1475-2006);
Ø Extend PON system transmission distance from 20km to 60km or even 80km;
Ø Uplink: supports combination of different types of PON OLT interfaces and different physical connectors;
Ø Downlink: supports different types of PON ONU interfaces (shunt or ONU interface).
Ø Be compatible with EPON system;
Ø Be compatible with EPON OLT and ONU equipment manufactured by different vendors;
Ø 1U desktop equipment, small space occupation and low power consumption;
Ø Support kinds network management modes, local management on terminal console; Telnet-based remote logon network management, Web-based and SNMP-based direct GUI management.
Ø Supporting EPON OEO relay function
Ø 3R signal regeneration
Ø Supporting 1550nm and 1620nm dual wavelength storage with externally connected passive equipment
|
|

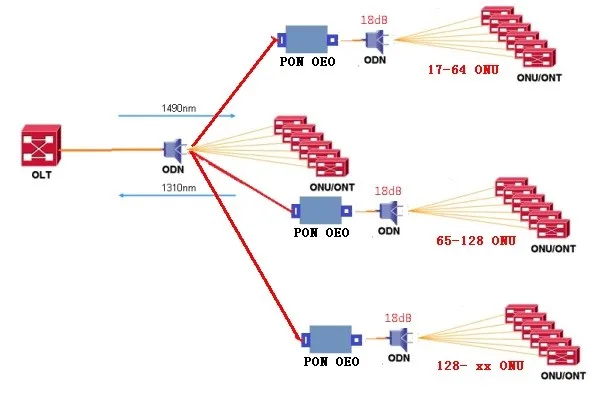

Uplink: supporting receipt and transmission of 2.488G/s or 1.25G/scontinuous signals. Downlink: supporting receipt and transmission of 1.25G/sburst-mode signals. Supporting 60km/1:64 ODN network expansion Where, OLT--->OEO BOX trunk supports 40km transmission; OEO BOX--->ONU supports 20km/1:64 ODN power budget. Refer to the below figure for details:
| ||||||||||||||||
Applying SFF or SFP optical interface module, connected as shown in the above figure. In EPON/GPON system, it will not generate any error code to the system and have no adverse effects on transmission or performance.
| ||||||||||||||||
| ||||||||||||||||
Typical Application:

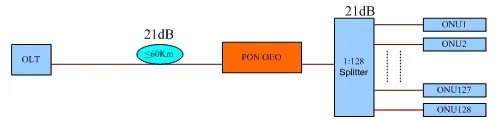

1. Extend Transmission Distance
Note: EPON system shall support measurement of corresponding physical distance, and PON OEO device can only lengthen the distance on the basis of optical properties.

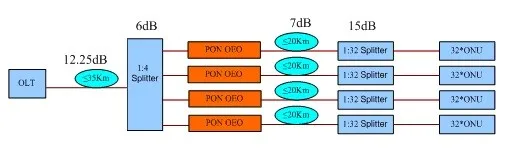

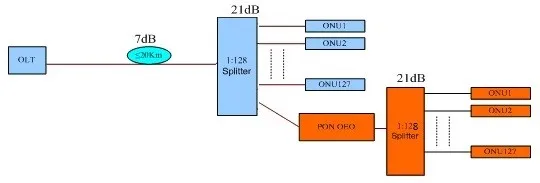

2. Extension of splitting ratio
Note: EPON system shall support online of corresponding 256 ONU, and PON OEO can only extend the splitting ratio on the basis of optical properties
Note: EPON system shall support measurement of corresponding physical distance and differential range, and PON OEO device can only lengthen the distance on the basis of optical properties
Warranty
All products have been checked and packed in good condition after our services QC test .If you have any questions, please feel free to contact us, we would get it solved in limited time and our service would make you trust us.
3 years normal warranty is provide
Contact us
Official website://www.e1-converter.com
TEL:0086-21-37709251
Email:sales01(at)baudcom.com.cn
Skype ID:baudsales01
Whats APP:+86 15955447428
WeChat:xiaofeng159201
QQ:382881931
Your any questions will be responded within 12hours!
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping for gepon olt ?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certification
Factory Production
Product Testing
After Sales Services
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
