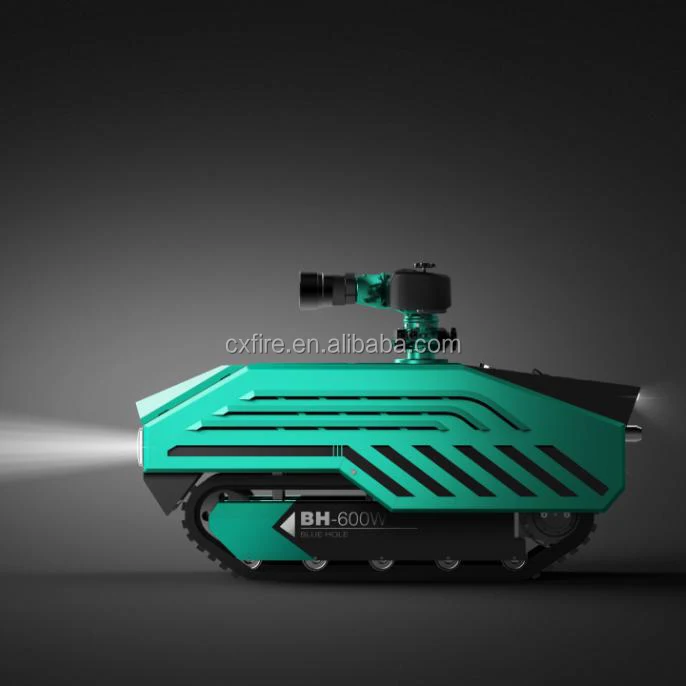

Heavy Duty Fire Robot | Detecting robot

Product Overview

Description

1. Brief Introduction

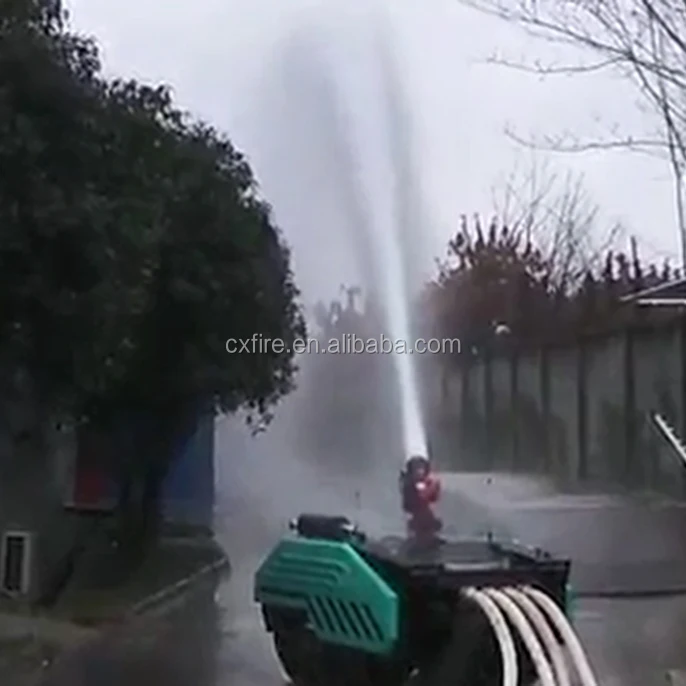

1.1 Heavy-Duty Fire-fighting robot RXR-M120D is suitable for use in petrochemicals, oil tank areas, large warehouses, buildings, etc. In these places, there are maybe high temperature, strong heat radiation, and easy collapse situation (fire vehicles and personnel cannot approach), so this fire robot could detect, extinguish the fire, cool the dangerous areas, wash chemical pollution. It can provide ideal security for firefighters.



1.2 This fire robot uses Germany Deutz diesel engine as the power source. It has the advantages of strong power, strong mobility and long battery life.



1.3 This fire robot consists of mobile carrier and remote control fire monitor (American Akron). It has water curtain self-protection function, and can achieve walking, crossing obstacles, climbing, in-situ steering and fire fighting.



1.4 This fire robot adopts ATV hydraulic walking structure, which has strong cross-barrier ability and can easily walk in complex terrain.



1.5 This fire robot is equipped with thermal imaging camera, toxic and flammable gas detection system, electric winch



2. Main Features and Specifications



Move Type	Track-type (Fire retardant)
Rated Power	36 kw (Germany Deutz diesel engine)

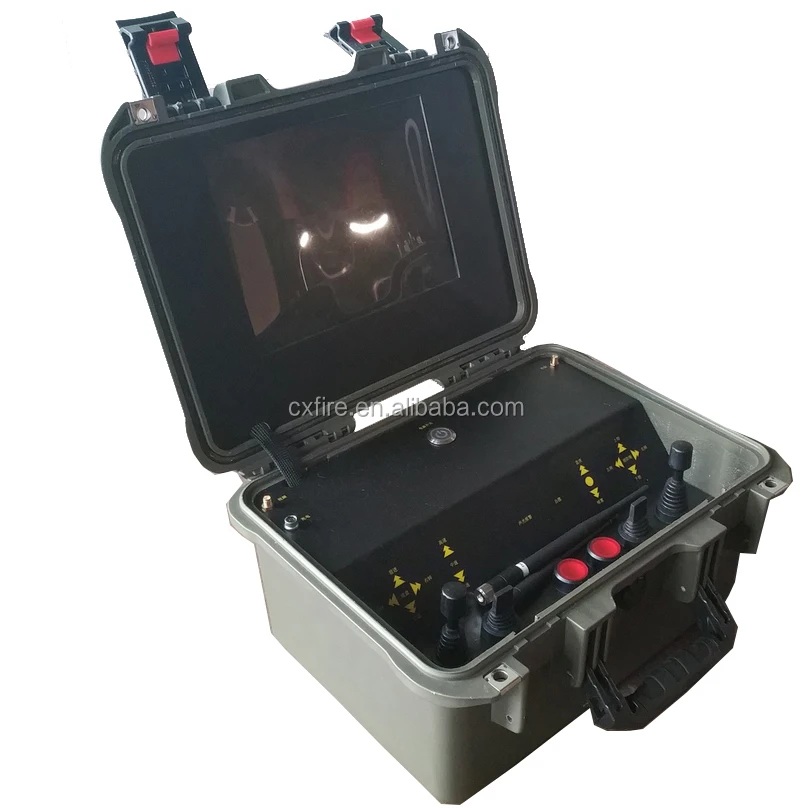

Valid Remote Distance with Video (Wireless)	500m
Move Speed	0.5 m/s (with fire hose)
Anti Overturning Angle	30°

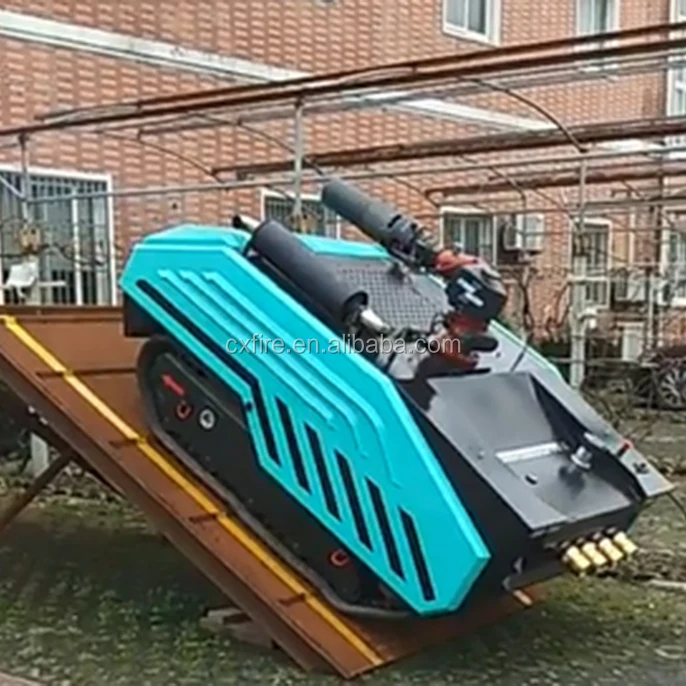

Climbing slope	32°
Across Vertical Obstacle Height	170mm
Turning Radius	In-situ Rotation
Fire monitor and Flow Rate	U.S. Akron 120 L/s
Spray Pressure	0.8MPa
Spray Distance	95m
Spray Angle	100°
Water Inlet	4pcs 65mm Inlets
Total Weight	Approx. 1700kg
Dimension (L×W×h)	Approx. 2660×1550×1510mm
With following special equipment:
1. Thermal imaging camera
2. Toxic and flammable gas detection system
3. Front electric winch
