Handheld semi automatic cbd oil filling machine vape cartridge injection cartridge filler gun style filling machine

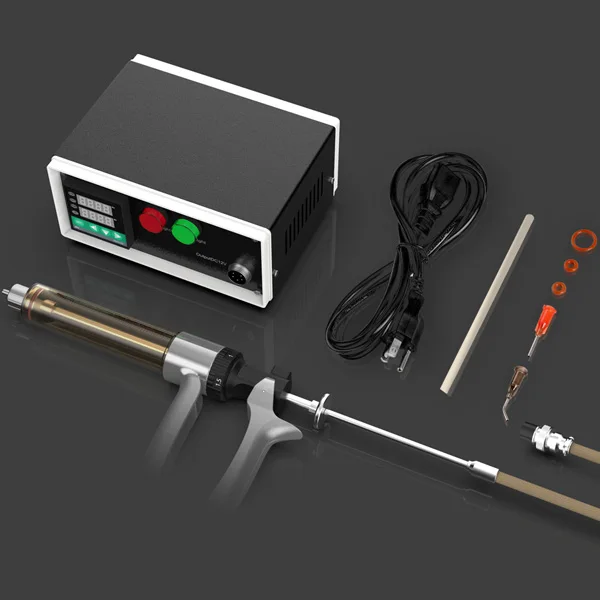

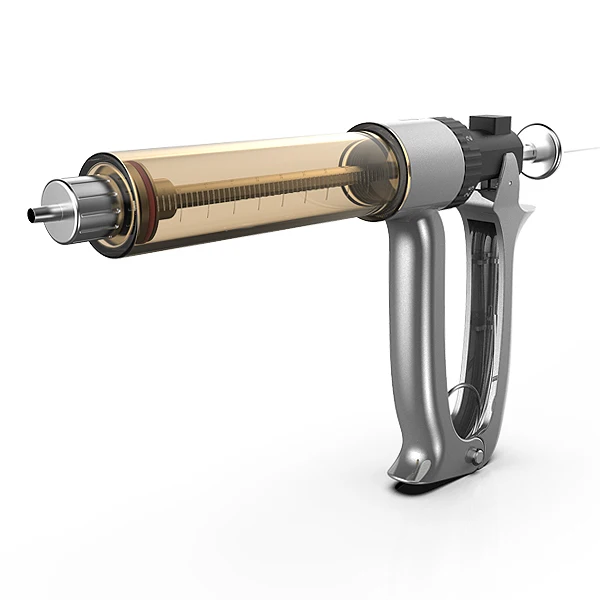

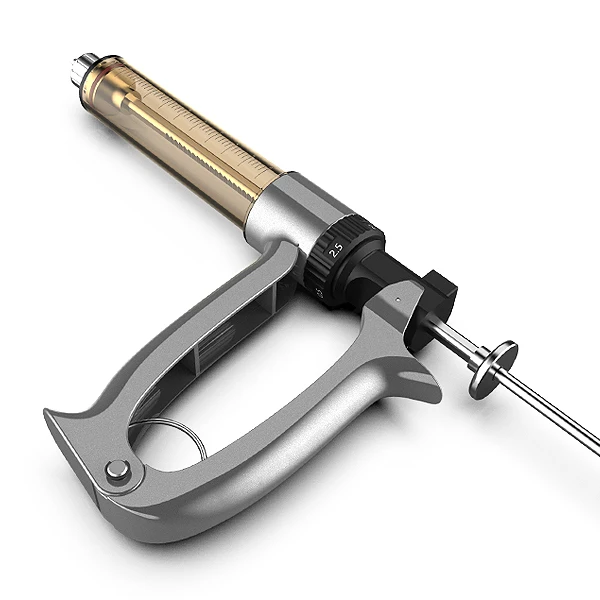

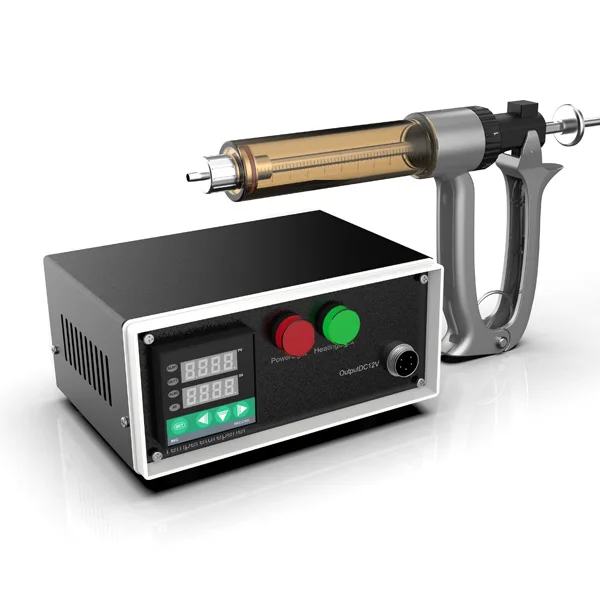

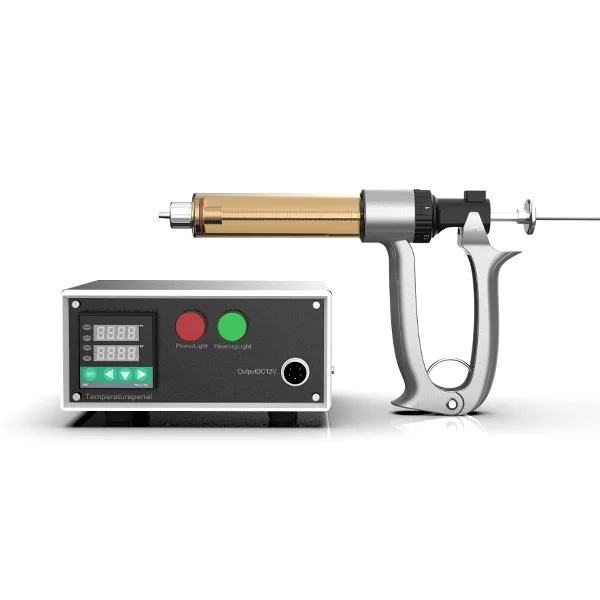

LAVA CORE is the first-generation oil injector developed by BBELL Technology. This oil injector has integrated heating and oil injection as a whole. It adopts a special structure with internal central heating, which has higher heat transfer efficiency and faster heating. The larger oil suction port diameter makes it suitable for both thin and concentrated oils. It uses extremely simple oil suction and oil injection principles, and combines with clever structure, which makes operation very simple and injection more efficient, and saves time & labor costs.

SPECIFICATIONS FOR BBELL LAVA CORE
Engine	Rated Voltage	V	110
	Rated Power	W	40
	Heating temperature	℃	0-100
Size	Temperature controller	mm	170(L)*130(W)*90(H)
	Filler	mm	25(L)*35(W)*15(H)
	Heating Rod/Lead Wire	mm	⌀5*400/1000
Others	Capacity	ml	25/50
	Gear	25ml	0.5/1/1.5/2/2.5ml
	Gear	50ml	1.0/2.0/3.0/4.0/5.0ml

Main Features

1) Using internal heating rod for heating.

2) Design of larger oil inlet/outlet nozzle.

3) 360° transparent tube wall.

4) Suitable for thick and thin oil.

5) Easy to operate, Easy to carry.

Packing & Delivery

Packaging
Size	440*270*100mm
Weight	3.0kg
Packaging Details	The normal package is paper box(Size: L*W*H).If container is too tigher,we will use pe film for packing or pack it according to customers special request.
