Пружинные зажимы для шлангов американского типа из нержавеющей стали с ремешком 12,7 мм
- Category: Hose Clamps >>>
- Supplier: Shenzhen Casignals Hardware Co. Ltd.
Share on (62190706359):
Product Overview
Description

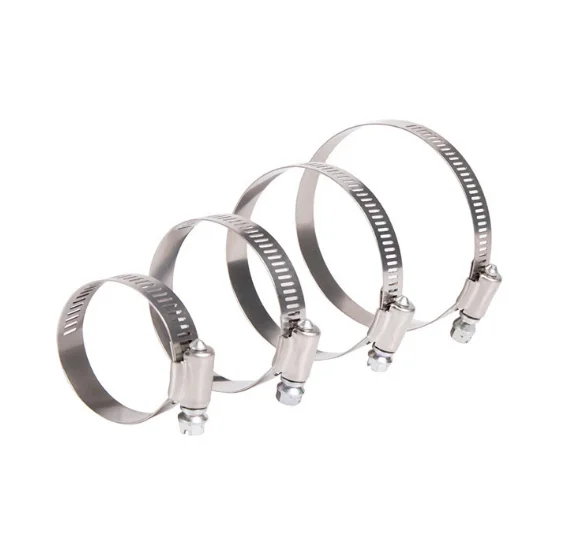

12.7 mm Band Stainless Steel American Type Spring Hose Clamps
American type hose clamp width or Worm Drive Hose Clamps Band width 1/2" (12.7mm) | American type hose clamp Band width 12.7mm Material: galvanized steel | German type hose clamp Band width 9mm | German type hose clamp Band width 12mm |
| Heavy Duty Hose Clamp | Double Ear Hose Clamp | Single Ear Hose Clamps | Contant Tension Clamps |
-
1. Used for clamp in automotive
2. Stamp with clients logo
3. Fur-free serration
4. Band width: 1/2" (12.7mm)
5. Thickness: 0.65mm
6. Material option:
W1: All carbon steel
W2: Stainless steel 201/301/304 housing and band with carbon steel screw.
W4: Alll stainless steel 201/301/304
W5: All stainless steel 316 material
7.Specification:
| Dia Range(in) | Dia Range (mm) |
| 1-1/16" | 14-27mm |
| 1-1/4" | 18-32mm |
| 1-1/2" | 21-38mm |
| 1-3/4" | 21-44mm |
| 2" | 27-51mm |
| 2-1/4" | 33-57mm |
| 2-1/2" | 40-63mm |
| 2-3/4" | 46-70mm |
| 3" | 52-76mm |
| 3-1/4" | 59-82mm |
| 3-1/2" | 65-89mm |
| 3-3/4" | 72-95mm |
| 4" | 78-101mm |
| 4-1/4" | 84-108mm |
| 4-1/2" | 91-114mm |
| 4-3/4" | 95-120mm |
| 5" | 105-127mm |
| 5-1/4" | 110-134mm |
| 5-1/2" | 118-140mm |
| 5-3/4" | 125-146mm |
| 6" | 130-152mm |
| 6 1/4" | 133-159mm |
| 6-1/2" | 143-165mm |
| 6 3/4" | 146-171mm |
| 7" | 155-178mm |
