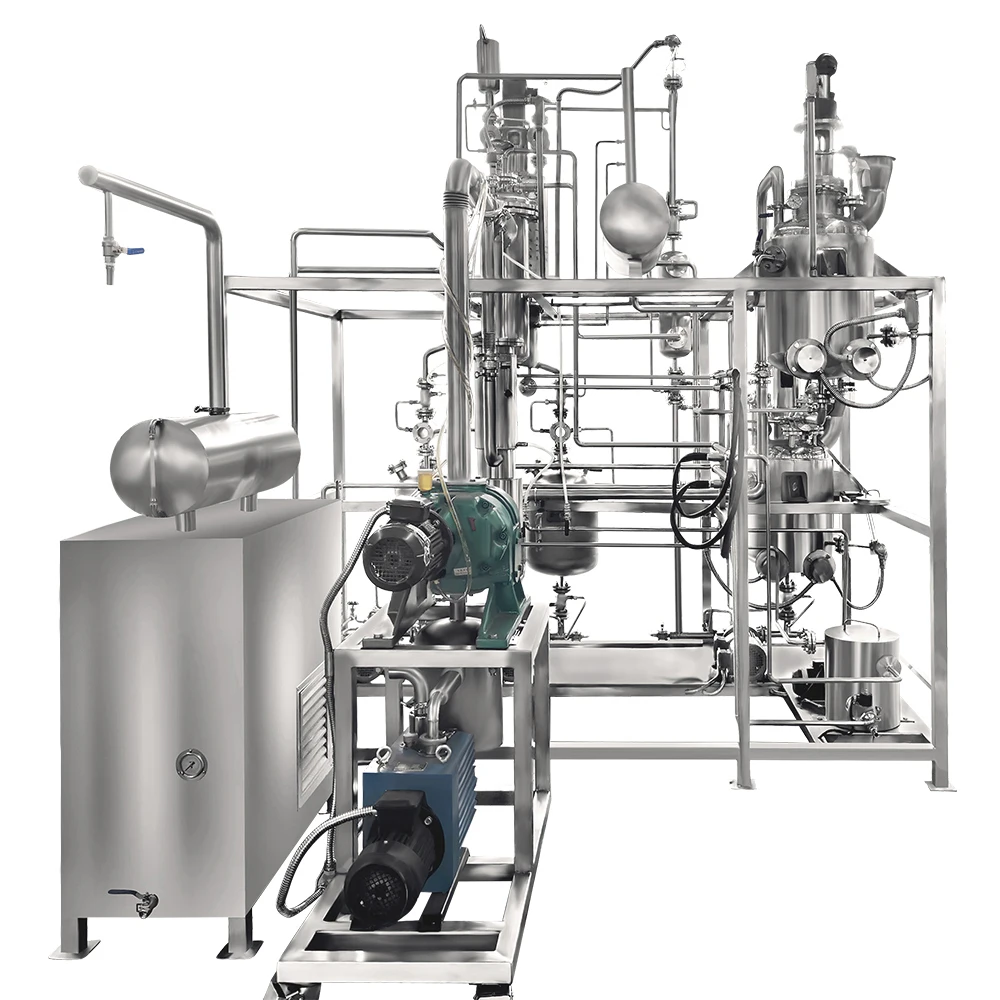

West Tune WTMD 0.5m2 Single Stage All Stainless Steel Wiped Film Short Path Molecular Distillation Machine with good price
- Category: >>>
- Supplier: Hangzhou West Tune Trading Co. Ltd.
Share on (62190808889):
Product Overview
Description
Product Introduction
Features
1.Every single part is made of fully 304 stainless steel, prevent material pollution, keep the physical separation process safe

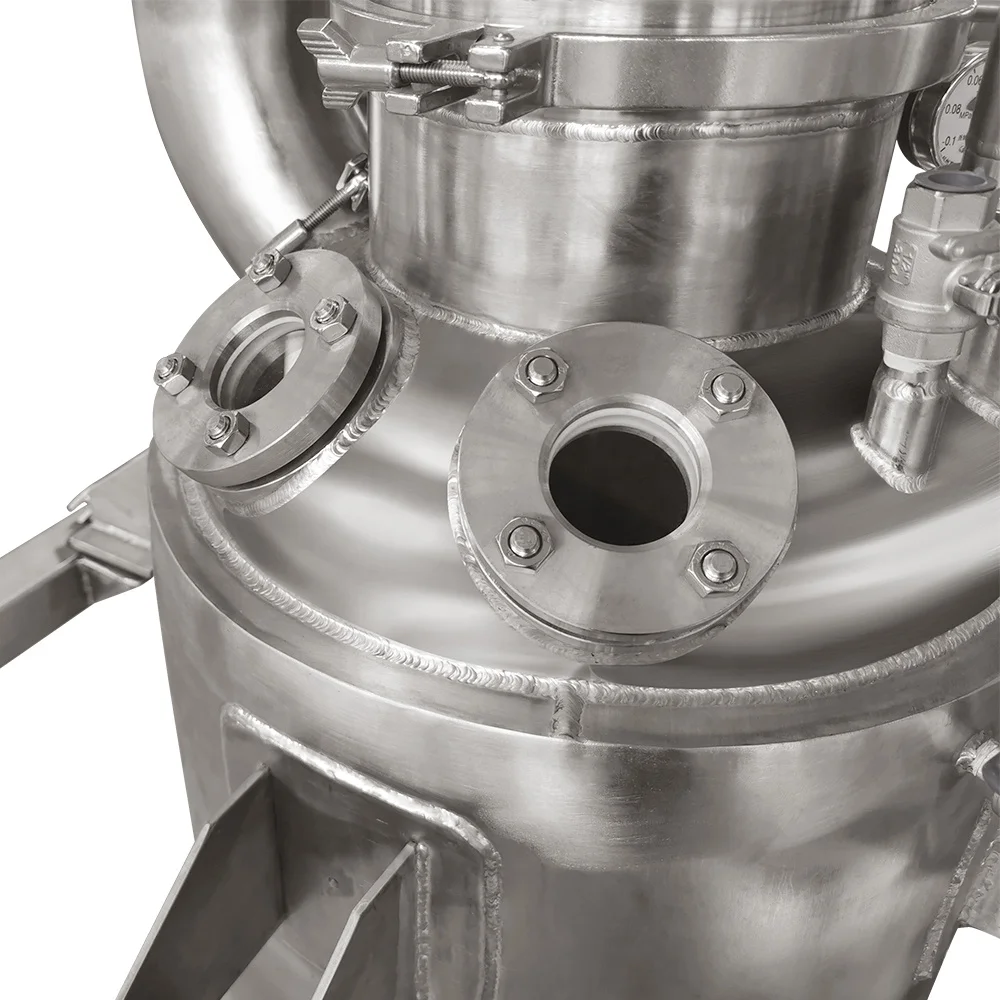

2.Heating jacketed observing windows are available, easy to observe inner material status
3.Reliable gear pumps for output, make the system continuous distillation process
4.Adopte the latest thermal superconducting technology, the temperatrue accuracy can be within 0.5C
5.Reasonable pipeline design, easy to operate, save 25% energy consumption than ordinary oil heating
6.Build-in cold trap design, saving cooling water and vacuum pipeline, ensure the high efficiency and selectivity of the process

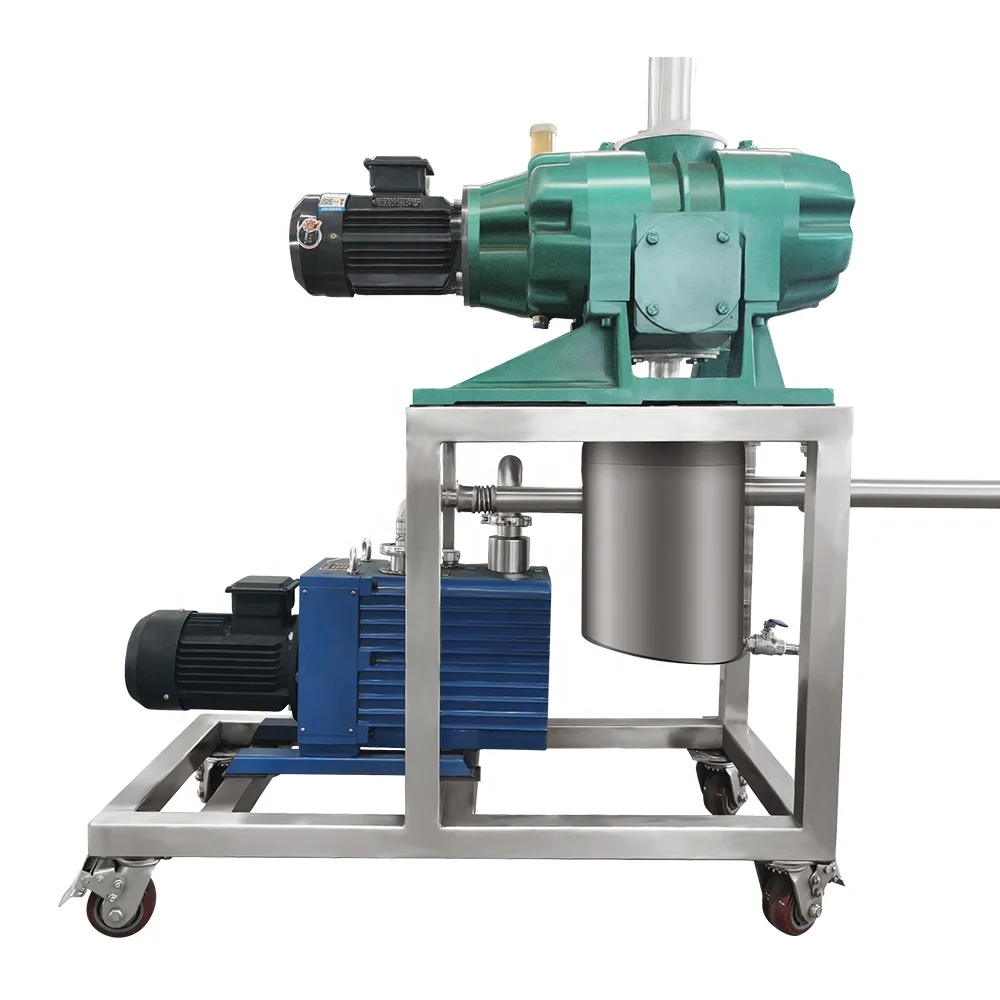

7.Three stage vacuum system, includes a high compression ratio oil diffison pump with unique bunding nozzles, backpressure > 160Pa
8.High vacum degree, no load ≤1Pa
9.Integrated cotrolling cabinet, easy to learn.
2.Heating jacketed observing windows are available, easy to observe inner material status
3.Reliable gear pumps for output, make the system continuous distillation process
4.Adopte the latest thermal superconducting technology, the temperatrue accuracy can be within 0.5C
5.Reasonable pipeline design, easy to operate, save 25% energy consumption than ordinary oil heating
6.Build-in cold trap design, saving cooling water and vacuum pipeline, ensure the high efficiency and selectivity of the process
7.Three stage vacuum system, includes a high compression ratio oil diffison pump with unique bunding nozzles, backpressure > 160Pa
8.High vacum degree, no load ≤1Pa
9.Integrated cotrolling cabinet, easy to learn.
Specifications
Model | WTMD 0.5m2 |
Voltage | 220V/50-60Hz, Three phase |
Evaporator material | Fully 304 stainless steel |
Effective evaporation area | 0.5 m2 |
Inner condensation area | 1.0 m2 |
Cold trap condensation area | 2.0 m2 |
Blade material | PTFE with carbon nanofibres |
Maximum speed | 0~200 rpm stepless |
Feeding rate | 5-15kg/hr |
Throughput | Appr.10kg/hr |
Daily throughput | 80Kg (8hrs per day) |
Evaporator heating temp. range | RT ~ 200℃, PID control |
Pre-heating tank temp. range | RT ~ 200℃, PID control |
Vacuum buffer tank | 20L, 304 stainless steel |
Heating circulator | Accuracy ±1℃ |
Heating circulating pump | 200w |
Feeding gear pump | 0~200L/h |
Output gear pumps | 0~200L/h |
Feeding tank | 100L, with stirring function |
Vacuum degree | ≤1Pa |
Distillate receiving flask | 15L |
Residue receiving flask | 15L |
