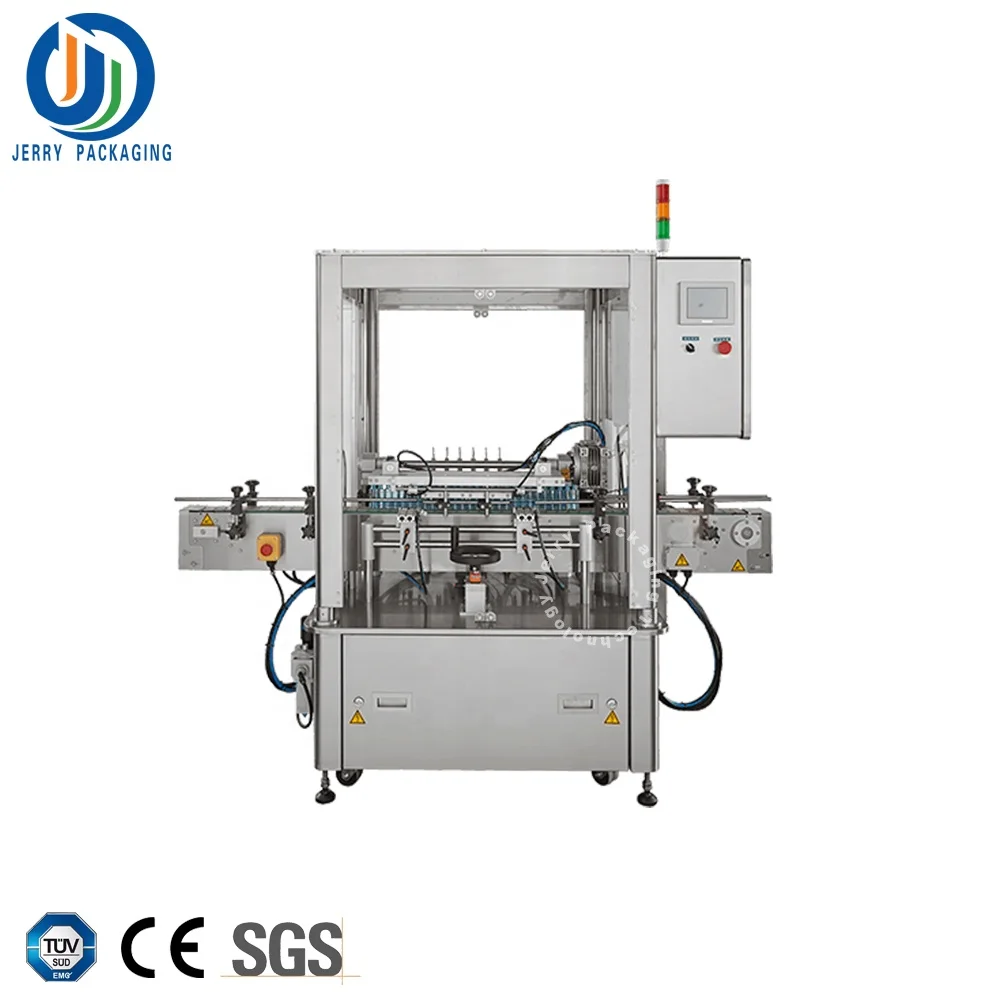

JPACKS Automatic linear water rinser is used to remove dust particles and other dry contaminants from clean containers. Typically used in the bottled water industry, this water rinser can also be utilized in a variety of other industriesthat require rinsed containers prior to filling.The containers are automatically indexed into the rinser. The grippers capture the containers and then invert them 180 degrees over the adjustable rinse heads. High pressure jets individually rinse the containers internally with product water or customer supplied rinse media. Once rinsed,containers are briefly drained and are reverted back onto the conveyor.
Product Features

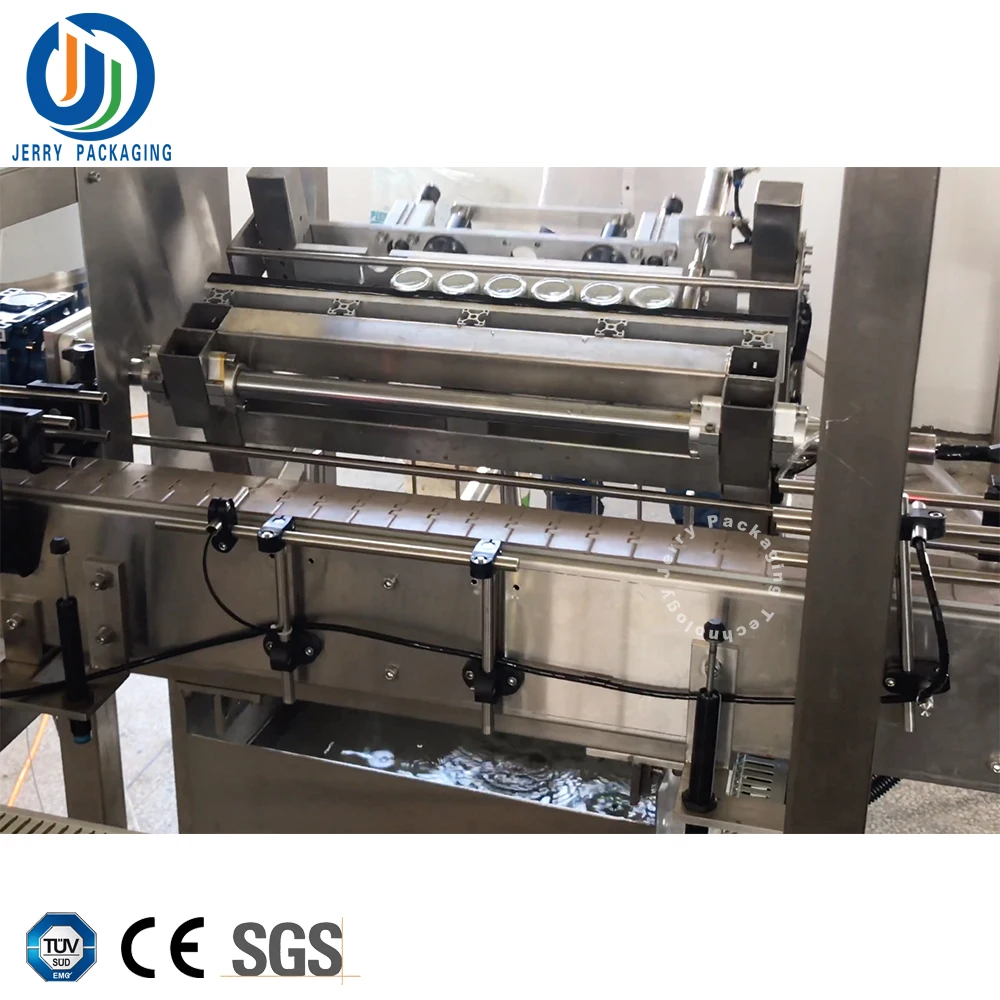

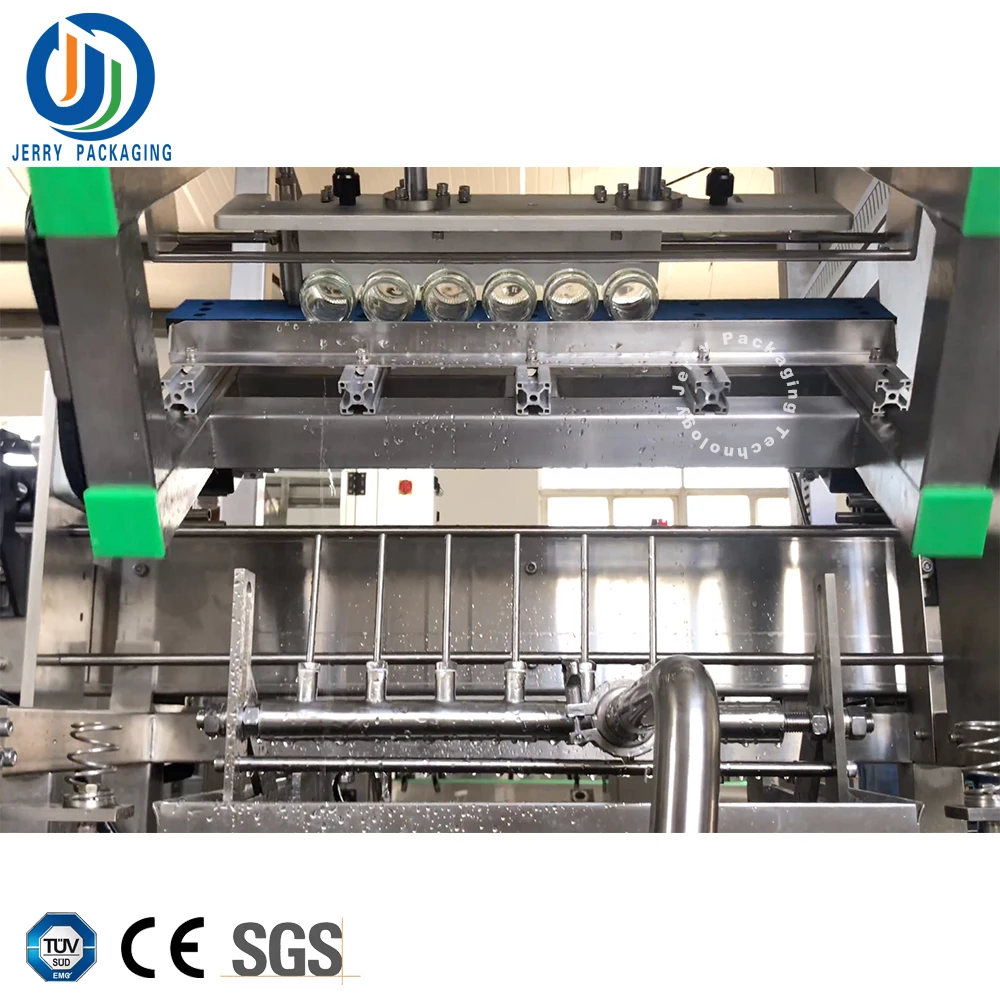

Flip mechanism
The grippers capture the containers and then invert them 180 degrees over the adjustable rinse heads
Adjustable cleaning valve
No need to change accessories when changing specifications, the nozzle distance can be adjusted freely

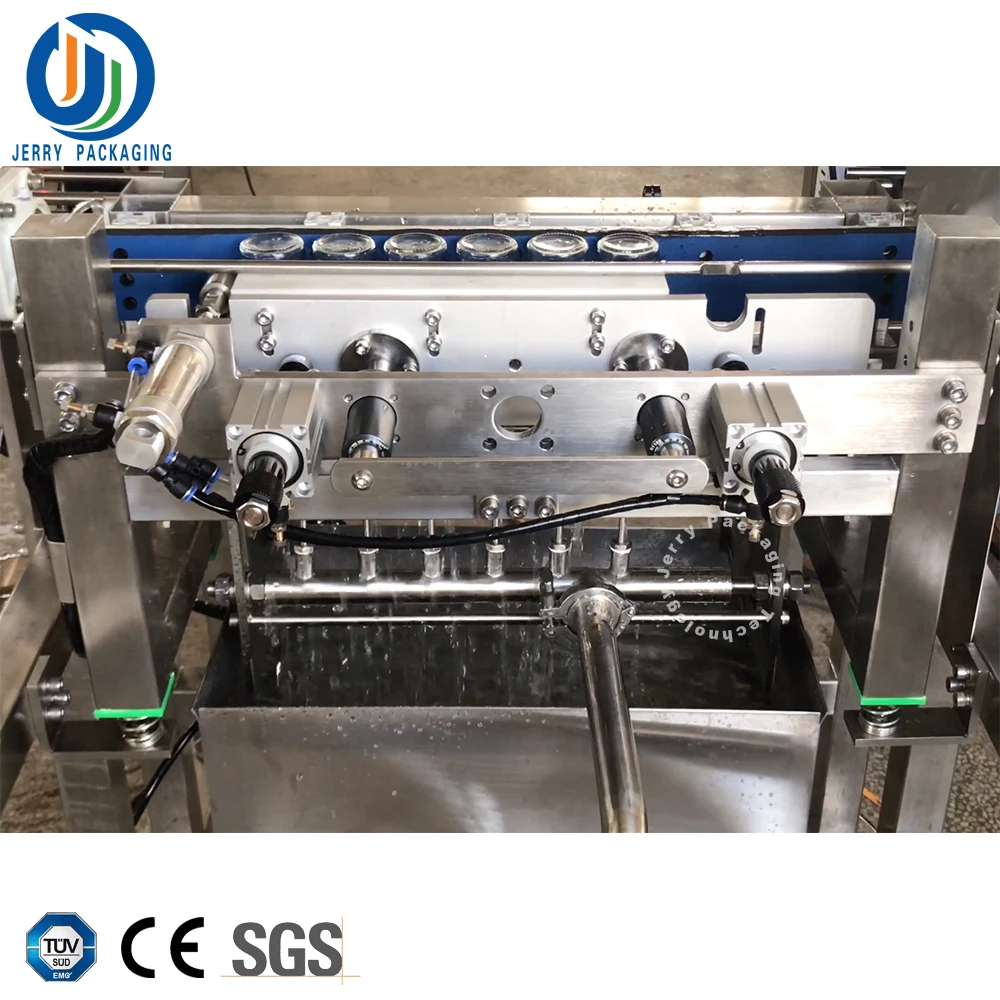

Air cylinder
We use air cylinder to control flip mechanism

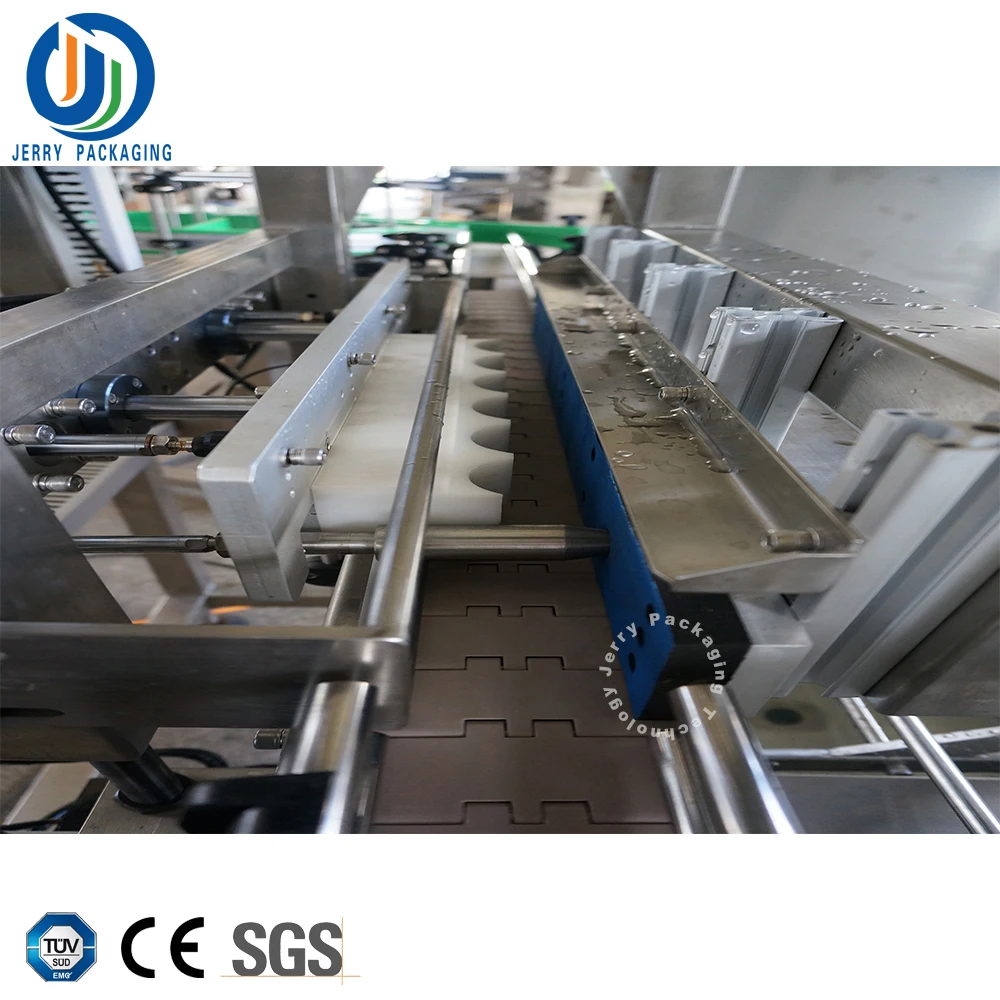

Clamping bottle device
According to bottle shape, customized mould to clamp bottle tightly. Hold firmly when washing.
1.
Fingertip knob adjustable jets for different bottle width
Heavy duty 304SS 48" frame with some anodized aluminum

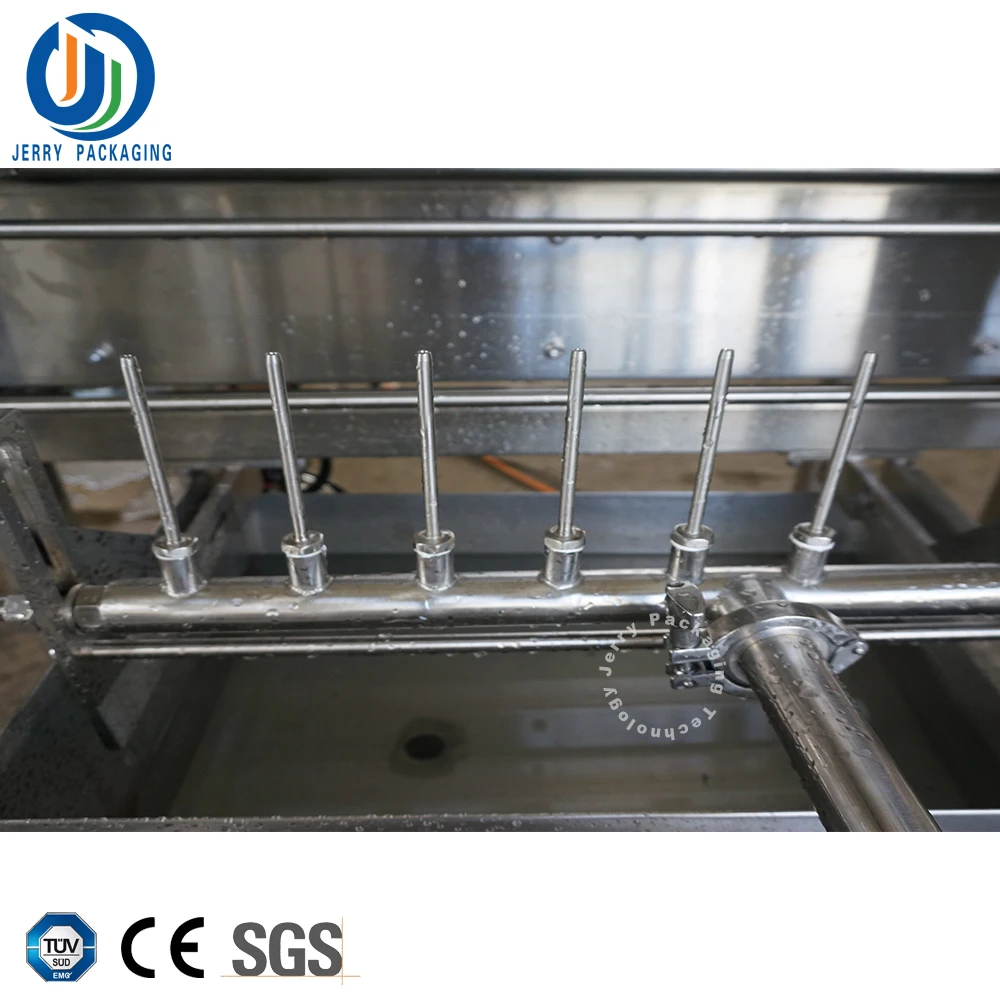

Rinse Head
Virtually all container sizes
Rinse Time
Variable, typically 2 to 3 seconds per container
Standard Line Height
Typically 36"
Power Requirement
220VAC, single phase, 30 amp, 50-60Hz
Air Requirement
2CFM @ 90PSI clean, dry, compressed air
Dimensions & Weight
Subject to model configuration
