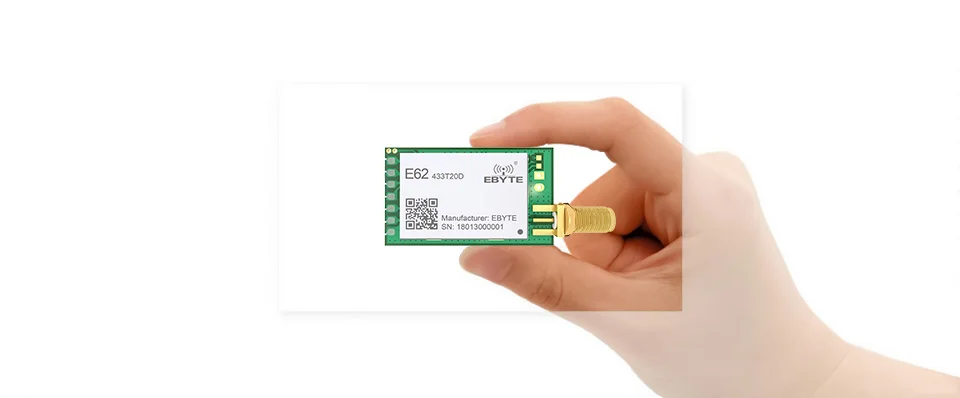

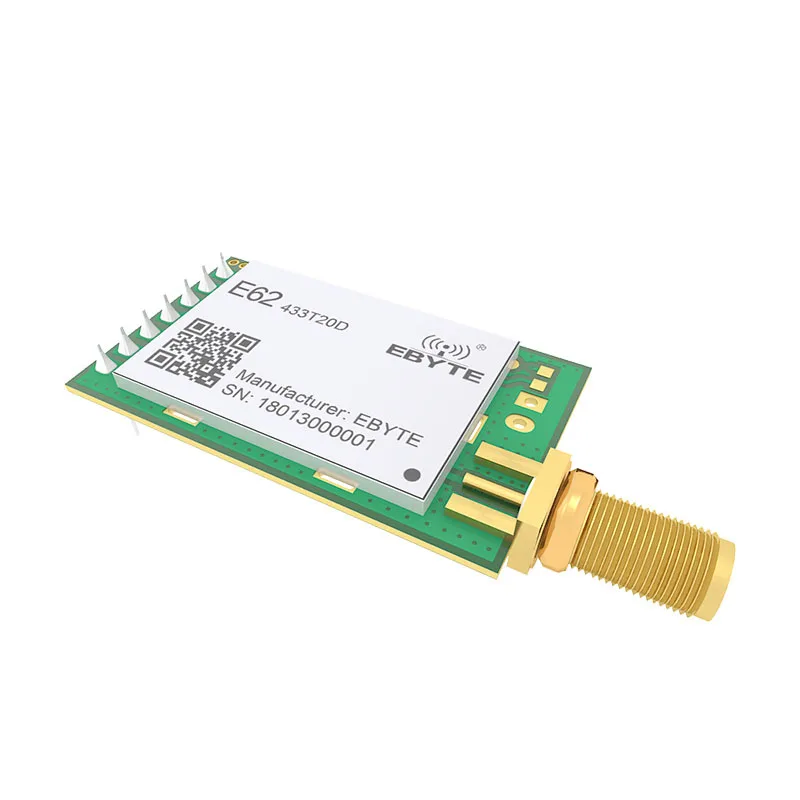

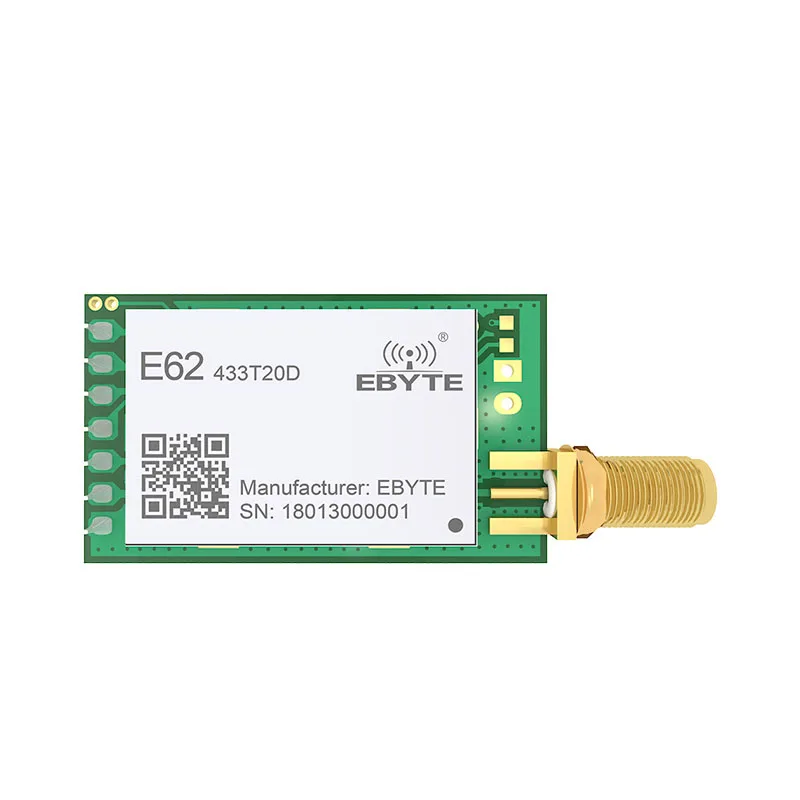

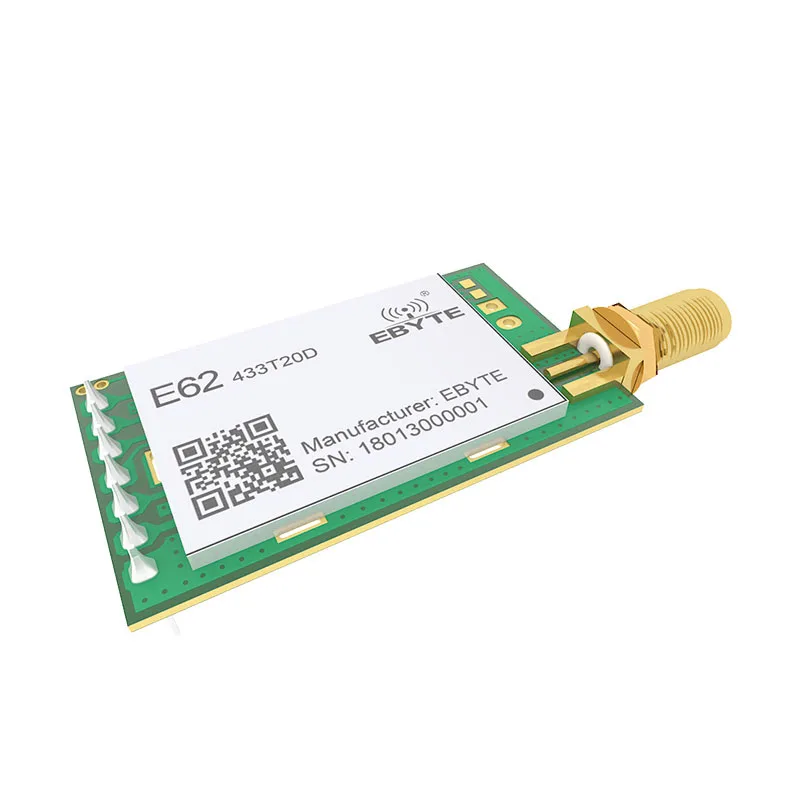

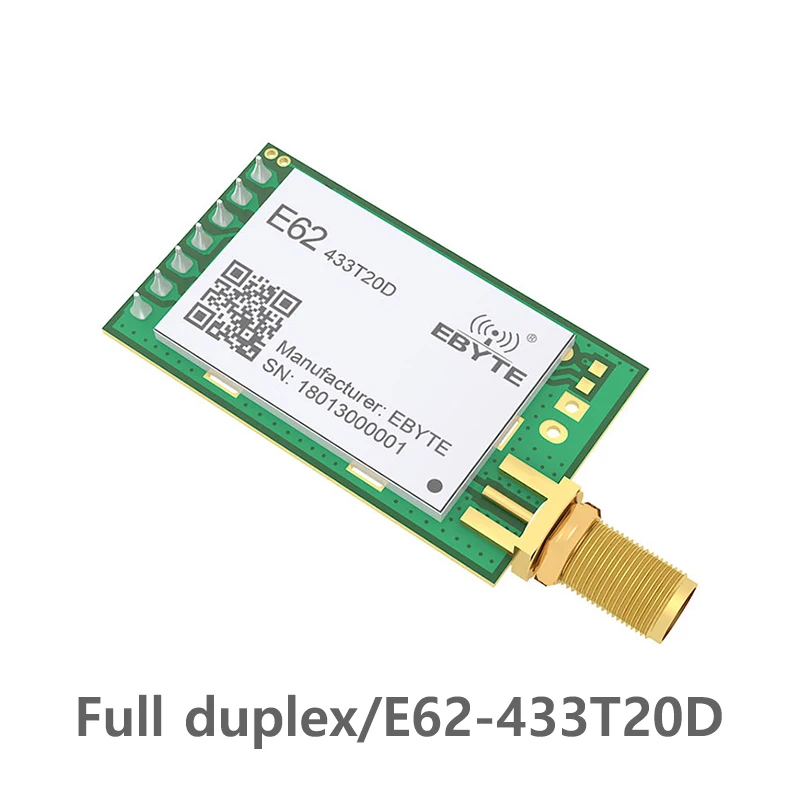

1000m range full duplex wireless data transceiver modules UART interface 433mhz wireless transmitter module rf DIP
- Category: >>>
- Supplier: Chengdu Coogex Electronic Technology Co. Ltd.
Share on (62190998797):
Product Overview
Description
Product Description
1000m long range full duplex wireless data transceiver modules UART interface 433mhz wireless transmitter module rf DIP
[Frequency] : 425~450.5MHz
[Power] : 10~20dBm
[Distance] : 1.0km
[Interface] : UART
| Electronic parameter | Min. | Typ. | Max. | Unit |
| Power supply | 2.3 | 5.0 | 5.5 | V |
| Communication level | 2.5 | 3.3 | 3.6 | V |
| Transmitting current | 96 | 104 | 114 | mA |
| Receiving current | 30 | 33 | 36 | mA |
| Sleep current | 3 | 4 | 5 | μA |
| Operating temperature | -40 | 20 | +85 | ℃ |
| Operating humidity | 10 | 60 | 90 | % |
| Storage temperature | -40 | 20 | +125 | ℃ |
