plastic bucket tpr and pvc sole plastic bucket making moulding 168ton machine pet injection molding machine
- Category: >>>
- Supplier: Ningbo Chunnoo Machinery Company Limited
Share on (62191421146):
Product Overview
Description
Product Description
160ton 160t 1680kN Plastic Injection Molding Machine
Broad Scope Of Application
For More Than 95% Of The Injection Molding Products
The Stability Of The Mature And
Reliable
Durable
Running Stability
High Performance To Price Ratio
Concise And Effective
Rapid Flexible
Manipulation Of The Simplified
Simple Maintenance
parameters
ITEM | UNIT | DATA | ||||||
Injection Unit | Screw Diameter | mm | 40 | 45 | 48 | |||
Screw L/D Ratio | L/D | 22.5 | 20.3 | 19 | ||||
Injection Volume | cm3 | 251 | 318 | 362 | ||||
Shot Weight | g | 229 | 289 | 329 | ||||
Injection Pressure | Mpa | 202 | 159 | 140 | ||||
Clamping Unit | Clamping Force | kN | 1680 | |||||
Opening Stroke | mm | 420 | ||||||
Mould Thickness(Min-Max) | mm | 180-500 | ||||||
Space Between Tie-Bars | mm | 455×455 | ||||||
Ejector Force | kN | 45 | ||||||
Ejector Stroke | mm | 140 | ||||||
General | Motor Power | kW | 15 | |||||
Heater | kW | 10 | ||||||
Pump Pressure | Mpa | 16 | ||||||
Machine Dimension | m | 5.2×1.3×2.1 | ||||||
Machine Weight | T | 4.8 | ||||||
Mould Orientation Ring Diameter | mm | Φ125 | ||||||
Nozzle Radius | mm | SR15 | ||||||

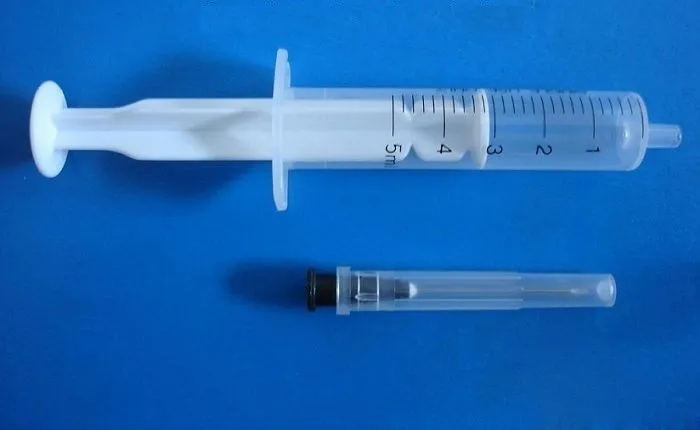

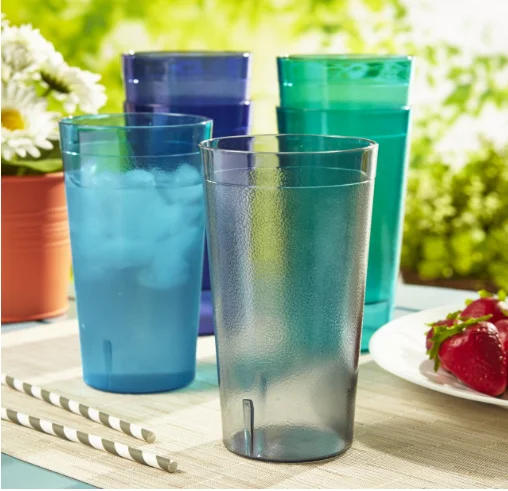

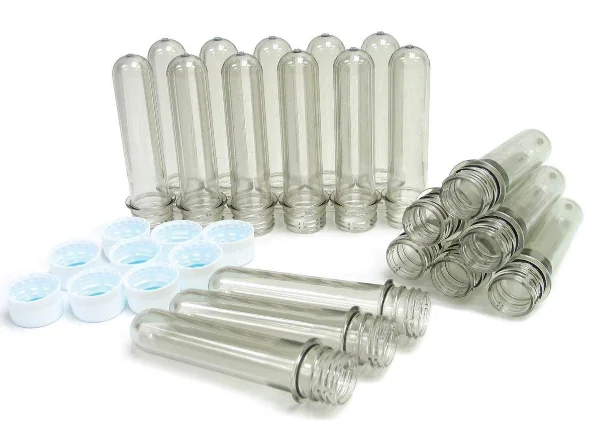

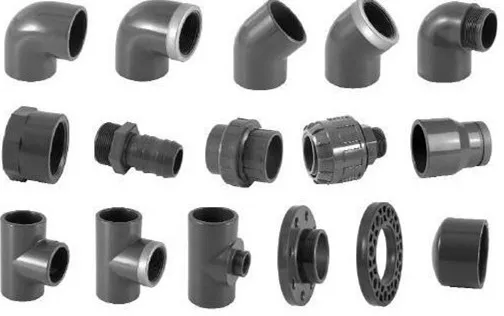

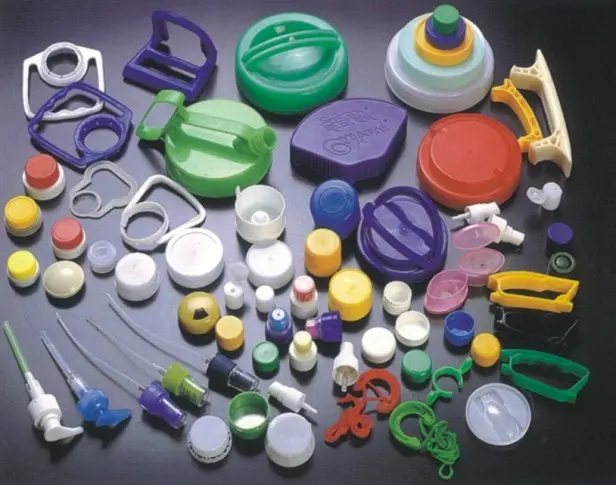

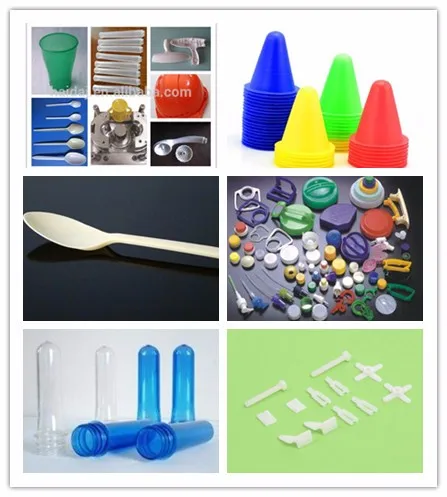

Applications
Detailed Images
Injection System
Injection Molding Is Stable,Easy Adjustment
Injection parts with double guide pillar support structure, smooth two cylinder injection device, shoot and two improved nozzle adjustment easy, can be operated by simple adjustment of the nozzle and the mould center. Injection unit 3 different screw diameter in each group, for customers to choose, fully meet the requirements of personalized processing technology.
Injection parts with double guide pillar support structure, smooth two cylinder injection device, shoot and two improved nozzle adjustment easy, can be operated by simple adjustment of the nozzle and the mould center. Injection unit 3 different screw diameter in each group, for customers to choose, fully meet the requirements of personalized processing technology.
Clamping Systems
Efficient And Accurate Positioning
Optimization design of oblique line of five fulcrum hyperbolic elbow mold clamping mechanism, power transfer effectively, ensure the process of high speed response. Rapid mold-shut platform but also shorten the molding cycle, improve the production efficiency; Low pressure mold protection system; A variety of hydraulic ejector mode; Can transfer the template support structure; Rod special craft processing, strength and reliable.
Optimization design of oblique line of five fulcrum hyperbolic elbow mold clamping mechanism, power transfer effectively, ensure the process of high speed response. Rapid mold-shut platform but also shorten the molding cycle, improve the production efficiency; Low pressure mold protection system; A variety of hydraulic ejector mode; Can transfer the template support structure; Rod special craft processing, strength and reliable.
Control System
All Monitoring, Full Control
Color LCD display; Abnormal alarm function; Special injection molding machine controller, the double CPU control, control and display CPU are relatively independent, and reliable; Stop button QianHouMen economy; Realtime monitor shows every action operation situation; The system hardware I/O testing function; Special injection molding machine controller; Cylinder temperature deviation corrections; High precision displacement sensor system.
Color LCD display; Abnormal alarm function; Special injection molding machine controller, the double CPU control, control and display CPU are relatively independent, and reliable; Stop button QianHouMen economy; Realtime monitor shows every action operation situation; The system hardware I/O testing function; Special injection molding machine controller; Cylinder temperature deviation corrections; High precision displacement sensor system.
Hydraulic System
Ease Of Maintenance, Compact Structure
Low noise quantitative pump system The oil temperature deviation alarm function Tank level gauge Hydraulic oil cooling unit
Low noise quantitative pump system The oil temperature deviation alarm function Tank level gauge Hydraulic oil cooling unit

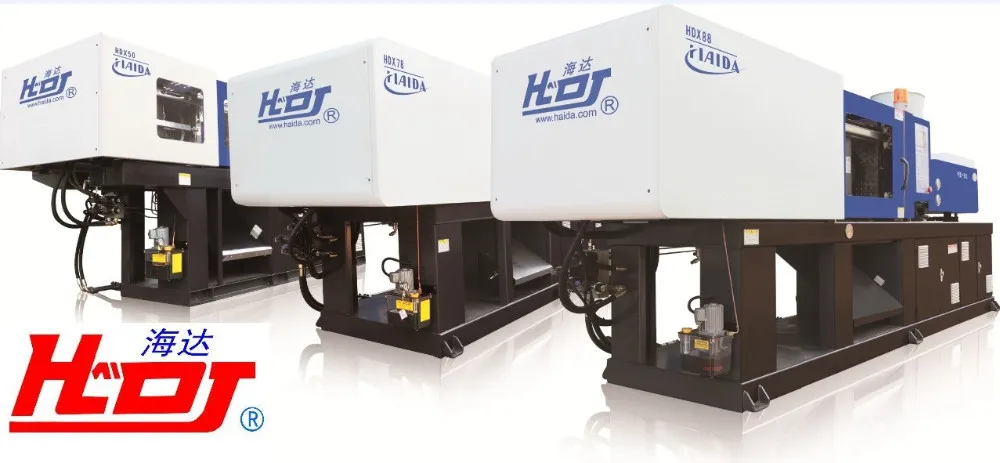

Related Products
HDX78
HDX88
HDX128
Company Information
HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection molding machinery manufacturer. Nearly 30 years, we had established more than 60 sales and service agencies in China and overseas.
Workshop
We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton. These products find application in various industries for several functions.
Workshop
We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
