Synmot 37kW 59kW 350rpm AC direct driven high torque low rpm servo motor

Product Overview

Description

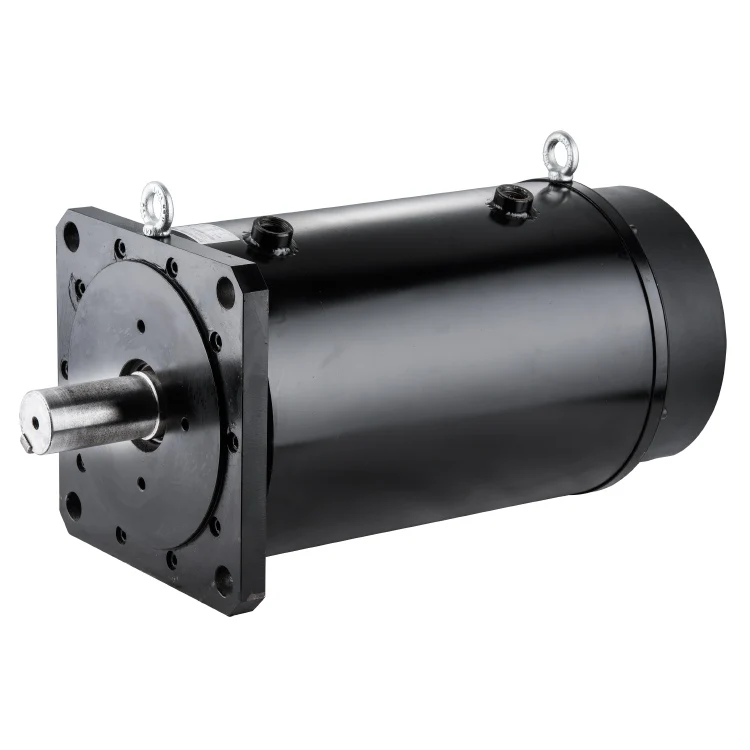

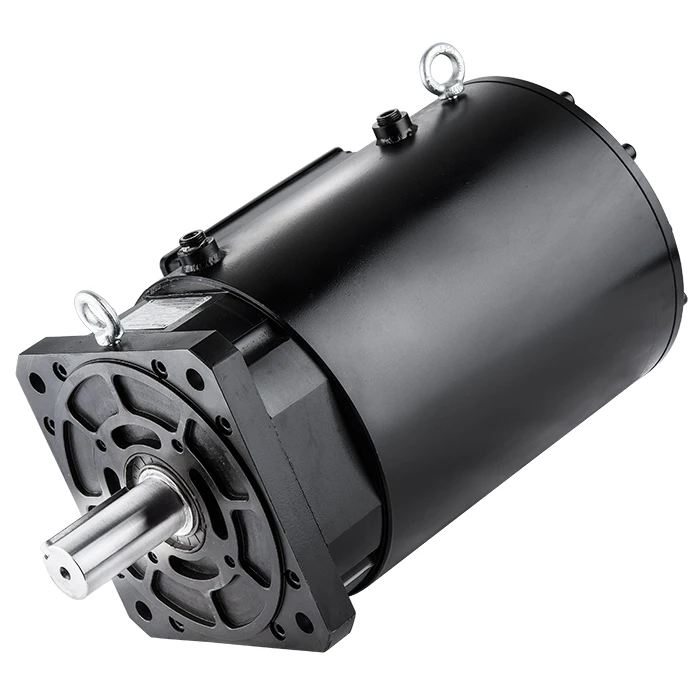

Synmot 37kW-59kW 350rpm AC direct driven high torque low rpm servo motor

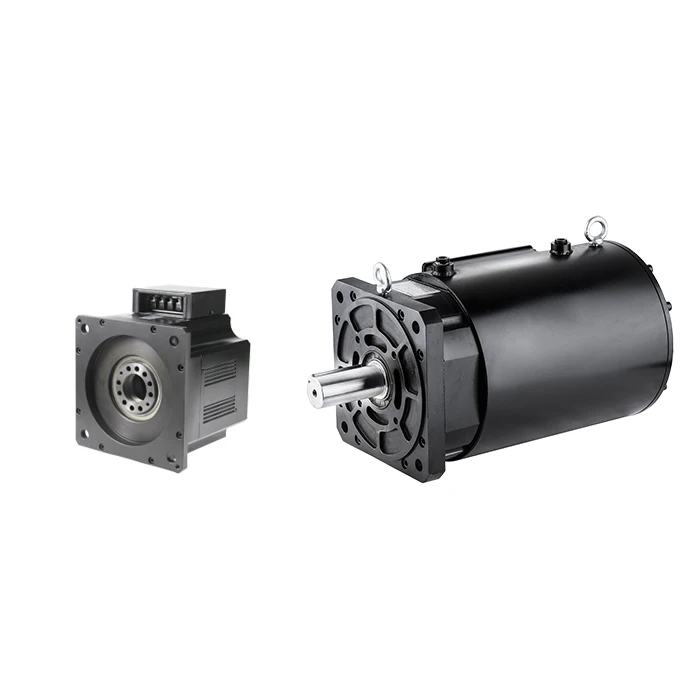

Product picture:



Product Description:



Synmot direct-driven servo motors are permanent magnet synchronous motors with the high torque capablity ,the main features including :high response and accuracy low noise and low temperature rise.the rotor is made of high-performance rare-earth permanent magnet material works reliably and tomaintain less.With low rotary inertia .it is easy to improve the rapidity of system small volume.high speed and high torque.using the high-resilution encoder (17-bit .33-bit) to improve the position control accuracy.it control the current according to D-P principal axis transformation .which increase the torque control accuracy from 5% to 2% Synmot servo motor have been widely used in injection molding machienry .textile machinery.CNC machinery etc.



Product Parameter:

Model	Rated torque	Rated voltage	Rated speed	Rated power	Rated current	Kt	Ke	Max speed	Max torque	Rotor intertia	Poles	weight	length
	N.m	Vac	rpm	kW	A	N.m/A	V/krpm	rpm	N.m	kg.cm2	Poles	kg	mm
300H37D35B	1000	380	350	37	91	12.2	740	400	3000	2060	20	133	475
300H55D35B	1500	380	350	55	136	12.2	740	400	4500	3010	20	180	580
300H92D35B	2500	380	350	92	214	12.2	740	400	7500	5000	20	245	780
350H35D35B	960	380	350	35	88	11.7	710	400	2880	2860	20	148	380
350H55D35B	1500	380	350	55	138	11.7	710	400	4500	3940	20	225	485
350H59D35B	1600	380	350	59	147	11.7	710	400	4800	5560	20	235	530
360H59D35B	1600	380	350	59	147	11.7	710	400	4800	5570	20	245	538
360H37D35B	1000	380	350	37	91	12.2	740	400	3000	2060	20	166	485
360H55D35B	1500	380	350	55	136	12.2	740	400	4500	3010	20	250	590
450H44D35B	1200	380	350	44	106	12.1	730	400	3600	6140	8	440	628
450H59D35B	1600	380	350	59	137	12.4	748	400	4800	7980	8	510	728

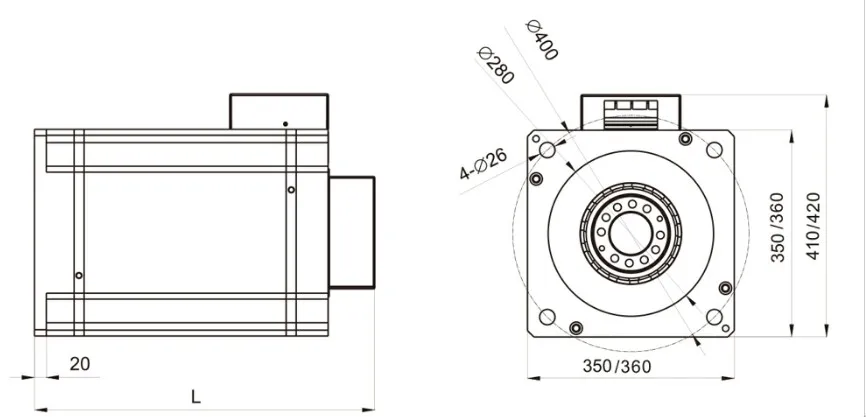

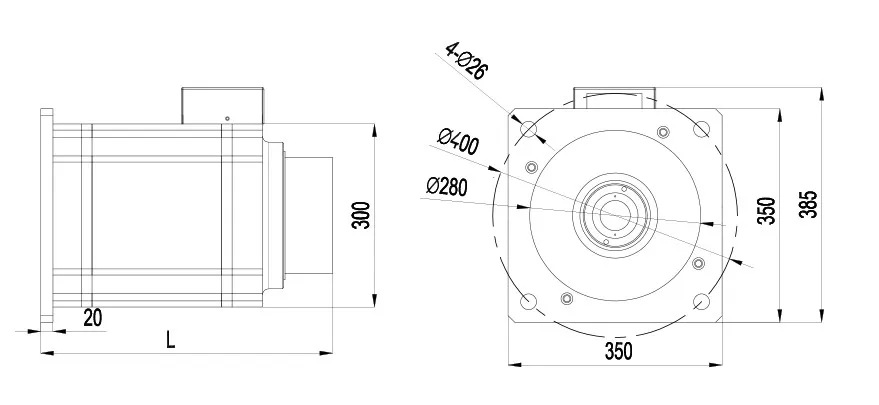

Mounting Dimensions:



Synmot servo motor main advantage:

1.Ultra energy-saving.high response and accuracy .low noise and low temperrature rise.

2.The rotor is made of high-performance rare-earth.permanet magnet material.works reliably and to maintainless.

3.With low rotary inertia so that it is easy to improve the rapidity of system .small voluime .high speed and high torque.

4.Global optimization using 2D and 3D inite element analysis .with low cogging .low torque-ripple and low noise and vibration .

5.Power range is from 0.4KWto 100KW .with the motor rated speed from 350 RPM to 20000RPM.

6.High acceleration and quick dynamic response .adopting high precision opical encoder (17 bit .33bit) to improve the position control accuracy .it control the current according to D-P principal axis transformation .which in crease the torque control accuracy from 5% to 2%.

Autoritative Certification:

 Transport information:

FAQ :

1.Q:Can i get sample ?

A:We are hornered to offer you sample for quickly check .

2.Q:Do you have the product in stock ?

A:All standard models we got in stock .special products are manufactured according to your requirement .

3.Q:When do you delivery ?

A:It usually take 3-7 working days .but the exactly time vary from different order at the different time

4.Q:Are the motors with brake ?

A:The standard without brake.but you can choose to install it or not .so the other size may be different .like length.weight and so on .

5.Q:How long can it works ?

A:Properly use can work for 3 years .

6.Q:Can the motors works in the water?

A:No.our motors can not work in the water.but they can prevent the splash water into the inner .

7.Q:How do you gerrantee your motors ?

A:Quality comes first.all the motor must pass the testing and then packaaged to delivery .

8.Q:Warranty period ?

A:18 months after the days then the products leave our factory .

9.Q:Payment period ?

A:In general 30% by T/T of the amount as deposit .70% by T/T of the  amount need be paid within one week after the day when you receive the copy of the B/L by email or consultations .
