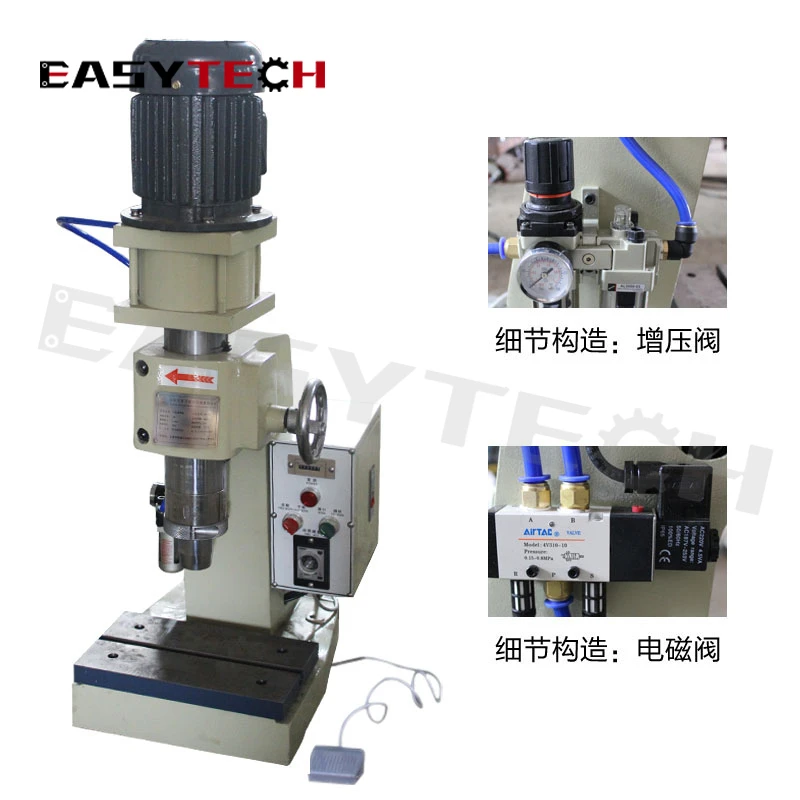

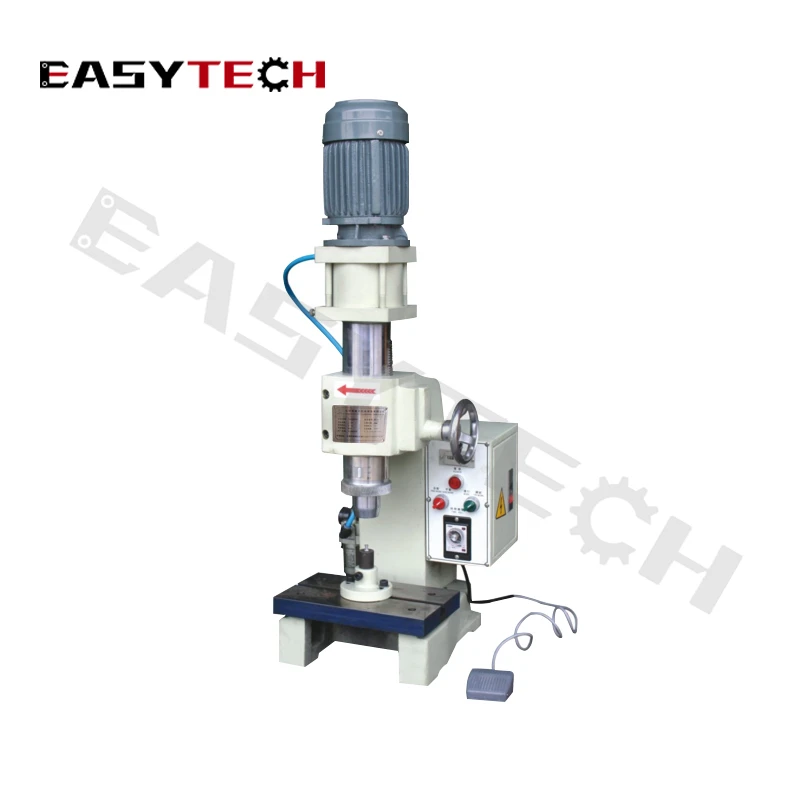

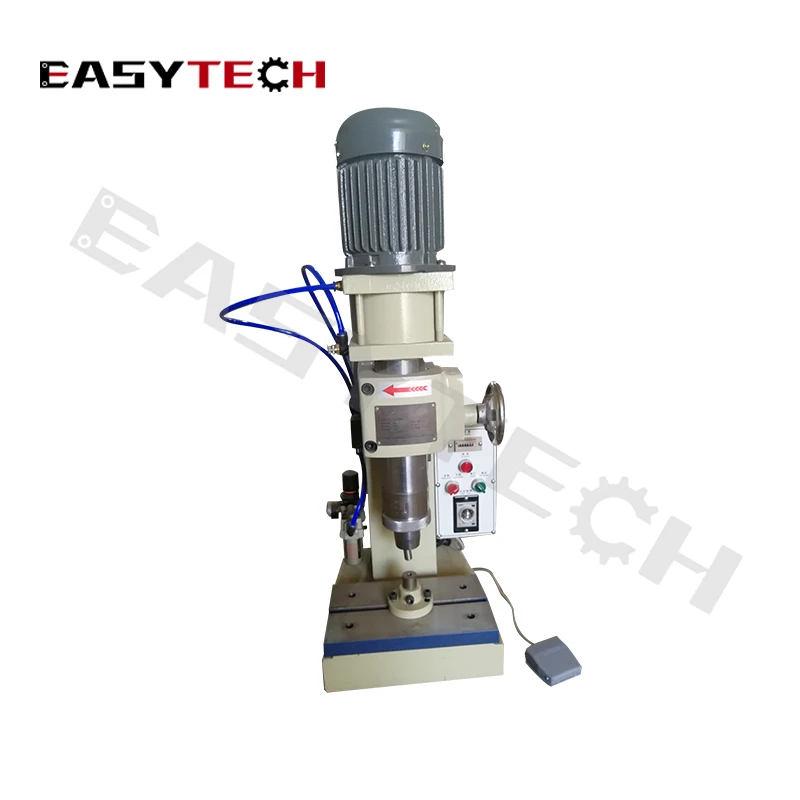

Handle sheet tube hole high quality pneumatic brake standard rivet pressing machine

Product Overview

Description

Model		ETHD-141	ETHD-143	ETHD-152	ETHD-155
Motor		1/2HP	1HP	1×2HP	2×3HP
Stroke		40mm	40mm	40mm	40mm
Capacity	Solid	1—7	2—9	3—12	3—25
(mild steel)	Hollow	1—15	1—20	3—25	3—40
Time(s)		0.5—10	0.5—10	0.5—10	0.5—10
Pressure used		2—7	3—7	20—70	20—100
kg/m2
Max Pressure		230-800	460-1100	430-1650	1400-5500
kg/m2
Height to adjust		940-1050	1150-1220	1600	2000
Rivet length (mm)		150	200	230	300
Throat Depth (mm)		120	125	160	200
Spin Speed (rpm)		1400	1400	1400	1400
Max Rivet Surface (mm2)		190×320	190×320	140×240	160×260
Net Weight (KG)		120	170	350	450

Description:

The machine is fully functional and can be used for riveting countersunk head, semicircle head, cylindrical head, spherical cylindrical head rivet and hollow rivet according to the different design of the riveter. At the same time, the gas emitted during the riveting process does not contain oil and does not pollute the environment. Therefore, it is also suitable for the working places of medical machinery and food machinery.

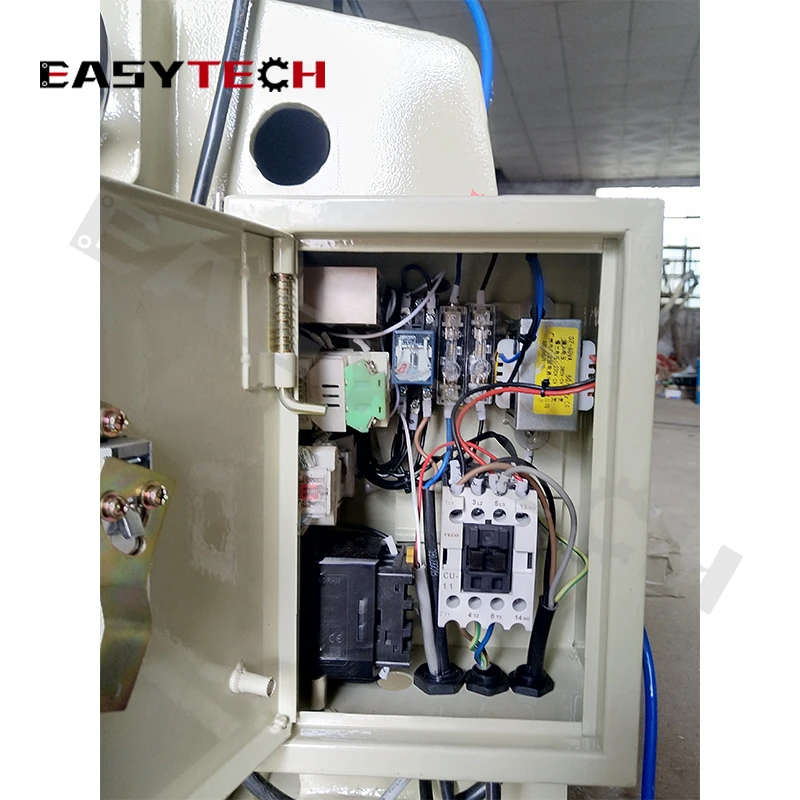

The advanced circuit design can realize the automatic action of riveting, ensure the consistent time of each riveting, and improve the qualified rate of products. When using automatic operation, the timer can be adjusted to the most appropriate time at will, which improves the production efficiency and output.

Application:

Widely used in recording movement, cameras, clocks, radio components, hardware, steel and wood furniture, brake pads, scissors, pliers, children's cars, baby buggy, carriage,motorcycles manufacturing, electrical appliances and instruments, hardware tools and other related fields.
