DCZ70 box sample cutting machine reinforced graphite cutting machine with oscillating knife cut

Introduction:

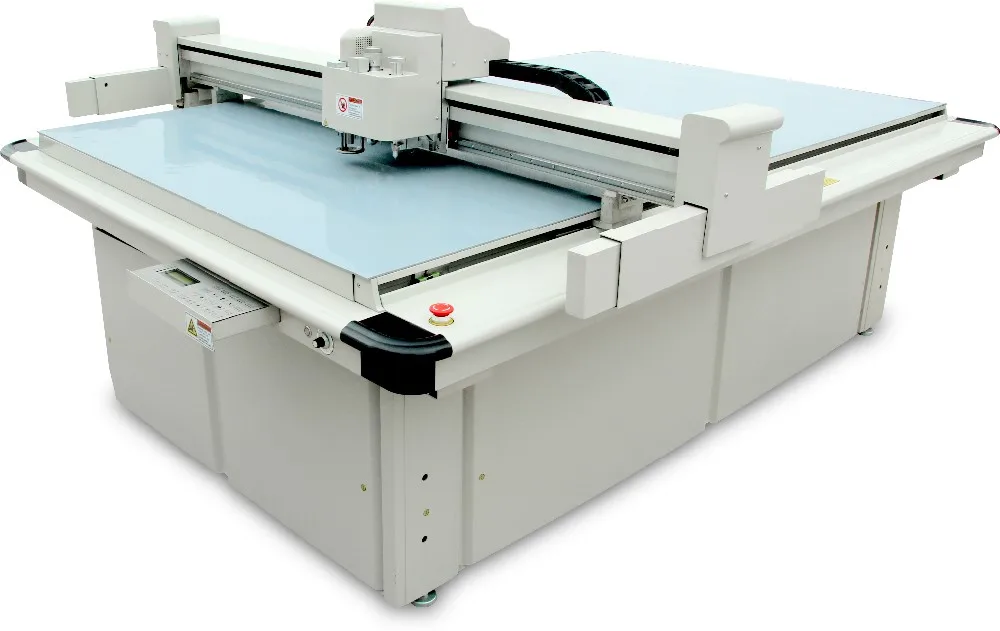

OCZ70 series high speed digital flatbed cutter is our newly developed carton box sample making system with performance greatly improved compared with the original design.

DCZ70 box sample cutting machine reinforced graphite cutting machine oscillating knife cuthas gained great support from Shanghai Technology Small and Medium Enterprises Technical Innovation Fund. The machine is equipped with plotting pen, oscillating cutting tool, creasing tool, drag knife tool to meet customers' various requirements The convenience of assembly and disassembly among different tools has greatly improved the working efficiency of operators.
\t
Model
\t
DCZ702516
\t
DCZ701713
\t
DCZ701310
\t
Effective cutting area
\t
2500*1600mm
\t
1700*1300mm
\t
1300*1000mm
\t
Configuration
\t
Oscillating knife,pen,creasing tool,drag knife, foam tool, v cut tool
\t
Max aped
\t
1350mm/s
\t
Smallest cutting diameter
\t
6mm
\t
Maximum cutting thickness
\t
30mm
\t
Control line and driver
\t
Servo
\t
Precision
\t
≤0.1mm
\t
Data form
\t
HPGL,DXF,PDF,AI
\t
Voltage
\t
220v±10%50Hz
\t
Data port
\t
parallel port,serial port,USB port
\t
Option
\t
Video registration system, Kasemake Design software
\t
Occupy dimension(L*W*H)
\t
3400*2460*1180mm
\t
2600*21600*1180mm
\t
2200*1680*1180mm
\t
Note
\t
Other size can be customized.

Main Features


1 With two interchangeable tools and whole sets head design, DCZ70 series high speed digital flatbed cutter features convenience to change the cutting tools

2 Its four spindles high speed controller employs modularized installation and comes with convenient maintenance

3. The cutting thickness and cutting speed are both easily set. Besides, the cutting depth is adjustable according to clients' requirements

4.Easy to set parameter, different materials could be processed just after the cutting thickness and cutting speed are set well.

Cutting materials:
Corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet etc.

Application:
Packaging, Graphic.



Certifications
Detailed Images

Additionally, the heavy duty drag knife tool, V cutter tool, foam cutter tool could be used for special materials of different industries. This proDCZ70 box sample cutting machine reinforced graphite cutting machine oscillating knife cutduct also called box sample maker, sample maker, Ads cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application.

Machine Parts

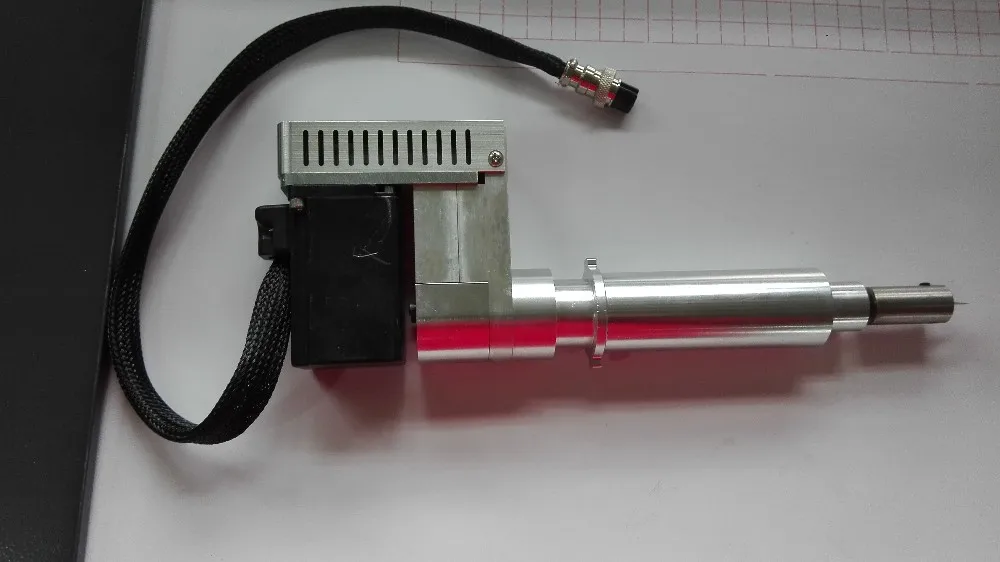

Name: Oscillating knife holder(EOK)

Brand: MAXWELL

Original: CHINA

150W MOTOR

powerful

24 hours continuely working

Main Features

Name: Blades
Brand: MAXWELL
Original: CHINA
16 Degree blades

20 degree blades

26 degree blades

Machine Parts

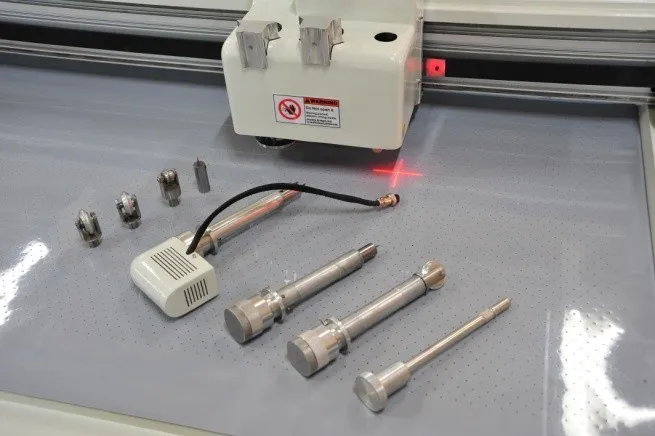

Name: Tools
Brand: Maxwell
Original: China
pen

V-cut (15 degree, 22.5 degree, 30 degree , 45 degree)

Creasing wheels

Drag knife

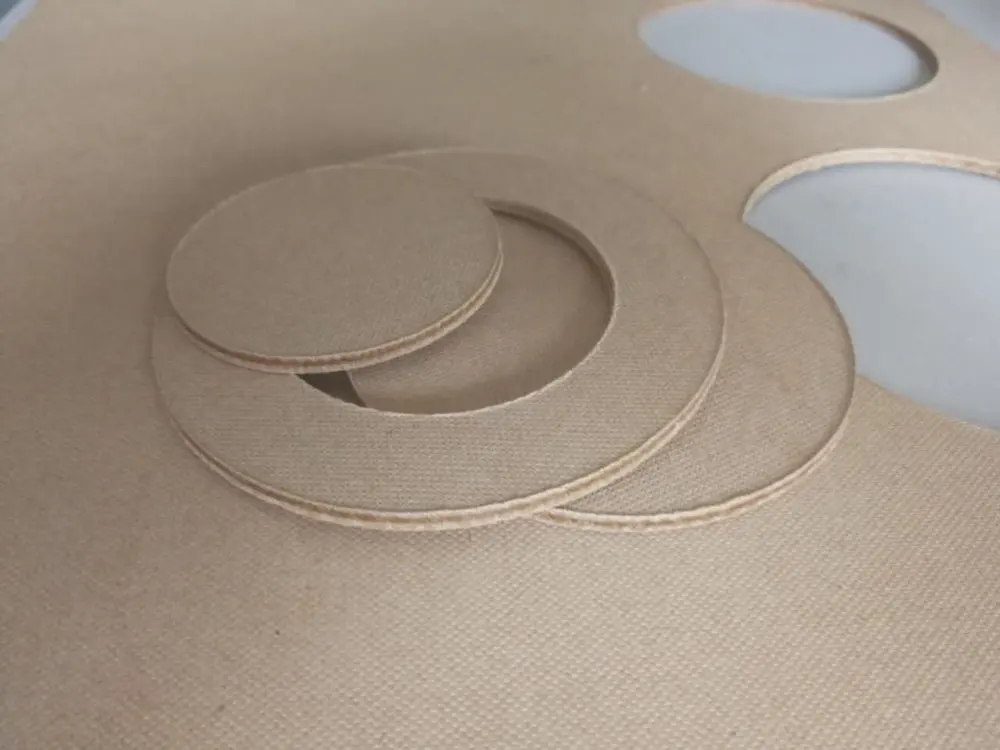

Materials can cut

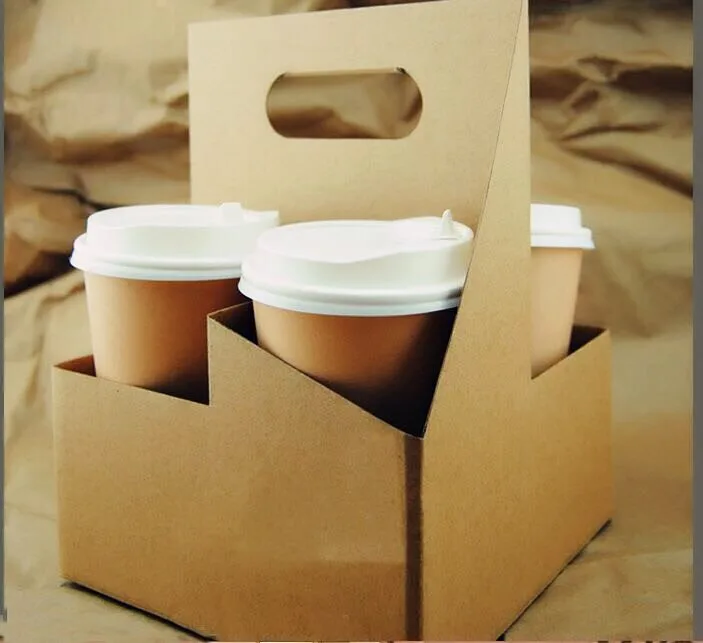

DCZ70 series sample making machine can be used for cutting, creasing and drawing and is widely suitable for sample making or small scale production in packaging sector and manufacturing industries like corrugated box, color box, color printing, die cutting and the like.

Because of its excellent performance, it enjoys sound reputation among our clients in packaging, advertising, printing, die cutting, electron, gasket, and sign industries.

Packing & Delivery
\t
Packaging
\t
Size
\t
3470 (L) * 2260 (W) * 600 (D)
\t
Weight
\t
540KG
\t



Packaging Details
\t
The normal package is wooden Crate box(Size: 3470L*2260W*600H).no need to be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
2520 (L) * 1020 (W) * 840 (D)
\t
Weight
\t
500KG
\t



Packaging Details
\t
The normal package is wooden Crate box(Size: 2520L*1020W*840H)No need to be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
