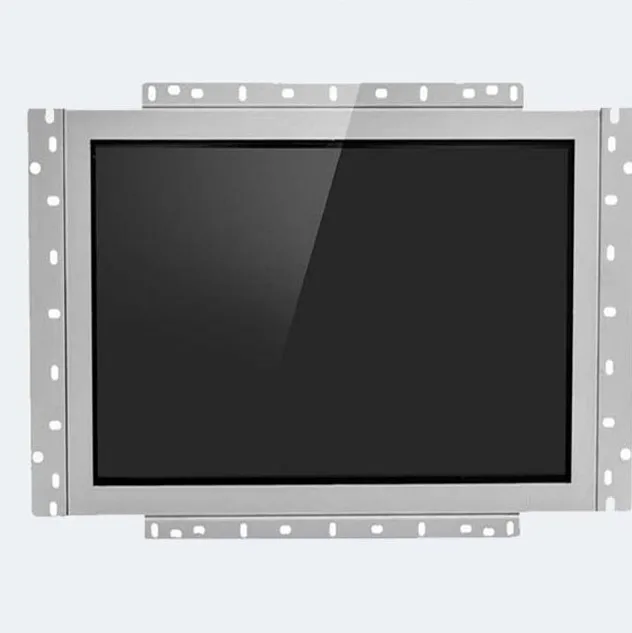

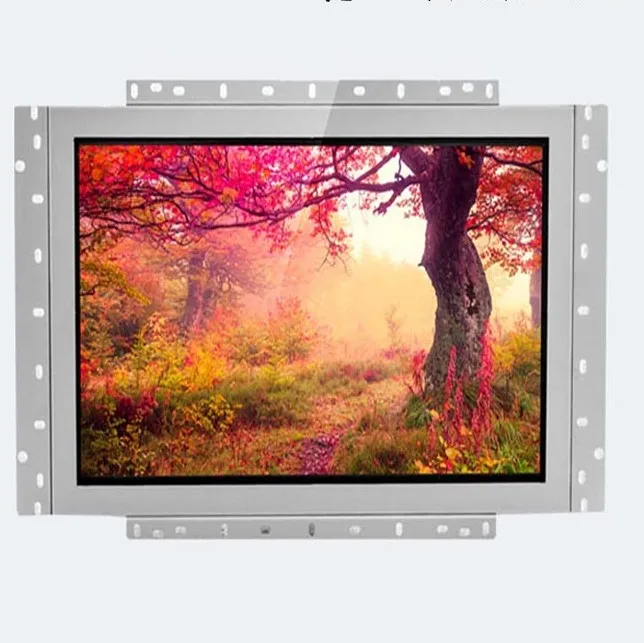

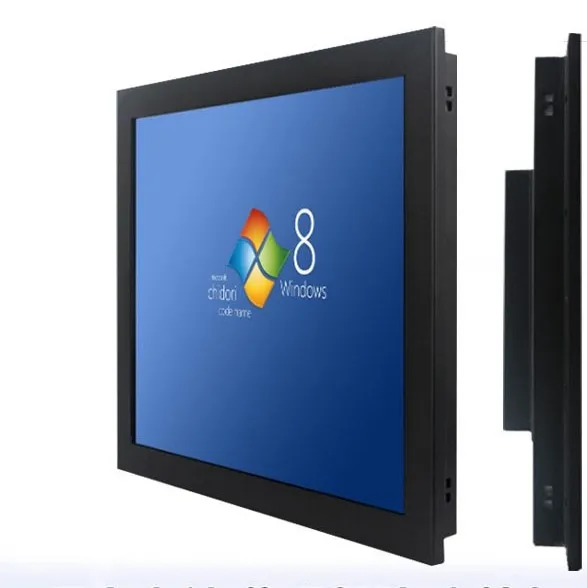

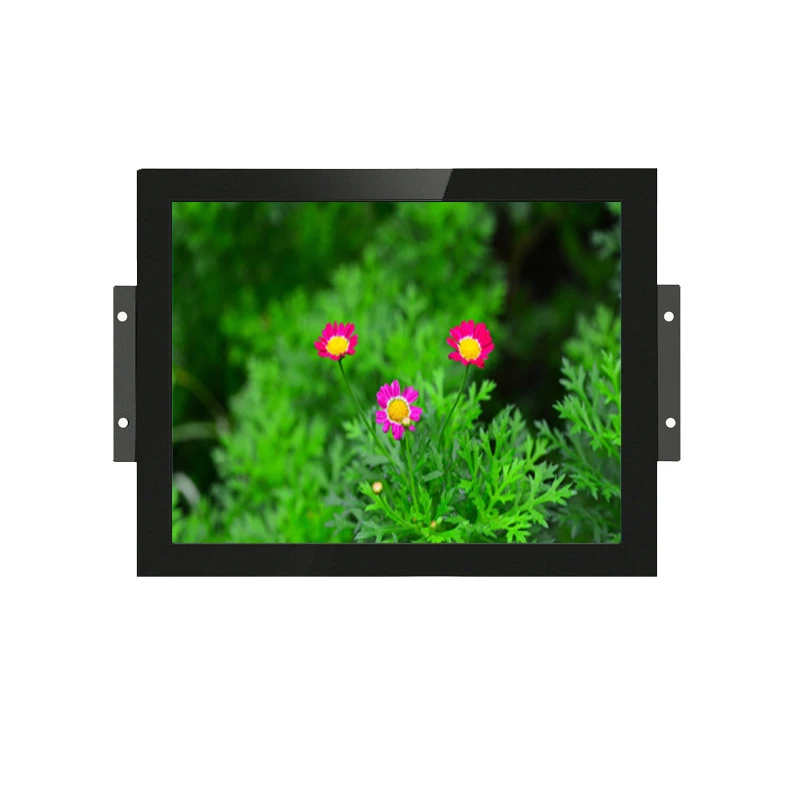

Square 4:3 10.4 12.1 15 Inch Open Frame 5 Wire Resistive or capacitivie Touch Screen LCD LED Monitor for Industrial
- Category: >>>
- Supplier: Shenzhen Yongjunyi Technology Co. Ltd.
Share on (62191889523):
Product Overview
Description
Square 4:3 10.4 12.1 15 Inch Open Frame 5 Wire Resistive or capacitivie Touch Screen LCD LED Monitor for Industrial
Product Description
| 15inch capacitive touch screen monitor(resistive optional) | ||
| Display | size | 4:3 Ratio 15" Active Matrix TFT LCD |
| Aspect Ratio | 4:3 | |
| backlight | LED backlight | |
| Active Display Area | 304.128 × 228.096 mm (H×V) | |
| Resolution Ratio | 1024×768 | |
| Brightness | 250cd/m² (Typ.) | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M | |
| Response Time | 5ms | |
| Viewing Angle | 85/85/80/850(Typ.)(CR≥10) | |
| TouchScreen | Touch Technology | 10 points Multi-Touch Capacitive Touch Screen |
| touch options | (4 or 5 wires resistive touch,IR SAW touch optional) | |
| Touchscreen Transparency | 87% | |
| Touch Surface Hardness | >7H | |
| Touch Response Time) | <10ms | |

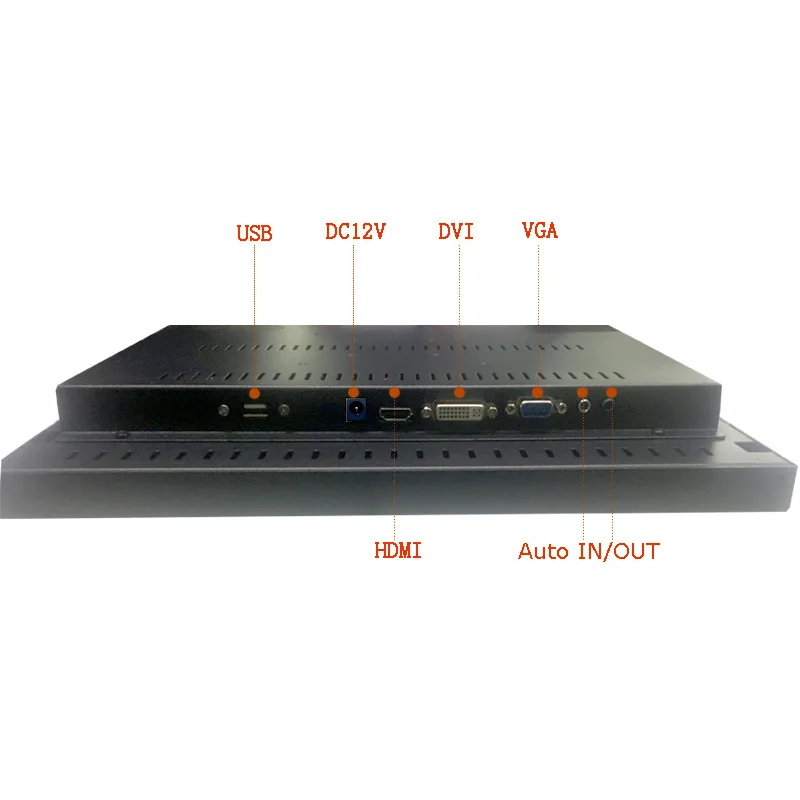

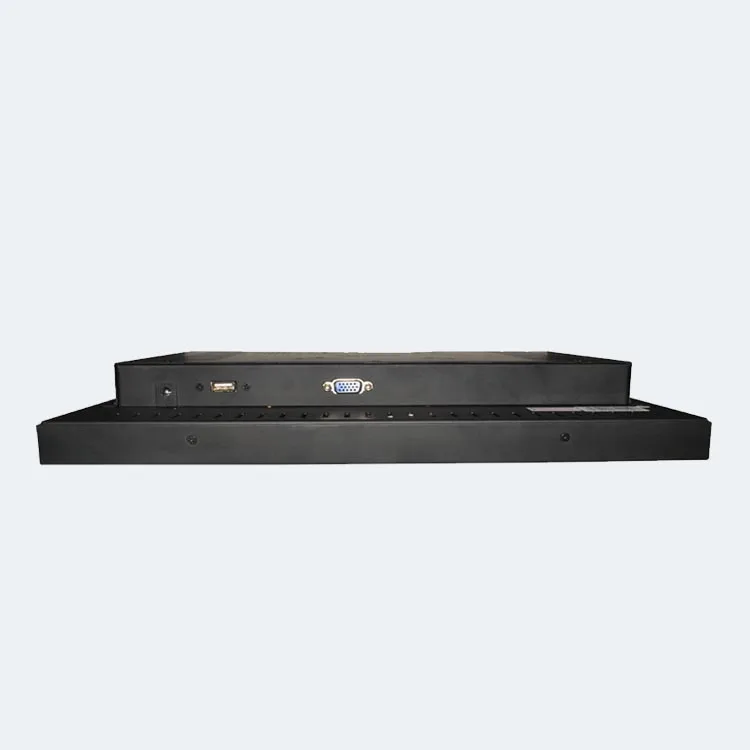

| I/O port | Interface | VGA HDMI USB DVI DC |
| Others | Power Supply | DC12V 4A AC110~220V |

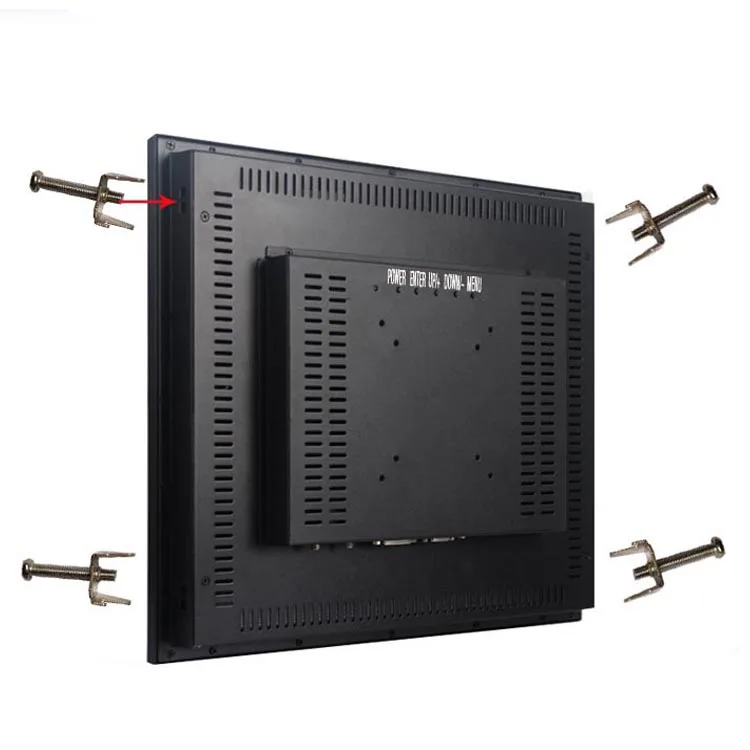

| Installation | 1:embedded 2: wall-hanging 3: ceiling-hanging 4:desktop,5:vesa | |
| Product color | black or white | |
| Temperature | Operating:0℃~50℃, Storage:-20℃~60℃ | |
| Humidity | Operating:20%~80%, Storage:10%~90% | |
| Altitude | <3000 m | |
| Accessories | VGA cable, USB cable, Power adapter | |
