Product Overview
Description
Sales Efficient Automatic four-Pillar Hydraulic Thermoforming Machine
Product Description
Model | FJL-SZ-680 I | FJL-SZ-680 II | FJL-SZ-750 I | FJL-SZ-750 II | ||
Max. Forming Area | 650×320mm | 750×420mm | ||||
Max. No-Load Speed | 35 Cycles/min | |||||
Running Pattern | Hydraulic | |||||
Oil Pump Motor Power | 5.5KW(Double Pump) | 15KW(Double Pump) | ||||
Cutting Pattern | In mould automatic | |||||
Feeding Pattern | Motor with Encode | Servomotor | Servomotor
| Servomotor
| ||
Stretching Pattern | Air Cylinder
| Servomotor
| Air Cylinder
| Servomotor
| ||
Sheet Materia | PP.PS.HIPS.PET.PVC | |||||
Sheet Thickness Range | 0.2-2mm | |||||
Max. forming Depth, Sample Height | 120mm | 150mm | ||||
Max. Sheet Roll Dia | 800mm | |||||
Heater arrangement | (120Pieces,650W)Top+Bottom Heating With IR Cerami cHeater
| (152Pieces,650W)Top+Bottom Heating With IR Cerami cHeater
| ||||
Temperature Controller & Thermocouple | PID K-Type | |||||
Electrical Consumption | 40KW/h | 45KW/h | 50KW/h | 55KW/h | ||
Overall Power | 100KW | 110KW | 120KW | 130KW | ||
Air Consumption | 1.5-1.8m3/min, 0.6-0.8 Mpa | 2-2.5m3/min, 0.6-0.8 Mpa | ||||
Dimension | L3650×W1950×H2500mm | L4000×W1730×H2600mm | ||||
Weight(T) | 4.4T | 4.5T | 4.8T | 5T | ||
Power Supply | 380V/50HZ Three phase four wires | |||||
USAGE

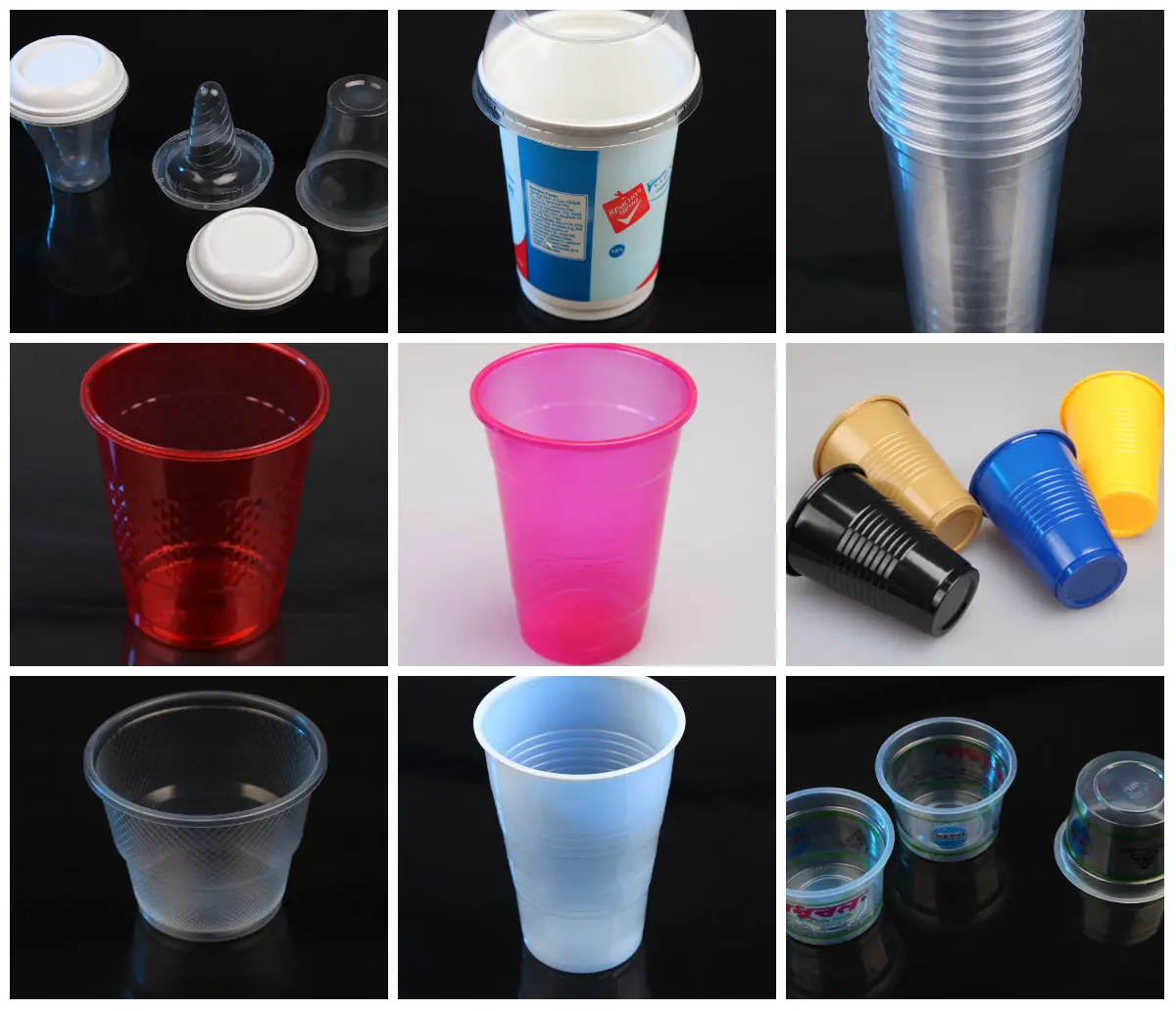

This series mainly used for making different kinds of plastic cups, such as water drinking cups, jelly cups, yogurt cups, coffee cups, it can also make flower pots, disposable bowls
lids, plates, trays and ect
Major construction features
1.The operation is controlled by PLC with touch screen

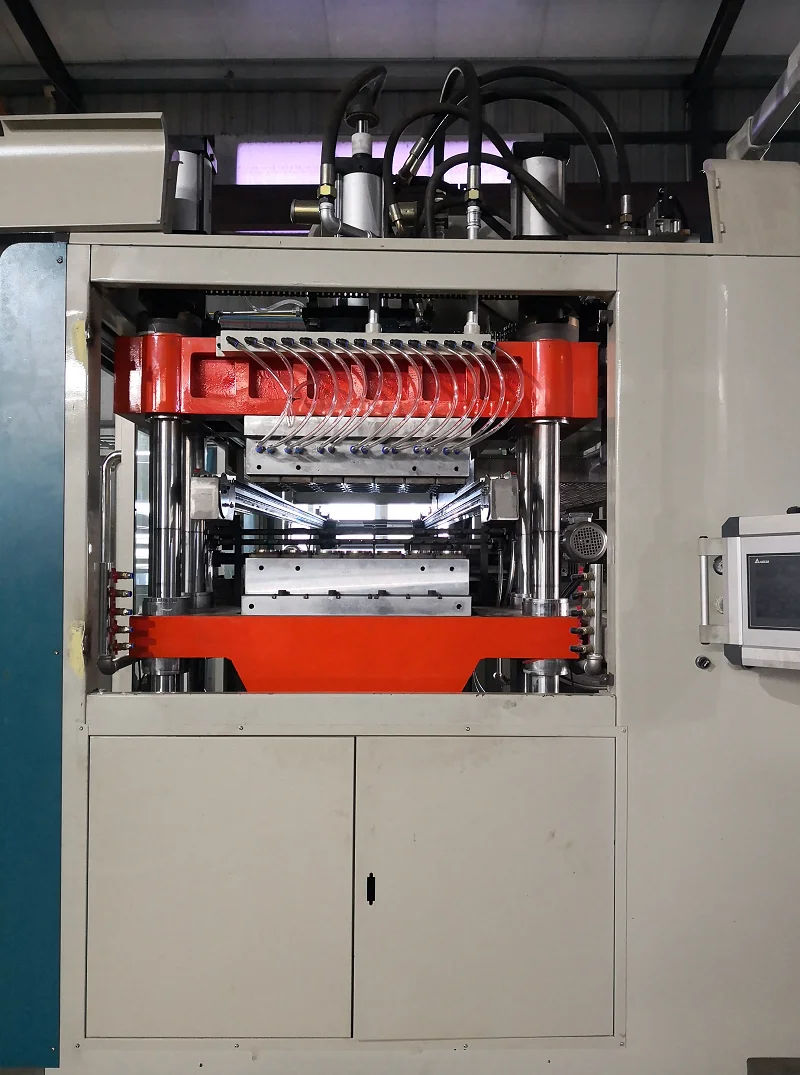

2.Adopt four pillars to fix the mould
3.Fill oil automatically to lubricate mechanism movement at certain time
4.Temperature control modules to control each temperature area
5.Machine production process started from sheet feeding, heating, stretching, forming
in-mould cutting in one stroke
6. Convenient operation, outstanding performance, low noise and high quality
