Jinan CNC Four Head Corner Forming Machine for Aluminum Window & Door

Product Overview

Description

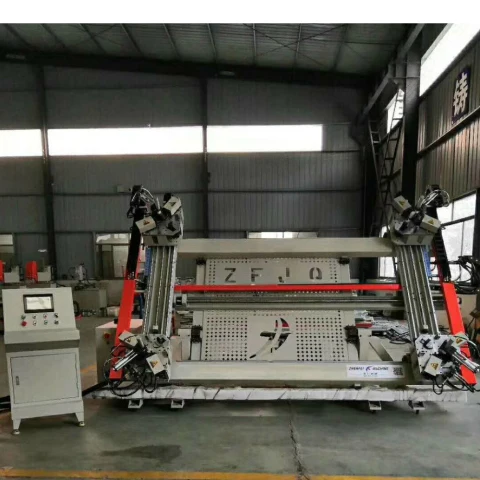

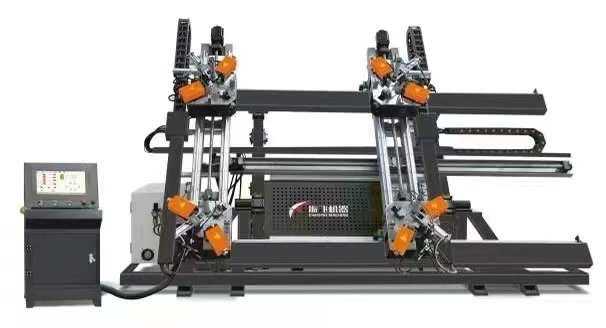

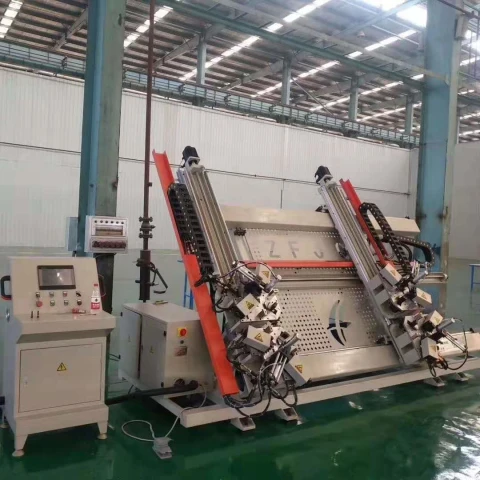

Jinan CNC Four Head Corner Forming Machine for Aluminum Window & Door :



Main Feature:



1)This machine is used for the assembly of aluminum doors and windows,

    which can complete the corner code punching and riveting connection of

    four corners at a time, and has high production efficiency;

2) The machine adopts numerical control system, which can automatically locate

     the size of the window and automatically pre-tighten the four corners through

     the torque monitoring. It can realize automatic positioning of the heads of

    different size windows, accurate positioning and high precision of the finished

     window;

3) The front and back, left and right of rear angle cylinders are adjustable , easy

     to operate, and can be applied to the angles of punching and riveting groups

     of different profiles, and the scope of use is wide;

4) Applicable to the production of large quantities, multiple varieties, high quality

    doors and windows.



Technical Parameter:

Voltage/Power	380V/50Hz/3P 7.5KW
Rating Oil Pressure	15Mpa
Air consumption pressure	0.5-0.8Mpa
Capability of oil tank	60L
Max. frame size	1800*3000mm
Min frame size	450*450mm
Corner crimping cylinder movement stroke	0-60mm
Machine size	4700*2000*2600mm

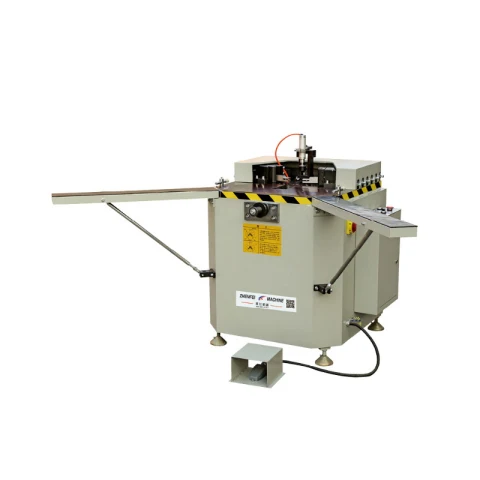

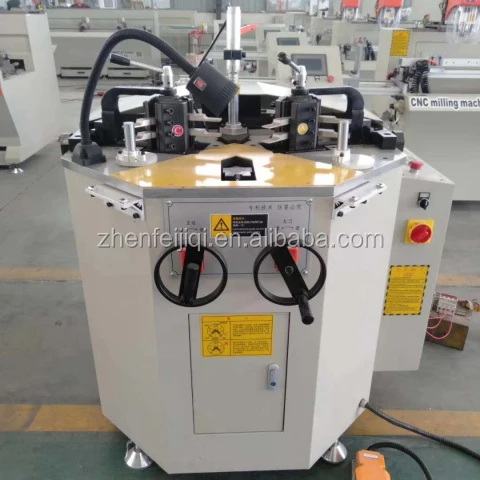

China Aluminum doors windows machines single head corner crimping machine:



This machine is mainly used for Angle code of the structure of the swing doors,

Windows 90 ° seam extrusion connection;

The machine can realize multi-position group Angle by adjusting the group

Angle cutter;

Internal positioning can be lowered to the table below, easy to take off;

Use hydraulic system to provide power, so that the work is stable and reliable;

The right and left punch adopts mechanical synchronous mechanism to make

adjustment more simple and convenient.

Set Angle cutter can be adjusted easily (adjustable set Angle cutter).



Technical  parameters:

Input power:                   380V/50HZ or customized

Power:                           1.5 KW

Tank capacity:                20L

Rated oil pressure:          15Mpa

External dimensions:       1100 x 1100 x 1300mm

Weight:                          400Kg
