animal feed horizontal mixer/Poultry feed mixing machine
- Category: >>>
- Supplier: Henan Hengfu Machinery Equipment Co. Ltd.
Share on (62192164924):
Product Overview
Description
Product Description

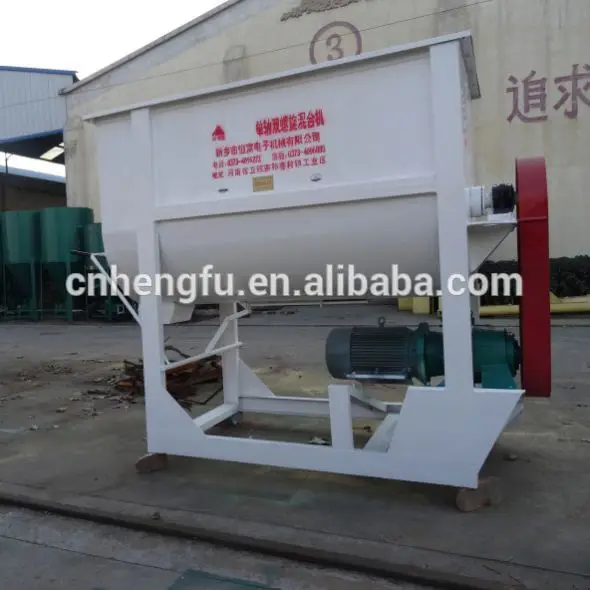

animal feed horizontal mixer
Application
Horizontal feed mixer is a horizontal and a batch type mixer. It has the special rotor structure and high degree of homogeneity. The gap between rotor and machine case can be adjusted
Widely used in poultry, animal feed, livestock plants, chemical industries etc.
Parameters
Capacity: 250-10000 kg/h Mixing uniformity: >93% Mixing time: 3 -6 mins Mixing type: Horizontal screw/ribbon mixing Material: Carbon steel OR stainless steel |
Work principle
The agitator rotates with minimum wall clearance in a U-shaped vessel. The mixing rotor consists of an inner and outer ribbon which effects a counter flow mass movement with random motion in radial and axial directions.
The mixing action in the Animal Feed Mixer is created by the following 3 factors:
Conveying of product by one ribbon from left to right
Counter flow of product by the second ribbon
Exchange of product between the two ribbons
Screw/ ribbon in the mixer
◊ Animal Feed Mixer Features
1. Mixing moderate and high uniformity, mixing uniformity cv <7%, no segregation;
2. Mixed cycle short (180-240S), large open layout, a quick feed, a small amount of residue;
3. Atomizing nozzle configuration stainless steel, to meet the needs of adding the liquid;
4. Full-sized discharging gate features minimum residue;
◊ Technical Parameter
Model | SLHY 0.125 | SLHY 0.25 | SLHY0.375 | SLHY0.6 | SLHY1 | SLHY2.5 |
Production capacity (kg/batch) | 50 | 100 | 150 | 250 | 500 | 1000 |
Main engine power (kw) | 1.5 | 1.5 | 1.5 | 2.2 | 7.5 | 15 |
Related Products
Feed production line
flat die type grass pellet mill
powder feed plant pellet feed plant
Pellet feed machine
flat die pellet mill ring die pellet mill
Feed grinder
water drop hammer mill 9fq feed grinder
Feed mixer
single shaft mixer double shaft mixer
Feed mixer and grinder
Animal farm equipment
pig farrowing crates solid liquid separator chaff cutter
auto feeding car stainless steel feeding trough
Packaging & Shipping
Specialized design of wooden box packing, ensure that the goods are not damaged,; Container transport.
Our Services
Pre-sale service:
1.Provide our client with investment guide for free.
2.Provide our client with evaluation investment scheme for free
3.Free visit to our factory.
4.Design of production line scheme is provided for free.
In-sale service:
1. Experienced workers are sent to provide track service when equipment is transported.
2. Experienced technicians or engineers will be sent for on-site installation, adjustment and technical devices according to clients' engineering requirement.
3. "Operating instruction manual", equipment assembly drawings and wearing parts list in duplicate will be provided for free.
Post-sale service:
1. On the premise that equipment is operated correctly and in warranty period, we accept repair, exchange, and return items.
2. We provide permanent favorable spare parts for our clients.
3. We provide permanent technology support and related help.
² Professional engineering design
² Earliest delivery ,high quality with best price
² Safe and efficient transport services
² Efficient installation guide can send video installation and operation
² One year guarantee for whole machine, except the wearing parts .
² We can provide engineers available to service machinery overseas.
² 24 hours technical support by E-mail or telephone.
Company Information
With More than 25 Years in Production of Animal Feed Machines
Henan Hengfu Electronic Machinery Co. Ltd, founded in 1993, is currently one of the best key enterprises specialized in the research and development of feed machinery, pellet machines, animal feed mixers and grinders in the machinery manufacturing industry, which have passed the certification of CE due to our ISO 9001:2008-certified operations. Our feed complete equipment have been exported to North and South America, Africa, Asia, Europe, and more than 20 countries worldwide. We also have strict and complete QC system.
Good quality, competitive price and excellent after-sale service are highly praised by customers. So far, product sales have covered more than 25 provinces and cities in China and also exported to Ghana, Botswana, Benin, Ivory Coast, Venezuela, Mozambique, Indonesia, Malaysia, Korea and over more than 20 countries.
FAQ
To give you the accurate price, there are some details to confirm as follows:
1. What's your raw material?
2. what kind of animal do you feed?
3. The output per hour?
4. Do you also need automatic packing machine?
5. The basic processing technology: Grinding, mixing, pelleting, cooling, crumbling, screeening, packing. Any special requirement, let me know directly.
6. Our normal voltage is 380V, 50HZ,3phase, if yours is different, tell me yours.
1.Are you manufacturer,yes or not?
Answer:Yes. We have been feed machine manufacturer for 23 years and it will be longer.Now we are capable of producing not only feed machines but also biomass machines and mineral stone processing machines.
2.Can you accept the customized plan? Can you simplify my plan for reducing costs?
Answer:Of course,our brilliant engineers are waiting for it all the time.
3.What's your MOQ?
Answer:Generally speaking,one is okay,but larger quantity ,lower price.
4.What i need know to build a feed processing plant?
Answer:You just need figue out the following questions:
(1)What animal you want to feed? the animal amount?This is used for confirming the production capacity and feed type.
(2)What raw materials you have?material size?material moisture?
(3)Any speical demand?Wait for your contact anytime.
