Wall UK 3 pin ac dc adapter 12v 1.0a 12W AC/DC Power Adapter with CE CB approved
- Category: >>>
- Supplier: Shenzhen Yidashun Technology Co. Ltd.
Share on (62192224862):
Product Overview
Description
WWall UK 3 pin ac dc adapter 12v 1.0a 12W AC/DC Power Adapter with CE CB approved
Product Description
This 12V 1A With dc 5.5*2.1mm UK wall plug power adapter is CE and CB approved, and now we can support you with a very very competitive price!

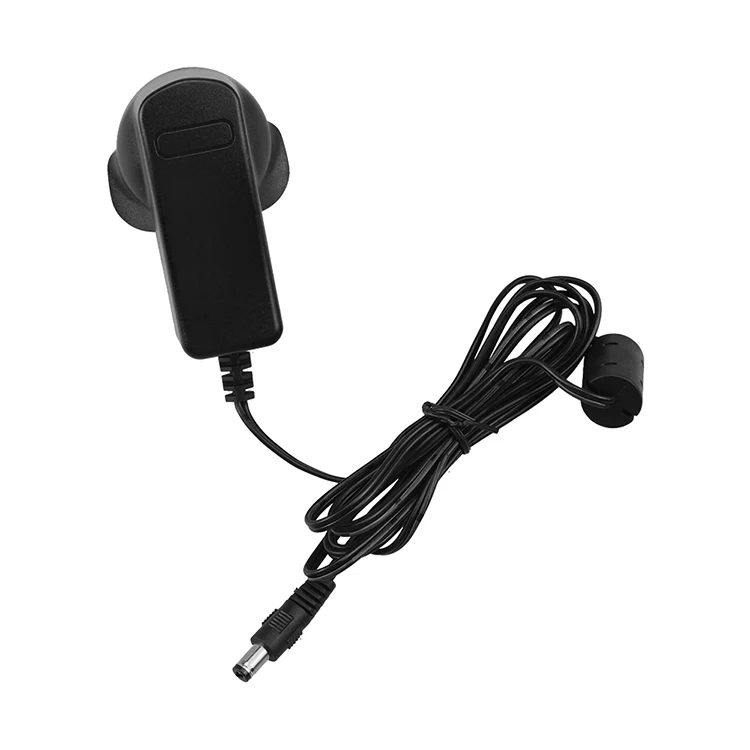

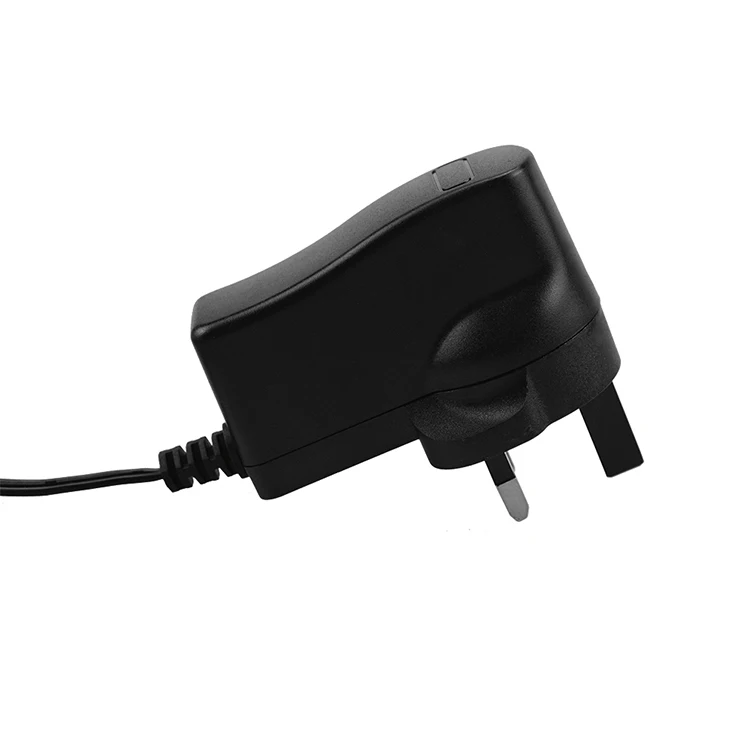

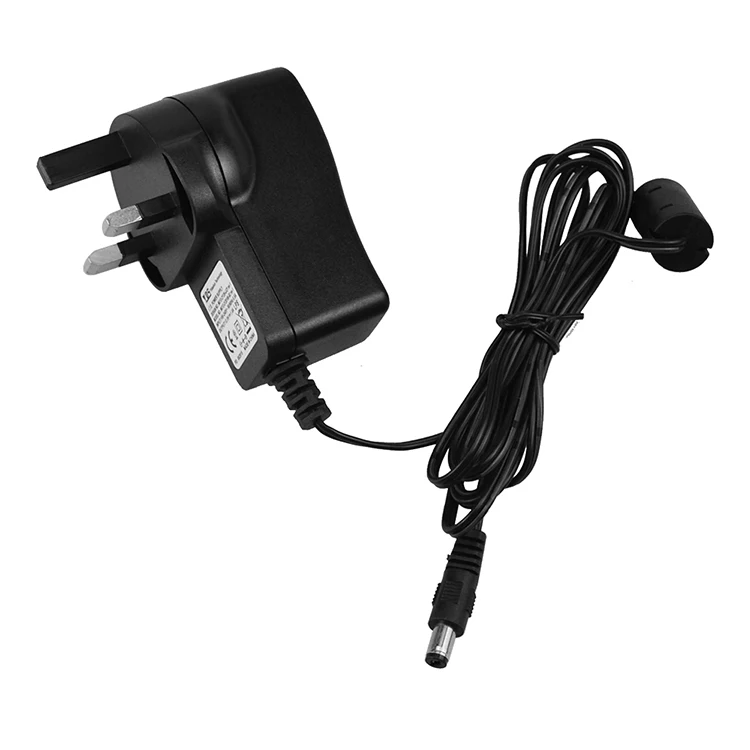

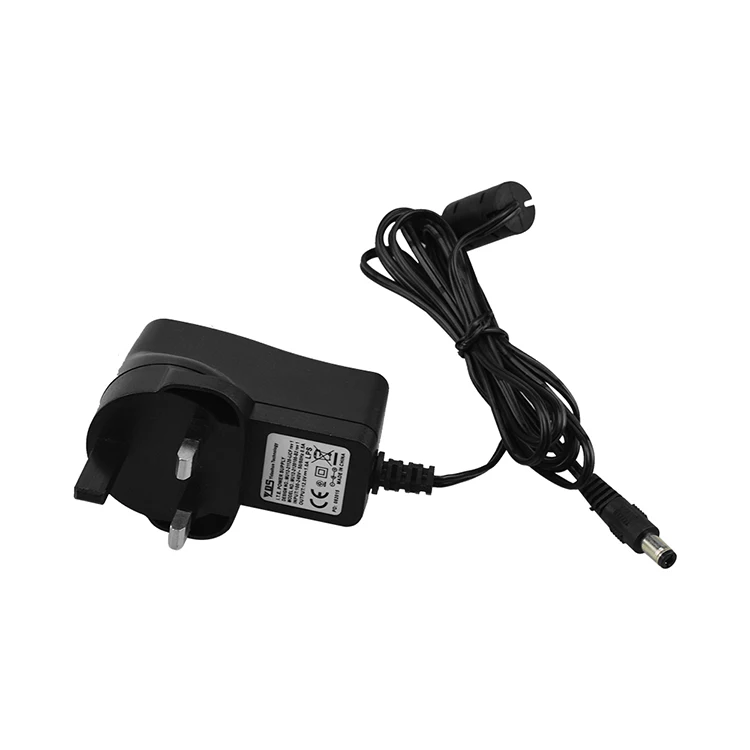

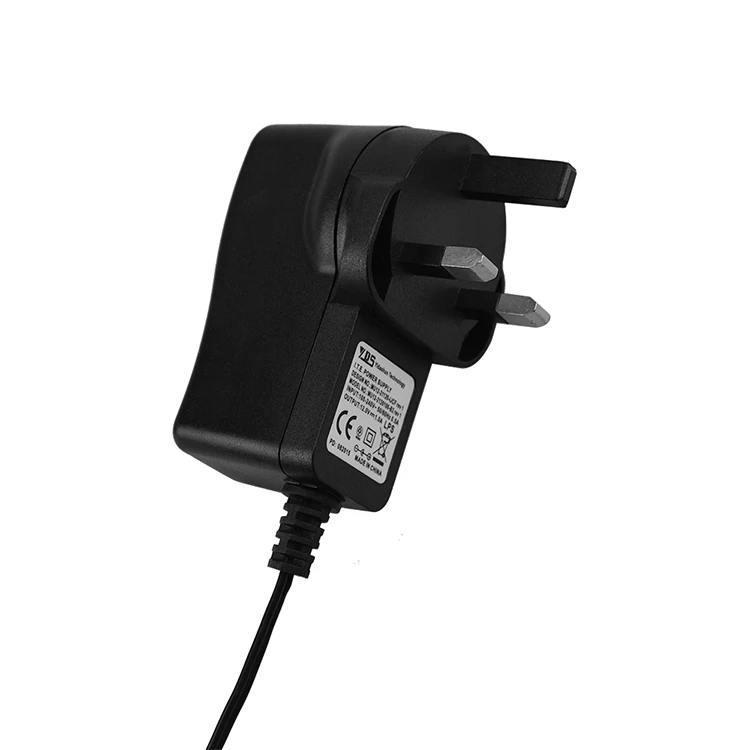

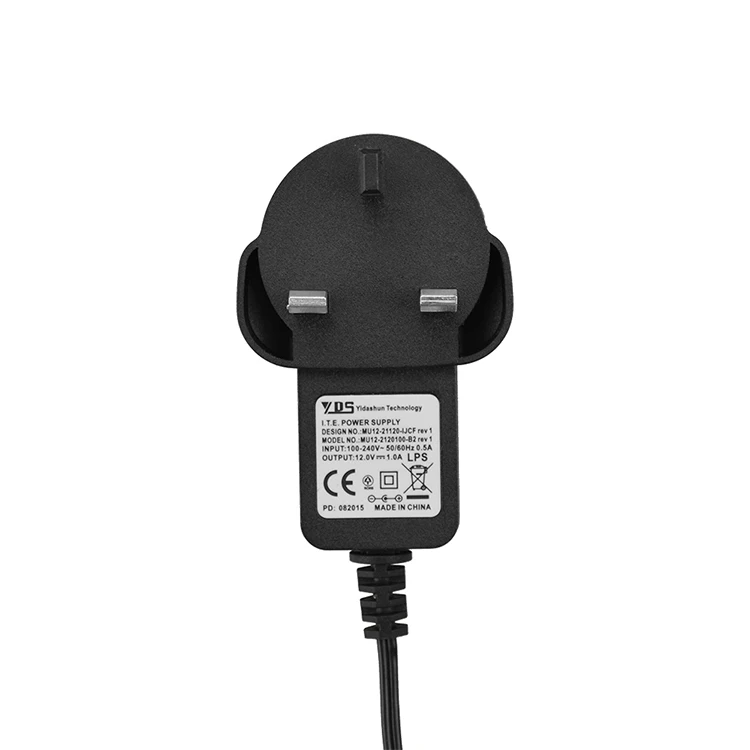

products pictures:
Date sheet:
Specifications | |
Model No. | YUK121B(12W) |
AC Input | |
Nominal Input Voltage | AC 100V~240V |
Input Voltage Range | AC 95V~265V |
Input Frequency | 50/60Hz |
DC Output | |
Output Voltage | 12V |
Output Current | 1A |
Output Power | 12W |

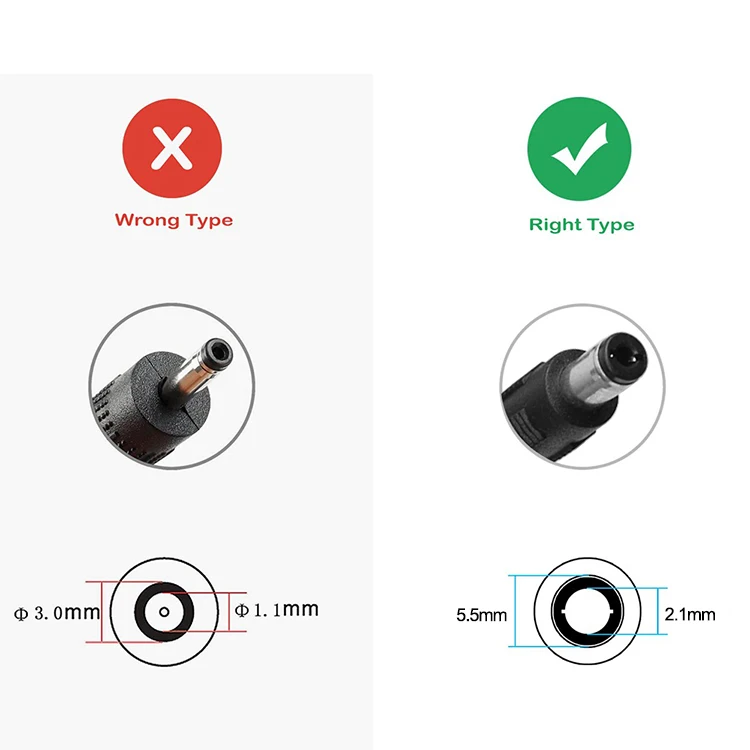

DC Connector Size | 5.5*2.1 |
Line Regulation | 2% |
Load Regulation | 5% |
Ripple Noise | 180 Mvp-p |
Efficiency | >90% |
Output Cable Standard | 0.5mm2 Pure Copper |
Output Cable Length | 1.8m long |
Environment | |
Operating Temperature | 0°C ~40°C |
Operating Humidity | 5%~95%RH |
Storage Temperature | -20°C ~85°C |
Storage Humidity | 5%~95%RH |
Protection | |
Over Load Protection | Short Circuit Protection |
Over Current Protection | |
CE, ROHS, FCC | |

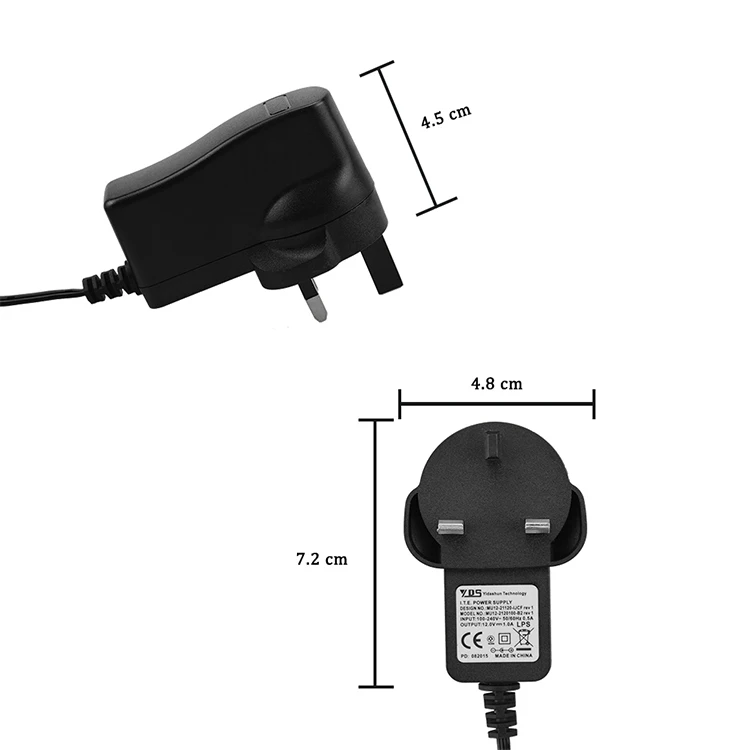

Adapter Size | 7.2*4.8*4.5CM |
Adapter Weight | 104G |
Inner Box Size | 10*5.1*8.3CM |
Inner Box Weight | 18G |
PCS/CTN | 100PCS |
Outer Carton Size | 52*28*36CM |
Outer Carton Weight | 680G |
GW/CTN | 12880G |
Package | |
Inner Box | Normally neutral brown box or customized requirement |
Outer Carton | Normally neutral standard carton or customized requirement |
Guarantee | 30 days |
Warranty | 2 years |
Terms and Conditions | |
MOQ | 100PCS for mixed order |
Payment Terms | T/T, L/C, PayPal, western union |
Delivery Time | 3-5 days |
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test | |
For Yidashun(YDS) wall plug power adapter, we have many advantages than others:
1, For the shell material, we use PC fire-proof material!
2, For the pcb board, all our pcb is according to the safety standard, with safety design, not as other some cheap price adapter which is not safe and easy to fire and explode, which is very dangerous.
3, For the cables, we use pure copper and thick cables!
4, We have own cable factory, so for the ac cables and dc cables, all are made by ourself, then can control the quality of the cables.

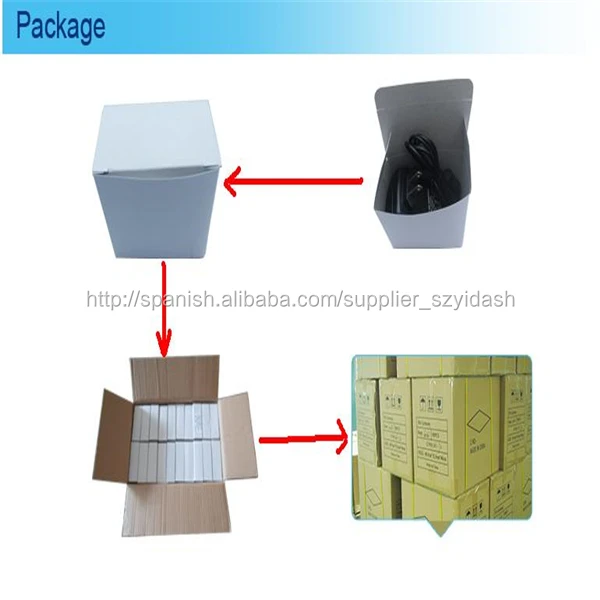

Packaging & Shipping
Each adapter with brown box inside then 50pcs in one carton,package can be customized as your demands.
For shipping, we have professional shipping agent who can ship the goods to all over the world with different shipping way, and also know the customs clearance rules!
Company Information
Certifications
We have certificates such as CE, CB, FCC, ROHS, VDE ETC
