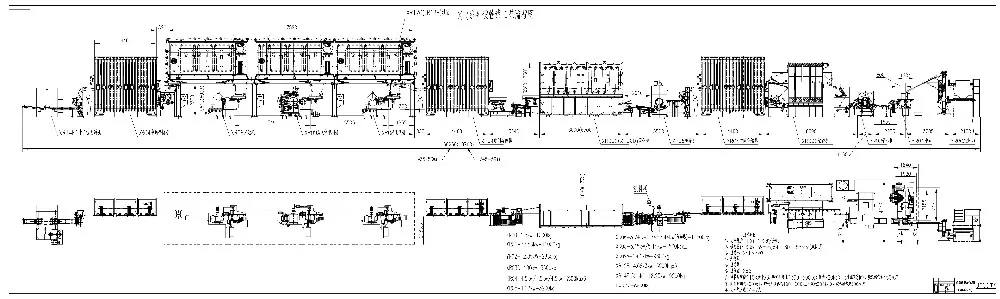

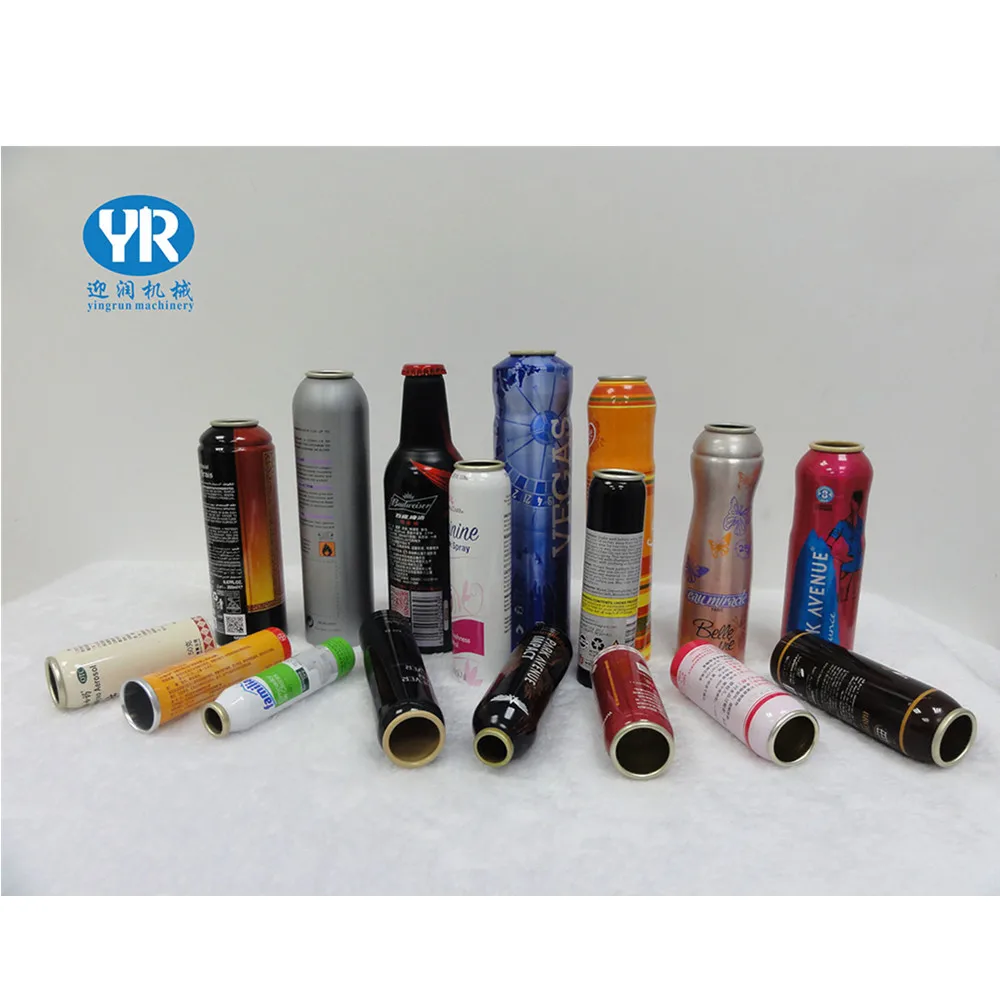

Aluminum can line are a set of machines to produce mono block aerosol cans and bottles. Mono block cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints. The XR series aluminum can lines produced by us are fully automatic. Each equipment of this series can work alone or form partial production lines according to client's needs. The main machines include YR01 Extrusion press, XR02 Trimmer cum brushing, XR03 can washer or degreasing Spray washing machine,XR04 Accumulator, XR05 Internal lacquering machine, XR06 Lacquer curing oven, XR08 Base-coating machine, XR09 6-color or 8-color printing machine, XR12 Drying oven, XR14 and XR14E Necking machine, etc.
All the equipment of the series are properly aligned in structure, having advance design, highly automated for fast production. All machines are controlled with SIEMENS PLC to ensure stability. To save energy consumption, all lacquer curing machine and drying oven adopt gas heating. Main units and controlling components all adopt branded products to ensure reliable and stable performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.
SPECIFICATIONS OF ALUMINUM AEROSOL CANS MAKING LINE
Production Speed
≤120pcs/min
Diameter
φ22㎜- φ35㎜,φ35㎜-φ53㎜ or φ45㎜- φ66㎜
Motor Power
230KW
Dimensions
69000×4500×6300(㎜)
Intake pressure
0.55MPa
Gas consumption
500Mm³/24h
Would like to know more about our equipments? Feel free to send us an inquiry!

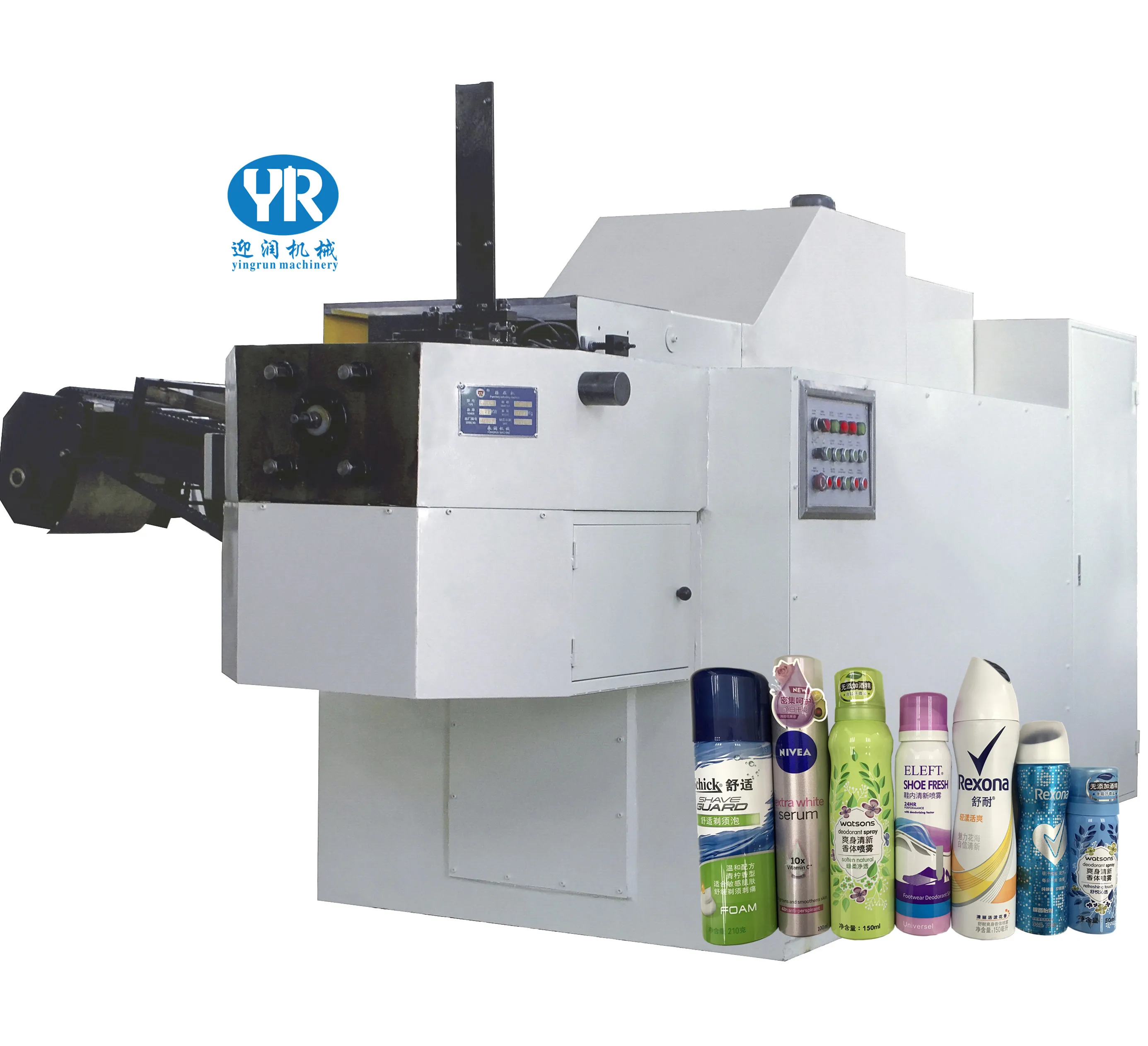

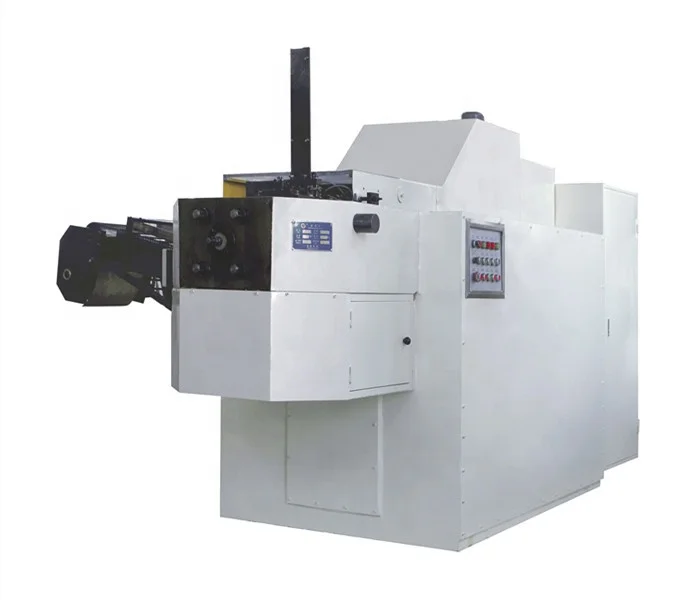

Main technical parameters: A. Can diameter range: φ35mm-φ59mm B. Can length range: 80-250mm C. Production speed: ≤120cans/min D. Main motor power: 37KW, Total power:37.28KW E. Intake pressure: ≥0.4Mpa F. Slide stroke:350mm G. Net weight: 11000 KG H. Dimensions: 3195*1558*1585mm(conveyer belt and vibration hopper not included)
Main Machine

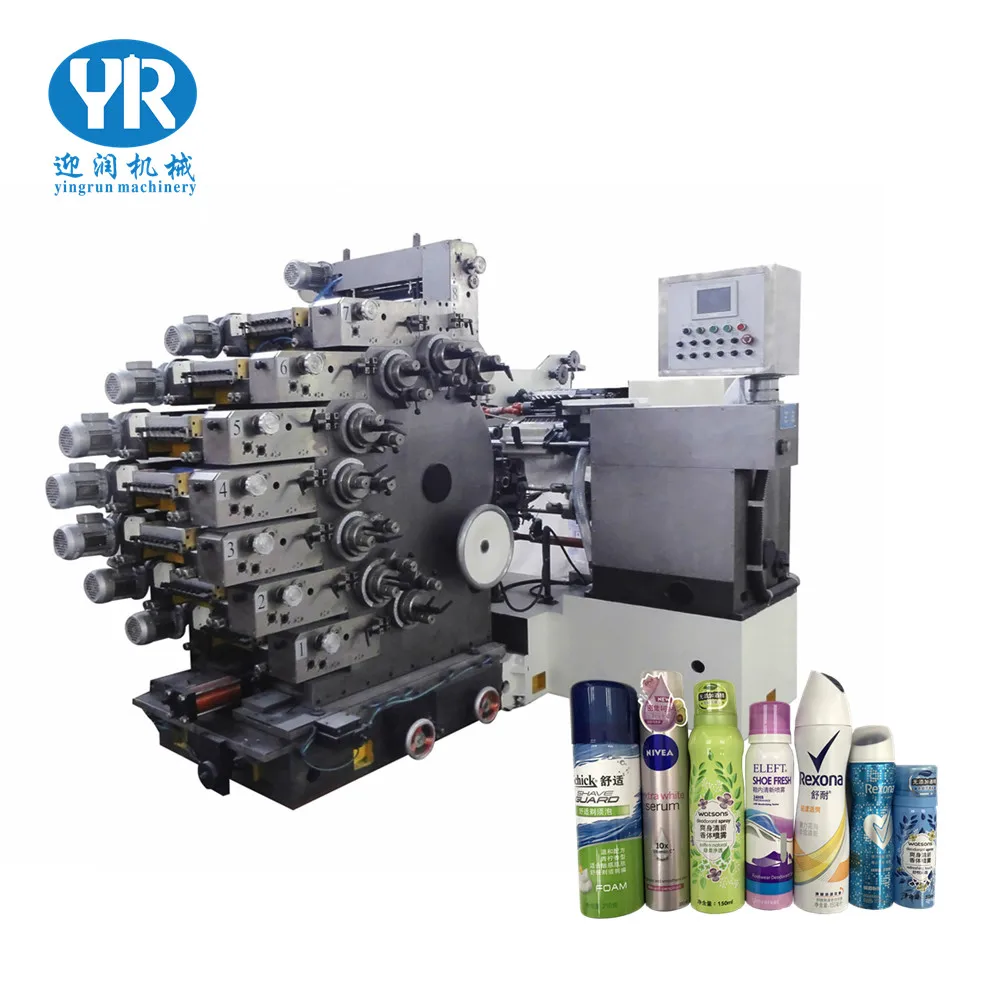

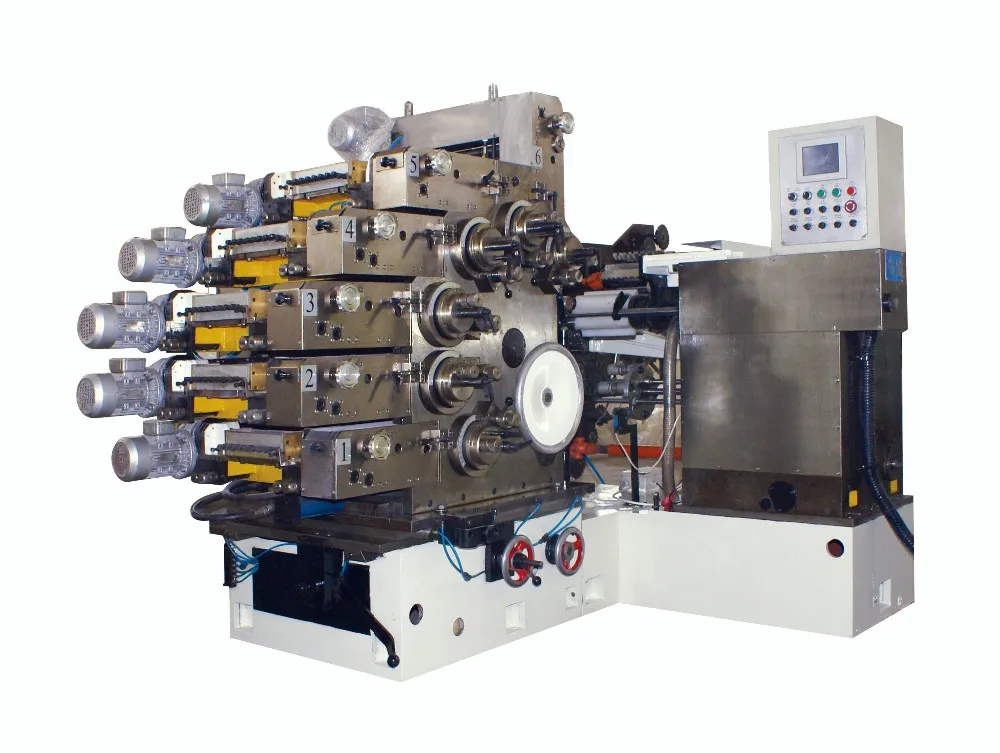

Name: XR09 6-color Printing Machine Brand: YINGRUN Main technical parameters:
A. Can diameter range: φ35mm-φ66mm B. Can length range: ≤230mm C. Production speed: ≤120cans/min D. Motor power: 19.17KW E. Dimensions: 3340×2330×2100mm F. Net weight: 7600KG G. Intake pressure: 0.6Mpa
Main Machine

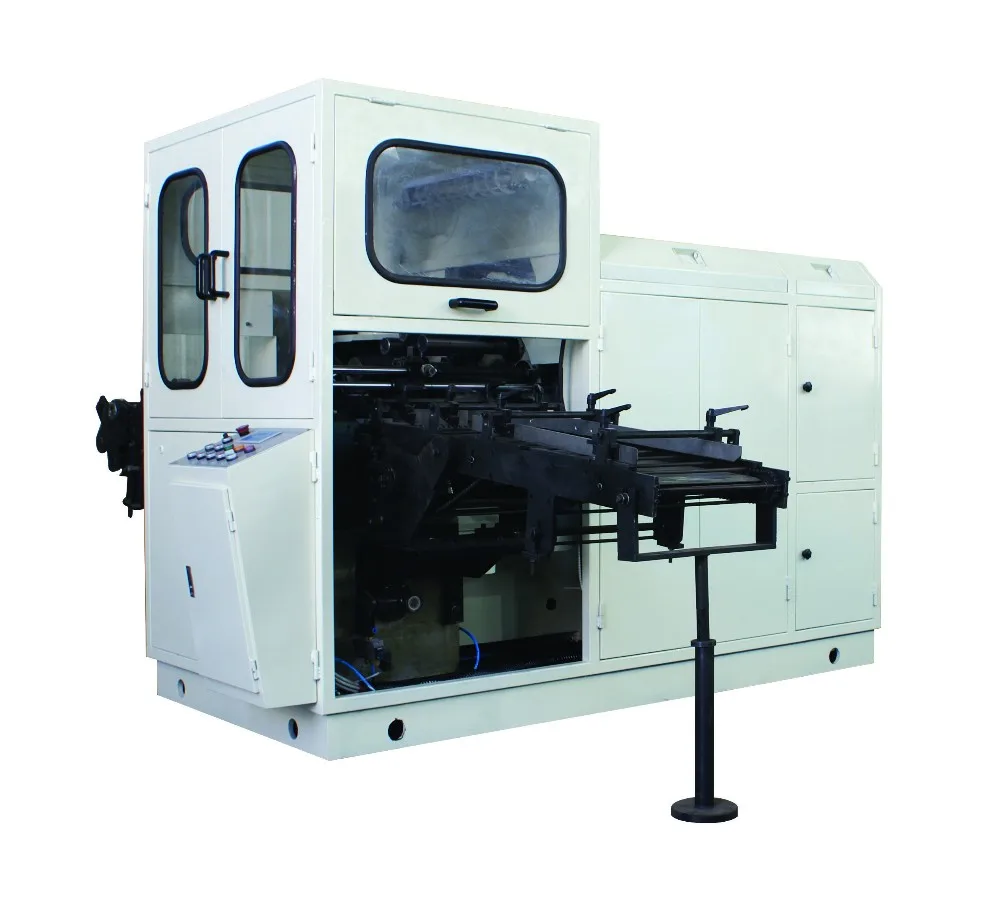

Name: XR02 Trimming cum brushing machine Brand: YINGRUN Main technical parameters: A. Can diameter range: φ35mm-φ53mm B. Can length range: ≤250mm C. Production speed: ≤120cans/min D. Main motor power: 4KW, total power:12.85KW E. Intake pressure: P=0.6MPa F. Dimensions: 2940*2600*1820mm G. Weight: about 2800KG
Main Machine
Name: XR08 Base-coaitng machine Brand: XIRUN Main technical parameters: A. Tube diameter range: φ35-φ53mm B. Tube length range: ≤250mm C. Production speed: ≤120cans/min D. Motor power: 5.15KW E. Dimensions: 2750*2330*1760mm F. Net weight: 4500KG G. Intake pressure:≥0.5Mpa
Would like to know more about our equipments? Feel free to send us an inquiry!
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

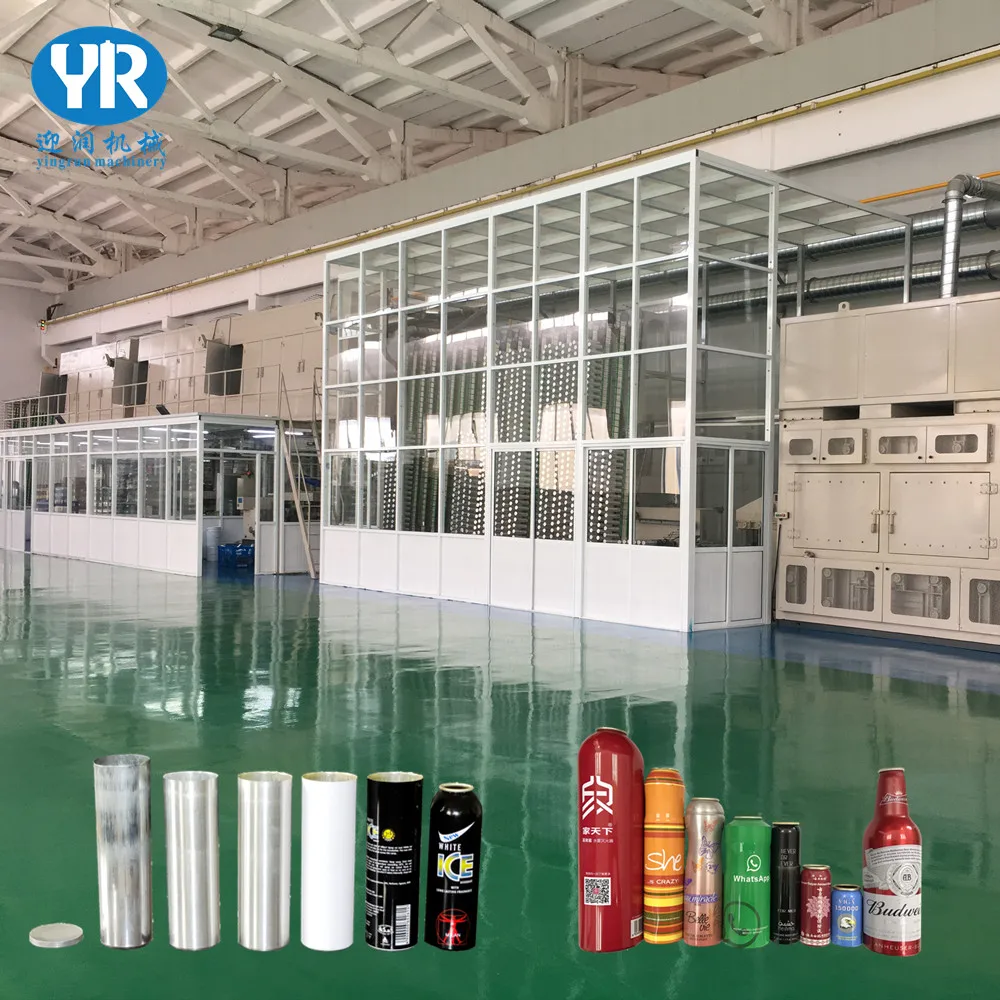

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
PACKAGING IMFORMATION
Size
69 (L) * 4.5 (W) * 6.3 (D)m
Weight
90 T
Packaging Details
International Export Standard Wooden Case
Would like to know more about our equipments? Feel free to send us an inquiry!
FAQ
Q: What's the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
