High reliable module 40x40x4.0mm peltier cooling diode laser devices , thermoelectric cooler
- Category: >>>
- Supplier: Qinhuangdao Fulianjing Electronics Co. Ltd.
Share on (62192856423):
Product Overview
Description
| High Reliable module 40x40x4.0mm Peltier cooling diode Laser devices , thermoelectric cooler |
Product Description
- Features
High reliability: with the special GL structure,the reversal of polarity property of our products are 10 times better than conventional thermoelectric coolers. The reliability of coolers has been increased dramatically.
Higher temperature difference: 2℃ temperature difference result in higher cooling performance and better quality.
High temperature resistance: the 230℃ high temperature solder made the products possible to be used at higher temperature.

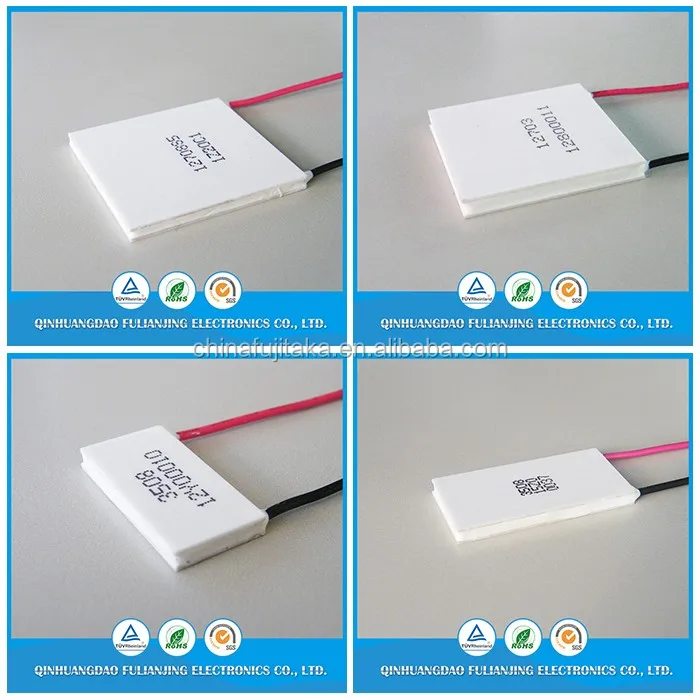

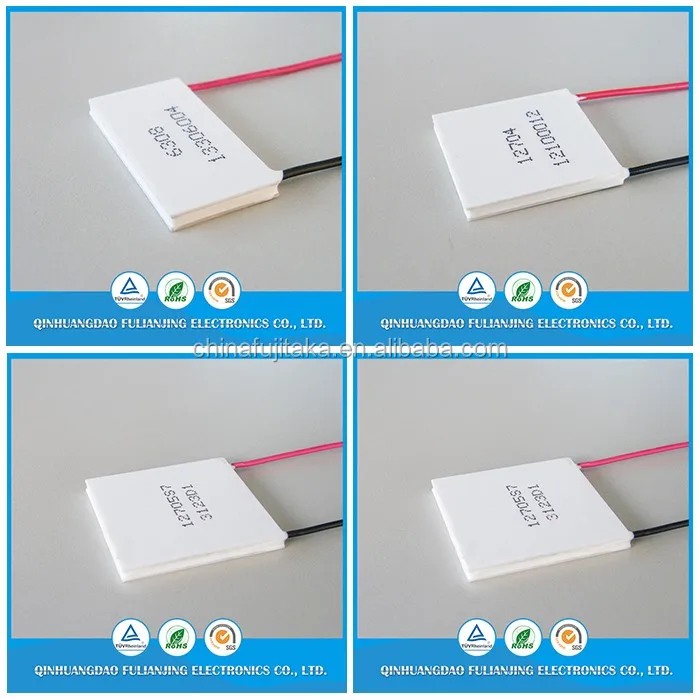

1. Product Pictures of Thermoelectric Peltier
2.Product description of thermoelectric peltier
Features:Thermoelectric Peltier Module ROHS
Dimensions: 40x40x4.0mm
Small and lightweight
Free choice of configuration
Since there are no moving parts, there is no vibration or noisy
With only a power cord, it is easy to handle
couple | 127 |
Imax | 5A |
Vmax | 15.4V |
Qmax | 41W |
soldier | without Pb |
| Model number | Imax(A) | Vmax(V) | Tmax(℃) | Qmax(W) | Tmax(℃) | Qmax(W) | Dimensions(mm) | ||
| Th=27℃ | Th=50℃ | L | W | H | |||||
| TEC1-1703NC | 3.5 | 2.1 | 68 | 3.9 | 75 | 4.3 | 15 | 15 | 4.70 |
| TEC1-3103NC | 3.8 | 7.0 | 7.7 | 20 | 20 | ||||
| TEC1-3503NC | 4.2 | 7.9 | 8.7 | 15 | 30 | ||||
| TEC1-7103NC | 8.6 | 16.0 | 17.8 | 30 | 30 | ||||
| TEC1-12703NC | 15.4 | 29.0 | 32.0 | 40 | 40 | ||||
| TEC1-12703AC | 15.4 | 29.0 | 32.0 | 40 | 40 | ||||
| TEC1-1704NC | 4.0 | 2.1 | 68 | 4.2 | 75 | 4.6 | 15 | 15 | 4.60 |
| TEC1-3104NC | 3.8 | 7.5 | 8.3 | 20 | 20 | ||||
| TEC1-3504NC | 4.2 | 8.4 | 9.2 | 15 | 30 | ||||
| TEC1-4904NC | 5.9 | 13.5 | 15.2 | 25 | 25 | ||||
| TEC1-7104NC | 8.6 | 19.6 | 21.6 | 30 | 30 | ||||
| TEC1-12704NC | 15.4 | 32.0 | 35.2 | 40 | 40 | ||||
| TEC1-12704AC | 15.4 | 32.0 | 35.2 | 40 | 40 | ||||
| TEC1-1705NC | 5.0 | 2.1 | 68 | 5.5 | 75 | 6.1 | 15 | 15 | 4.00 |
| TEC1-3105NC | 3.8 | 10.0 | 11.1 | 20 | 20 | ||||
| TEC1-3505NC | 4.2 | 11.0 | 12.3 | 15 | 30 | ||||
| TEC1-7105NC | 8.6 | 23.0 | 25.7 | 30 | 30 | ||||
| TEC1-12705NC | 15.4 | 41.0 | 45.8 | 40 | 40 | ||||
| TEC1-1706NC | 6.0 | 2.1 | 68 | 7.1 | 75 | 7.9 | 15 | 15 | 4.00 |
| TEC1-3106NC | 3.8 | 13.0 | 14.5 | 20 | 20 | ||||
| TEC1-3506NC | 4.2 | 14.5 | 16.1 | 15 | 30 | ||||
| TEC1-7106NC | 8.6 | 29.0 | 31.4 | 30 | 30 | ||||
| TEC1-12706NC | 15.4 | 53.0 | 59.3 | 40 | 40 | ||||
| TEC1-12706AC | 15.4 | 53.0 | 59.3 | 40 | 40 | ||||
| TEC1-1707NC | 7.0 | 2.1 | 68 | 7.5 | 75 | 8.3 | 15 | 15 | 3.70 |
| TEC1-3107NC | 3.8 | 13.6 | 15.1 | 20 | 20 | ||||
| TEC1-3507NC | 4.2 | 15.4 | 17.1 | 15 | 30 | ||||
| TEC1-7107NC | 8.6 | 31.0 | 34.6 | 30 | |||||
| TEC1-12707NC | 15.4 | 55.0 | 61.5 | 40 | 40 | ||||
| TEC1-12707AC | 15.4 | 55.0 | 61.5 | 40 | 40 | ||||
| TEC1-1708NC | 8.5 | 2.1 | 68 | 10.0 | 75 | 11.1 | 15 | 15 | 3.50 |
| TEC1-3108NC | 3.8 | 18.0 | 20.1 | 20 | 20 | ||||
| TEC1-3508NC | 4.2 | 20.0 | 22.3 | 30 | 15 | ||||
| TEC1-6308NC | 7.6 | 37.4 | 41.8 | 40 | 20 | ||||
| TEC1-7108NC | 8.6 | 42.0 | 46.9 | 30 | 30 | ||||
| TEC1-12708NC | 15.4 | 75.0 | 83.9 | 40 | 40 | ||||
| TEC1-12708AC | 15.4 | 75.0 | 83.9 | 40 | 40 | ||||
| TEC1-12710AC | 10.5 | 15.4 | 68 | 93.0 | 75 | 102.0 | 40 | 40 | 3.30 |
| TEC1-12712AC | 12.5 | 15.4 | 68 | 110.0 | 75.0 | 121.0 | 40 | 40 | 3.70 |
| TEC1-12715AC | 15.0 | 15.4 | 68 | 130.0 | 75.0 | 145.0 | 50 | 50 | 4.15 |
| TEC1-19903AC | 3.5 | 24.1 | 68 | 49.0 | 75.0 | 53.0 | 40 | 40 | 4.70 |
| TEC1-19904AC | 4.0 | 24.1 | 68 | 55.7 | 75.0 | 61.2 | 40 | 40 | 4.60 |
| TEC1-19906AC | 6.0 | 24.1 | 68 | 83.5 | 75.0 | 91.9 | 40 | 40 | 4.00 |
| TEC1-19908AC | 8.5 | 24.1 | 68 | 118.0 | 75.0 | 130.0 | 40 | 40 | 3.50 |
| TEC1-19910AC | 10.5 | 24.1 | 68 | 148.0 | 75.0 | 163.0 | 40 | 40 | 3.30 |
| TEC1-19913AC | 13.0 | 24.1 | 68 | 200.0 | 75.0 | 224.0 | 40 | 40 | 3.40 |
| TES1-3102NC | 2.0 | 3.8 | 68 | 3.7 | 75 | 4.0 | 15 | 15 | 4.8 |
| TES1-7102NC | 8.6 | 8.5 | 9.4 | 20 | 20 | ||||
| TES1-12702NC | 15.4 | 15.2 | 16.9 | 30 | 30 | ||||
| TES1-12702AC | 15.4 | 15.2 | 16.9 | 30 | 30 | ||||
| TES1-3103NC | 3.0 | 3.8 | 68 | 6.5 | 75 | 7.2 | 15 | 15 | 3.9 |
| TES1-4903NC | 6.0 | 10.3 | 11.3 | 20 | 20 | ||||
| TES1-7103NC | 3.0 | 8.6 | 15.0 | 16.7 | 20 | 20 | |||
| TES1-12703NC | 15.4 | 27.0 | 30.1 | 30 | 30 | ||||
| TES1-12703AC | 15.4 | 27.0 | 30.1 | 30 | 30 | ||||
| TES1-3104NC | 3.9 | 3.8 | 68 | 8.1 | 75 | 8.8 | 15 | 15 | 3.7 |
| TES1-7104NC | 8.6 | 18.7 | 21.8 | 20 | 20 | ||||
| TES1-12704NC | 15.4 | 33.4 | 37.3 | 30 | 30 | ||||
| TES1-12704AC | 15.4 | 33.4 | 37.3 | 30 | 30 | ||||
| TES1-3106NC | 6.0 | 3.8 | 68 | 12.2 | 75 | 13.6 | 15 | 15 | 3.2 |
| TES1-7106NC | 8.6 | 27.9 | 31.2 | 20 | 20 | ||||
| TES1-12706NC | 15.4 | 50.5 | 56.5 | 30 | 30 | ||||
| TES1-12706AC | 15.4 | 50.5 | 56.5 | 30 | 30 | ||||
