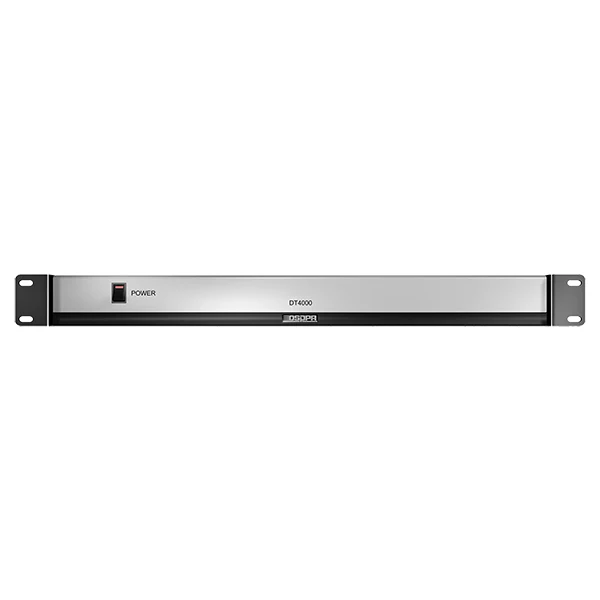

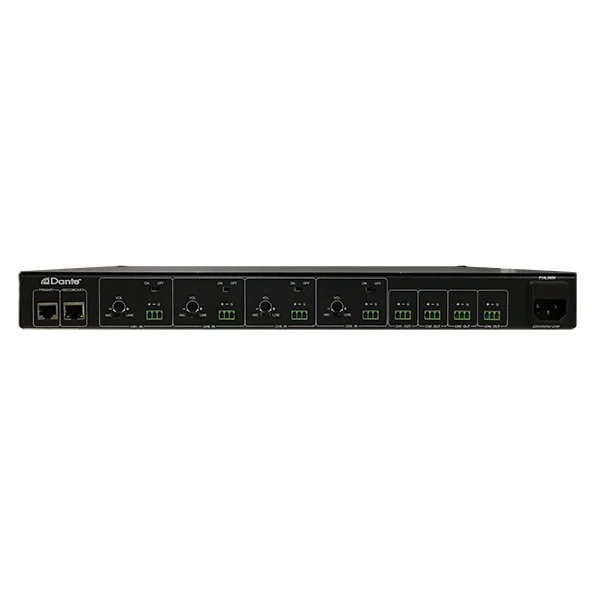

Dante 4*4 Audio Matrix Dante network protocol Processor 4 channel dante audio interface
- Category: >>>
- Supplier: Guangzhou DSPPA Audio Co. Ltd.
Share on (62193099191):
Product Overview
Description
Products Description
DT4000 is a high-fidelity audio adapter with distributed system. Dante LAN digital audio transmission technique is adopted.
Input and output between Dante devices is realized through matrix. There are 4 audio input and 4 audio output interfaces.
Two network interface makes it possible to convert analog signal in this device to network signal and transmit it to another Dante device.
This device could also export analog signal sent by other Dante devices through network.
This device could also export analog signal sent by other Dante devices through network.
Details Images
Feature
● Distributed system with Dante LAN digital audio transmission technique
● No suppression, no dissipation and no delay, 48 kHz audio sampling
● Double network interface design
● 4-channel balanced input and output
● Individual on/off switch of 48V phantom power of 4 channels, optional input signal-mic or line input
● Control volume through level adjustment in each channel
● No suppression, no dissipation and no delay, 48 kHz audio sampling
● Double network interface design
● 4-channel balanced input and output
● Individual on/off switch of 48V phantom power of 4 channels, optional input signal-mic or line input
● Control volume through level adjustment in each channel
Product Paramenters
Item | Parameter | ||
Model | DT4000 | ||
Measured whenthe balanced/unbalanced line input of 250mV/1kHZ andbalancedoutput from another DT4000 device of 2V | Input voltage | ≤2V | |
Frequency response (±3dB) | 20Hz~20kHz | ||
SNR | ≥80dB | ||
Input dynamic range | ≥18dB | ||
Input distortion | ≤0.5% | ||
Measured whenthe microphone input of 2.5mV/1kHZ andbalancedoutput from another DT4000 device of 2V | Output voltage | ≥2V | |
Frequency response (±1dB) | 30Hz~20kHz | ||
SNR | ≥80dB | ||
Output distortion | ≤0.5% | ||
Phantom voltage | 48V | ||
Rated power | ≤7W | ||
Protection | AC 220V/1A | ||
Power supply | AC220V/50Hz | ||
Machine dimension (L×W×H mm) | 482×306×44 | ||
Package dimension (L×W×H mm) | 526×348×86 | ||
Net weight | 5.05KG | ||
Gross weight | 5.8KG | ||
