HPF 100 Glass Door Hardware Hydraulic Patch Fittings Non digging Floor Spring Hinge
- Category: >>>
- Supplier: Haida Doorcontrol Co. Ltd.
Share on (62193178168):
Product Overview
Description
Glass Door Hardware Hydraulic Patch Non-digging Floor Spring HPF-100/3
| Technical Parameters |
Model | HPF-100 |
| Applicable Standard | EN1154 |
| Engine Cylinder | Single |
| Max Door With | 1100mm |
| Max Door Weight | 100kg |
| Max Open Degree | 180° |
| Stop device | 90° or NHO |
| Latching Speed Adjustment | 0-20° |
| Closing Speed Adjustment | 20°-90° |
| Application Temperature | -40°-60° |
| Dimension:Length*Width*Height | 195mm*45mm*75mm |
| Dimension of Appearance |
| Product Details |
| Product Features |
A. Produced according to EN1154 standard,lifetime can be 500,000cycles
B. Double speed adjustment, closing smoothly
C. Concealed type design, modern and beautiful
D. Applicable for glass door, door thickness 8mm-12mm
E. closing efficiency over 70%
| About us |
| Why choose us |
1. The world's biggest floor spring manufacturer in China.Daily productionover 15,000PCS
2. The factory has three production base located in ZHEJIANG ,ANHUI,JIANGSU three province. The area cover 72,000 square meters.
3. Over 33 years producing experience. Ripe production process.
4. Impeccable testing system covered from raw material,components,semi-finished products.
5. HAIDA has own national test laboratory (Intertek Satellite Lab)to make sure the growth of our company.
| More Products |
| Workshop & Lab |

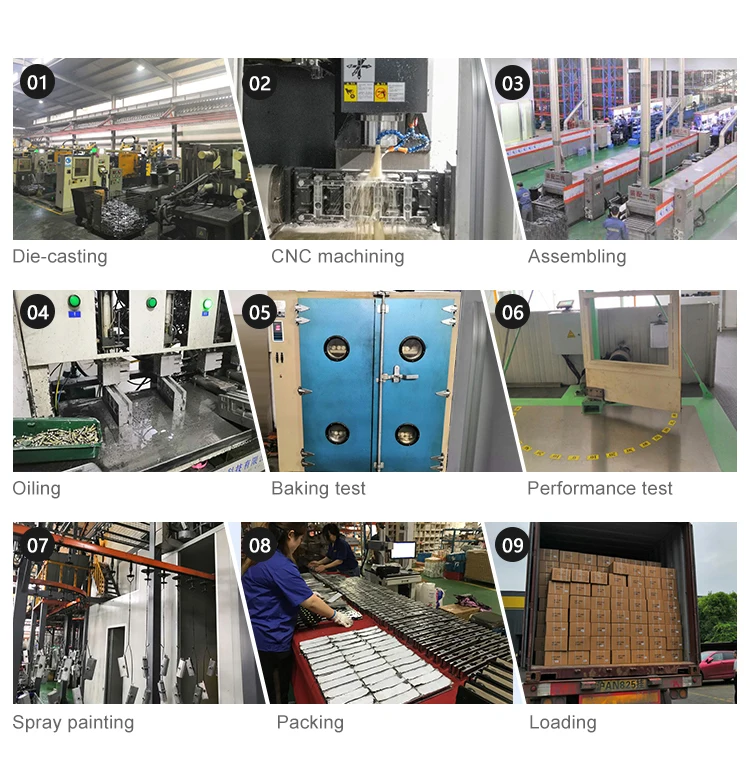

| Producton Process |
| Certification |
| FAQ |
Q: What is the minimum quantity ?
No MOQ,We can sell even 1PCS
Q: How long is the delivery time?
10 to 30days,depend on your order quantity
Q: Can you send samples before place the order
Yes,sure.we can provide samples for quality checking.
Q: Do you provide OEM service?
Yes,we do
Q: How about the payment terms ?
T/T,D/P,L/C,Paypal,Western union and cash all acceptable.
Q: How about your quality warranty?
When the products got problem during our warranty period,we will provide
| Packing & Shipping |
| Contact us |
