Manual Powder Coating Equipment for Rims

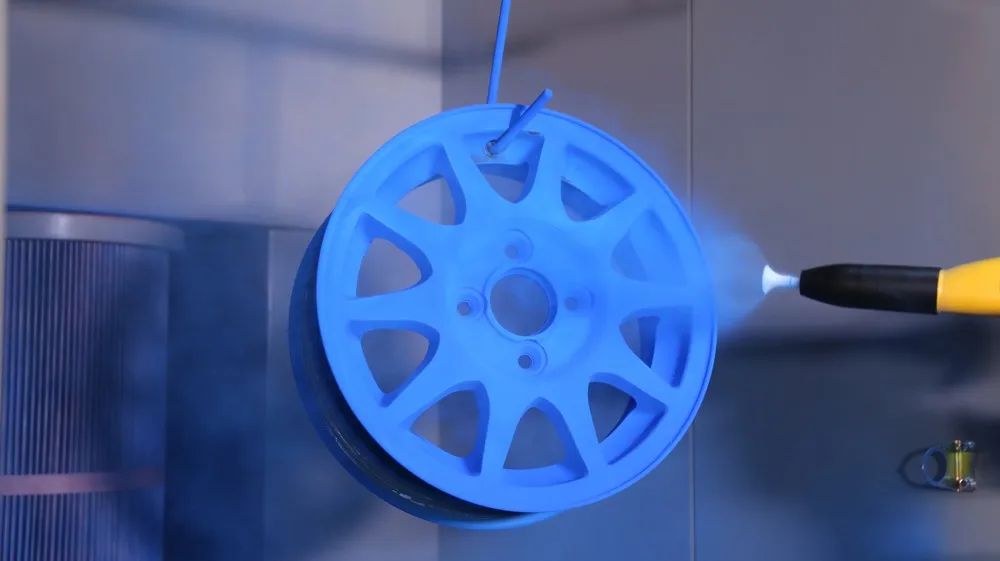

This Manual Powder Coating Equipment is a simple solution for various metal parts of surface finish, such as rims, vehicle parts, plates, cabinets, etc. This easy and efficient package will gives you a quick and high-quality powder coating effect. Ideal for beginners or update your old installations.
This package includes KF-191S Powder Coating Gun, KF-3212 Powder Coating Spray Booth and KF-1864 Powder Coating Curing Oven.
Details Images

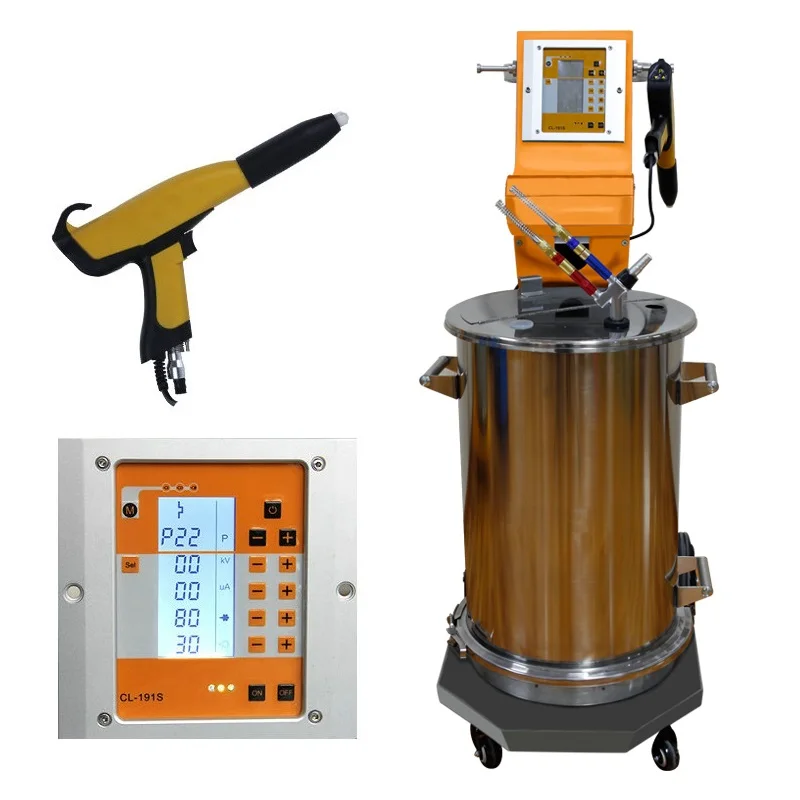

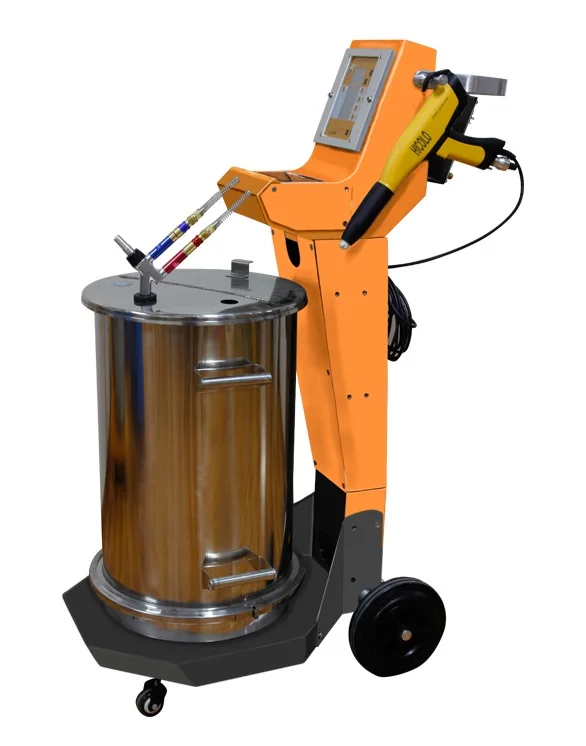

KF-191S Powder Coating Gun
KF-191S is the new advanced model that owns a large popularity as soon as it comes into the market, this professional powder coating gun features intelligent and easy, a practical model for both beginners and experienced users, obviously set and read accurate digital parameters on the LCD display. Most importantly, by utilizing latest technology this powder coating machine overcomes the difficulty of penetration corners and complex parts, which leads to perfect coating quality and high powder transfer efficiency.
Specifications of Powder Coating Gun
Gun weight | 500g |
Rated output voltage | 24VDC |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV ( adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |

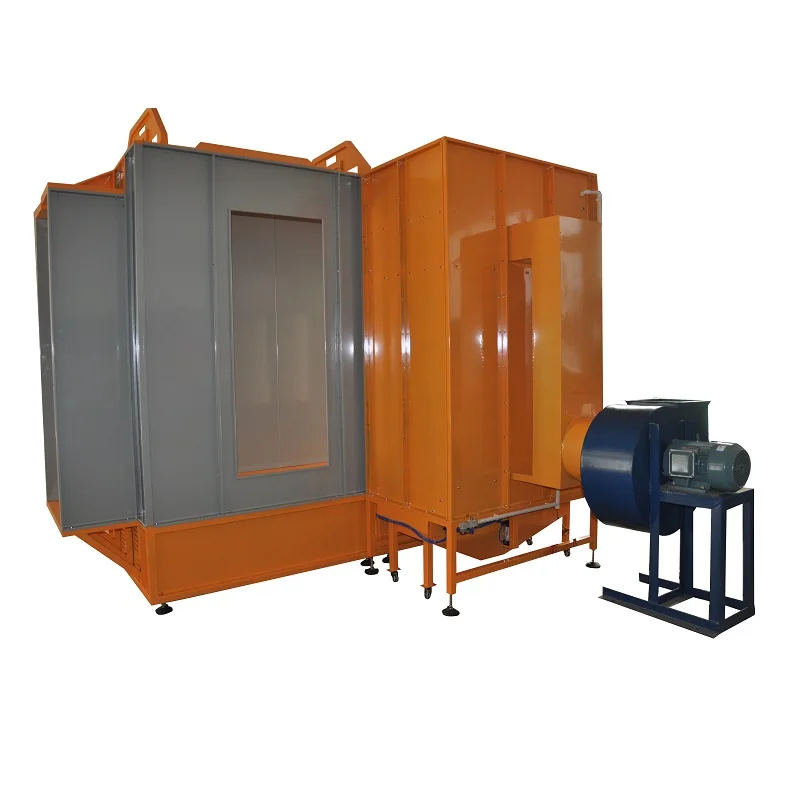

KF-3212 Powder Coating Booth
KF-3212 Continuous Conveyor Powder Coating Batch Booth ideally supports for conveyorized coating applications, dual working station easily and efficiency coat by using manual or automatic spray equipment. Double working stations allows operators to paint both sides of parts simultaneously. Easy installation, booth and filters simply roll off delivery truck and into position, for minimal final installation and set-up, then only requires an easy electric and pneumatic connection to start new business.
Specifications of Powder Coating Booth
Model | KF-3212 |
Operator Dimensions | W620*H1500*D2920 mm |
Overall Dimensions | W1200*H2033*D3000 mm |
ElectricPower supply | Electric |
Nominal power | 4 kw |
Filter Count | 4pcs |
Filter Material | 100% polyester |
Filter Cleaning | Pneumatic |
Air consumption | 6000-13000m3/h |

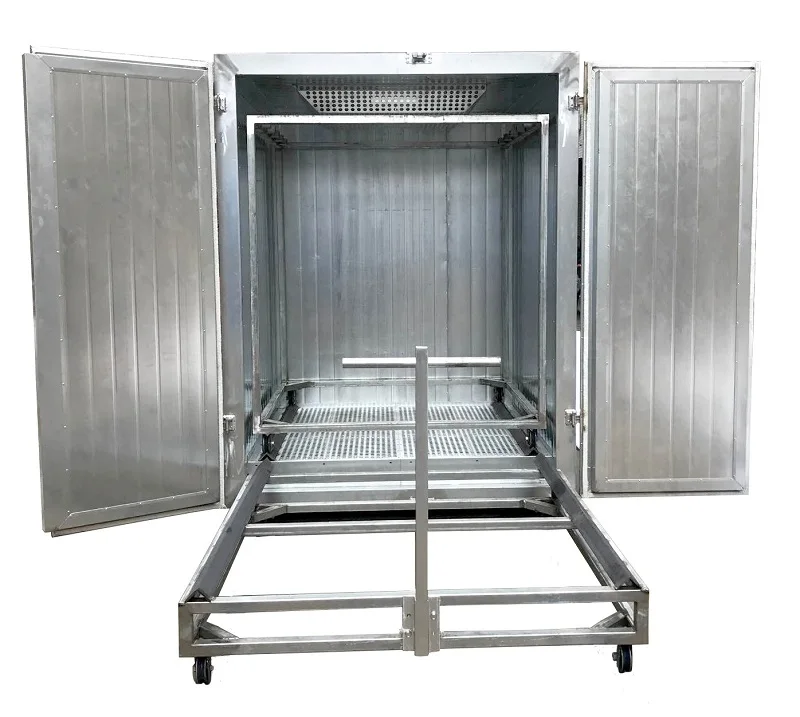

This curing oven for powder coating is electric heated which is well sold in the market, meet the most demands of batch. Electric oven is environmental friendly, cause no pollution to parts and outside space. With features of :
1.Inside high performance heating elements enables the oven to a quick raising of required temperature.
2. 0.75kw a circulation fan provides uniform heat distribution, ensures a high quality surface finish on parts with no color difference.
3. Interlayer Material: 100mm thickness rock wool board. Keep the oven chamber always warm.
4. The user-friendly PLC panel gives you an easy access to set heating temperature, time and working of fan.
Specifications of Powder Coating Oven
Model | KF-1864 |
Working Chamber Size | W1600*D1400*H1800 mm |
Circulation Fan | 1 pc, 0.75kw |
Heating Power | 12 kw |
Heating Tempt & Time | 180oC(15-30min) Max. 250oC |
Voltage | As required |
Company Profile
Kafan Company
Kafan is a new brand under COLO group, whose people has specialized in powder coating equipment for more than 10 years. Our products covers: electrostatic powder coating gun, powder spray booth, powder coating oven, powder coating line and some spare parts. Such one-stop purchasing facilitate customers buy what they want. Whether for powder coating beginners or update projects, Kafan's powder coating system optimize the application and operation. As an professional manufacturer, we devoted to supply most innovative and reliable powder coating system solution with powerful production capacity and advanced technology.
Kafan located in Hangzhou, China, we own a manufacturing base of 6000 square meters, around 150 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, admin department and finance department, etc. As a fast growing company in powder coating industry, we have exported to more than 100 countries, established long term business with distributor in US, Russia, Poland, UK, Germany, South Africa, Vietnam, Malaysia, etc. Quality and service is our endless goal to achieve.
