200W 12V Monocrystalline Solar Energy Panel for Houses,RV solar panel street light

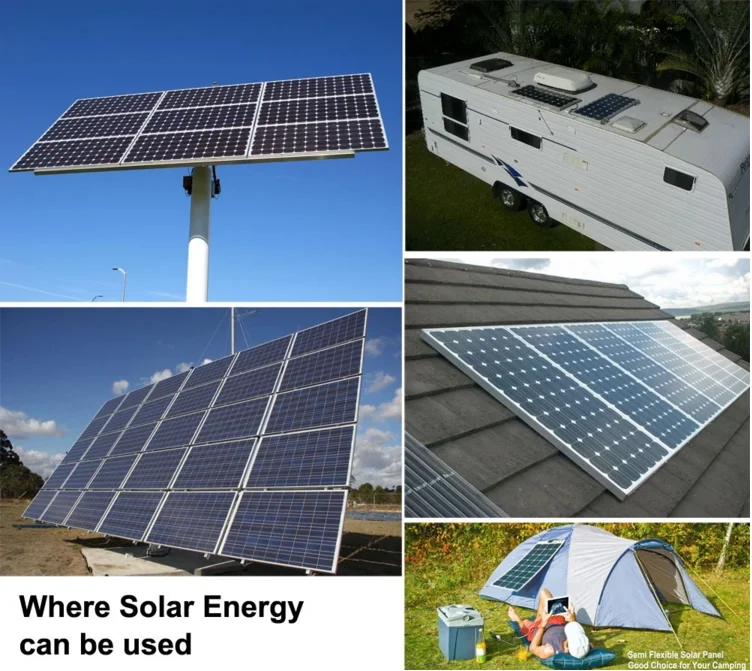

Product Application

200 Watt 12 Volt Monocrystalline Solar Panel is very popular product! High in power but sleek in size, this 200W solar panel is the perfect item for off-grid applications. Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.If off-grid solar interests you, then start with TWELSEAVAN today!

Main Features

1. Constructed form high-efficiency monocrystalline solar cells, up to 18.5%~20.5% efficiency, which enable higher power generation than the conventional solar modules at the same size.

2. Perfect for 12-volt battery charging or multiple panels can be wired in series for 24/48-volt battery charging or for grid-tied applications.

3. Diodes are pre-installed in junction box and a pair of 31-inch cables with MC4 connectors comes with the panel automatically.

4. Withstand high wind (2400Pa) and snow loads (5400Pa); resistant aluminum frame which allows the panels to last for decades. Compatible with on-grid and off-grid inverters ; Maximum System Voltage: 600V DC (UL).

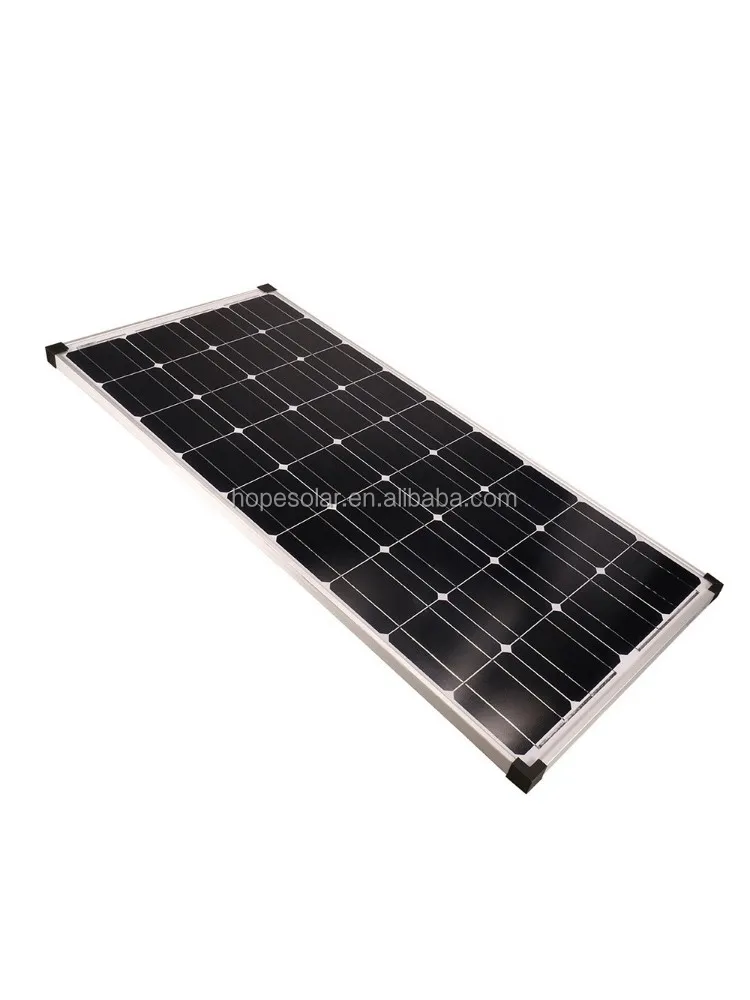

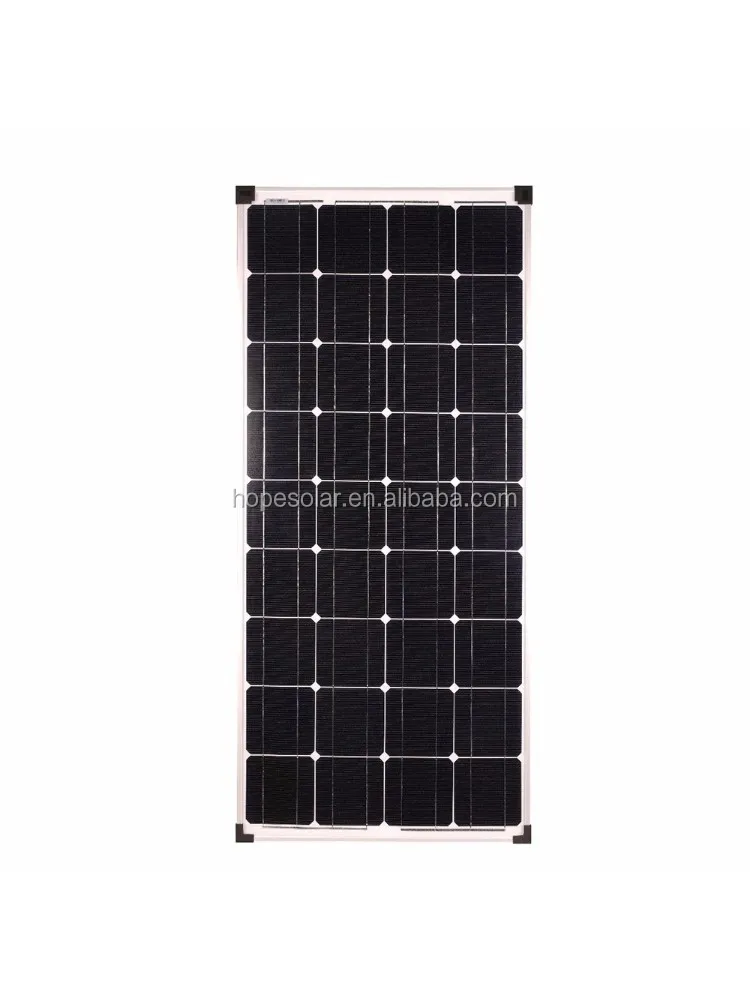

200W Solar panel

Optimal Power [Pmax]:  200 Watt

Open-Circuit Voltage : 35.1 V

Optimum Operation Voltage [Vmp]: 36 V

Optimum Operation Current [Imp]: 5.55 A

Short -Circuit Current : 5.83A

Working Temperature(℃) : -40 ~ +85

Size : 1320*990*35 mm

Weight : 14.2 kg

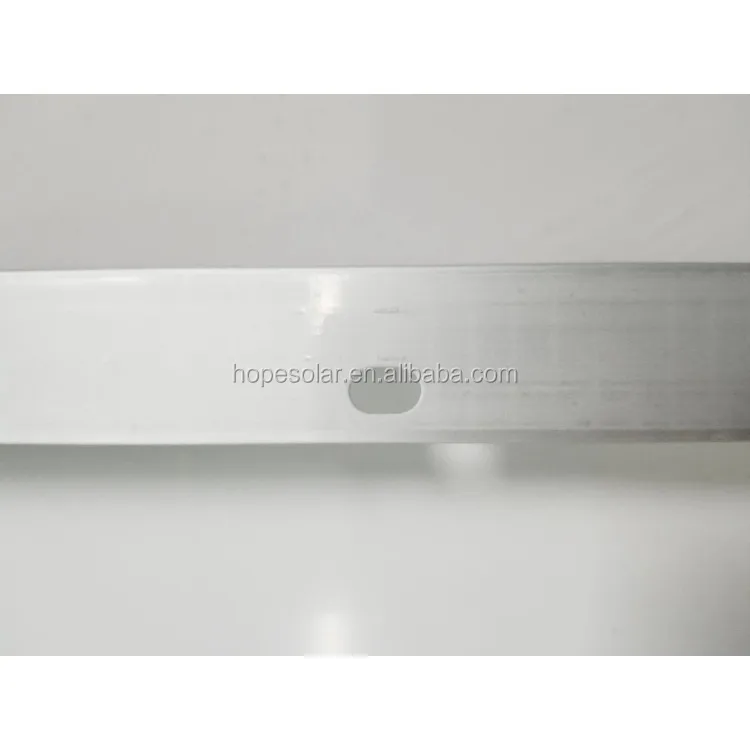

Mounting holes

Name :  6 mounting holes
Package edge :  Aluminum alloy steel edge
The paint :  Silver antirust paint
The 6 mounting holes of the product are convenient for installation. The silver anti-rust paint can protect the aluminum alloy edge from rust and is beautiful and durable

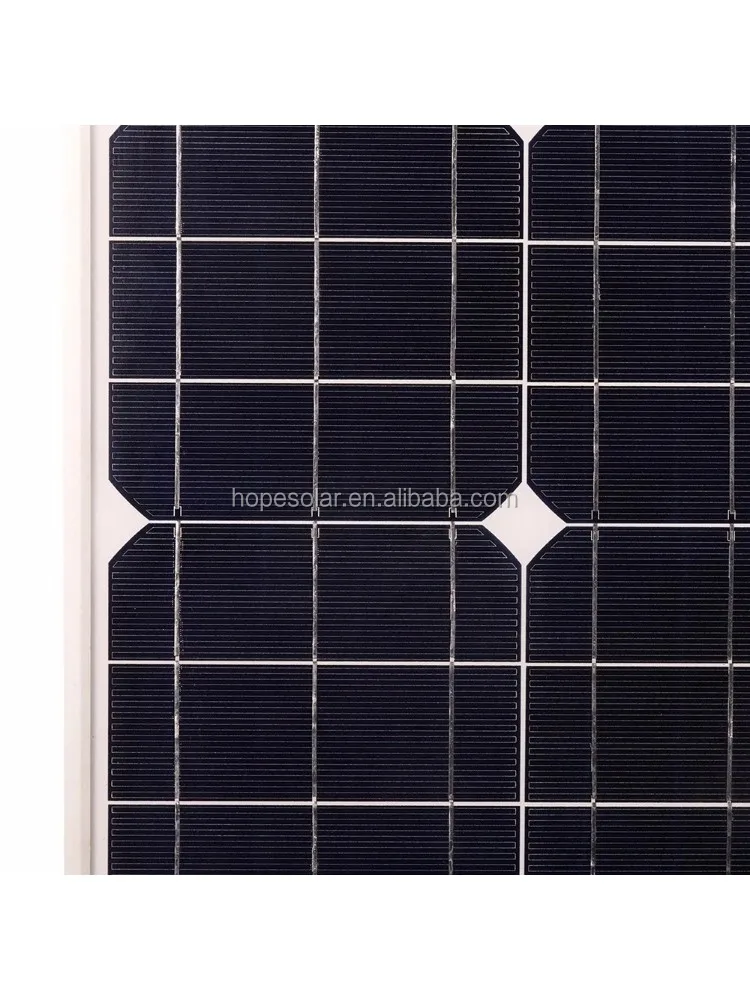

Solar panel chip

Chip Name: Monocrystalline
Chip Specifications: 156*156 chip
Conversion Efficiency: 18.5%-21%

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

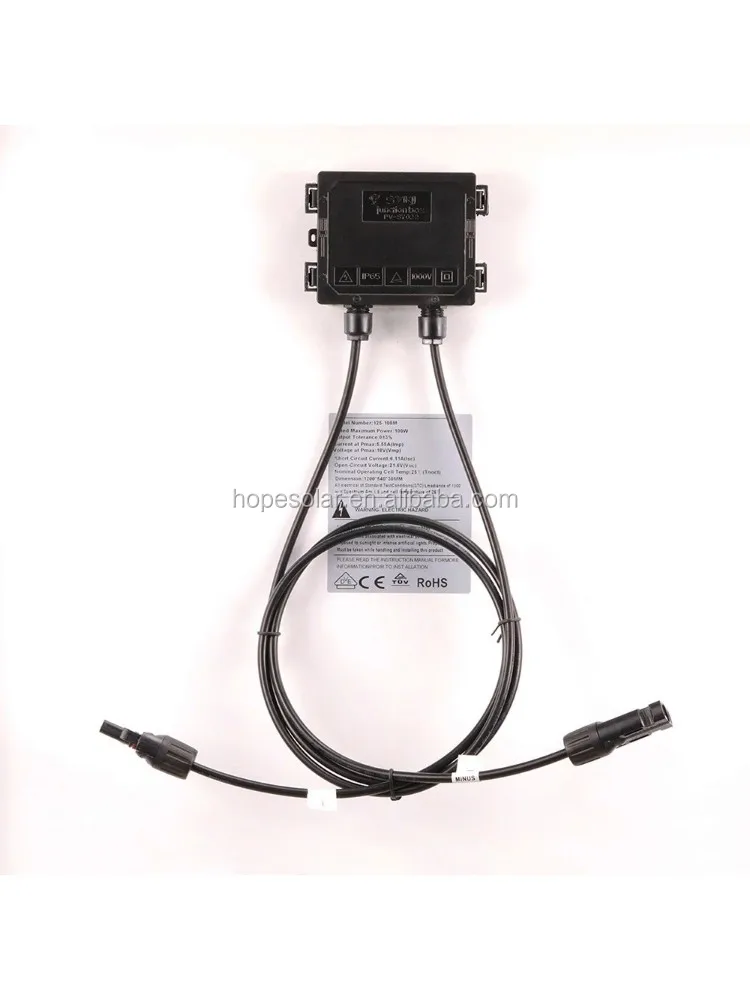

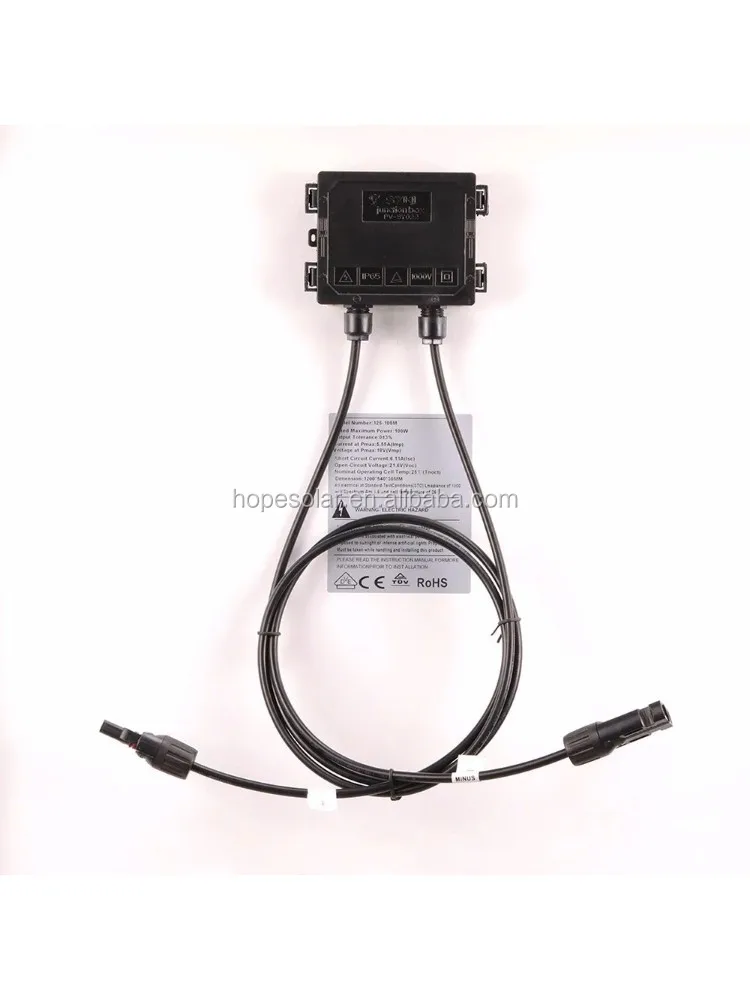

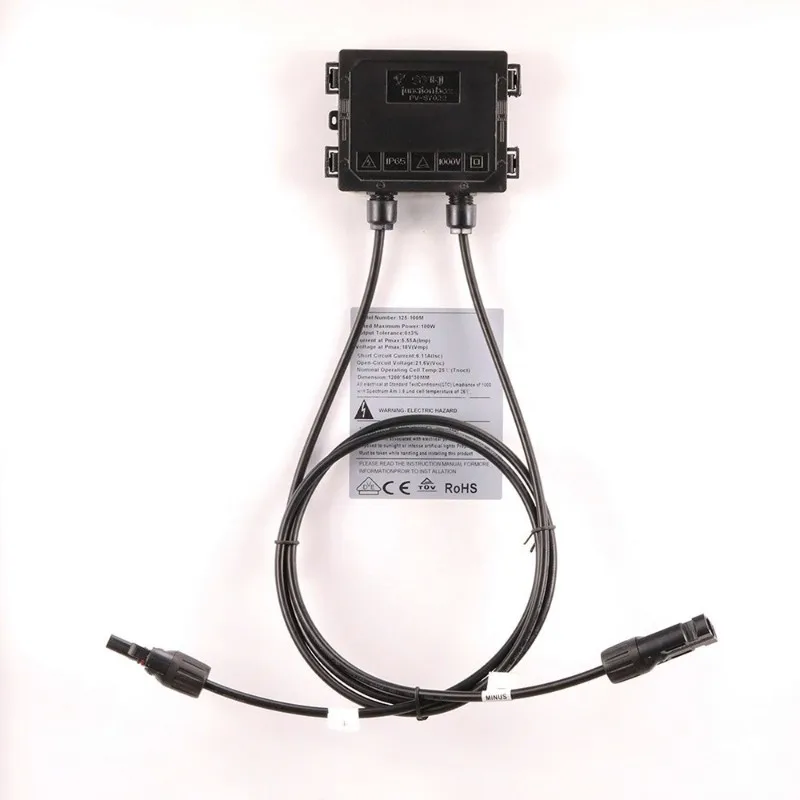

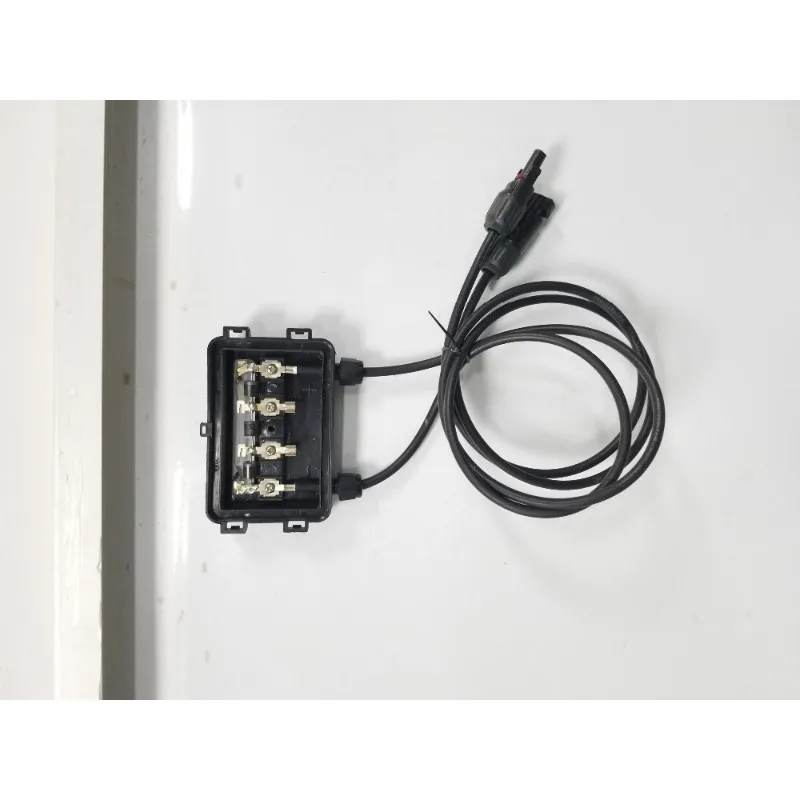

                                                Junction Box

                                                     Name: MC4 connector


                                                    waterproof: IP65


                                                    Line length: 31 inch
