Wedge In Anchor Assembly Machine

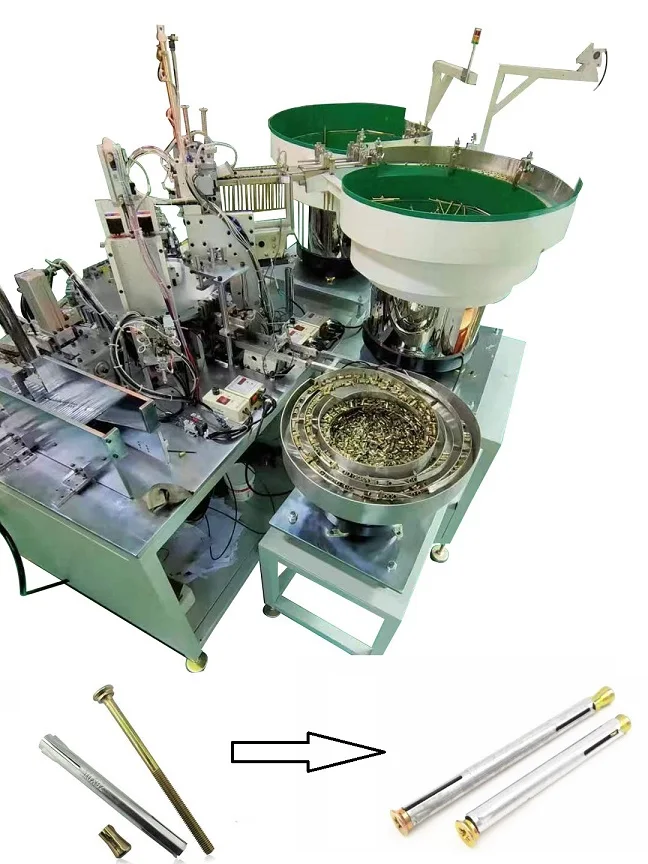

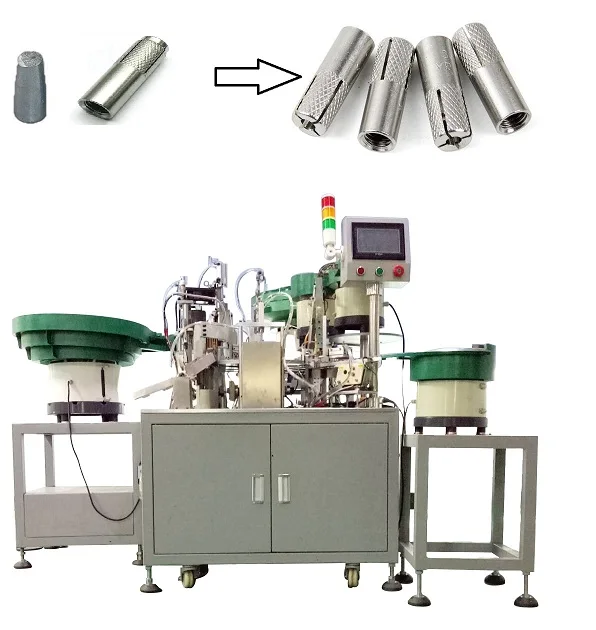

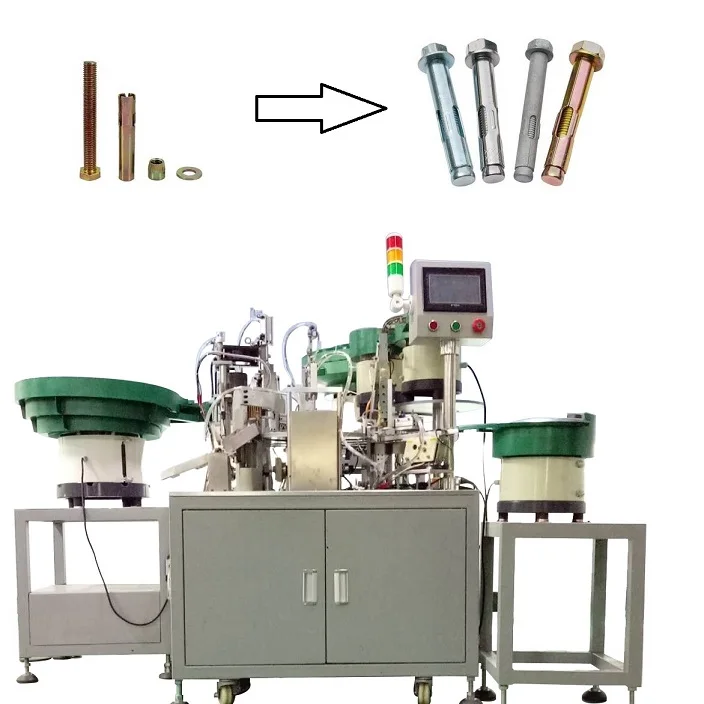

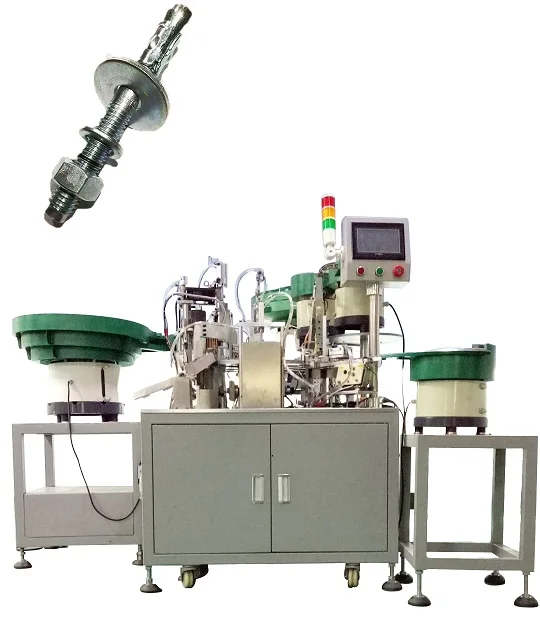

The metal frame sleeve in anchor assembly machine is used to realize the automatic assembly bolt, nut and sleeve. The nut and bolt will be served by vibration bowls, the sleeve will be caught by the automatic arm.


FEATURES AT A GLANCE







PRODUCT SPECIFICATIONS


wedge anchor assembly machine
no
item
specification
notice
1
voltage
220V/50HZ
2
power
4Kw
3
air
0.5-0.7MPa
4
speed
30pcs/min
5
layout
3500*2200*1850mm
L*W*H
6
packing
wooden carton
7
labour
1person
8
cylinder
AIRTAC
screen
9
PLC
Mitsubishi
control centre
10
max length
80-160mm


PRODUCT CONFIGURATION
