outdoor ultra wide touch screen monitor kiosk mall advertising equipment display
- Category: >>>
- Supplier: Shenzhen CSXT Multimedia Technology Co. Ltd.
Share on (62193353116):
Product Overview
Description
Hot Sales
Product Description

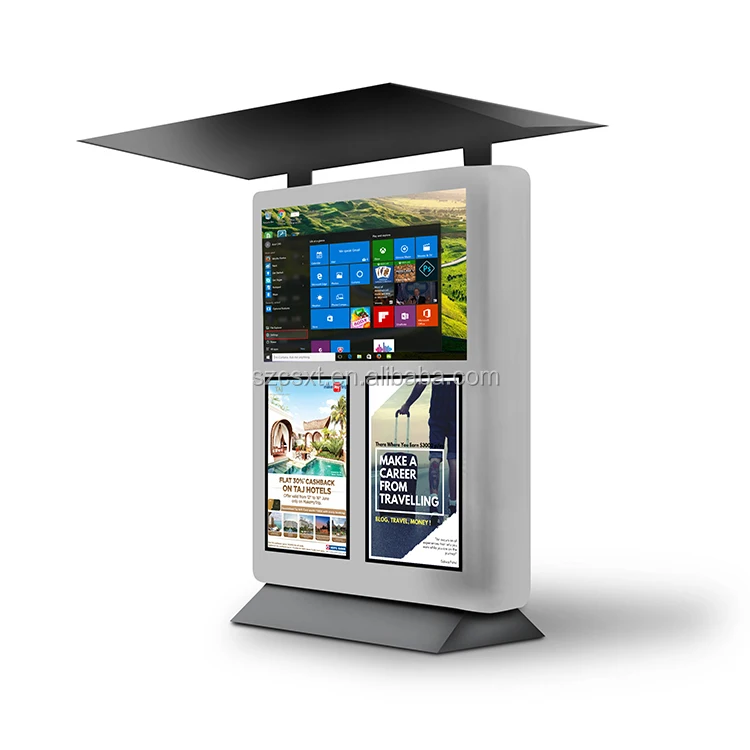

Outdoor taxi bus stop digital signage split screen advertising display kiosk
| Instructions | Water Proof Level | IP65 | |||||
| Touch Screen | Without (Can be customized) | ||||||
| System | Windows or Android Optional | ||||||
| Heat Dissipating Method | Fan intelligent temperature controlling system - automatically sensing the temperature and controling the fan |
||||||
| High Brightness | 1000-2500nits - intelligent brightness sensor, adjusting brightness automatically | ||||||
| Power Supply | Industrial level power supply (AC100-240V 50/60HZ) - support 7*24 hours working | ||||||
| Outdoor Protection | Waterproof, dustproof, anti-corrosion, anti-theft, lightningproof and anti-leakage | ||||||
| Optional Functions | 3G/4G, camera, card reader(ID/NFC/IC card), printer, scanner(QR code/biomini), microwave inductor, microphone, keyboard or customized | ||||||
| Materials | Shell: 1.5mm cold-rolled steel with outdoor antirust paint Display: anti-explosion laminated glass |
||||||
| Long Range Control | Remote publishing and managing system | ||||||
| Speaker | Waterproof speaker 10W(8 ohm) x 2 | ||||||
| Play Mode | Support horizontal or vertical playing, automatically loop playing | ||||||
| Screen | Panel Brand | Full new original 100% A+ grade brand panel | |||||
| Panel Size | 32 Inch | 43 Inch | 49 Inch | 55 Inch | 65 Inch | 75 Inch | |
| Display Size(mm) | 392.85x698.4 | 529.4x941.2 | 604x1073.78 | 680.4x1209.6 | 803x1428 | 928x1650 | |
| Viewing Angle | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | |
| Backlits | LED | LED | LED | LED | LED | LED | |
| Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Response Time | 8ms | 6ms | 8ms | 8ms | 8ms | 6ms | |
| Field Rate | 60HZ | 60HZ | 60HZ | 60HZ | 60HZ | 60HZ | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Contrast Ratio | 1300:1 | 1200:1 | 1300:1 | 1300:1 | 1300:1 | 1200:1 | |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 | 3840*2160 | |
| Brightness Nits | 2000 nits | 2000 nits | 2000 nits | 2000 nits | 2000 nits | 2500 nits | |
| Max Power Consumption | 350W | 400W | 500W | 800W | 1000W | 1500W | |
| Operation System | PC Version | Android Version | |||||
| Main Board | J1900/Windows I3/Windows I5 optional | A20/RK3188/RK3288 | |||||
| Operating System | Win7/win8/win10 optional | Android 6.0.1 (Android 5.1.1/6.0.1/7.1.2 optional) |
|||||
| CPU | J1900/I3-3217U/I5-3317U | A20 Cortex-A7 dual-core/RK3188 Cortex-A9 quad-core/RK3288 Cortex-A17 quad-core | |||||
| RAM | DDR3 1G/2G/4G/8G/16G optional | DDR3 1G/2G optional | |||||
| Storage | SSD:64G/128G NAND FLASH 500GB / 1T optional |
NAND FLASH 4GB / 8G/32G optional | |||||
| OSD Language | English or customized | English or customized | |||||
| Connection to Network | RJ45/4G(optional)/WIFI (optional) | RJ45/4G(optional)/WIFI | |||||
| Interface | USB2.0*4, HDMI, VGA, RJ45, LAN, 4G, wifi(optional), audio and DC | USB2.0*2, SD card, HDMI, RJ45, 4G(optional), wifi, audio and DC | |||||
| File Formats | Video | H263, H264, H265, MPEG, AVI, WMV, 3GP, MP4, MOV, FLV, DAT, VOB, DIVX, RM, RMVB, MKV, PMP, MPG, FLV, ASF, TS, TP, 3GP, etc. | Video | H263, H264, H265, MPEG, AVI, WMV, 3GP, MP4, MOV, FLV, DAT, VOB, DIVX, RM, RMVB, MKV, PMP, MPG, FLV, ASF, TS, TP, 3GP, etc. | |||
| Picture | JPG, JPEG, BMP, GIF, PNG, etc. | Picture | JPG, JPEG, BMP, GIF, PNG, etc. | ||||
| Music | MP2, MP3, OGG, M4A, FLAC, APE, 3GP, WMA, AAC, AC3, DTS, etc. | Music | MP2, MP3, OGG, M4A, FLAC, APE, 3GP, WMA, AAC, AC3, DTS, etc. | ||||
| Touch Screen (If with) |
Touch Type | Capacitive touch or Infrared touch 10 dots | |||||
| Touch Ways | Finger or touch pen | ||||||
| Touch Power | USB 5V | ||||||
Product Detail
Packing
Factory Details
Our Certificates
Our Advantages
- Direct factory - None middle man, you can get bottom price and quicker response.
- OEM and ODM service - customized exterior designs, functions, sizes( 7”- 100”), colors(silver, gold, white, black, etc.) and logo are welcome.
- Quick response - all inquiries will be replied within 1 day by our sales.
- Promotional activity every month - 4% to 15% off for the activity models.
- Original brand panel - Promise using original 100% A+ brand panels
- Quick delivery - within 15 days
- Worry-free quality assurance - 3 times full inspection (by our production QC, the 3rd party QC and our QC experts with 8 years experience) before shipment to ensure “0 defective rate”
- 2 years warranty - We’ll also support clients for the maintenance even after the warranty runs out.
- Trust of customers - 96% of customers who have worked with us once have maintained long term cooperation.
Quality Assurance
- Step 1. 100% inspection for all incoming materials by our IQC department, if the deficient rate is over our standard 2%, we will return the defective materials to our suppliers for rework, if less than 2%, we will change the defective parts by new qualified materials.
- Step 2. Before on-line production, all the appearance and functions of the boards must be 100% checked by our QC department.
- Step 3. Semi-finished goods must be 100% inspected by our QC department, if any defective part, we will repair it and then return it to the production line again.
- Step 4. IPQC(Input process quality control) must patrol inspecting during production process.
- Step 5. Completed sets must be 100% checked by the QC department, after that, all the goods start 24 hours aging testing
- Step 6. After aging testing, QC department will 100% check all goods again and then start packing.
- Step 7. After packing, QA department will start sampling inspection, then we will inform customers to arrange the inspection date of the goods.
