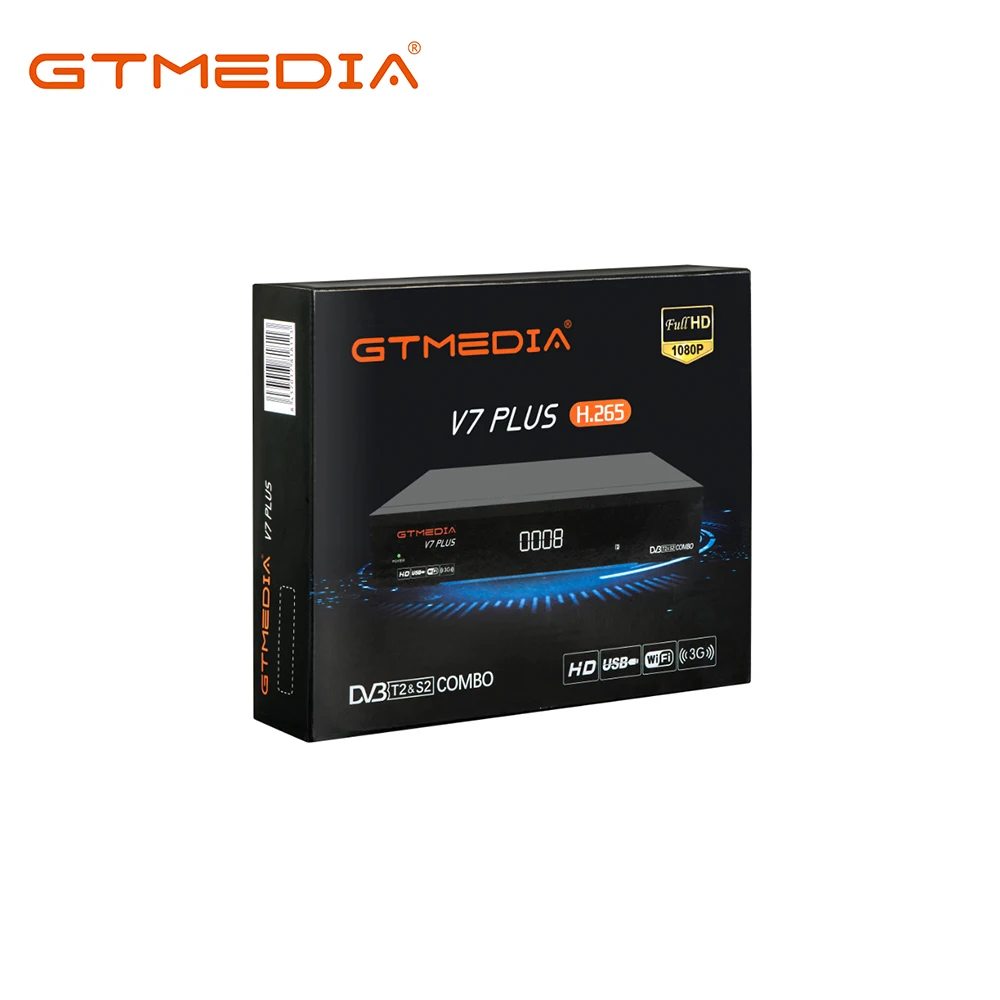

GTMedia V7 Plus DVB S2 Satellite Receiver DVB T2 decoder firmware upgrade support H.265 PowerVu,DRE & Biss key Network Sharing

Product Overview

Description

GTMedia V7 Plus DVB S2 Satellite Receiver DVB T2 decoder firmware upgrade support H.265 PowerVu,DRE & Biss key USB wifi to Network Sharing YouTube cccam









Highlight	1. 1080P Full  HD DVB-S/S2+T/T2, Support H.265
	2.Support PowerVu,DRE & Biss key,
	3.Support USB PVR Ready and USB wifi to Network Sharing,
	4.Support Full speed USB 3G dongle and USB wifi dongle,
	5.Support YouTube, via usb Wifi dongle,
	6.Support Cccam, Newcam via usb Wifi dongle
	7.Technical support website : www.freesat.cn
	Note: We reserve the right to change the design and OEM/ODM supported







 Main Features:

Main  Features	Standard	DVB-S/S2 Compliant
	Encrypt	yes
	Video Modulator	yes
	Power Supply	Input DC 12V/1.2A
	Video Decode	AC-3,MPEG-2 MP @ HL;H.264 BP MP&HP @ L4.1;AVS profile @ L6.1/4.0/2.0
	PAL/NTSC	Automatic PAL/NTSC conversion
	Channels Number	6000 channels TV and Radio programmable
	Favorites	16 different favorite groups selection
	OSD Language	English German French Portuguese  Spanish Italian Russian Turkish Polish Arabic Farsi
	EPG	Fully support to 7 days Electronic Program Guide(EPG)
	Picture	JPEG,BMP,PNG,GIF Supported
	OSD Color	16-bit OSD with anti-flickering
	Channel Search	Channel search in automatic, manual and network search
	Channel Edit	Various channel editing function (favorite,move,lock,skip,delete,rename,find,sort)
	Parental Ctrl	Parental control for channels
	Easy Menu	Plug and Play installation, with an easy to use Menu System
	SoftUpgrade	Software upgrade through USB
	Time Set	Time set by GMT offset automatic and manual, Summer Time support
	Timer	5 event timers,off/Once/Daily/Weekly Mode
	Subtitle	Subtitle support
	Teletext	VBI insertion for Teletext
	Save Channel	Automatic save for last channel





Memory  Size	Flash Memory	64M bits Serial Flash
	DDR2 Memory	512M Bits
DVB-S2  Tuner	Input Frequency Range	950MHZ-2150MHZ
	Input Impedance	75Ω
	RF input Signal LEVEL	-80/-20dBM
	Active Ant Power	13/18V DC @ 400mA MAX,Overload Protection
DVB-S2  Channel  Decode	Demod standard	DVB-S2 system standard:ETS 302 307
	MPEG Profile Level	AC-3,MPEG-2 MP @ HL; H.264 BP MP&HP @ L4.1
	Symbol Rates:	QPSK,8PSK
	Forward error  correction rate	1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
	Code Rates:	1/2, 2/3, 3/4, 5/6, 7/8
USB  Decode	PVR	Support
	Media Supporting	USB media player to playback the media in USB flash disk or  USB HDD or USB card reader with memory card
	File system	FAT32, NTFS (only support first partition)
	USB	PVR with USB HDD, Time shifting with USB HDD
	USB Wifi	Support (RT7601 module)
Multimedia support  format	movie	mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
	music	mp3
	photo	JPG, BMP, PNG, GIF
Video Decode	Video Decode	High Definition MPEG4 AVC/H.264 HP @L4.1,MPEG-2 MP@HL/ML
	Aspect Ratio	Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
Audio Decode	Audio Decode	MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC,  MPEG4 HE-AAC
	Sound Mode	LEFT/RIGHT/STEREO/MONO
	Sampling Frequency	32KHz, 44.1KHz, 48KHz
Environment	Input Voltage	Input 110V ~240V, 50/60Hz DC12V/1.2A
	Consumption	10W Max
	Temperature	0℃ to +50℃
	Humidity	<95%

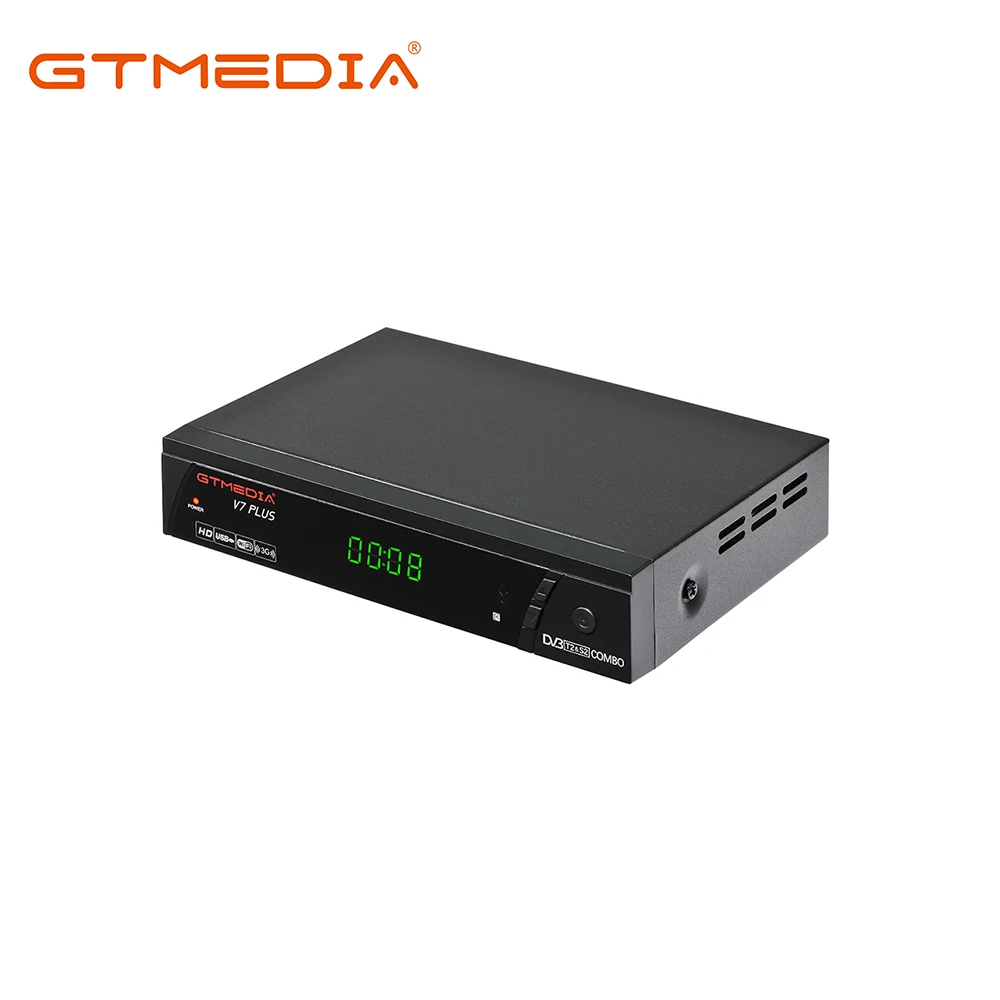

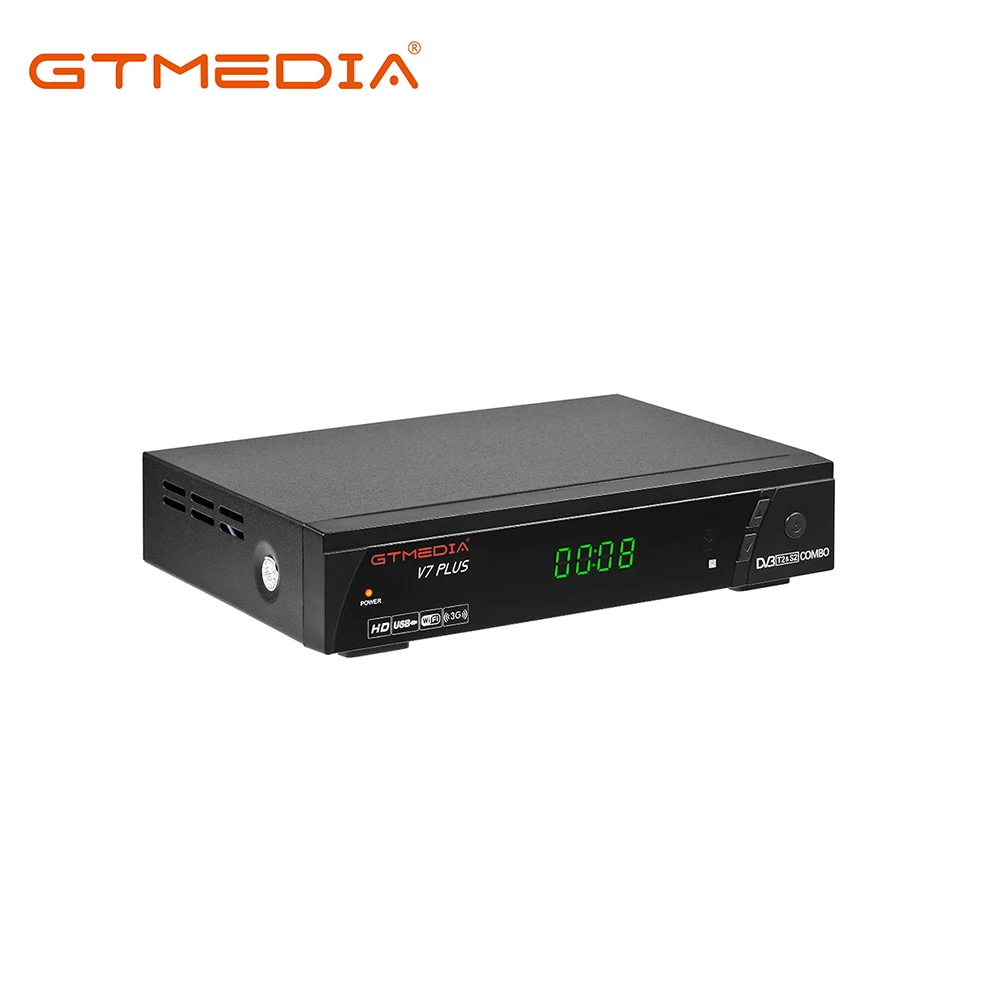

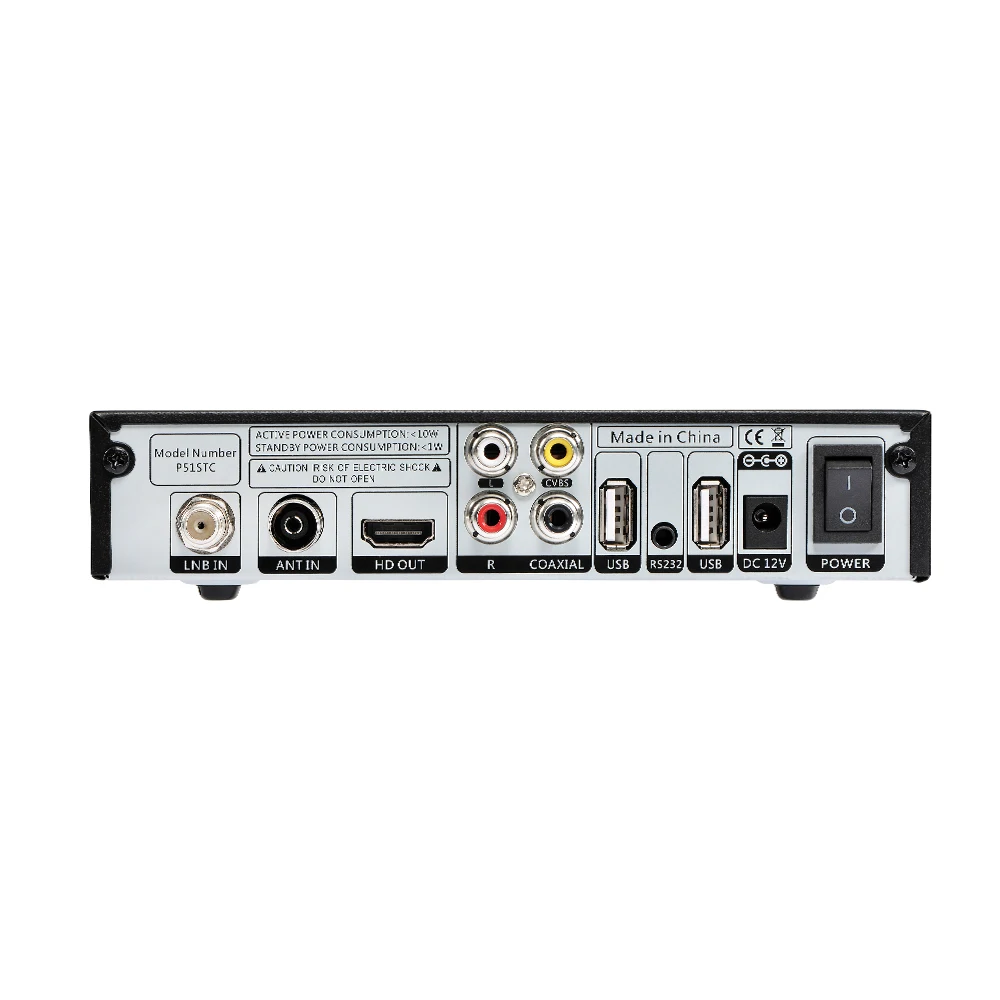

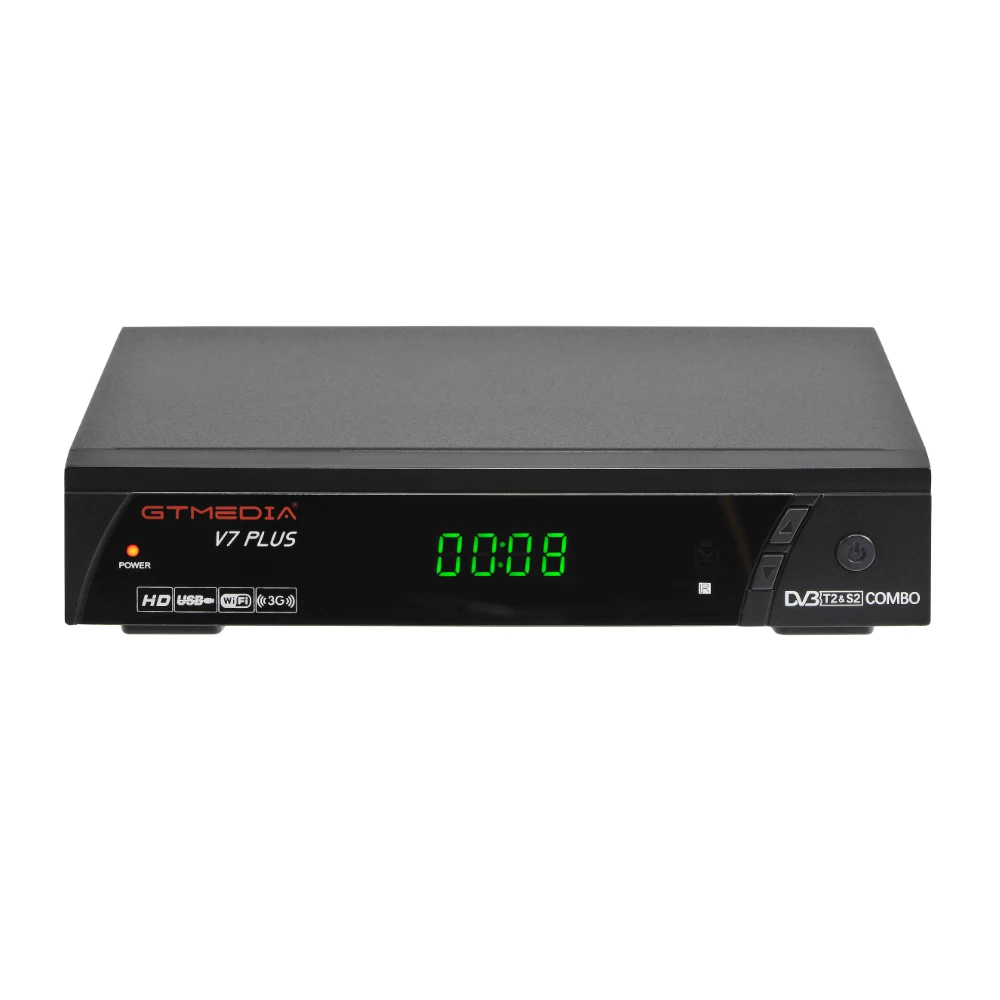

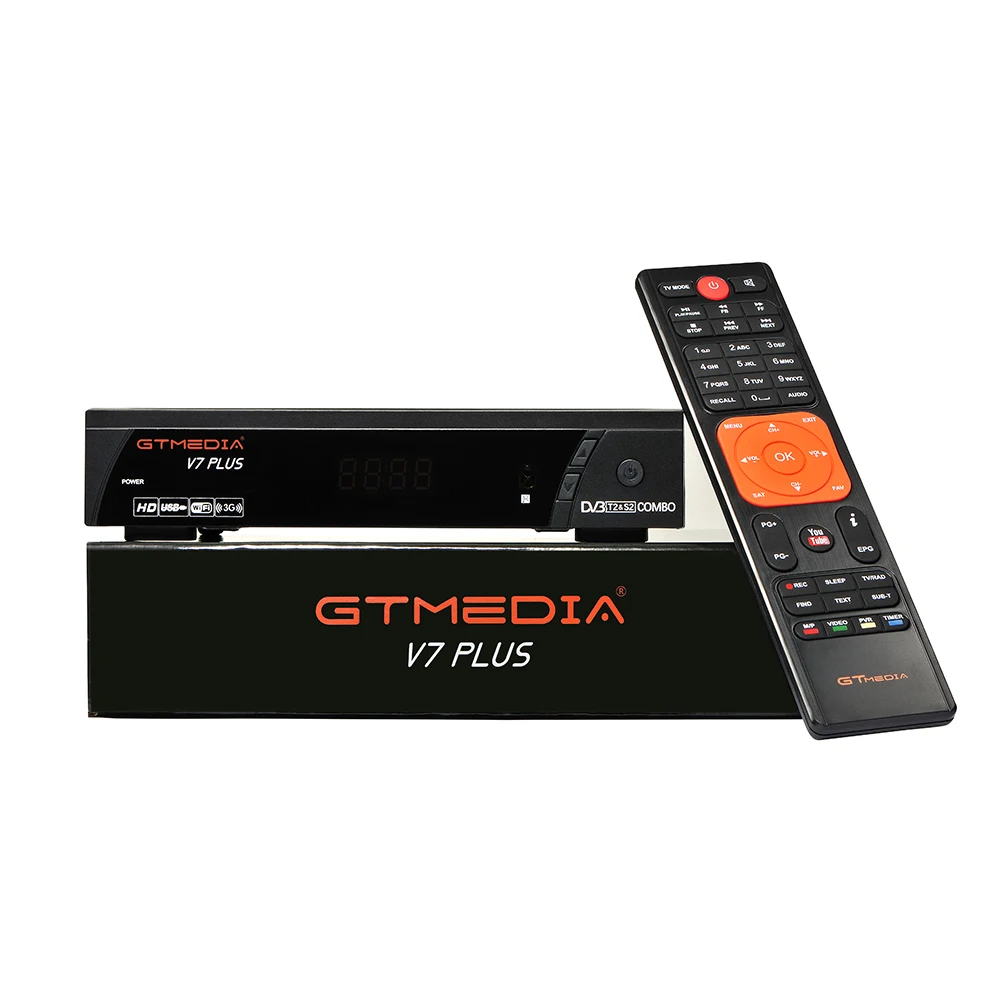

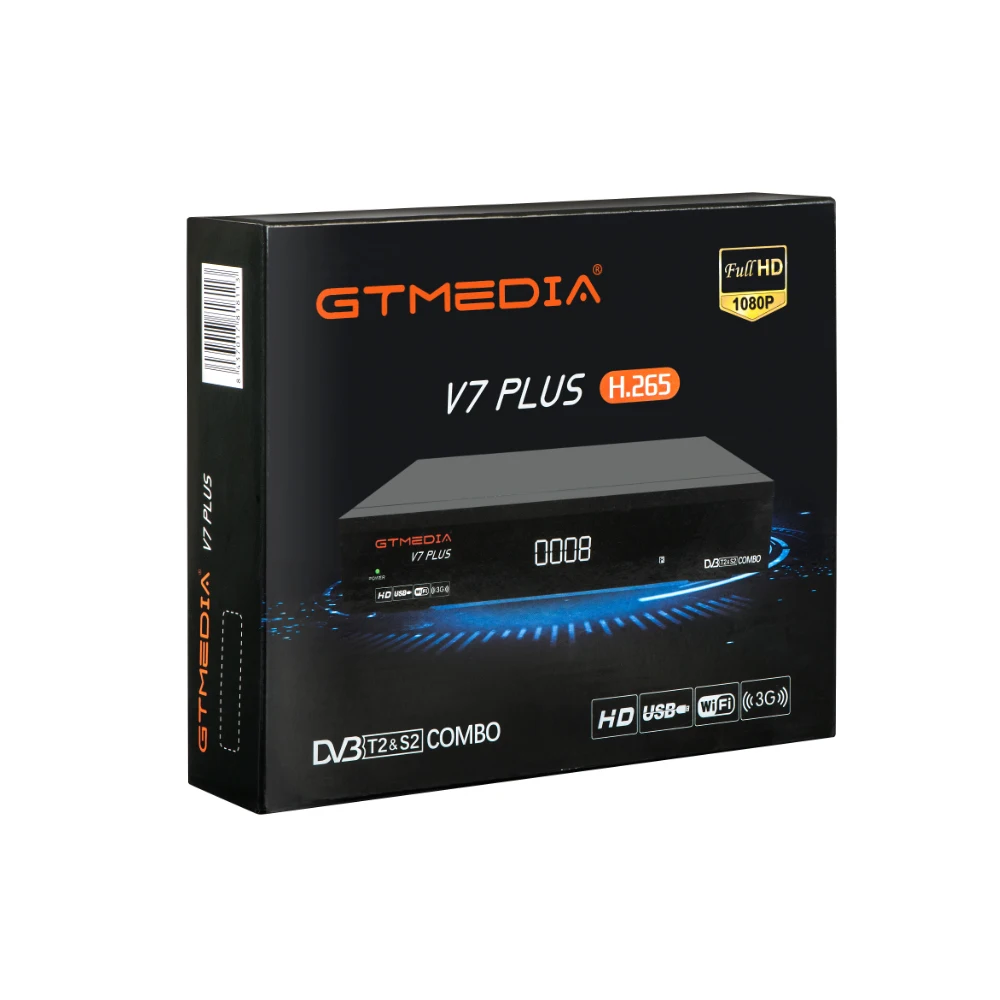

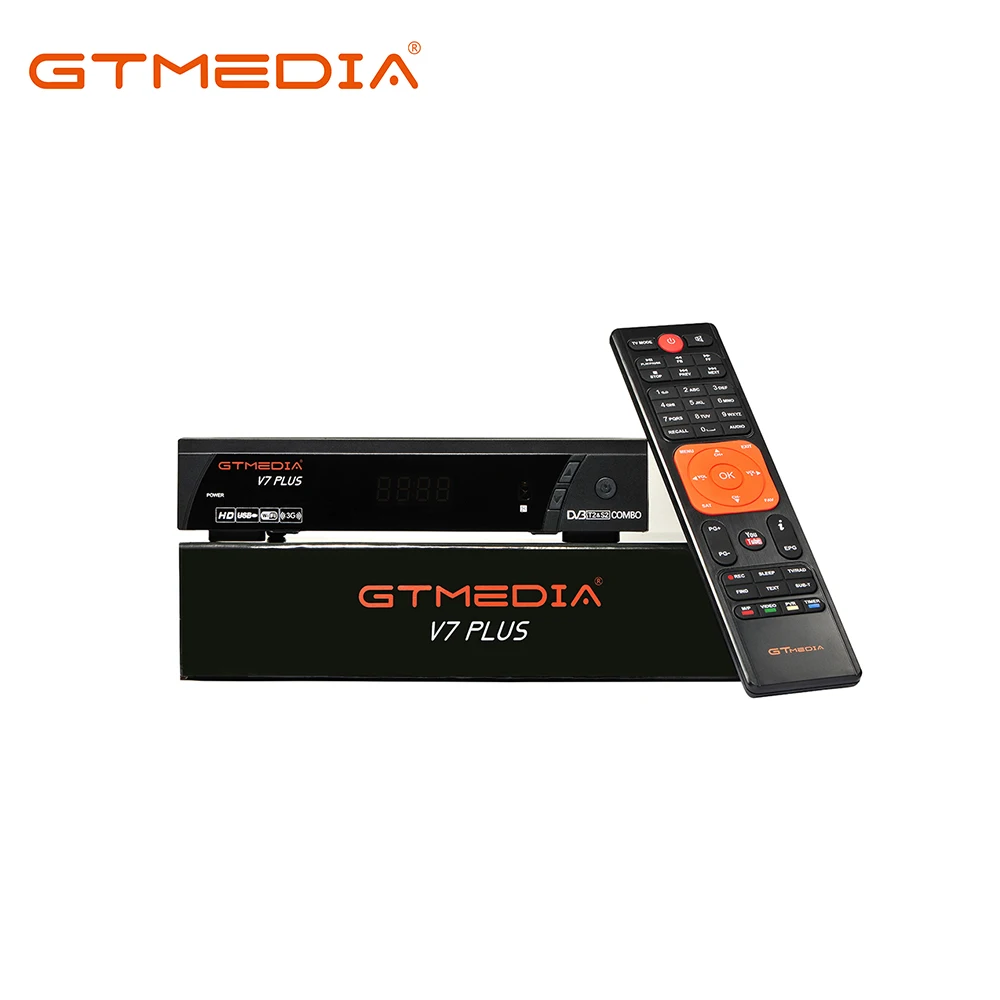

Product image:

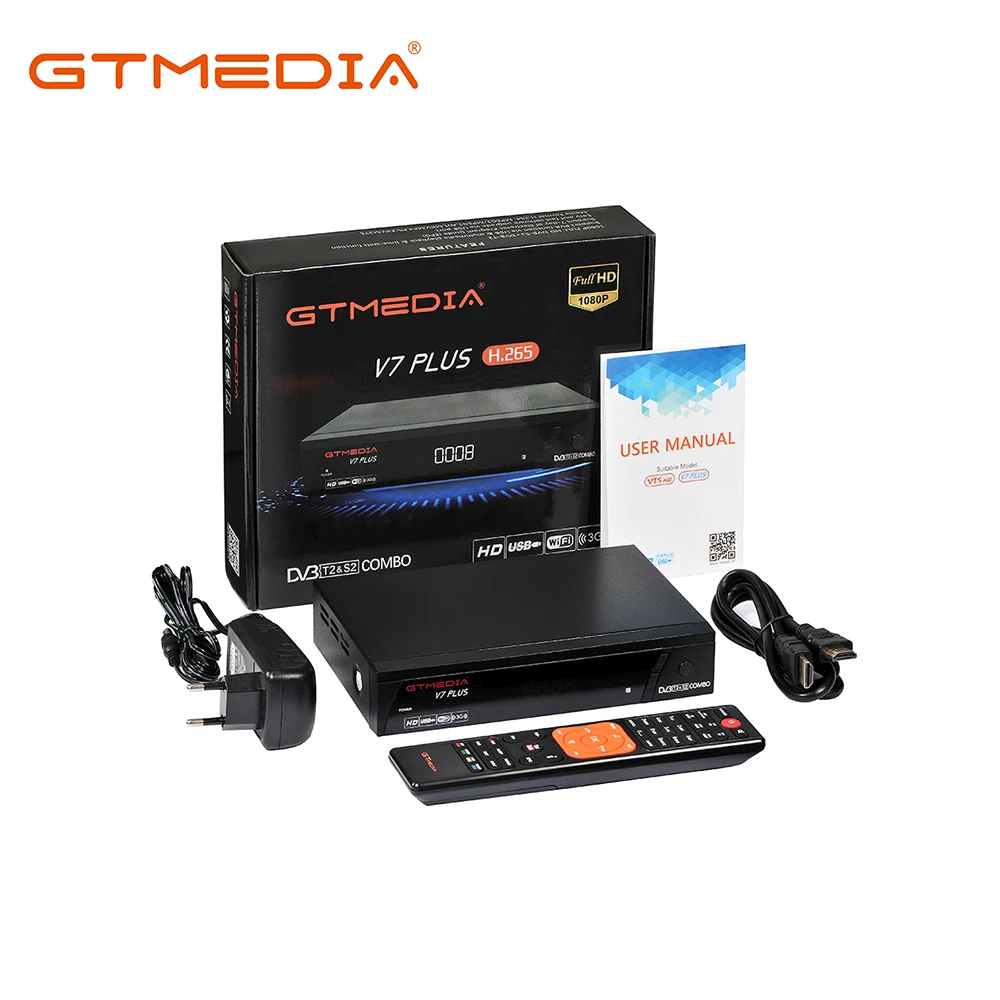

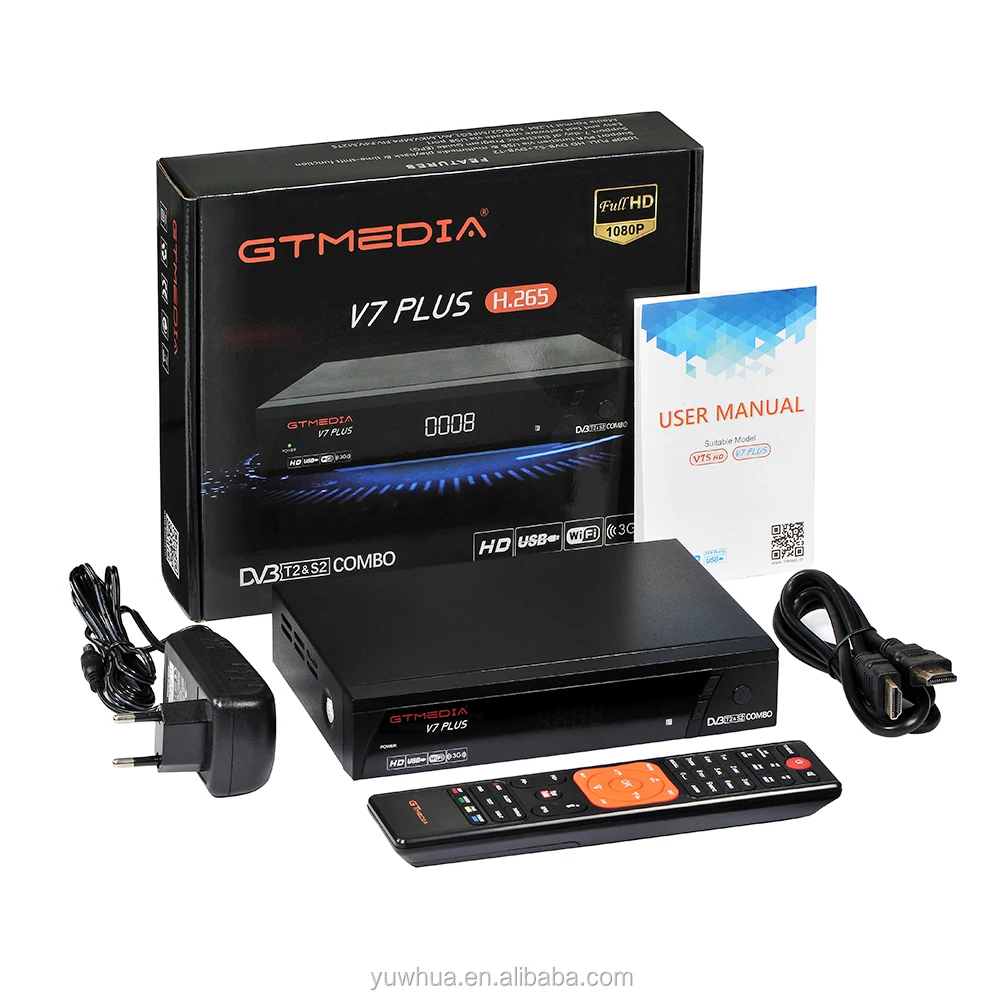

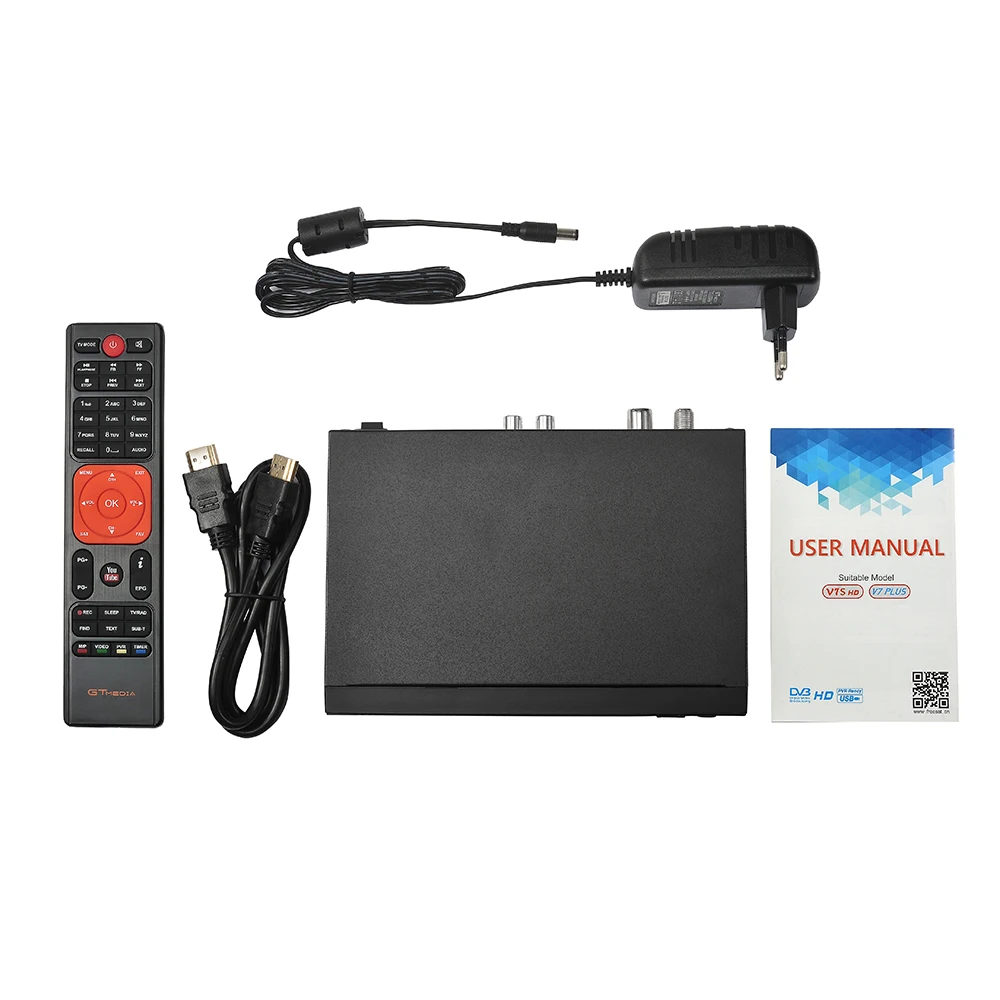

Packing contains:

1 x V7 Plus DVB

1 x remote control

1 x hd cable

1 x charger

1 x manual



2.After shipment:we will offer the tracking number for you on second day.
3.After-Sales Service: 2 years warranty







A1: For all the products, we have two-year warranty. All of our goods are 100% tested working and perfect before sent to you. In case there are unexpected damages during delivery, please do check before you sign for the package.

If you have broken boxes,you can collect them together and send them back to us by post/mail,we will try to repair them for you firstly,if can not repair,we will send you the new motherboard to you to change it.


Q2: Will your product work in my country?
A2: All of our products are compatible to the international standards, please be subject to the type of network in your country (the band).


Q3: What's your charger standard? Are they available in my country?
A3: Usually we have EU plug, US plug, UK plug and AU plug. Please wirte us your charger standard before you send the inquiry.

Q4: Do you have technical instructions if I buy your product?
A4: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help. We will also send you update software regularly if you need.


Q5:Can i watch all of the channel programs?
A5:This is the satellite receiver/android tv box/DVB-C TV BOX,only can watch the free air program,if you want to watch the not free programs,you must buy an account from your local service.

Q6: I am very satisfied after I read your FAQ, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
