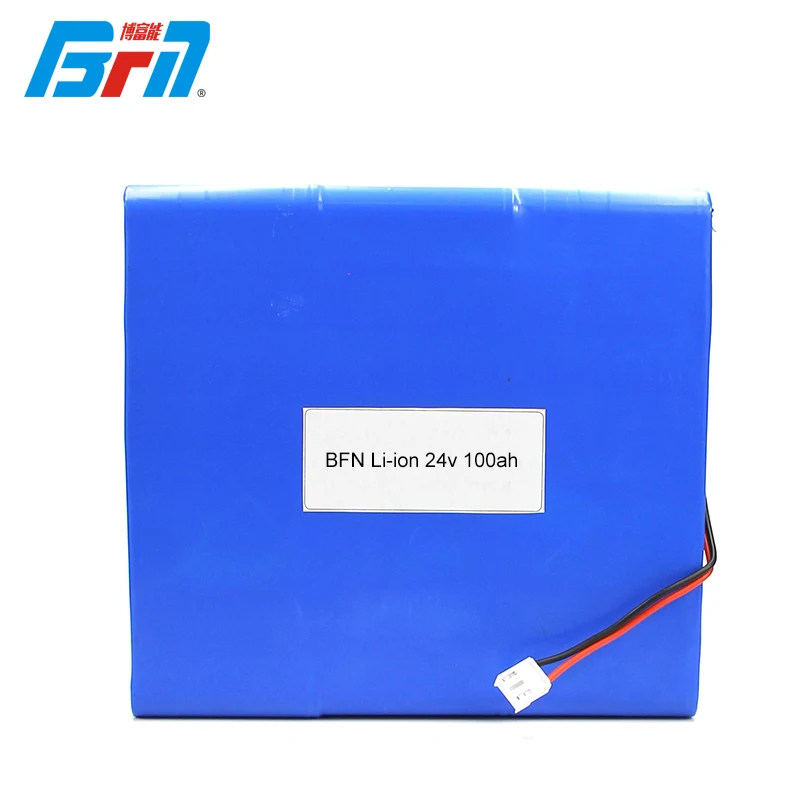

Direct manufacturer 18650 6s50p 24v lithium batteries 100ah li ion battery pack
- Category: >>>
- Supplier: Shenzhen Bofuneng Battery Co. Ltd.
Share on (62193434764):
Product Overview
Description
Company Profile
Our company
Shenzhen Bofuneng Battery Co.,Ltd founded in 2003, is a new high-tech enterprise, specializing in research, manufacture and sales of various cylindrical lithium ion battery, lithium iron phosphate battery and all kinds of battery pack products.Our products have the advantages of light weight, high capacity, high energy density, low internal impedance, long cycle life, low self-discharge and good consistency, which are mainly sold to Domestic, Europe, North America, Southeast Asia, and etc.
At present,we have three factory, located in Shenzhen, Meizhou and Huizhou. And the total plant area is about 150,000㎡ with more than 700 employees.We have more than 60 expert engineers with professional and mature lithium battery R&D production and many years of experience in battery industry. Our daily output is 300,000 battery cells and 40,000 assembled battery packs, through ISO, UL, KC ,CB , UN38.3 , RoHs, CQC certifications and other domestic and foreign product safety enterprise qualification certification.
Our factory is equipped with advanced battery production equipment, using high-quality raw materials, strictly abide by advanced production technology and through the establishment of a strict quality management system, to produce battery series products that can reach the international advanced level. We have more than 80 models of battery cells,which can be assembled into different battery packs according to customer's personalized demands. We can provide customers with batteries not only conventional models but also customized models as per their special request.
Our products can be used in many fields, such as LED Light,Toys, E-cigarettes, Power bank, Notebook Computers, Consumer Household Appliances, Medical Beauty Equipments, Power Tools, Model Aircraft, Communication Equipments, Energy Storage and other Electronic Products
We will carry on to try our best to solve the individual needs of our every customer and develop with them together.
Product Description

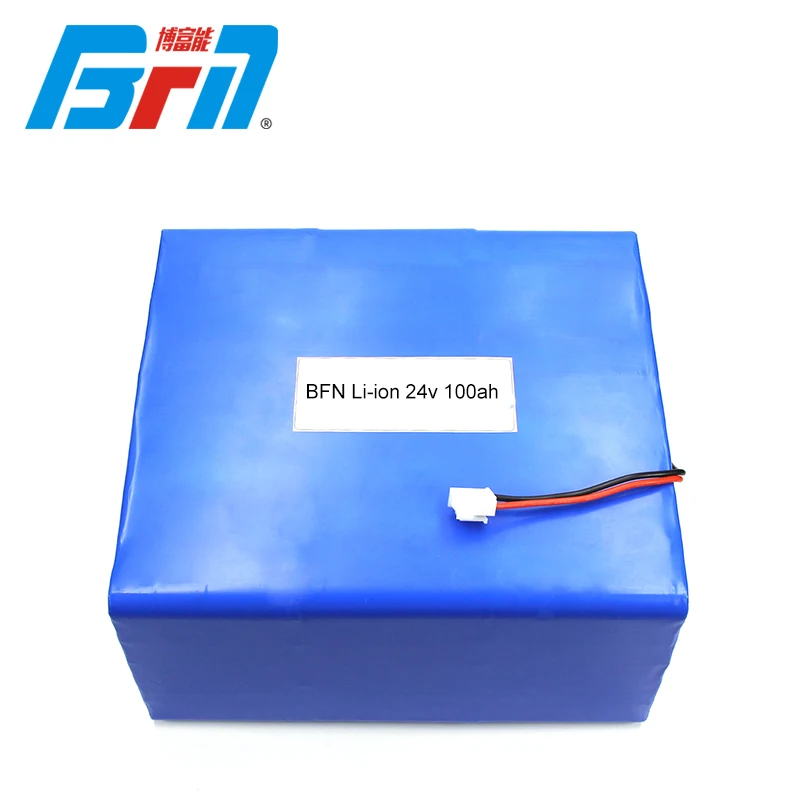

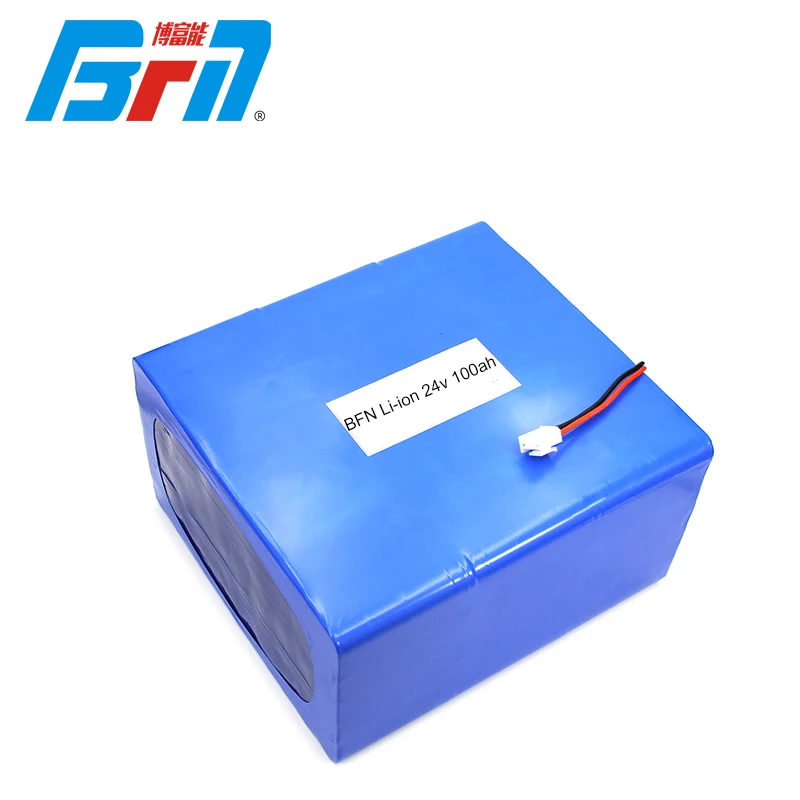

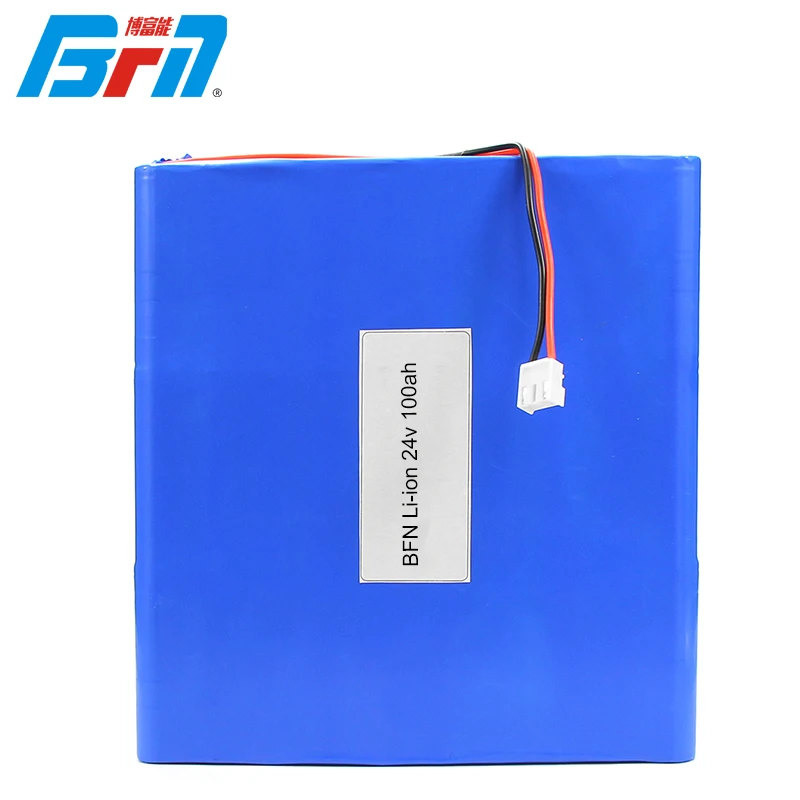

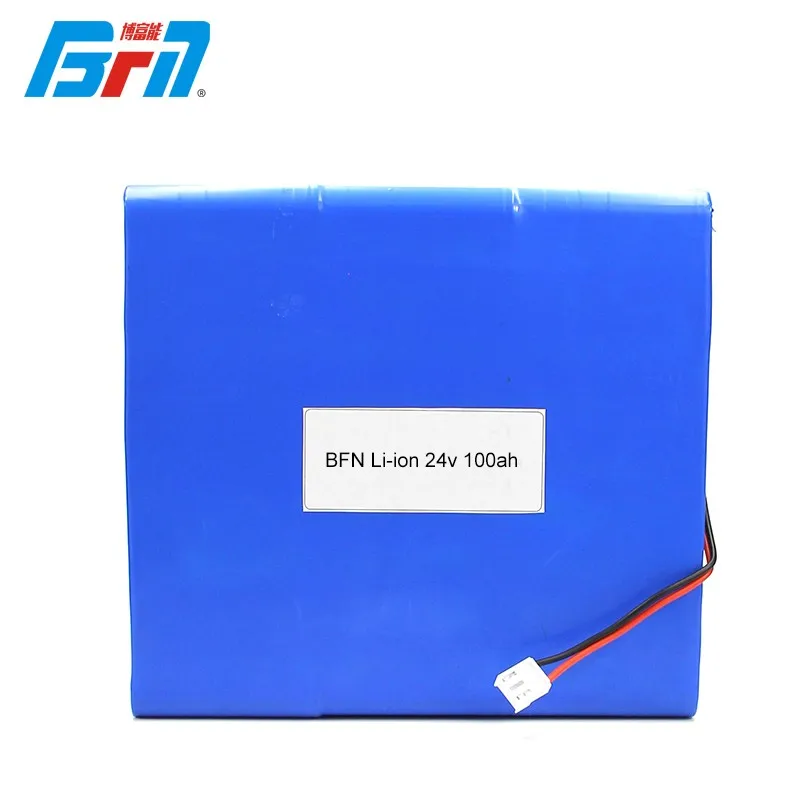

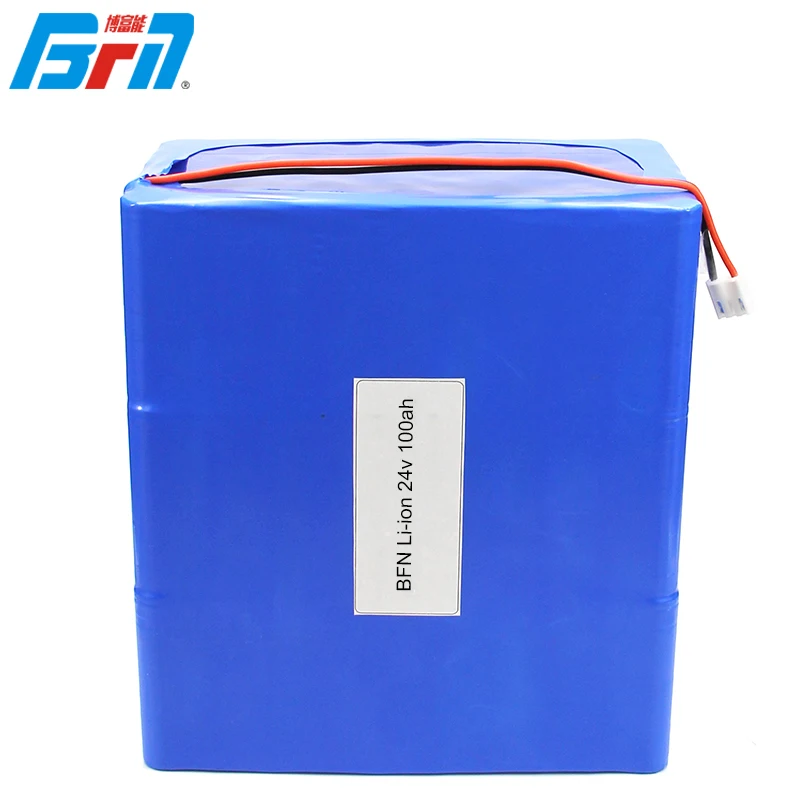

Direct manufacturer 18650 6s50p 24v lithium batteries 100ah li-ion battery pack
Product Specifications:
Type: rechargeable li-ion battery pack
Model: 100AH-24V
Nominal Capacity: 100Ah
Nominal Voltage: 24v
Max charge voltage: 25.2v±0.05
Min discharge voltage: 16.2v±0.05 (adjustable)
Max discharge current: 100A (adjustable)
Operating temperature\t Charging: 0℃~45℃; Discharging: -20℃~60℃
Storage temperature\t -5℃~35℃
Storage Humidity\t ≤75% RH
Product Features:
1. Low self-discharge
2. High energy density
3. Long cycle life
4. Safe product
5. High working voltage
6. Stable and high reliability
7. Pollution free
8.High capacity
9. Provide sample
10. Battery cell: 18650 2000mAh (or customized)
11. Wire size: customized
12. Wire length: 100mm, 150m, 200m or customized
13. Applications widely,such as Storage Energy, Electric Vehicle, Electric Tools,etc.
Why choose us
Our daily output
About 400,000 battery cells are produced in various models
and 30,000 assembled battery pack.

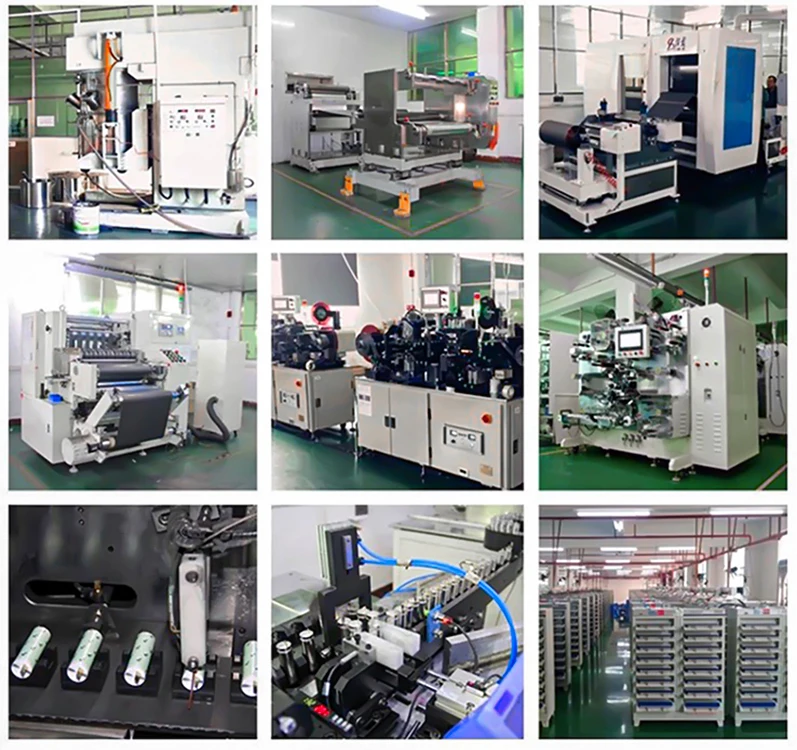

Our advanced equipment
Various models for your choice
We have more than 80 models of battery cells, which can be assembled into
different battery pack according to customer's demands.
We can customized service to solve
the individual needs of our
every customer.
Certifications
Cell Performance
Cell Performance | ||||
Item | Test Methods and Condition | Criteria | ||
0.2C Capacity | After standard charging, rest battery for 10min, then discharging at 0.2C to voltage 3.0V, recording the discharging time. | ≥300min | ||
Cycle Life | Constant current 0.5C charge to 4.2V, then constant voltage charge to current declines to 0.01C, rest 10min,constant current 0.5C discharge to 3.0V,rest 10min. Repeat above steps till continuously discharging capacity Higher than 80% of the Initial Capacities of the Cells. | ≥300min | ||
Capability of keeping electricity | 20±5℃, After standard charging, rest the battery 28days, discharging at 0.2C to voltage 3.0V, recording the discharging time. | ≥240min | ||
Discharge at high temperature | After standard charging, rest the cells 4h at 60±2℃, then discharging at 1C to voltage 3.0V, recording the discharging time. | ≥54min | ||
Discharge at low temperature | After standard charging, rest the cells for 16h at -20±2℃, then discharging at 0.2C to voltage 3.0V, recording the discharging time. | ≥210min | ||
Thermal shock | Put the cells in the oven. The temperature of the oven is to be raised at 5±2℃ per minute to a temperature of 130±2℃ and remains 30 minutes. | No fire, no smoke | ||
Over charge testing | At 23±5℃, charging cells with constant current 2C to voltage 5.0V, Stop test till cells temperature 10℃ lower than max temperature. | No smoke or fire | ||
Over discharge testing | At 23±5℃, According to the requirements of standard charge, the cells will be discharge to cut-off voltage, then connect with external load of 30 ohm for 24 hours. | No fire, no smoke, no leakage. | ||
Short-circuit testing | At 23±5℃, After standard charging, connect cells anode and cathode by wire which impedance less than 80±20mΩ, keep 6h. | No smoke or fire | ||
Packing & Delivery

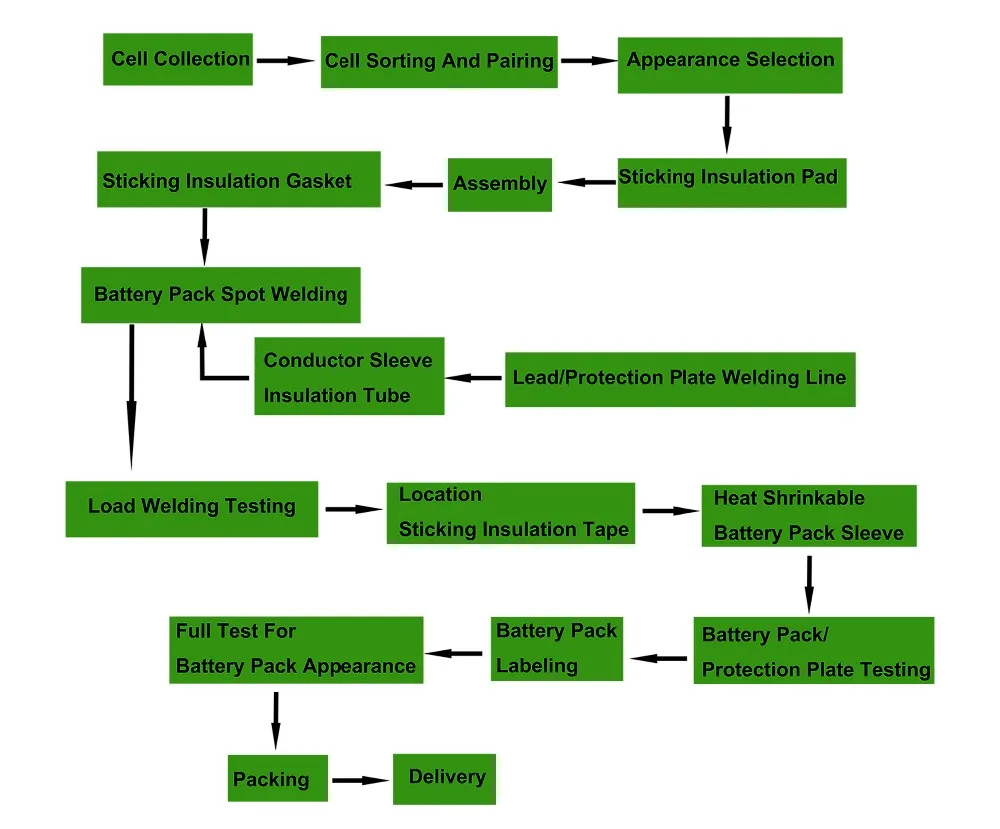

Pack Workflow
FAQ
Q1: What is your terms of payment?
A1: We can accept T/T,Paypal,Western Union,Trade Assurance,etc.
Q2: Are you a factory or trade company?
A2: we are a professional manufacturer .daily output is 300000pcs batteries and 40000 assembled battery packs.
Q3: What's the lead time for the mass production?
A3: It depends on the actual situation,if with stock,the lead time will be 1-5 days,if without stock,it will depend on your order quantity,usually within 30 days.
Q4: Can I get the sample?
A4:Of course,we can send you sample to check the quality first,if you pay the freight.
Q5 : Can you make customized models?
A5: Of course. We have professional engineers that can give you the most suitable solution according to your special requirements.
Q6: When can I get the price?
A6: We usually quote within 14 hours after getting your inquiry.If you are urgent to get the price,please call us or tell us in your email so that we can handle your inquiry priority.
