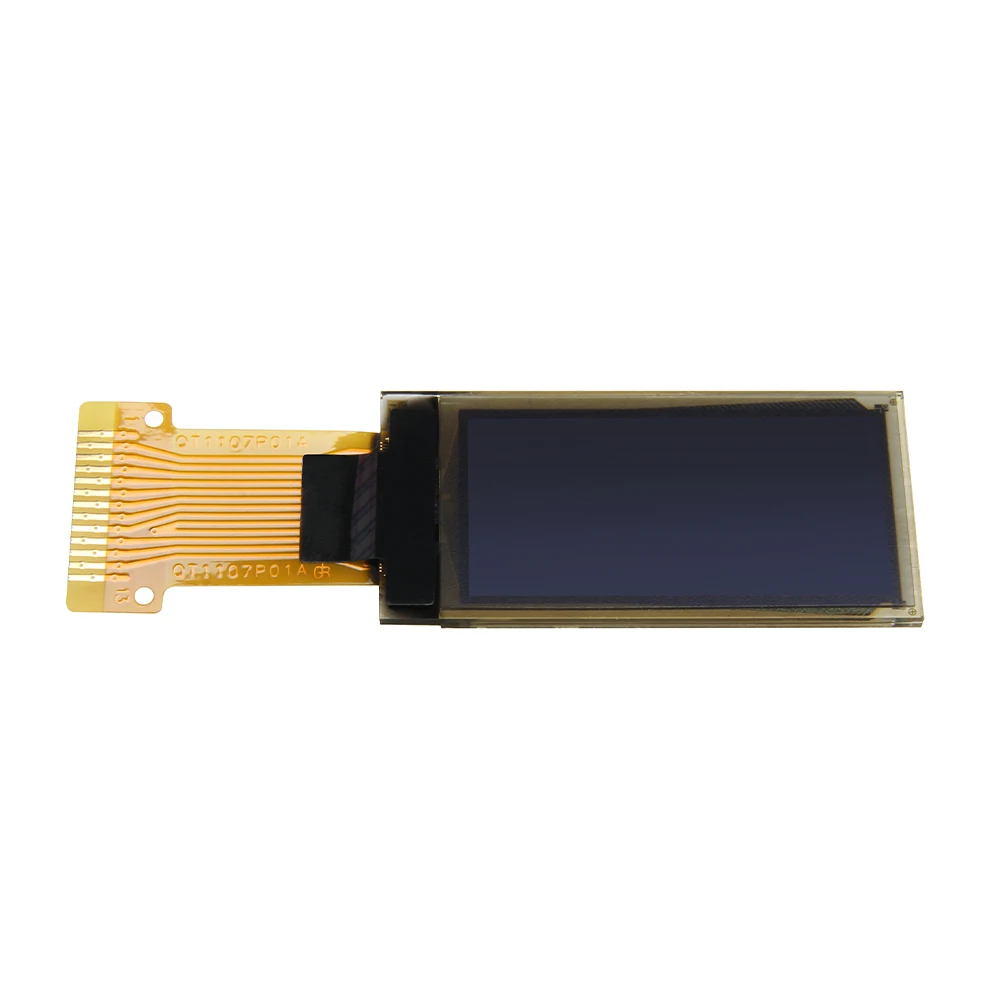

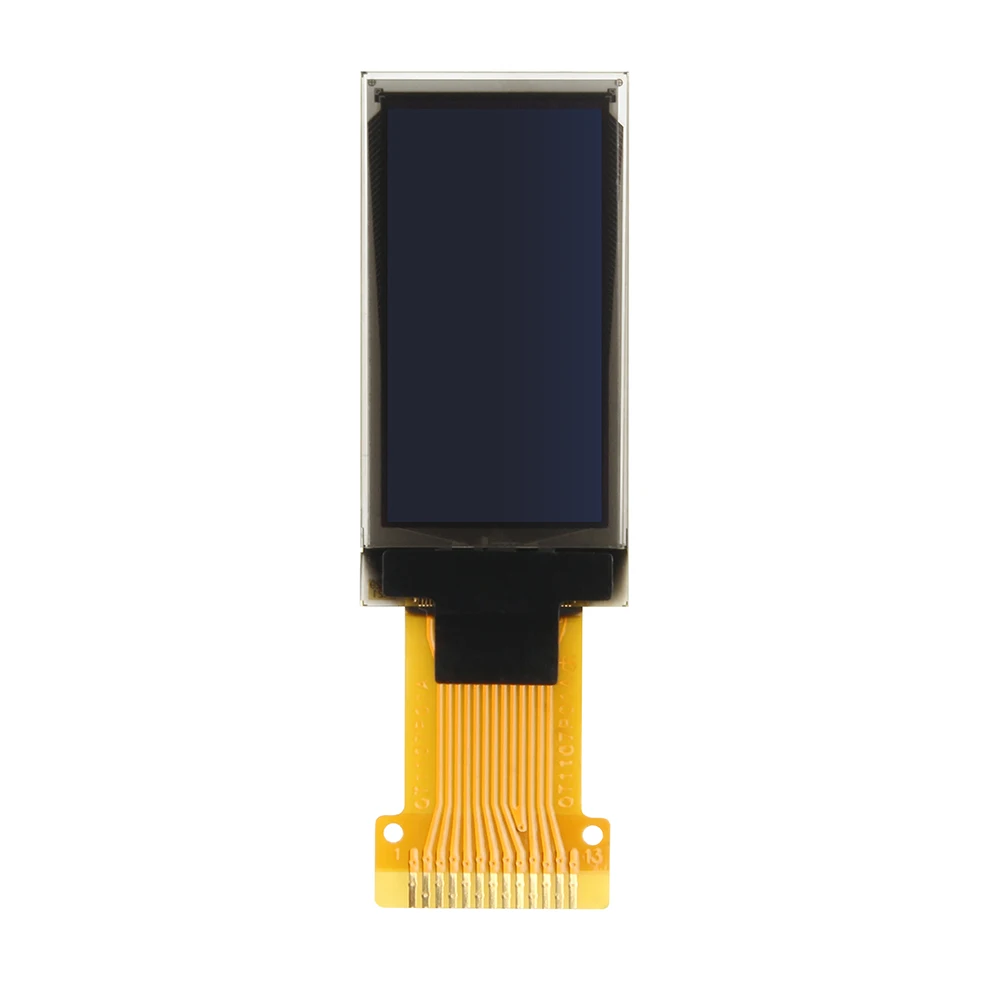

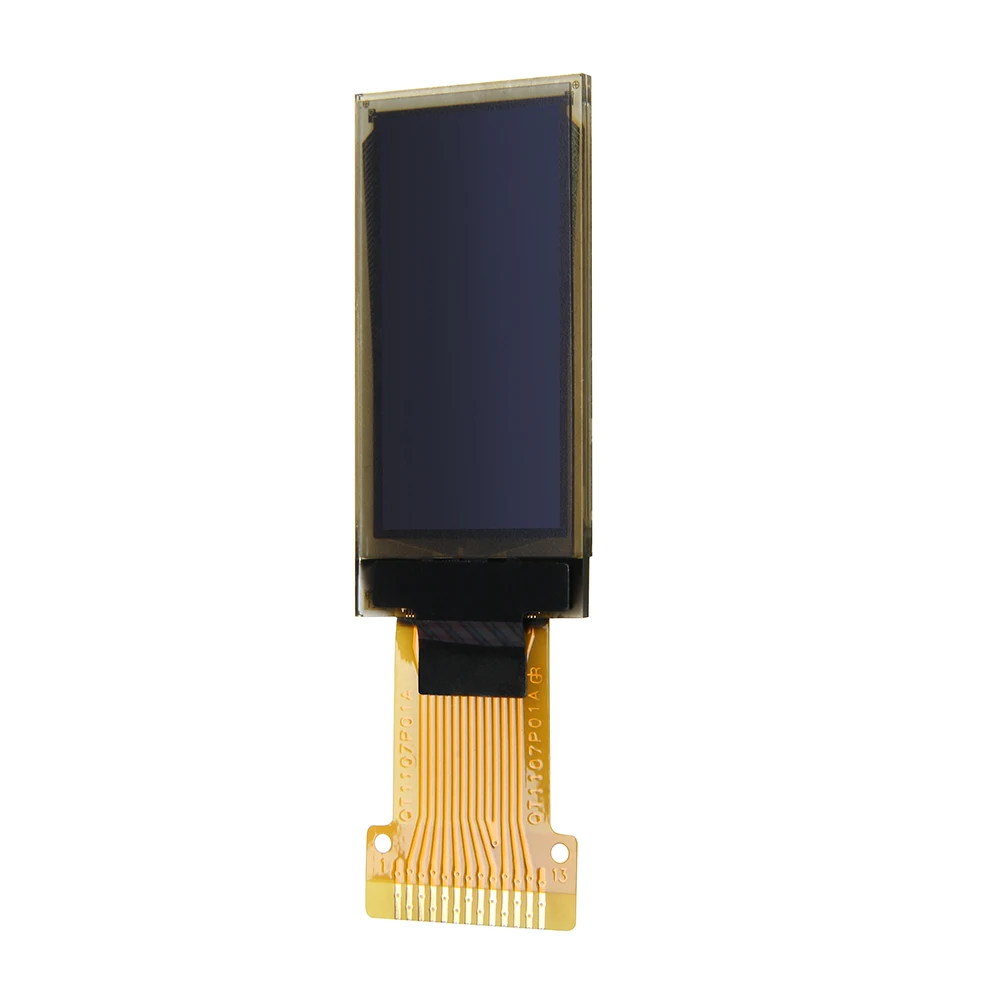

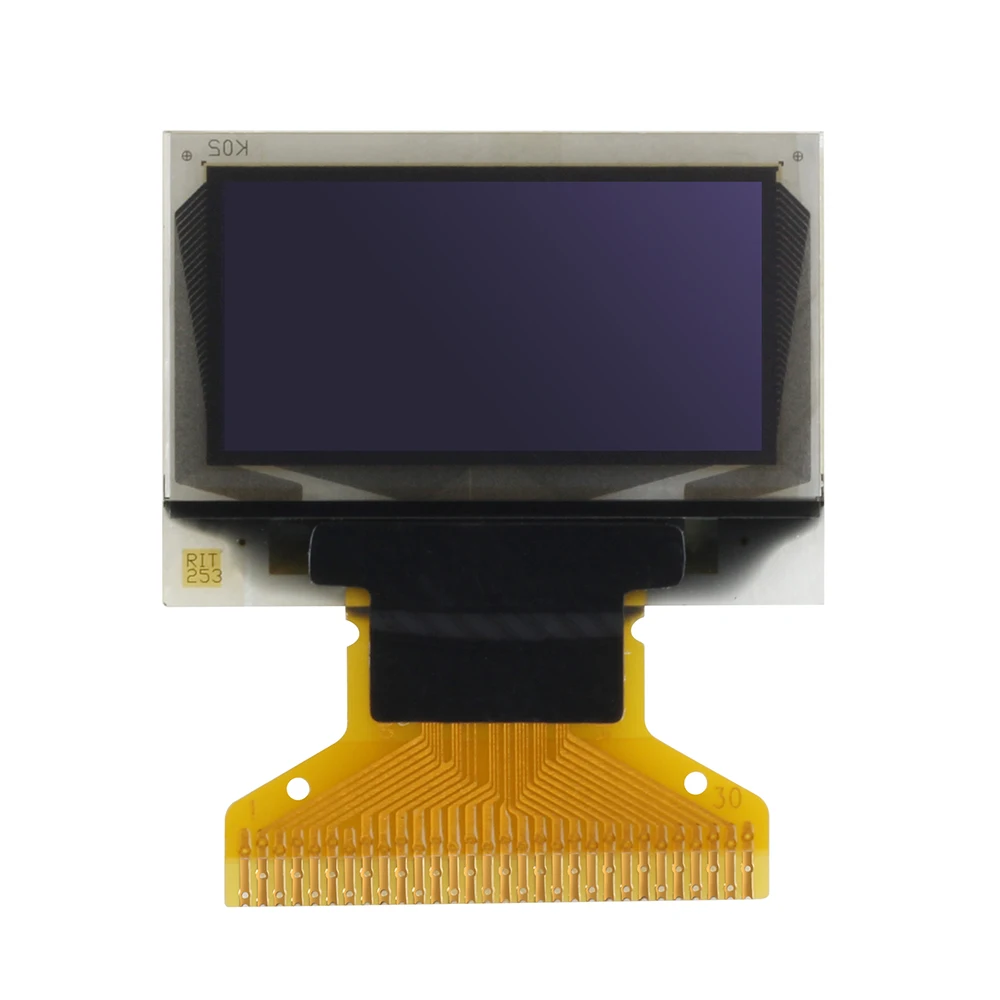

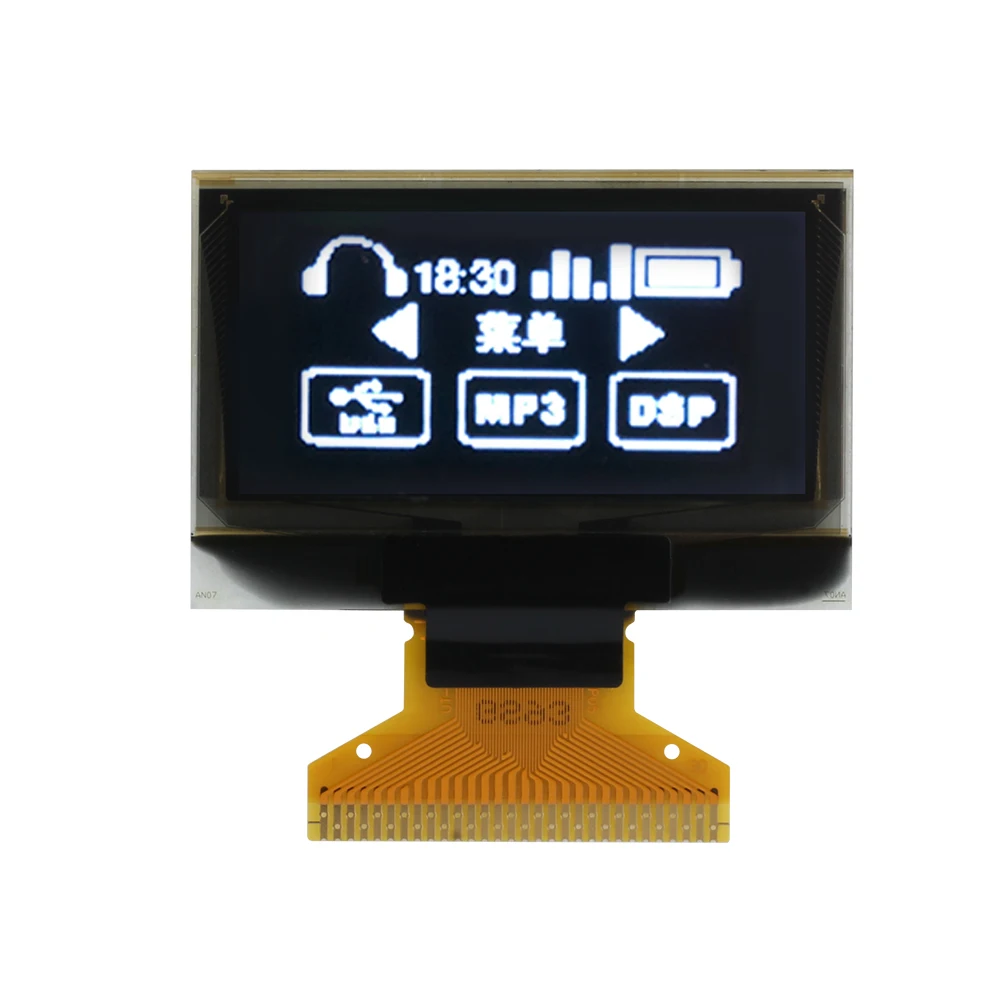

Маленький OLED ЖК дисплей 0,96 дюйма, 128x64 пикселей, синий, SSD1315 IC
- Category: OLED\/E-Paper Module >>>
- Supplier: Dongguan Shineworld Innovations Co. Limited
Share on (62193744787):
Product Overview
Description
Technical Data
0.96" Small OLED LCD Display 128x64 pixels, blue, SSD1315 IC | ||||||||
Diagonal Screen Size | 0.96" | |||||||
Color | White/Blue | |||||||
Module Construction | COG | |||||||
Number of Pixels | 128x64 | |||||||
Active Area | 21.744x11.204 | |||||||
Pins | 30pin | |||||||
Drive IC | SSD1306 | |||||||
Interface | Parealler/4 wire SPI/I2C | |||||||
Temperature Range
Item | Min. | Max. | ||||
Operating Temperature (°C) | -40 | 70 | ||||
Storage Temperature (°C) | -40 | 85 | ||||

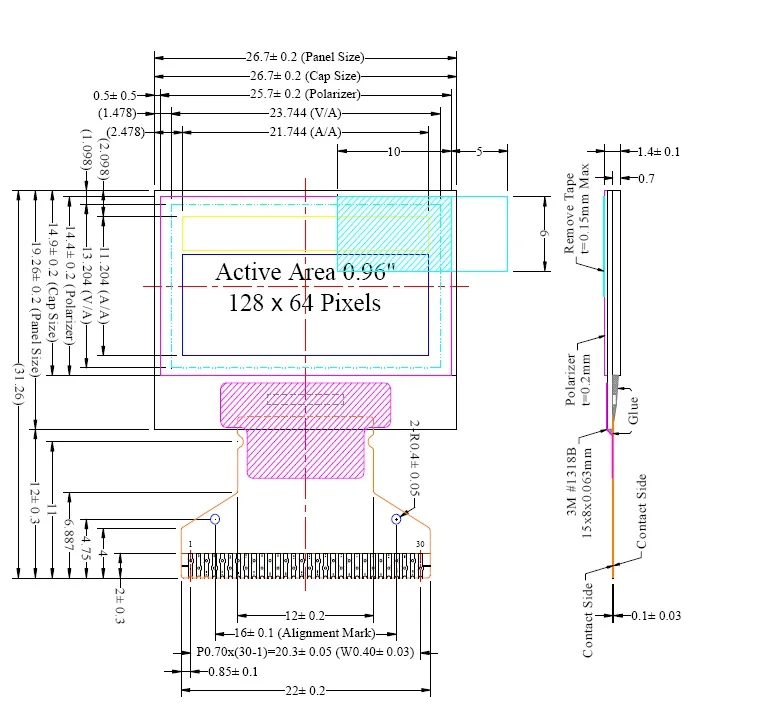

Drawing
\t\t\t\t\t\t\t\t\tMore Products \t\t\t\t\t\t\t
Size | Mono Color | Item No. | Pixels | Panel Size (HxVxD mm) | Interface |
0.42" | White/Blue | 72×40 | 12.0×11.0×1.25 | 4-wire SPI/I2C | |
0.48" | White | 72x32 | 14.9×11.29×1.2 | 4-wire SPI | |
0.49” | White/Blue | 64x32 | 14.5×11.6×1.2 | I2C | |
0.49” | White | GLO049-D-M2002 | 64x32 | 14.5×11.6×1.2 | 4-wire SPI |
0.49” | White | GLO049-D-M2003 | 64x32 | 14.5×11.6×1.2 | I2C |
0.49” | White | GLO049-D-M2004 | 64x32 | 14.5×11.6×1.2 | |
0.5" | White | 48x88 | 8.928x17.1x1.227 | I2C | |
0.63" | White | GLO063-D-M2001 | 120x88 | 21.54x6.62x1.22 | I2C |
0.66" | White/Blue | 64×48 | 18.46×18.1×1.45/1.23 | Paral/I2C/4-w SPI | |
0.66" | White | 64×48 | 18.46×18.1×1.45/1.23 | 4-wire SPI | |
0.66" | White | GLO066-D-M2007 | 64×48 | 18.46×18.1×1.23 | 4-wire SPI |
0.66" | White | 64×48 | 18.46×18.1×1.23 | 4-wire SPI | |
0.69" | White | 96×16 | 26.3×8×1.3 | I2C | |
0.69" | White | GLO069-D-M2001 | 96×16 | 26.3×8×1.3 | I2C |
0.69" | White | GLO069-D-M2002 | 96×16 | 24×6.9×1.25 | I2C |
0.73" | White | GLO073-D-M2001 | 128x88 | 14.6x22.34x1.22 | 4-wire SPI |
0.73" | White | 128x88 | 14.6x22.34x1.22 | 4-wire SPI | |
0.75" | White | 128x128 | 23.15×25.93×1.02 | I2C/4-wire SPI | |
0.78" | White | 128x80 | 12.13x23.6x1.22 | 4-wire SPI | |
0.86" | White/Blue | GLO086-D-M2001 | 96×32 | 29.1×9.2×1.2 | I2C |
0.87" | White | 128×32 | 29.0×8.7×1.2 | 4-wire SPI | |
0.87" | White | GLO087-D-M2002 | 128×32 | 29.0×8.7×1.2 | I2C |
0.87" | White | GLO087-D-M2003 | 128×32 | 29.0×8.7×1.2 | 4-wire SPI |
0.87" | White | GLO087-D-M2004 | 128×32 | 29.0×8.7×1.2 | 4-wire SPI |
0.91" | White/Blue | 128×32 | 30.0×11.50×1.2 | I2C | |
0.91" | White/Blue | 128×32 | 30.0×11.50×1.2 | 4-wire SPI | |
0.91" | White/Blue | 128×32 | 30.0×11.50×1.2 | I2C | |
0.91" | White/Blue | 128×32 | 30.0×11.50×1.2 | 4-wire SPI | |
0.91" | White | GLO091-D-M2020 | 128×32 | 30.0×11.50×1.2 | 4-wire SPI |
0.91" | White | 128×32 | 30.0×11.50×1.2 | 4-wire SPI | |
0.91" | White/Blue | GLO091-D-M2022 | 128×32 | 30.0×11.50×1.2 | 4-wire SPI |
0.95" | White/Blue | GLO95-D-M2003 | 96x64 | 25.34x22.5x1.4 | Parallel/4-w SPI |
0.96" | Y, Blu, W/Blu | 128x64 | 26.7×19.26×1.22 | I2C/4-wire SPI | |
0.96" | White/Blue | GLO096-D-M2011 | 128x64 | 24.74×16.6×1.28 | I2C/4-wire SPI |
0.96" | White/Blue | GLO096-D-M2013 | 128x64 | 24.74×16.6×1.28 | 4-wire SPI |
0.96" | White | GLO096-D-M2014 | 128x64 | 26.7x19.26x1.45 | 4-wire SPI |
0.96" | White | 64x128 | 14×28×1.22 | I2C/4-wire SPI | |
0.96" | White | GLO096-D-M2003 | 96x96 | 24×25.7×1.2 | 4-wire SPI |
0.96" | White | 96x96 | 24×25.7×1.2 | 4-wire SPI | |
1.09" | White | 64x128 | 14x31.96x1.22 | 4-wire SPI | |
1.1" | Yellow | GLO110-D-M2001 | 96x96 | 27x42.11x1.61 | Para/I2C/4-w SPI |
1.29" | White | GLO129-D-M2001 | 128x64 | 32.42x21.36x1.427 | Para/I2C/4-w SPI |
1.3" | White | 128x64 | 34.5×23.0×1.45 | Para/I2C/4-w SPI | |
1.3" | White | 128x96 | 32.5×29.2×1.61 | Para/I2C/4-w SPI | |
1.3" | White | 64x128 | 17.1x35.8x1.43 | I2C/4-wire SPI | |
1.3" | White | 64x128 | 17.1x35.8x1.43 | I2C/4-wire SPI | |
1.3" | White | GLO13-D-M2004 | 128x64 | 34.5×23.0×1.45 | Para/I2C/4-w SPI |
1.32" | White | GLO132-D-M2001 | 128x96 | 33.8x36.5x1.41 | Para/I2C/4-w SPI |
1.5" | Yellow | 128x128 | 33.8×36.5×1.41 | Para/I2C/4-w SPI | |
1.54" | White/Blue | 128x64 | 42.04×27.22×1.4 | Para/I2C/4-w SPI | |
1.54" | White/Blue | GLO154-D-M2005 | 128x64 | 42.04×27.22×1.45 | Para/I2C/4-w SPI |
1.54" | Yellow | GLO154-D-M2004 | 128x64 | 42.04×27.22×1.45 | Para/I2C/4-w SPI |
1.6" | Yellow | GLO16-D-M2001 | 128x64 | 41.9x28.0x1.61 | Parallel/4-w SPI |
1.83" | White | 256×32 | 52×11.5×1.81 | Para/I2C/4-w SPI | |
1.92” | White | GLO192-D-M2019 | 128x160 | 32.9x118.4x1.22 | Para/I2C/4-w SPI |
2.08" | White | 256×64 | 62.5x20.6 | Parallel, SPI, I2C | |
2.08" | 16 Gray Scal | 256×64 | 60.5x19x1.6 | Parallel, SPI, I2C | |
2.08" | 16 Gray Scal | GLO208-D-M2003 | 256×64 | 60.5x19x1.73 | Parallel, SPI, I2C |
2.23" | White/Blue | 128x32 | 62x24x2 | Para/I2C/ 4-w SPI | |
2.4" | White/Yellow | 128×64 | 60.5×37.00×1.82 | Para/I2C/4-w SPI | |
2.4" | White | GLO24-D-M2002 | 128×64 | 60.5×37.00×1.82 | |
2.42" | W/B/Y/G | 128×64 | 60.5x37x2 | Paral/I2C/4-w SPI | |
2.42" | W/B/Y/G | 128×64 | 60.5x37x2 | Paral/I2C/4-w SPI | |
2.7" | W/B/Y/G | 128×64 | 73x41.86x2 | Parallel/4-w SPI | |
3.12" | B/Y/W | 256x64 | 88x27.8x2 | Parallel/4-w SPI | |
3.2" | 16 G S -W/Y | 256x64 | 88.00×27.80×2.0 | Parallel/4-w SPI | |
5.5" | Green | 256x64 | 146x45x2 | Parallel/4-w SPI |
Size | Color | Item No. | Pixels | Panel Size (HxVxD mm) | Interface |
1.36" | Flexible-White | 128X16 | 44.5x8.66x0.3 | 3-wire SPI | |
1.71" | Flexible-White | 128X32 | 50.50x15.75x2.0 | 3-wire SPI | |
1.81" | Flexible-White | 128X32 | 55.3x14.954x0.3 | 3/4-wire SPI | |
1.51" | Transparent-Blue | 128x56 | 42.04x27.22x1.25 | Paral/I2C/4-SPI | |
4.1" | Transparent-RGB | 230 Icons | 106x37.9x1.4 | I2C | |
0.72" | White+Touch in Cell | CLO072-D-M2001 | 72X128 | 11.6x21.91 | I2C/SPI/Paralle |
0.78" | White+Touch in Cell | CLO078-D-M2001 | 128x96 | 14.60x23.20x1.20 | I2C/ SPI |
0.96" | White+Touch in Cell | 64×128 | 14×28.46×1.22 | I2C/SPI | |
0.96" | White+Touch in Cell | CO096-D-M2003 | 64×128 | 14×28×1.2 | I2C/SPI |
0.96" | White+Touch in Cell | CO096-D-M2004 | 96x96 | 20.50x23.80x1.20 | I2C/SPI |
1.71" | White+Touch in Cell | CO171-D-M2001 | 128x32 | 15.75 x51.10x2.00 | I2C/SPI |
Size | Mode | Item No. | Pixels | Panel Size (HxVxD mm) | Interface |
0.95" | PM | 96RGBx64 | 25.7x22.2x1.40 | Parallel/4-w SPI | |
0.95" | AM | 180RGB×120 | 22.23×18.24×0.77 | SPI | |
1.12” | PM | 96RGB×96 | 25.8×30.1×1.227 | Parallel/4-w SPI | |
1.19” | PM | 390RGB×390 | 33.22x34.72×0.68 | MIPI SPI | |
1.29” | PM | 128RGB×96 | 33×25.8×1.2 | Parallel/SPI | |
1.39” | AM | 454RGB×454 | 38.83x38.21x0.68 | SPI | |
1.41" | AM | GLO141-D-M2001 | 320RGB×360 | 26.04x31.78x0.77 | MIPI SPI |
1.46" | PM | 128RGB×128 | 33.5×33.5×1.6 | Parallel/4-w SPI | |
1.5" | PM | 128RGB×128 | 33.8x34x1.6 | Parallel/4-w SPI | |
1.69" | PM | 160RGBx128 | 39.9x34x1.6 | Pa/4-w SPI/RGB | |
1.77" | PM | 160RGBx128 | 42.7×33.4×2.0 | Parallel/4-w SPI | |
2.95" | AM | GLO29-D-M2001 | 1080RGB×1200 | 52.91x62.58x0.65 | MIPI 4 lanes |
4.3” | AM | 540RGB×960 | 57.26x1.3.87x0.77 | MIPI | |
5.0" | AM | GLO50-D-M2001 | 720RGB×1280 | 64.9x117.9×0.64 | MIPI 4 lanes |
5.5” | AM | GLO55-D-M2001 | 1080RGB×1920 | 70.66x128.36×0.64 | MIPI 4 lanes |
About OLED
OLED displays offer ultra-thin designs (no need back light), wide viewing angles, clear bright display, and less power
consumption.
SWI provides standard small sizes as well as customized designs, including customized FPCs, integrated touch sensors and/or cover lenses, and flexible and/or transparent options.The OLED products SWI supplies are including Transparent OLED, Flexible OLED, Monochorme OLED, Chracter OLED, Segment OLED, Area Color OLED, Full Color OLED and Custom designed OLEDs etc. The sizes range from 0.42” to 5.5”. With the advantages of the OLED, the OLED products we supply are applied in the industries of Consumer, Medical, PC Peripheral, Automotive, Communication and Industrial.
0.42“-5.8” Sizes
Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48×64, 64×32, 64×48, 64×128, 72×32, 72×40, 96×16, 96×32, 96×64, 96×39, 96×96, 128×32, 128×64, 128×88, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 400×400, 540×960, 720×1280, 1080×1200, 1080x1920
Display Sizes: 0.42”, 0.49”, 0.66”, 0.68”, 0.69”, 0.71”, 0.73”, 0.75”, 0.86”, 0.87”, 0.91”, 0.95”, 0.96”, 1.12”, 1.29”, 1.3”,
1.46”, 1.5”, 1.54”, 1.6”, 1.19”, 1.39”, 1.41”, 1.69”, 1.77”, 1.8”, 2.23”, 2.4”, 2.95”, 3.2”, 4.3”, 5.0”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
consumption.
SWI provides standard small sizes as well as customized designs, including customized FPCs, integrated touch sensors and/or cover lenses, and flexible and/or transparent options.The OLED products SWI supplies are including Transparent OLED, Flexible OLED, Monochorme OLED, Chracter OLED, Segment OLED, Area Color OLED, Full Color OLED and Custom designed OLEDs etc. The sizes range from 0.42” to 5.5”. With the advantages of the OLED, the OLED products we supply are applied in the industries of Consumer, Medical, PC Peripheral, Automotive, Communication and Industrial.
0.42“-5.8” Sizes
Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48×64, 64×32, 64×48, 64×128, 72×32, 72×40, 96×16, 96×32, 96×64, 96×39, 96×96, 128×32, 128×64, 128×88, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 400×400, 540×960, 720×1280, 1080×1200, 1080x1920
Display Sizes: 0.42”, 0.49”, 0.66”, 0.68”, 0.69”, 0.71”, 0.73”, 0.75”, 0.86”, 0.87”, 0.91”, 0.95”, 0.96”, 1.12”, 1.29”, 1.3”,
1.46”, 1.5”, 1.54”, 1.6”, 1.19”, 1.39”, 1.41”, 1.69”, 1.77”, 1.8”, 2.23”, 2.4”, 2.95”, 3.2”, 4.3”, 5.0”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
Color | Brightness(cd/m2) | Hours | Color | Brightness(cd/m2) | Hours | |
Yellow | 120 | >80,000 | White | 100 | >50,000 | |
100 | >100,000 | 80 | >70,000 | |||
80 | >150,000 | Red | 100 | >50,000 | ||
Green | 120 | >40,000 | 80 | >80,000 | ||
100 | >50,000 | Blue | 100 | >20,000 | ||
80 | >80,000 | 80 | >30,000 |
