CNC industrial cleaning machines with Japanese technology

Product Overview

Description

CNC industrial cleaning machines with Japanese technology



Product characteristic:

• A device can play a full processing effect;
• Simple operation, connecting air, rotating valve, like the use of vacuum cleaner, very portable use;
• It can also be used in operation, and it can be moved back and forth in the workshop.
• High power, high recovery rate.

Product feature:

1, Cost reduction:

• Extend the use time of chip liquid and save the cost of chip liquid;
• Reduced requirements for periodic chip replacement operations;
• Recycle impurities, improve chip tool wear life; No use of filter.

2, For production quality:

• Reduced function of reducing chip solution;
• The roughness of machining surface is improved;
• Iron scrap, impurities lead to product components and working machinery to have the effect of inhibiting rust.

3, For the envirement of the factory:

• Prevent the stench caused by the deterioration of chip solution;
• Less clogging of nozzles and pumps in working machines.

4, For safe:

• Use compressed air, safe and trouble-free;
• The countermeasure of working environment evil example.

5, For environmental protection:

• Product waste reduction
• Waste disposal reduces carbon dioxide.

Applicable Place:

Coolant tanks for working machinery;

Cleaning tank for coating parts;

Factory waste pit;

Other residual impurities.

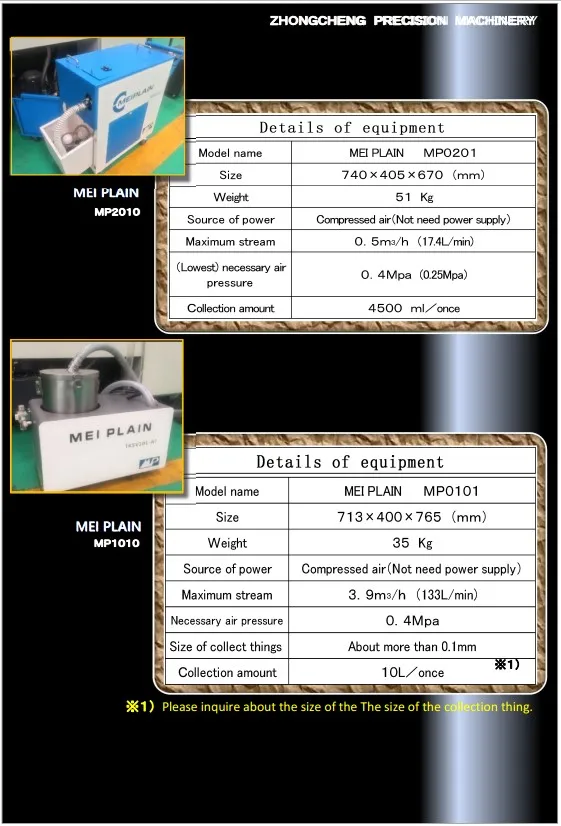

Details   of    Equipment

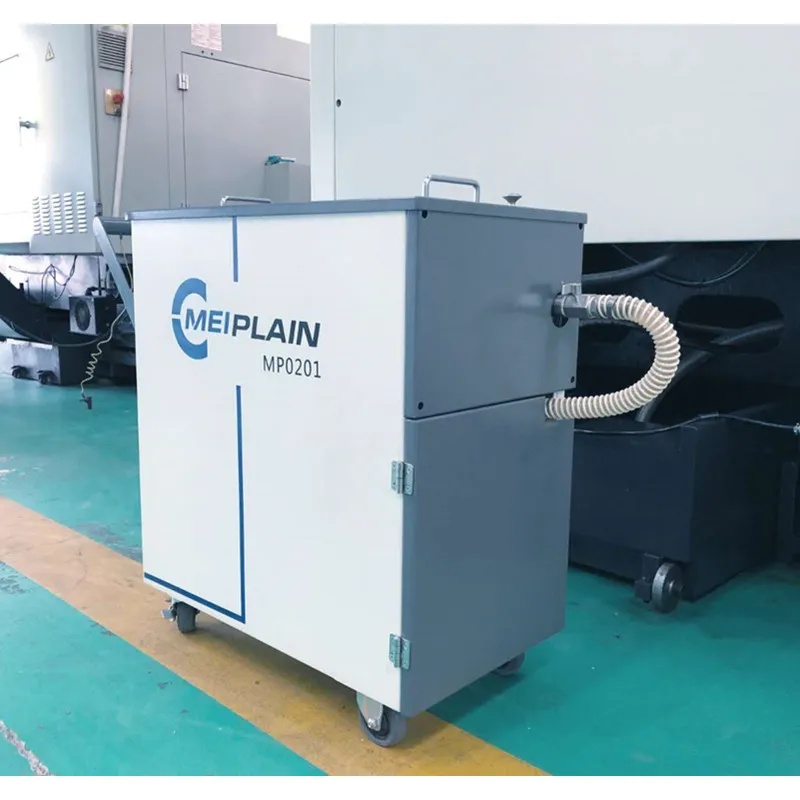

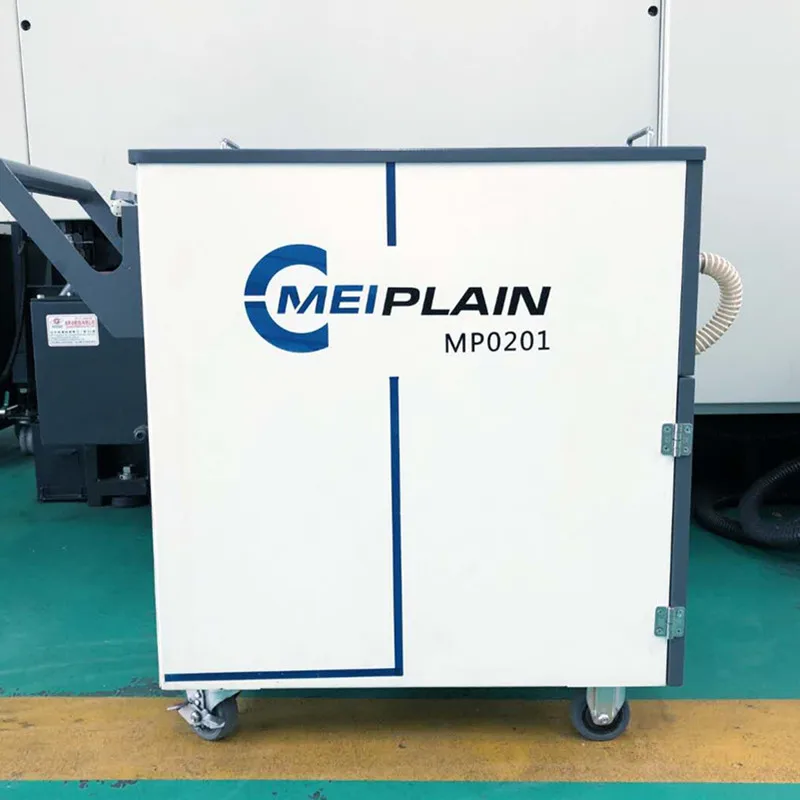

Model name	MEIPLAIN MP0201
Size	740*405*670 mm
Weight	51KG
Source of power	Compressed air (No need power supply)
Maximum Stream	0.5m³/H (17.4L/min)
(Lowest) necessary air pressure	0.4Mpa (0.25Mpa)
Collection amount	4500ml/once



Details   of    Equipment
Model name	MEIPLAIN MP0101
Size	713*400*765 mm
Weight	35KG
Source of power	Compressed air (No need power supply)
Maximum Stream	3.9m³/H (133L/min)
(Lowest) necessary air pressure	0.4Mpa (0.25Mpa)
Collection amount	10L/once
