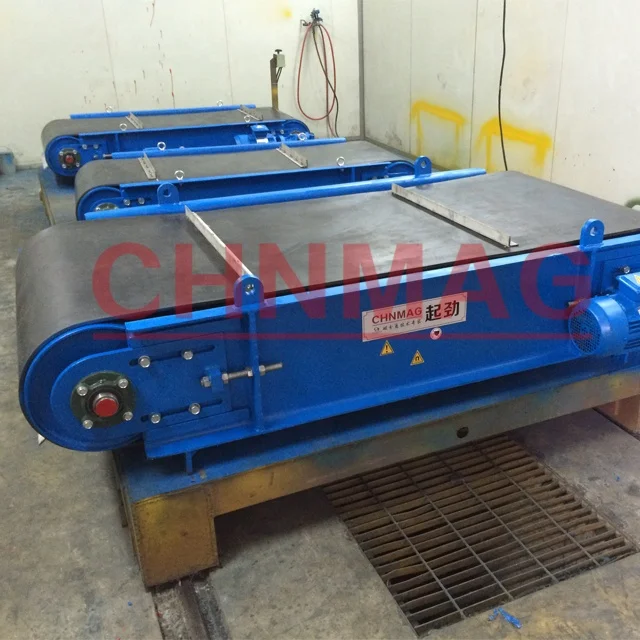

QJRCY L 65 conveyor belt magnetic separator for waste recycling
- Category: >>>
- Supplier: Qijin Magnet Co. Ltd.
Share on (62194294330):
Product Overview
Description
Company Information
QIJIN MAGNET CO.,LTD is a high-tech enterprise devoted to manufacturing high-end permanent magnetic equipment and magnets. Our company covers an area of 15,000sqm with modernized workshops and we have successfully designed and built several magnetic separation lines in more than ten countries such as Mexico, the Philippines, Indonesia, India, etc.Our magnetic separators have been exported to more than 40 countries and commonly applied in raw material recovery, metal recycling industry, waste industry, refuse processing and mining industry to select magnetic materials out of material stream or to purify material.Our major products are wet permanent drum magnetic separator, dry permanent drum magnetic separator, over band magnetic separator and suspended magnets. All these equipment can be designed and manufactured in accordance with the specific requirements of our customers.Any question regarding our products, please contact us without hesitation.
Product Description
Overband Magnetic Separator designed with strong and stable magnetic strength is used for separation of tramp iron from belt conveyed material stream. The advanced design and construction make ideal for use in waste recycling, shredding, mining, wood chips and demolition applications.
Features:
• Applicable for conveyor width from 500mm to 2000mm.
• Deep reaching magnetic circuit design to penetrate heavy product burdens.
• Stainless steel support frame.
• Special sealed bearing block ensure the stable working in harsh environment.
• Easy belt deviation adjustment with screw fasten.
• Magnetic force will not decrease more than 5% within 10 years.
• Deep reaching magnetic circuit design to penetrate heavy product burdens.
• Stainless steel support frame.
• Special sealed bearing block ensure the stable working in harsh environment.
• Easy belt deviation adjustment with screw fasten.
• Magnetic force will not decrease more than 5% within 10 years.
Optional Configuration:
• Electric or Hydraulic Driven Motor
• Ferrite Or Rare Earth Magnet System
• Protection Cover for Belt Running
• Stainless Steel Armed Belt
• Electric or Hydraulic Driven Motor
• Ferrite Or Rare Earth Magnet System
• Protection Cover for Belt Running
• Stainless Steel Armed Belt
Specification:
| Type | Beld width (mm) | Belt speed (m/s) | Suspended Height (mm) | Working mode | Motor output (KW) | Weight (KG) |
| QJRCY-L-50 | 500 | <4.5 | 150 | Continuous | 1.1 | 590 |
| QJRCY-L-65 | 650 | 200 | 1.5 | 730 | ||
| QJRCY-L-80 | 800 | 250 | 2.2 | 950 | ||
| QJRCY-L-100 | 1000 | 300 | 3.0 | 1700 | ||
| QJRCY-L-120 | 1200 | 350 | 3.0 | 1950 | ||
| QJRCY-L-140 | 1400 | 4.0 | 2350 | |||
| QJRCY-L-160 | 1600 | 4.0 | 2700 |
Related products

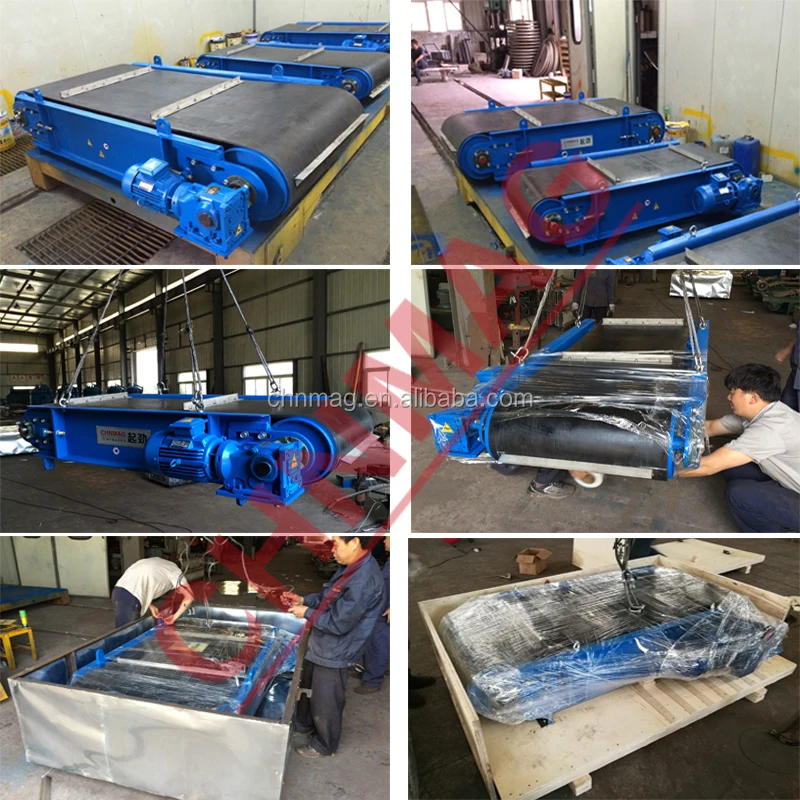

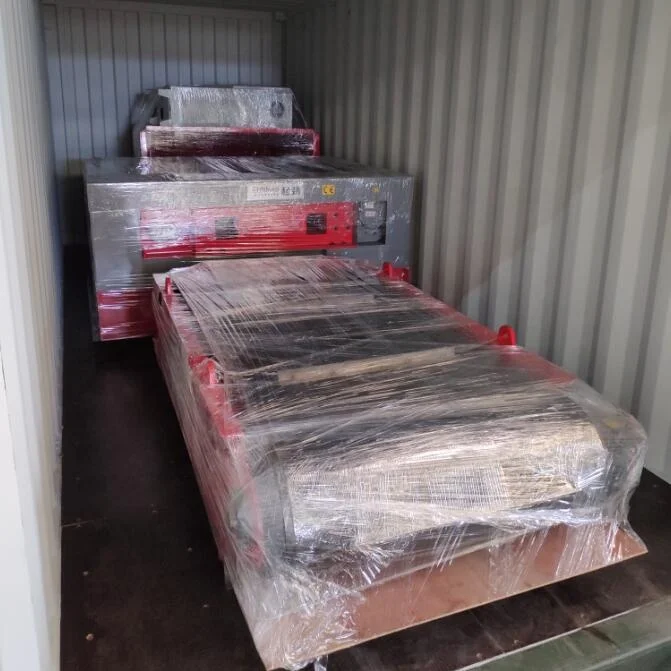

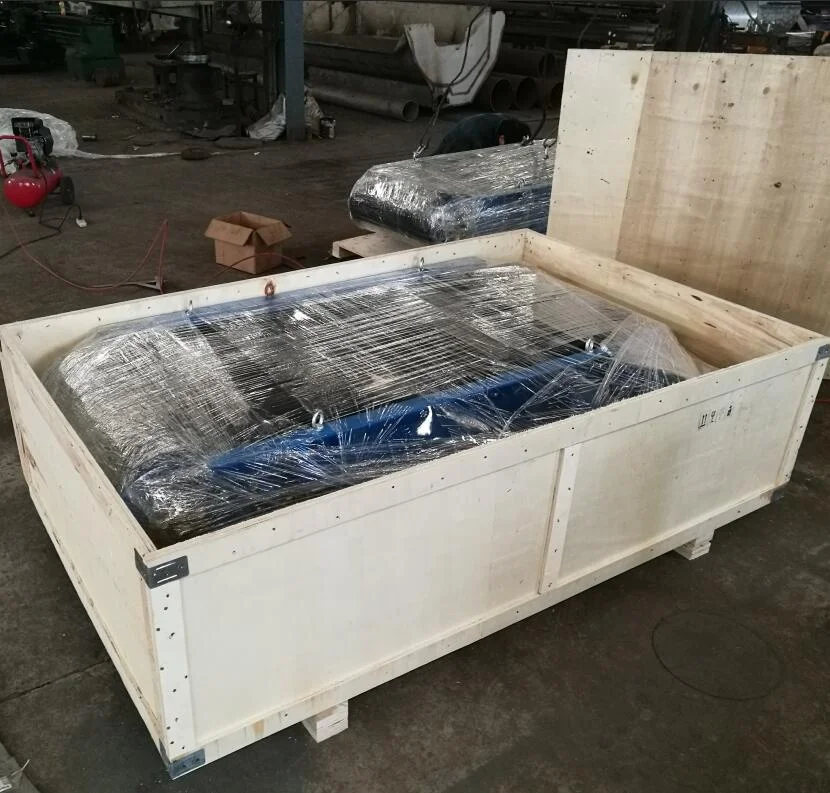

Packaging & Shipping
FAQ
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we will take a test on every equipement before delivery.
2.Guaranteed
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
