50 Вт CW Высокая выходная мощность лазерный диодный модуль 1064nm / DPSS модуль/Nd YAG

Product Overview

Description

50W CW High Output Power  Laser Diode Module 1064nm /  DPSS module / Nd YAG



* color balck

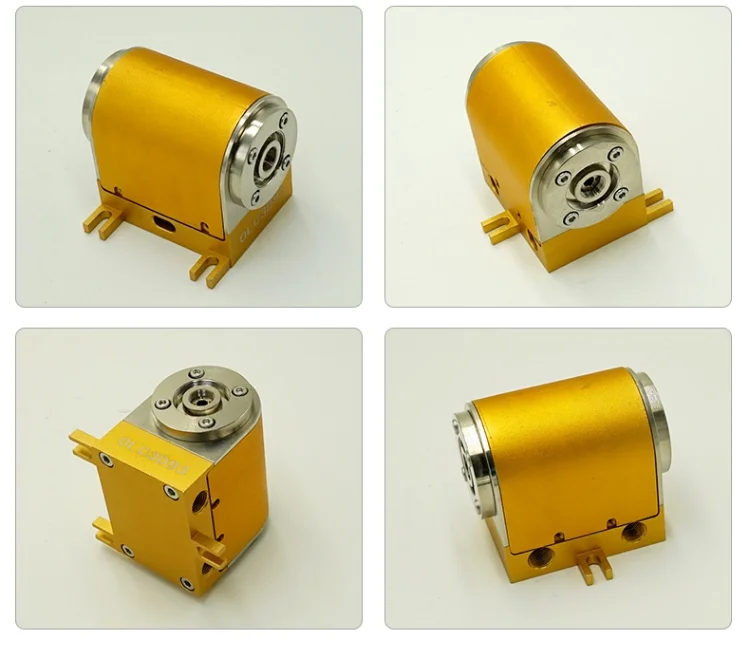

* color golden



Product name:  CW DPSS Laser module

Application: Metal marking, Diamond cutting, Laser welding and cutting, or others

Diode Provider: Germany Jenoptick

Brand Name: Ivylaser

Per bar power:40W

Output Power 50W

With Nd: Yag

Certification: CE ISO9001

ODM: YES

Warranty: 1 Year

Weight: 2KGS

COLOR : GOLDER / BLACK

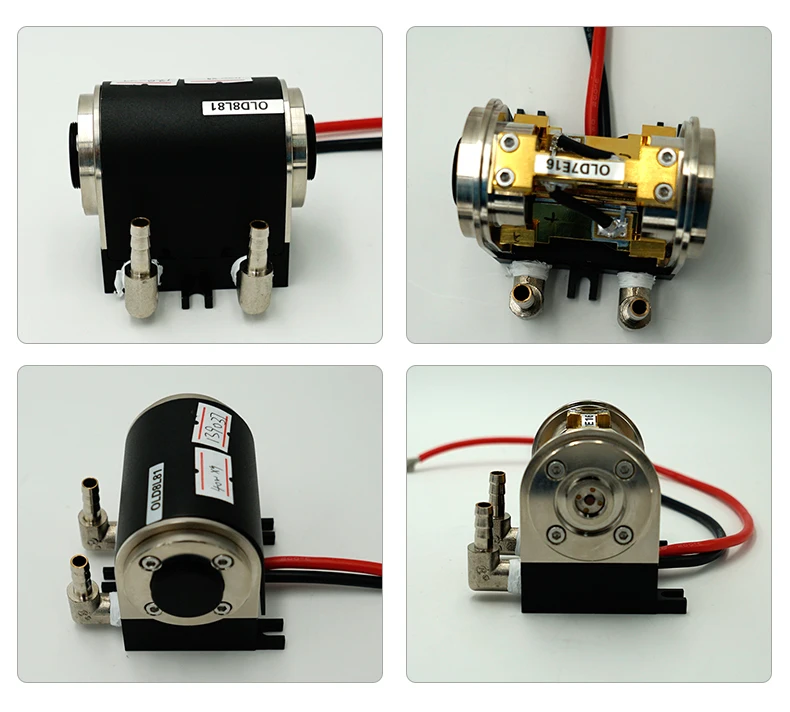

 GN50 DPSS Module Description:

This GN50 is widely used in cutting diamond, marking and engraving.Please find more details in the following specifications. Also we are professional in repairing other brand laser like LEELASER, ROFIN, CEO and so on

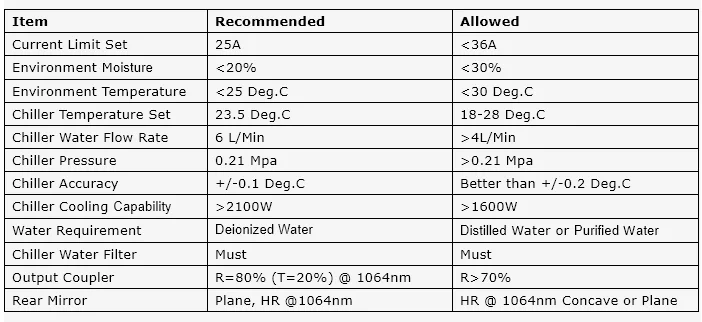

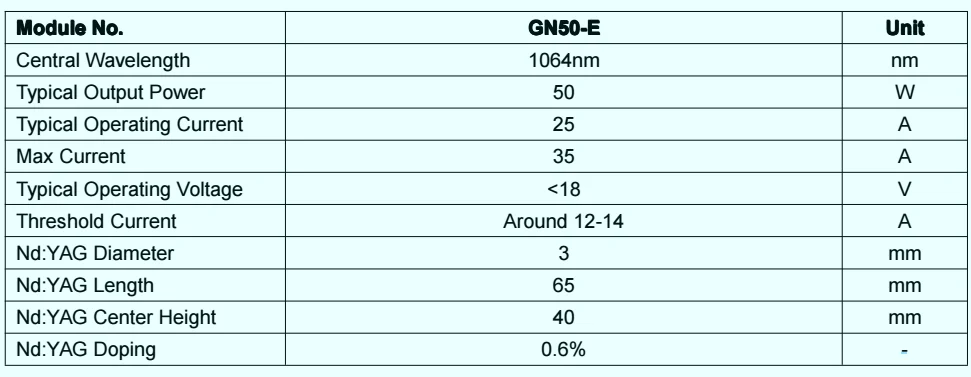

 GN50 DPSS Module Specifications

     1. Minimum 1064 nm multi-mode output in a short cavity (300 mm, Plane-Plane Resonator, OC T=20%).

2. Expected life time is around 10,000 hours.

3. Other doping level can be customized upon request.

4. Other DPSS laser modules can be customized according to specific requirements.

5. QCW /CW modules available.

6. Warranty: 12 months after delivery.

7.Germany Jenoptik bar





(***NOTE: The modules can be customized by customers***)



Wide application
1 Metal marking
2 Diamond cutting
3 Laser welding and cutting

4  Laser heating laser cladding and rust removal





(***The other laser modules we can provide***)
