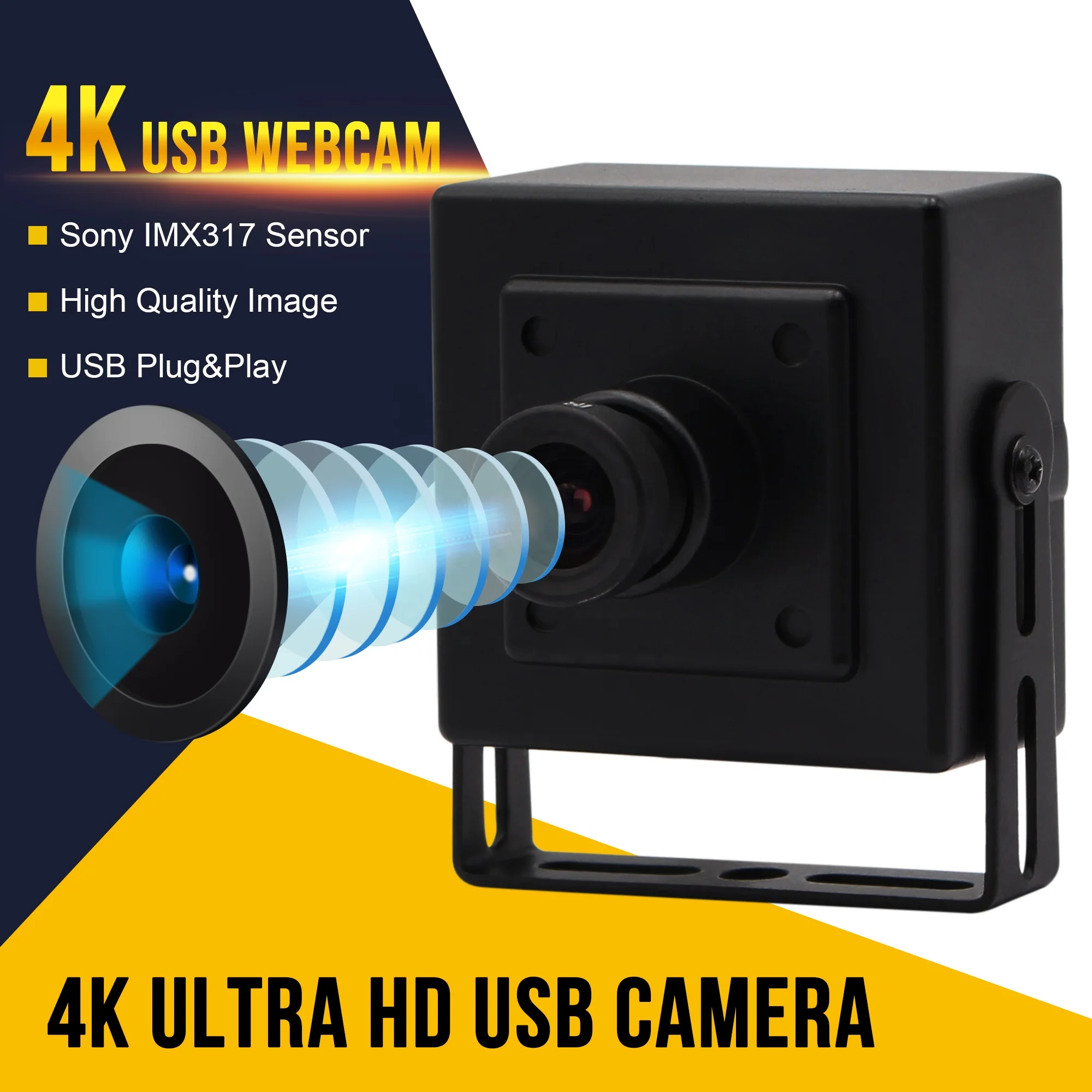

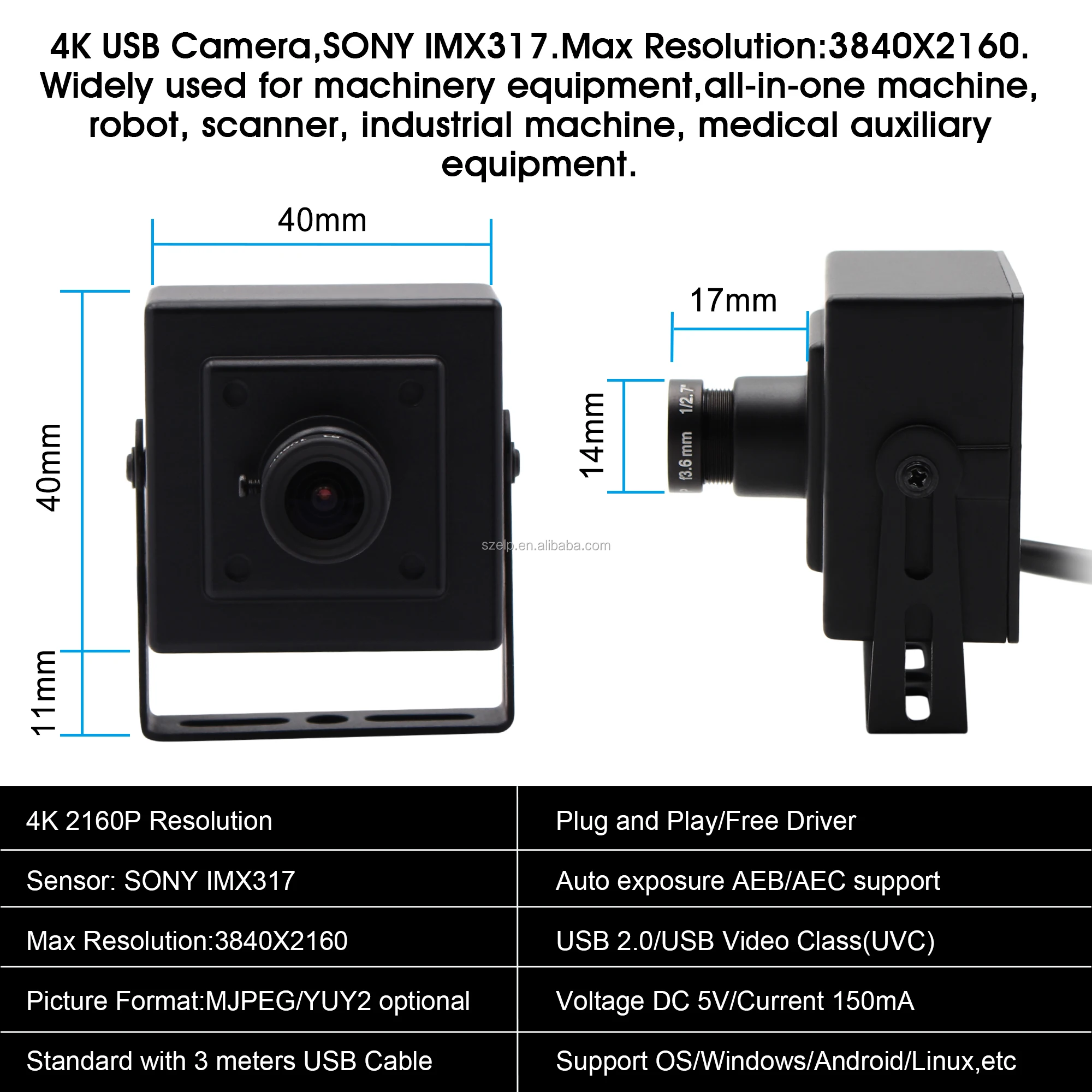

ELP New Ultra HD 3840X2160 30fp Mini black metal 4K USB Camera with Sony IMX317 Sensor for Machine Vision

Model

ELP-USB4KHDR01-BL36

Sensor

Sony IMX317 (1/2.5” )

Max. Resolution

3840(H) *2160 (V)

Sensitivity

1000mV/Lux-sec

Image area

6100µmx4524µm

Compression format

MJPEG / YUY2(YUYV)

Resolution &
Frame rate

MJPEG:
3840x2160@ 30fps / 2592x1944@ 30fps 2048x1536@ 30fps /1600x1200@ 30fps 1920x1080@ 30fps/ 1280x1024@ 30fps / 1280x960@ 30fps /1280x720@ 30fps 1024x768@ 30fps/ 800x600@/ 30fps640x480@ 30fps/ 320x240@ 30fps
YUY2:
3840x2160@ 1fps / 2592x1944@ 1fps 2048x1536@ 3fps/ 1600x1200@ 3fps/ 1920x1080@ 3fps/ 1280x1024@3fps 1280x960@5fps/1280x720@ 5fps/
1024x768@ 5fps/ 800 x 600@ 20fps 640x480@ 30fps/ 320x240@ 30fps

Center Definition

1000LW/PH (Center)

S/N (Signal Noise Ratio)

26dB

Sensitivity

0.65V/l@550

Mini illumination

0.2Lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure

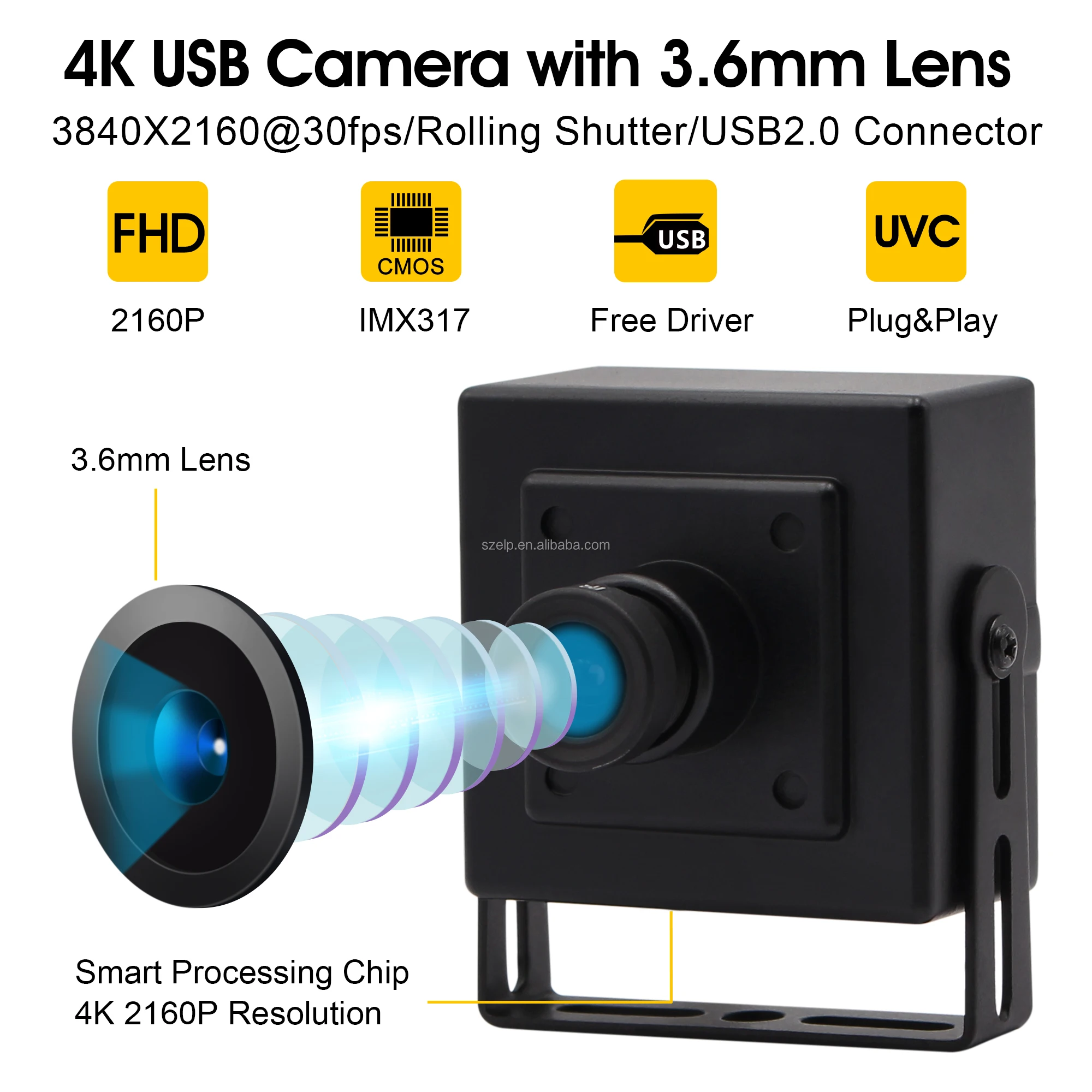

Lens Parameter

3.6MM M12 Lens
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm

Power Supply &
Connector

USB BUS POWER 4P-2.0mm socket

Power Voltage

DC5V

Power Current

200mA

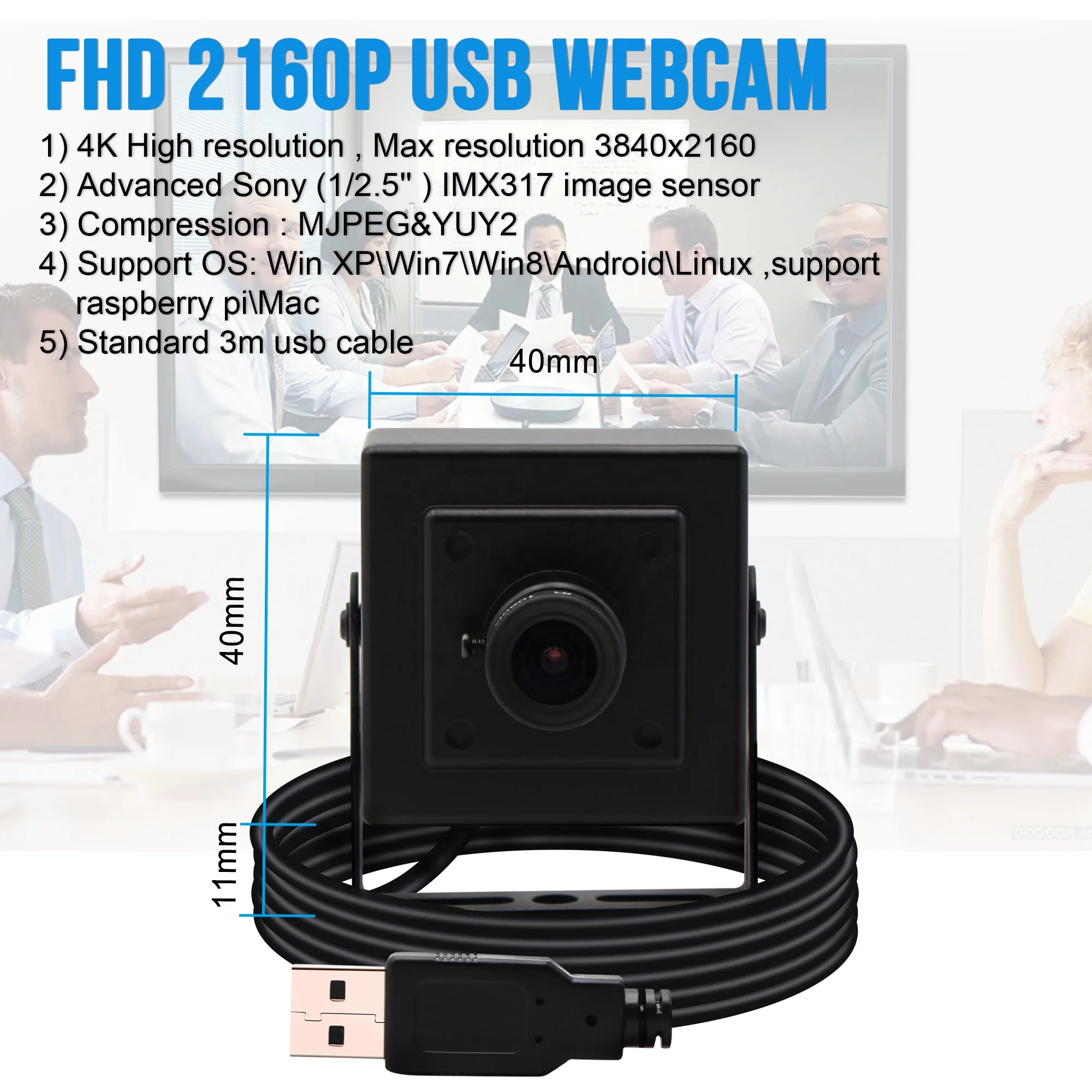

Board Size

38*38mm

Storage Temperature

 -20~70℃

Working temperature

 0~60℃

USB Cable

Standard 1M ( 2M,3M,5M optional)

Operating system request

Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
