rolling mills steel aluminum metal sheet plate rolling mill machine

Product Overview

Description

Good price steel aluminum metal sheet plate rolling mill machine



1. Product description

The plate sheet rolling mill is able to produce the single sheet of  extra-thick, thick, medium and thin plates. The plate rolling mill is hot  rolling mill generally. This kind of rolling mill could make plates of different materials.The metal plates are widely used.

The following technical parameter is just for reference.

2-Hi rolling mill main technical parameter
Model /mm	Roll size/mm		Ingot size/mm		Final product size/mm		Rolling force /KN	Rolling speed m/s	Motor power  /KW	Note
	Roll length	Roll diameter	Thickness	Width	Thickness	Width
Φ170×300	300	170	2	200	0.17	/	450	0.2-0.4	24.5	Used for hot rolled of metal plate and strip
Φ250×300	300	250	10	200	0.5	/	1000	0.3	55
Φ250×300	250-300	184-200	6	200-260	1.2	/	1000	0.3	75
Φ310×400	400	300-310	0.45	140-300	0.12-0.15	140-300	1176	0.99	125
Φ350×350	350	350	12	240	1	/	1250	0.49	115
Φ420×350	350	420	30	250	1	/	1800	0.45	160
Φ485×850	850	455-485	30	330	0.45	/	/	0.88	275
Φ500×1200	1200	500	10	10	0.5	/	2500	0.63	130
Φ500×1350	1200	490-510	20	20	0.8	1100	4000	0.89	210

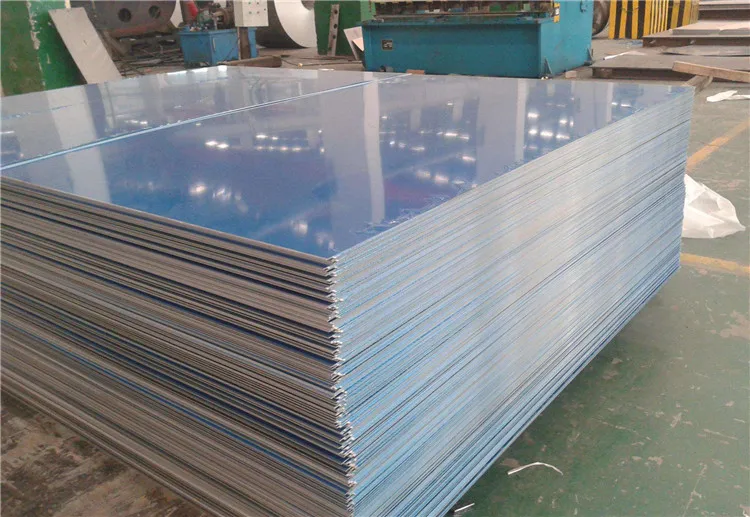

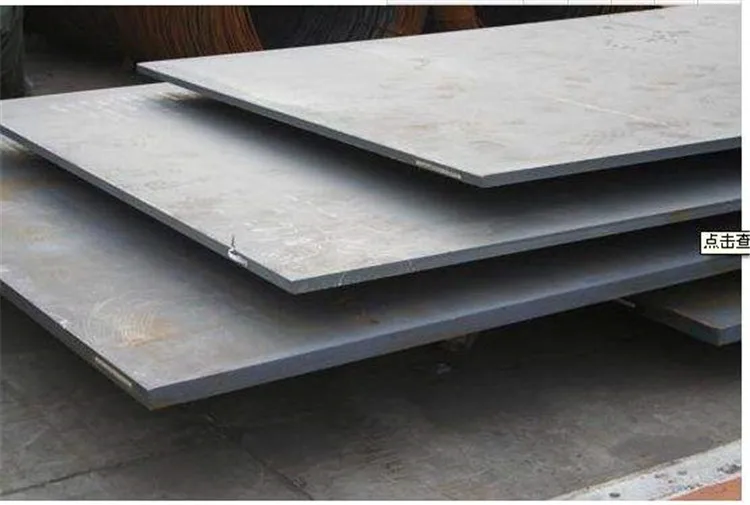

2. The final products of the rolling mill







3.Company profile

Gongyi Hengxu Machinery Manufacture Co, Ltd is  a leading professional supplier of R&D, produce, sales and after-sale service for rolling mill. Our company specializes in producing rolling mill, hot rolling mill, cold rolling mill, section bar rolling mill.





We also offer accessories of rolling mill: roller bed, cooling bed, hot saw, steel pusher,straightening machine, elevator platform, flying shear, and old line retrofitting.

4.Certifications

 We passed ISo 9001: 2008 certification, AAA Trustworthiness Enterprise, Bureau Veritas Certification.



5.Cooperation

We have been selling our products to over 20 countries:UK, France, Kazakhstan, Russia, Malaysia, Vietnam, Burma, Bengal, Uzbekistan, Sudan, Zimbabwe, Zambia, Algeria, Egypt etc.



Do you find your ideal product?Contact with me~
