West Tune GM 0.5 Lab PTFE Chemical Vacuum Pneumatic Diaphragm Pump with 30L/min flow
- Category: >>>
- Supplier: Hangzhou West Tune Trading Co. Ltd.
Share on (62195378638):
Product Overview
Description
Products Description

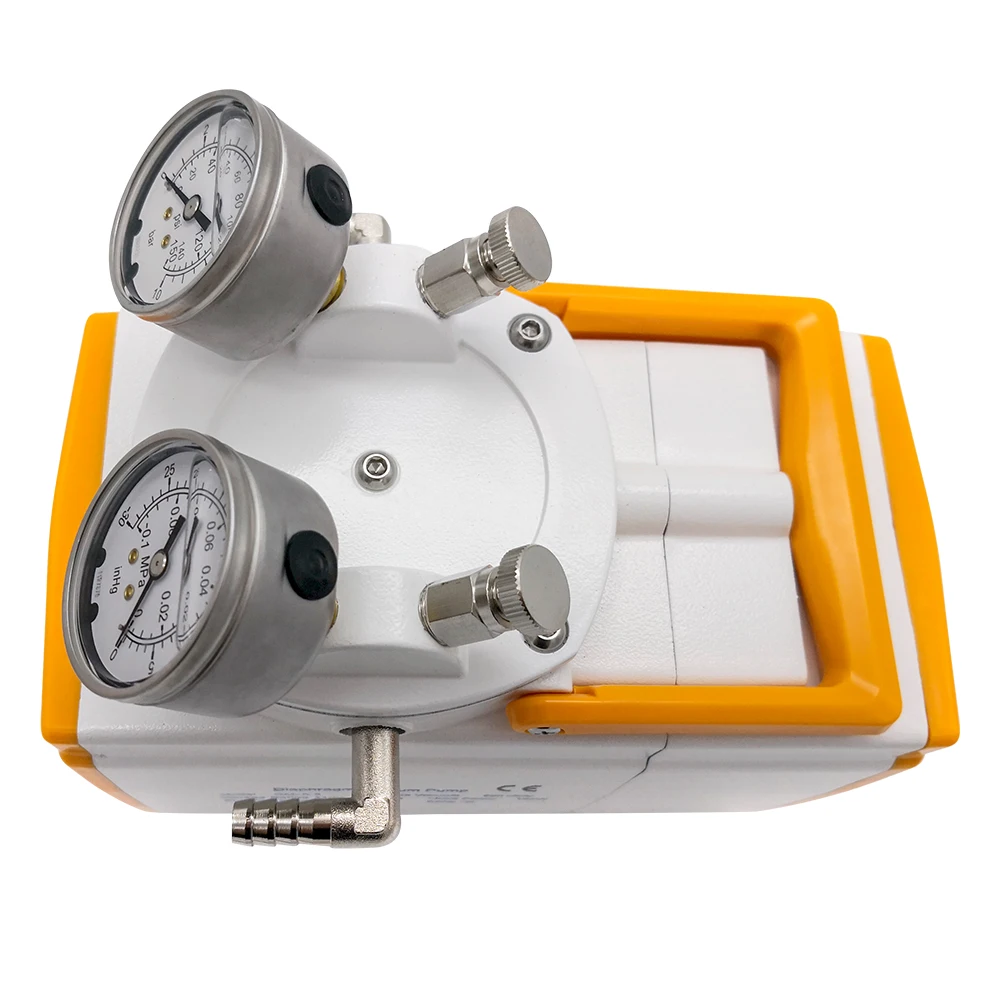

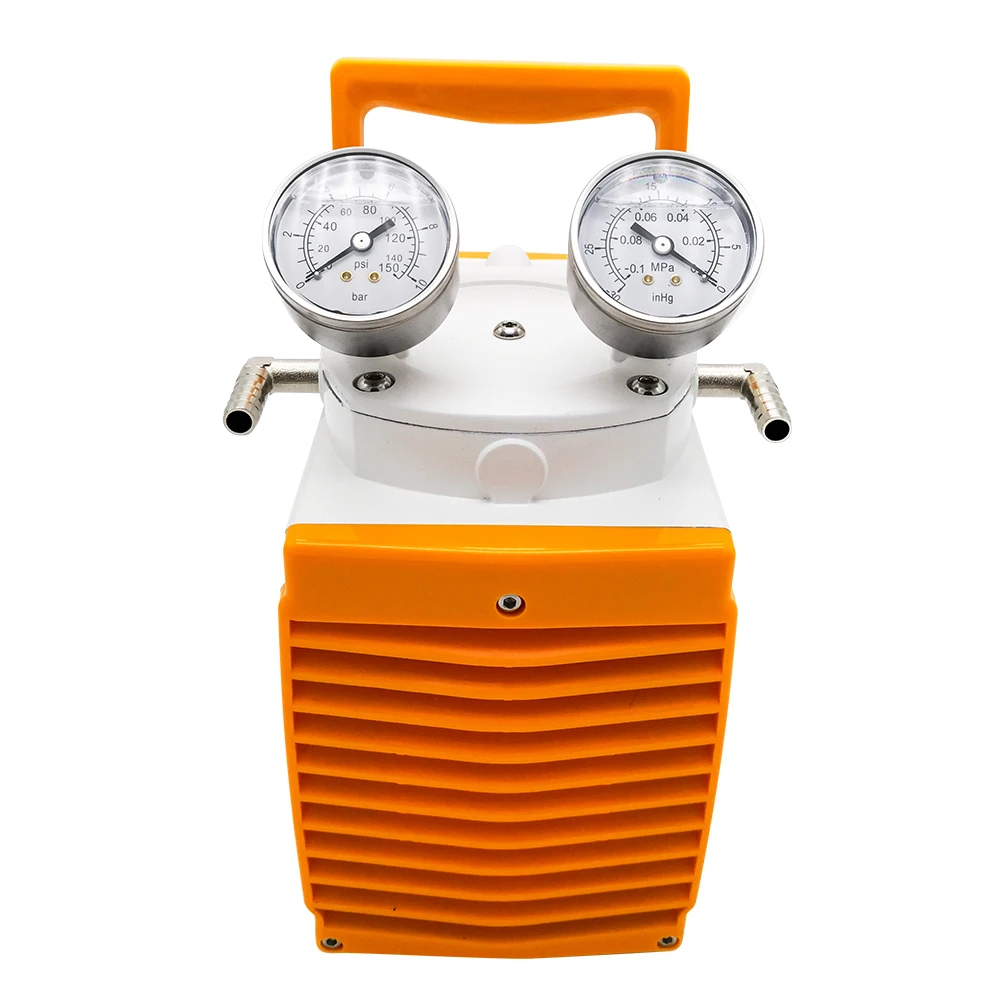

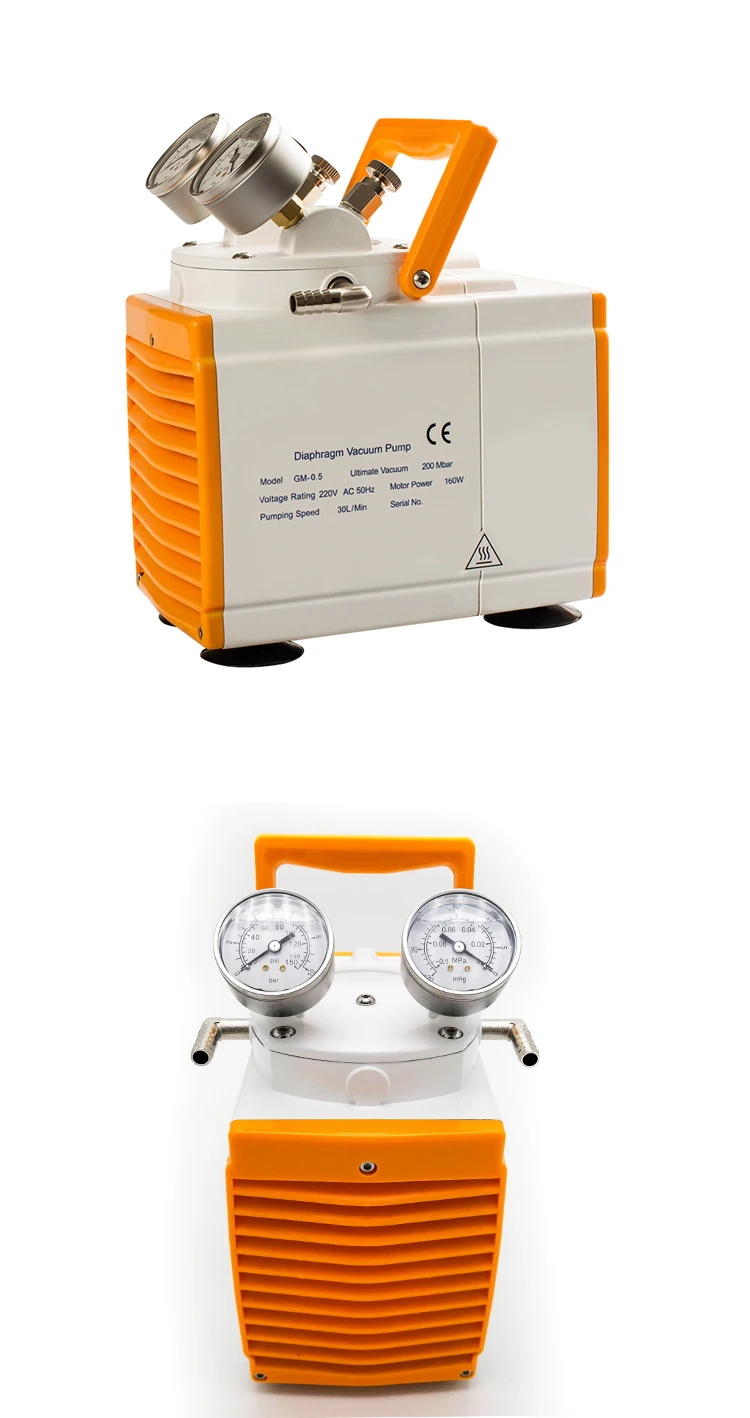

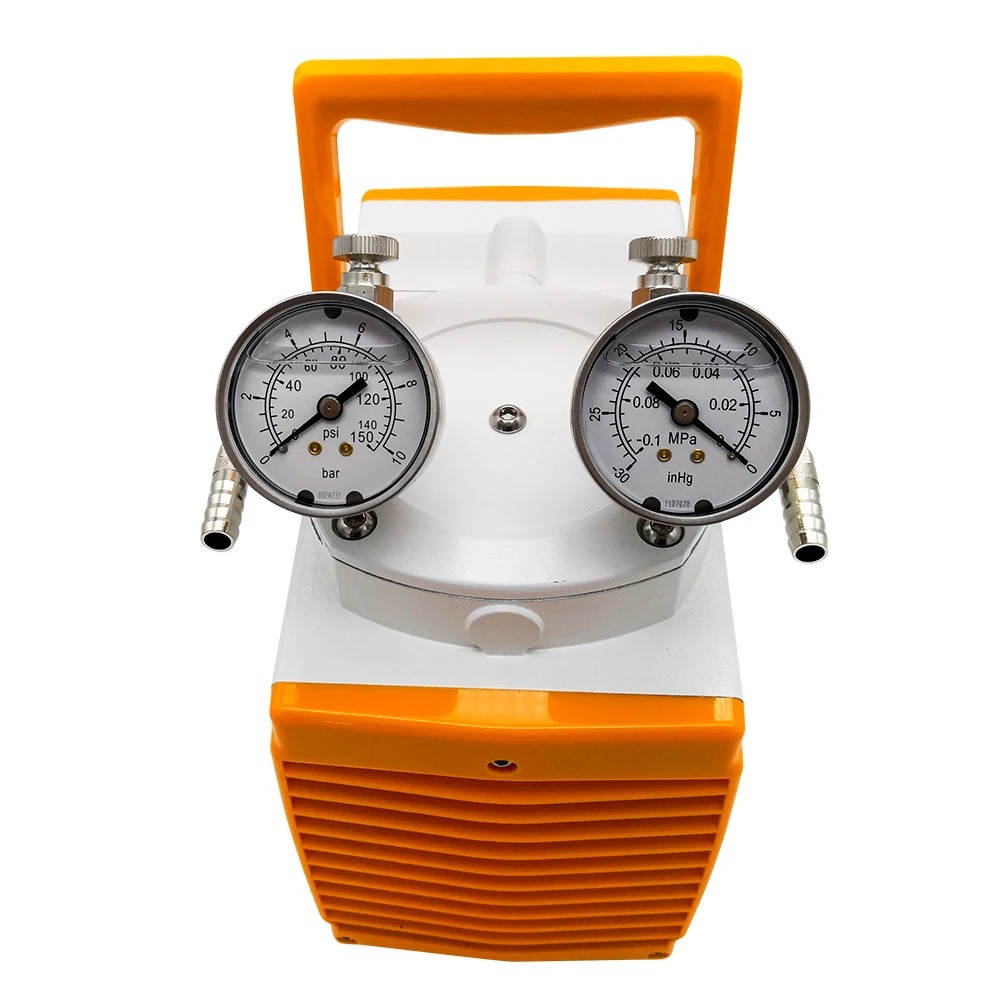

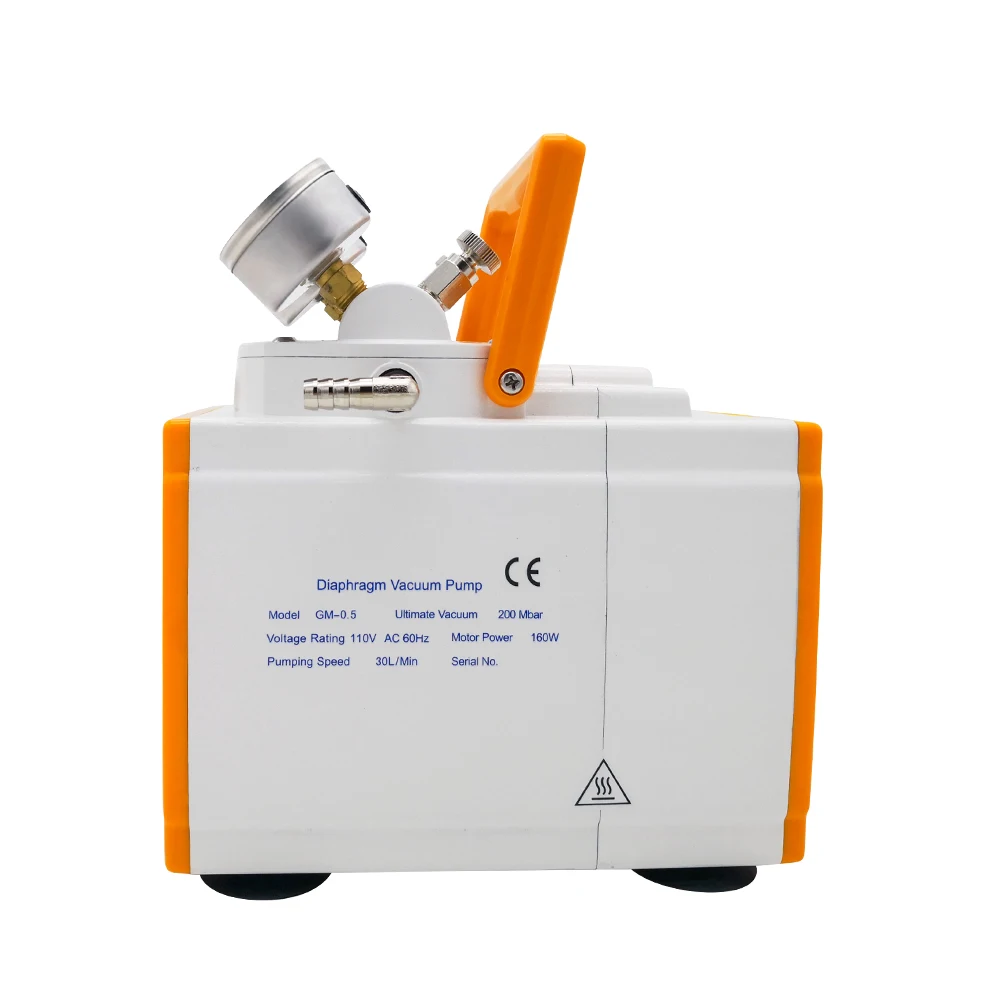

West Tune GM-0.5 30L/min Oil Free Anti-corrosive Diaphragm Pump
---can work together with Rotovaps perfectly
---can work together with Rotovaps perfectly
West Tune GM series Diaphragm Vacuum Pump has the features of continuous oil free pumping, low noise level, higher efficiency, long lifetime.
It is anti-corrosive pumps through Teflon treatment, the parts which contact with the gas are PTFE material, it is suitable for the corrosive chemical, pharmaceutical, petrochemical gases etc. It is used for vacuum filtration, reduced pressure distillation, rotary evaporation, vacuum concentration, centrifugal concentration, solid phase extraction etc. It is very high cost performance product with quality reliability, unique structural design to meet the various needs of the laboratory.
It is anti-corrosive pumps through Teflon treatment, the parts which contact with the gas are PTFE material, it is suitable for the corrosive chemical, pharmaceutical, petrochemical gases etc. It is used for vacuum filtration, reduced pressure distillation, rotary evaporation, vacuum concentration, centrifugal concentration, solid phase extraction etc. It is very high cost performance product with quality reliability, unique structural design to meet the various needs of the laboratory.
Feature:
1. Corrosion resistance, able to tolerance almost all strong acid(including aqua regia), strong alkali, strong oxidizer, reductant, and variety of organic solvents.
2. With stand high and low temperature, can be used in temperature of -190℃ to 260℃.
3. Non-stick surface, most solid material and impurity particles can not conglutinate on the surface.
2. With stand high and low temperature, can be used in temperature of -190℃ to 260℃.
3. Non-stick surface, most solid material and impurity particles can not conglutinate on the surface.
Speed of evacuation | 30L/min (1.1cfm) |
Ultimate pressure vacuum | 0.08Mpa (200 mbar) |
Voltage | 220V50Hz or 110V/60Hz with NEMA 5-15p cable |
Motor power (w) | 160w |
Pressure | ≥30Psi |
Inlet & Outlet (mm) | Ø 6 |
Pump head | 1 |
Dimensions (L*W*H) | 21*16*24cm (8.2*6.3*9.5’’) |
Noise level (DB) | <60 |
Weight | 8kg (18lb) |
Diaphragm | NBR |
Valves | NBR |

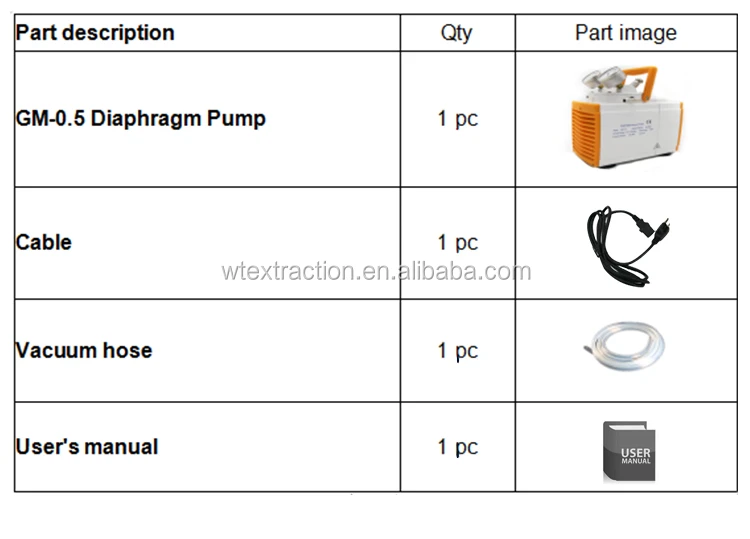

Packing List
