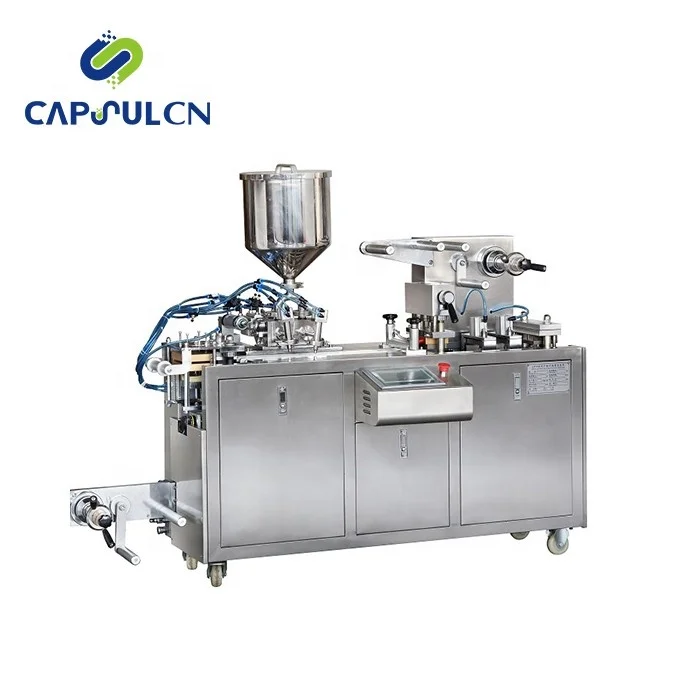

DPP 88 Automatic Butter Liquid Blister Packing Machine
- Category: >>>
- Supplier: Wenzhou CapsulCN Technology Co. Ltd.
Share on (62195463127):
Product Overview
Description
Product Description
DPP-88Y Alu PVC Automatic Liquid Blister Packing
The machine adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
It adopts photo electrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.This machine is suitable for Industry: food, medicine, medical equipment, hardware, electronic blister packaging.
It adopts photo electrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.This machine is suitable for Industry: food, medicine, medical equipment, hardware, electronic blister packaging.
Specifications
Model | DPP-88Y |
Punch frequency | 10-33times/min |
Production capacity | 2400plates/hour |
Max. Forming area & Depth | 105*70(standard depth 15mm), Max. Depth 25mm( customized) |
Standard Stroke range | 30-80mm(can be designed as per user's required) |
Standard plate size | 80*70mm (can be designed as per user's required) |
Air pressure | 0.4-0.6Mpa |
Air compressor | ≥0.3m3/min |
Total power supply | 380V/220V 50Hz 2.8Kw |
Main motor | 0.75Kw |
PVC hard Film | 0.15-0.5*110mm |
PTP Aluminum film | 0.02-0.035*110mm |
Dialysis Paper | 50-100g*110mm |
Mould cooling | Tap water or Recycling water |
Overall Dimension | 1840*590*1100mm |
Net Weight | 450kg |
Gross Weight | 520kg |
Noise index | <75dBA |
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.) Contact us>>
Our Company
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.
During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and assure our service for you.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How to contact you?
A: Please find the contact information on this page, you can contact us by Email, WeChat, skype, WhatsApp, QQ, Facebook, phone, etc.
Need more machines details and videos? Please contact us directly!
