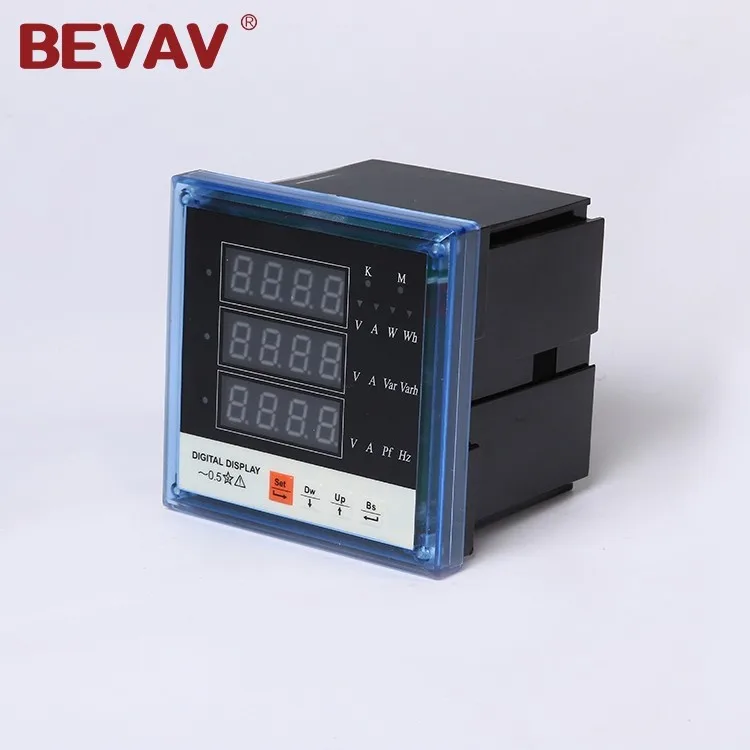

three-Phase Multi-function electric Lcd Display 3 phase 4 wire digital power meter with rs485 modbus
XD194E-9SY
Details
Brand
BEVAV
Model
XD194E-9SY
Installation Size
72*72 96*96
Hole Size
67.5*67.5 91*91
Power signal input
AC220V
Display range
0-9999A
Class
0.5 Class
Case Qty.(Pcs)
25Pcs

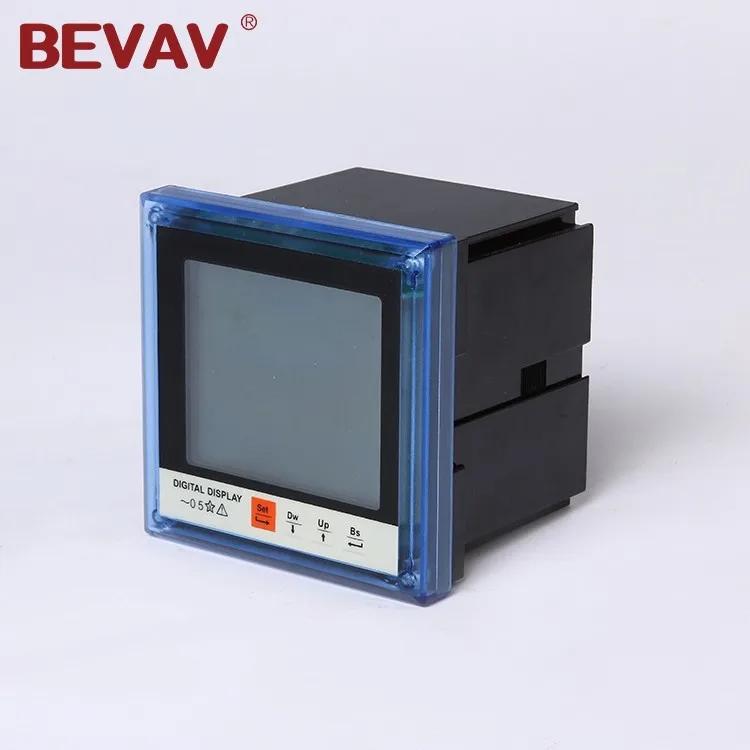

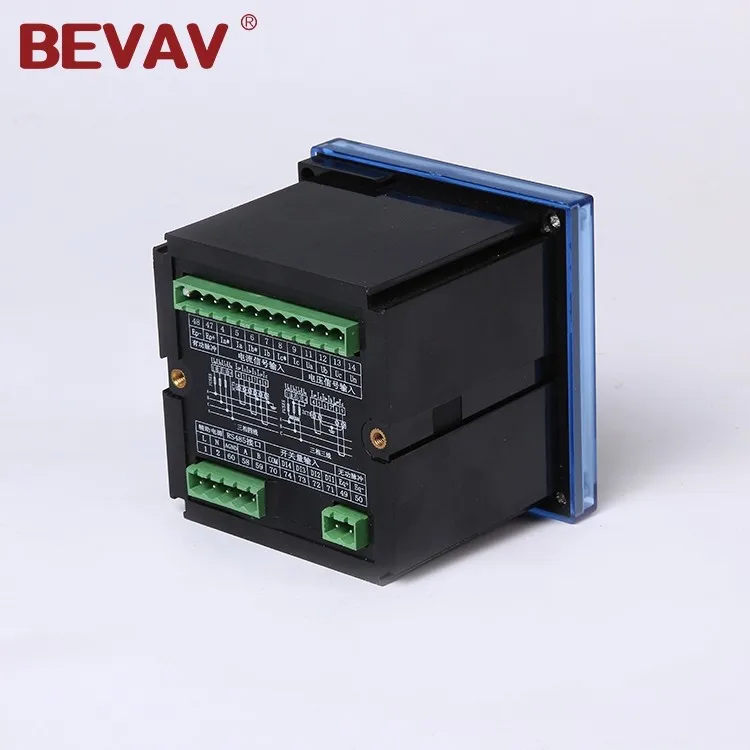

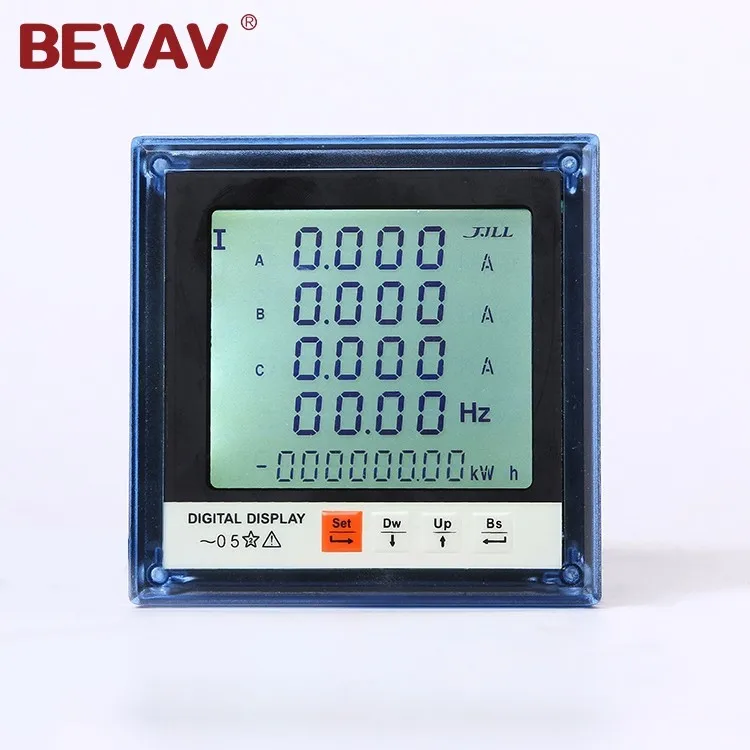

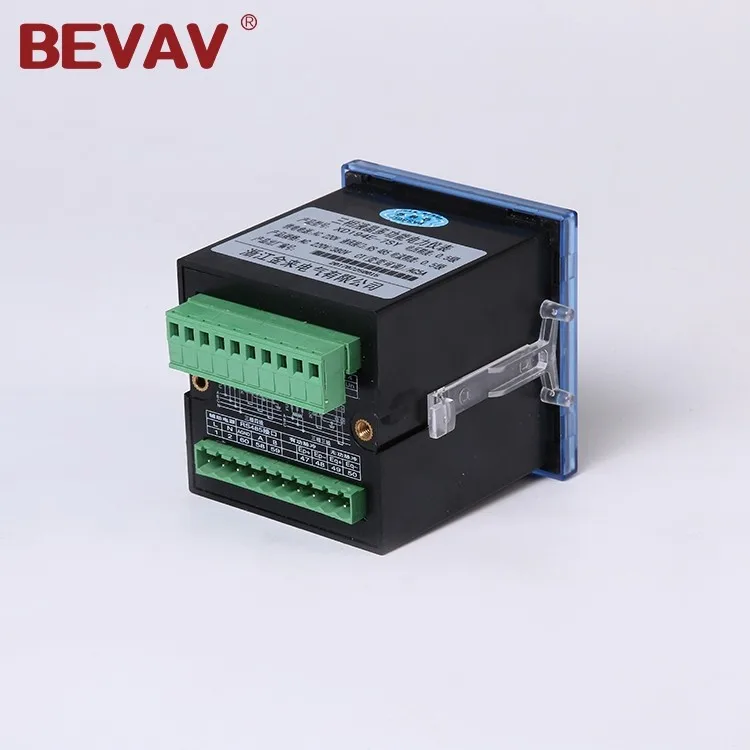

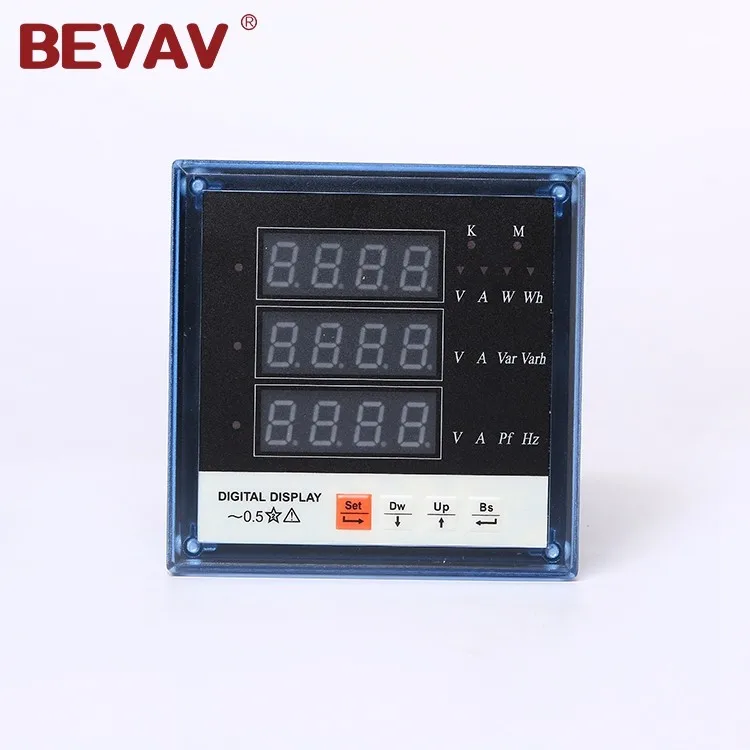

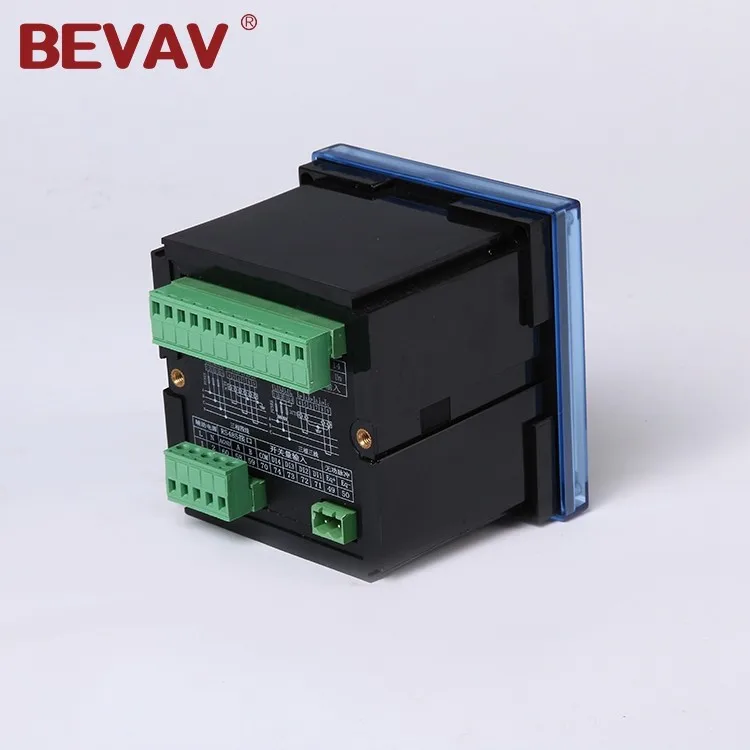

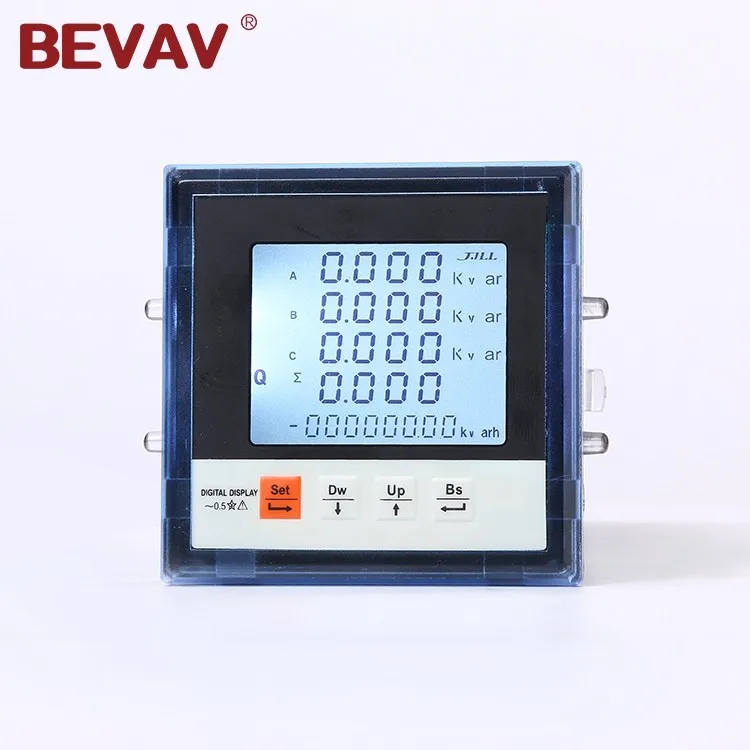

Detailed Images
*High precision measurement of three phase voltage,three phase current,active power,reactive power,apparent power,power factor,frequency of electric parameters *Forward and reverse active or reactive energy measurement *Division of electric energy metering,time-sharing power *Measurement of three phase voltage,three phase current total harmonic distortion(THD),2-31 odd harmonic component *Provide the digital tube display,local data query *Menu button intuitive,simple operation *Programmable PT/CT ratio *Provide multiple circuit leakage current monitoring *Provide multiple loop control nodes,can be used for alarm, trip and other control *Support for fire control,remote cut off the fault circuit *Support for RS-485 communication,modbus-RTU protocol *Support for swith input,output,analog transmitting output,electric energy impluse output *Convenient installation, simple wiring, small workload *Wide range AC/DC universal power supplies:AC/DC 80-270V *To be completed by SCADA,PLC in a variety of communication software networking Technical Index Accuracy of measurement *Voltage:level 0.5 *Current:level 0.5 *Active power:level 0.5 *Reactive power:level 0.5 *Power factor:level 0.5 *Frequency:±0.02Hz *Active electric energy:class 0.5s *Reactive electric energy:class 1 or class 2 Signal Input *Connection Mode:three phase four wires,three phase three wires *Rated Voltage:AC 57.7V,AC 100V,AC 220V,AC 380V *Rated Current:AC 1A,AC 5A *Overload: Voltage:1.2 times(continued),2 times/1second(instantaneous) Current:1.2 times(continued),10 times/5second(instantaneous) *Power Consumption Voltage:<1VA per phase Current:<0.4VA per phase *Impedance Voltage:>300KΩ Current:<20mΩ *Frequency:45~60Hz Accessory Power Supply *Working Range:AC/DC 80-270V *Power Consumption:<4VA Function Module *Communication Interface:1 way RS-485 communication,modbus-RTU protocol *Baud Rate:1200~9600bps,the default is 2400bps *Switch Input:4 ways *Switch Onput:3 ways(capacity:AC 250V/5A,DC 30V/5A) *Transmission Onput:1 ways(analog Onput:0/4~20mA or 0~5/10V) *Electric energy pulse output:2 ways(constant:80000imp/kwh(kvarh)) Work environment *Working Temperature:-10℃~+55℃ *Storage Temperature:-25℃~+70℃ *Relative Humidity:≤93℃,no corrosive gas *Altitude:≤2500m Safety *Insulation Resistance:>100MΩ *Ac Electric:AC 2KV Emc Performance *ESD Electrostatic Discharge:class 4 *Electrical Fast Transient Burst:class 4 *Surge(impact):class 4 Overall dimensions *Frame Size(mm):120*120*,96*96,80*80,72*72 *Hole Size(mm):111*111,92*92,76*76,68*68
