DPP 180 Alu Alu Blister Packing Machine For Tablet & Capsule Blister Heat Seal Machine
- Category: >>>
- Supplier: Wenzhou CapsulCN Technology Co. Ltd.
Share on (62195587463):
Product Overview
Description
Product Description

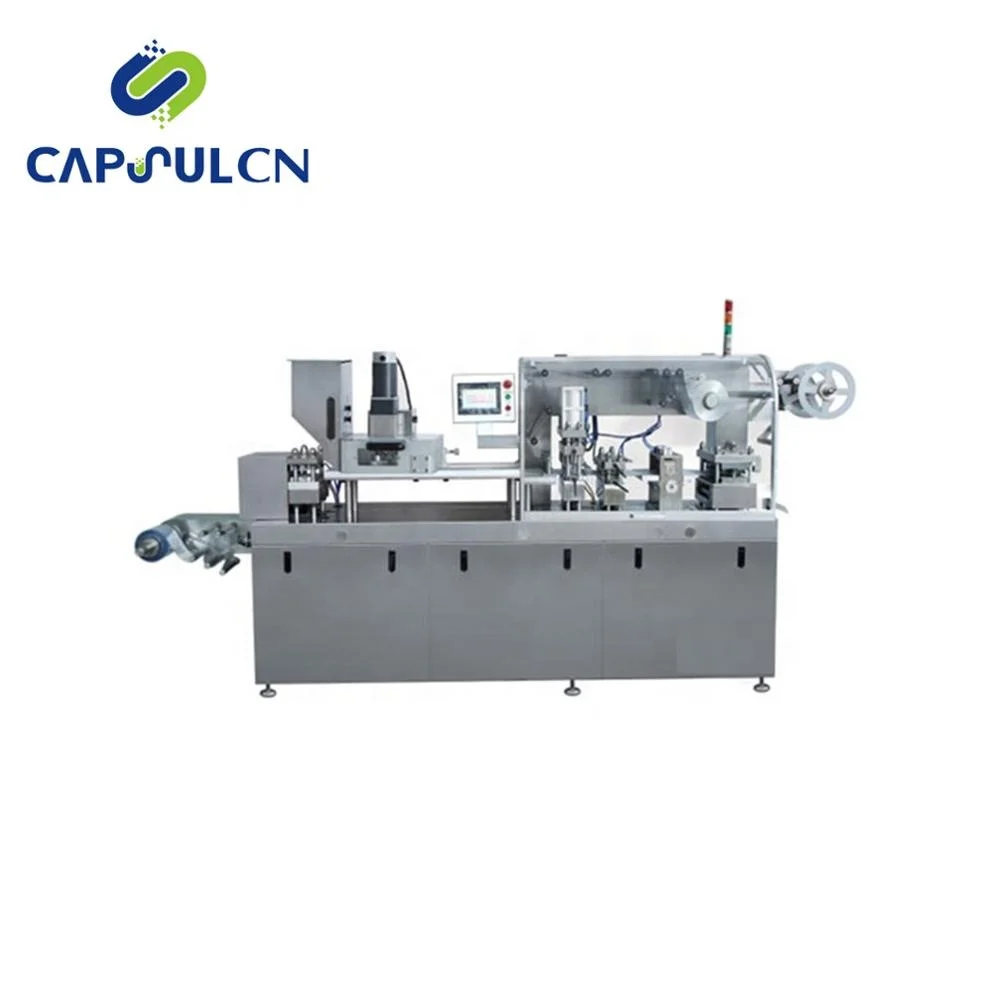

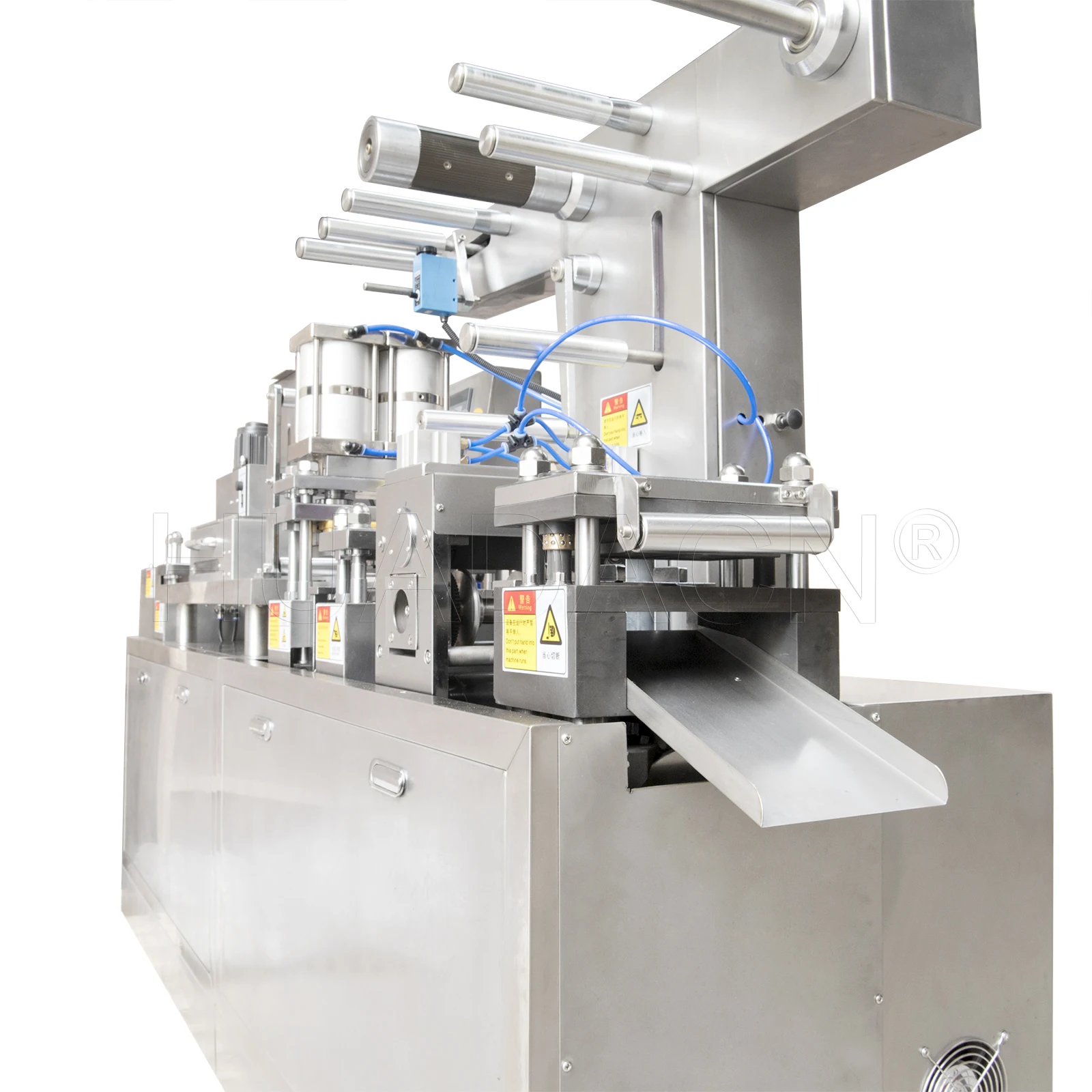

DPP-88 Alu-Alu Blister Packing Machine for Tablet & Capsule

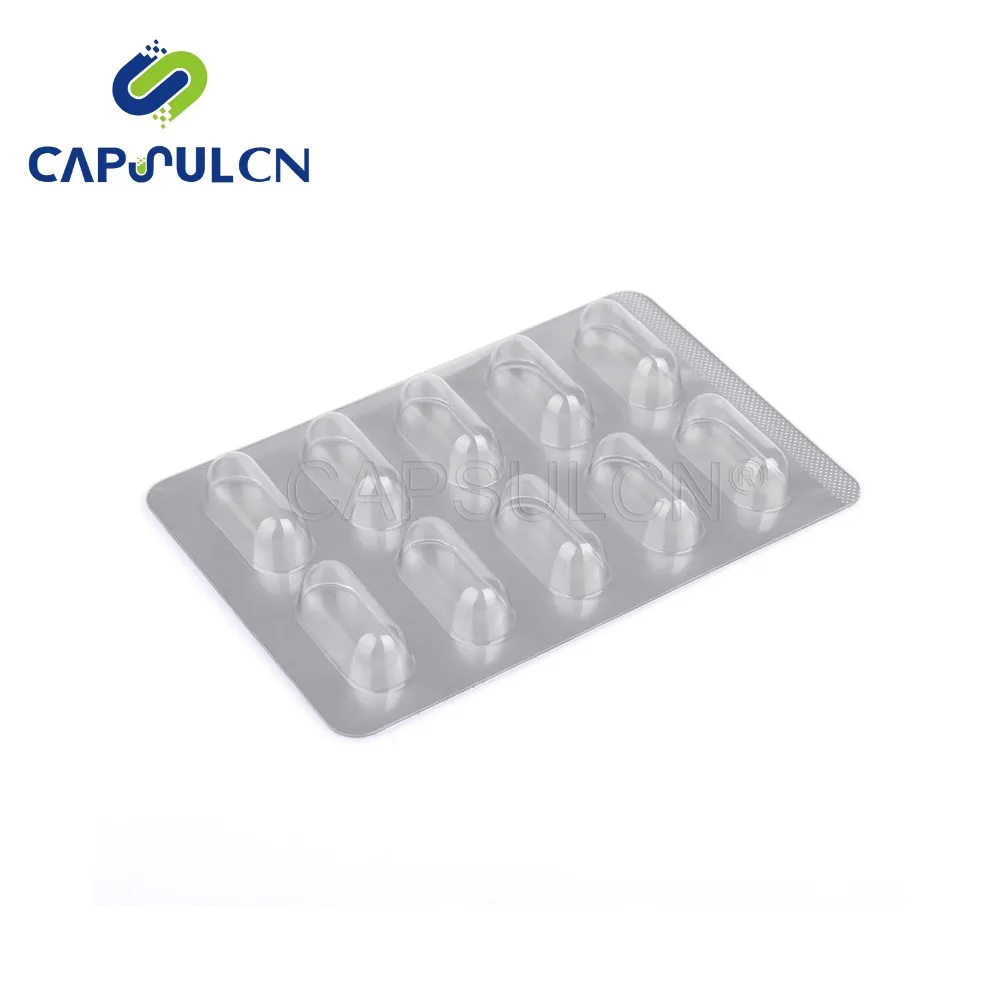

The machine can be widely used for packing tablet, capsule, candy, gum and other solid object Alu-Alu blister packing.
1.Machine with GMP and CGMP standard, adopts PLC control system, servo motor drive control. All components that contact with medical are made of high anti-corrosive SS316.
2.Main motor uses the frequency speed adjust control.
3.Independent molds design makes more easily assemble and disassemble.

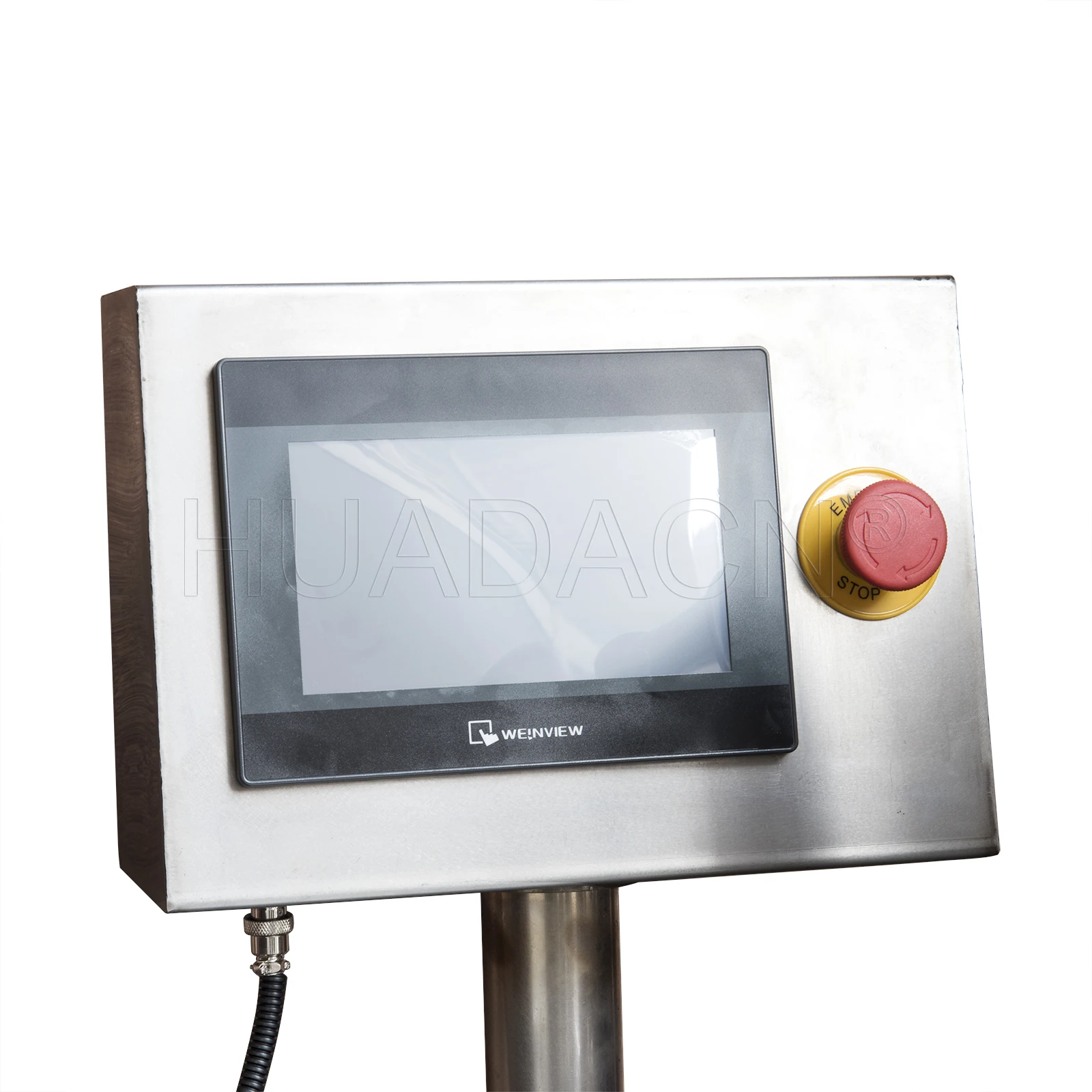

4.Machine each station adjust by figure display control, with a independent pressing station, make the pressing and embossing more clear.
5.Alarm for Alu foil end and PVC film end and broken, with emergency stop safety device.
6.Uses the safety cover protection devices to ensure operator safety.
1.Machine with GMP and CGMP standard, adopts PLC control system, servo motor drive control. All components that contact with medical are made of high anti-corrosive SS316.
2.Main motor uses the frequency speed adjust control.
3.Independent molds design makes more easily assemble and disassemble.
4.Machine each station adjust by figure display control, with a independent pressing station, make the pressing and embossing more clear.
5.Alarm for Alu foil end and PVC film end and broken, with emergency stop safety device.
6.Uses the safety cover protection devices to ensure operator safety.
Specifications
Technical Data | DPP-180 |
Speed | Alu/PVC:Up to 50 Cycles/min |
Alu/Alu:Up to 30 Cycles/min | |
Travel range | 40-110mm (freely adjusted) |
Max. Forming Area | 160*110mm |
Max. Forming depth | 12mm (20mm can be customized for option) |
Forming foil | PVC, PVC+PVDC, PVC/aclar, ALU-ALU.etc. |
Power Supply | 380V/220V 50Hz/60Hz |
Total power | 6 kw |
Air volume flow | ≥0.2m3/min |
Air pressure | 0.4-0.6Mpa |
Water consumption | Water cycle 20L/ minutes |
PVC specifications | 0.25-0.5*180mm |
PTP specifications | 0.02-0.035*180mm |
Dialysis paper | 50-100g*180mm |
Dimensions | 3200*660*1500mm |
Weight | 680kg |
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.) Contact us>>
Our Company
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.
During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and assure our service for you.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How to contact you?
A: Please find the contact information on this page, you can contact us by Email, WeChat, skype, WhatsApp, QQ, Facebook, phone, etc.
Need more machines details and videos? Please contact us directly!
