| Model No. | XW-24-12-360W | |
| Input | Input Voltage | DC 24V |
| Input Voltage Range | DC 15-40V | |
| Output | Output Voltage | DC 12V |
| Output Current | 8A 10A 15A 20A 25A 30A | |
| Output Power | 96W 120W 180W 240W 300W 360W | |
| Conversion Efficiency | > 93% | |
| Ripple (Full load test) | 40mV | |
| No-load current | 17mA | |
| Working Temperature | -40~85℃ | |
| Waterproof Rating | IP67 | |
| Cable Length | 13-14cm | |
| Protection | Over-current /Over-voltage/Over-heat /Short-circuit protection | |
| Case Material | Aluminum | |
| Size | 74*74*32MM 260g/pc | |

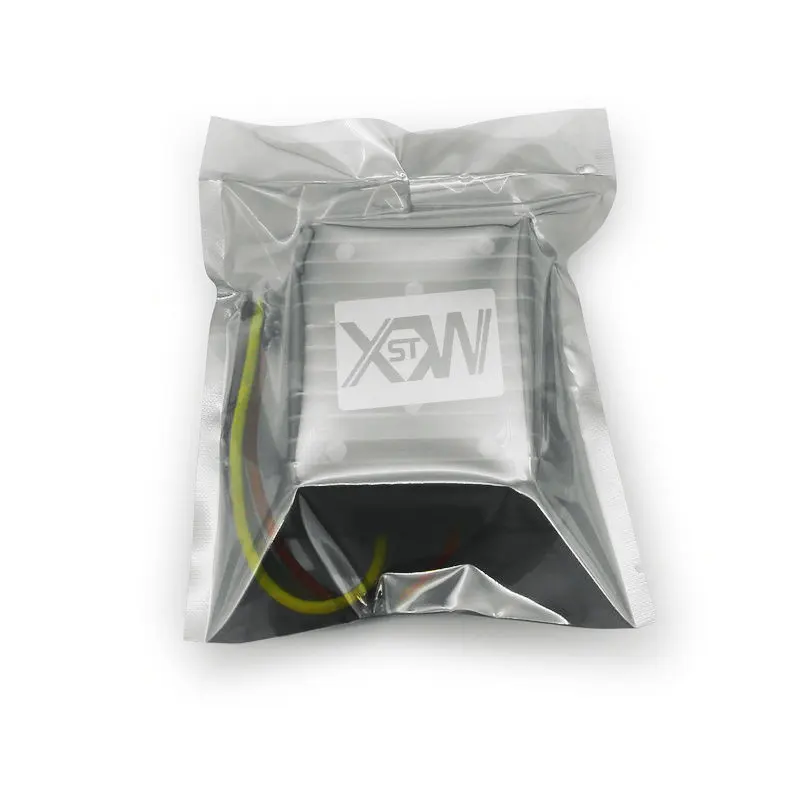

| Packing | Anti-Static Bag,75pcs/Carton 48*33*32cm, GW:20KG | |
Attention:
Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
