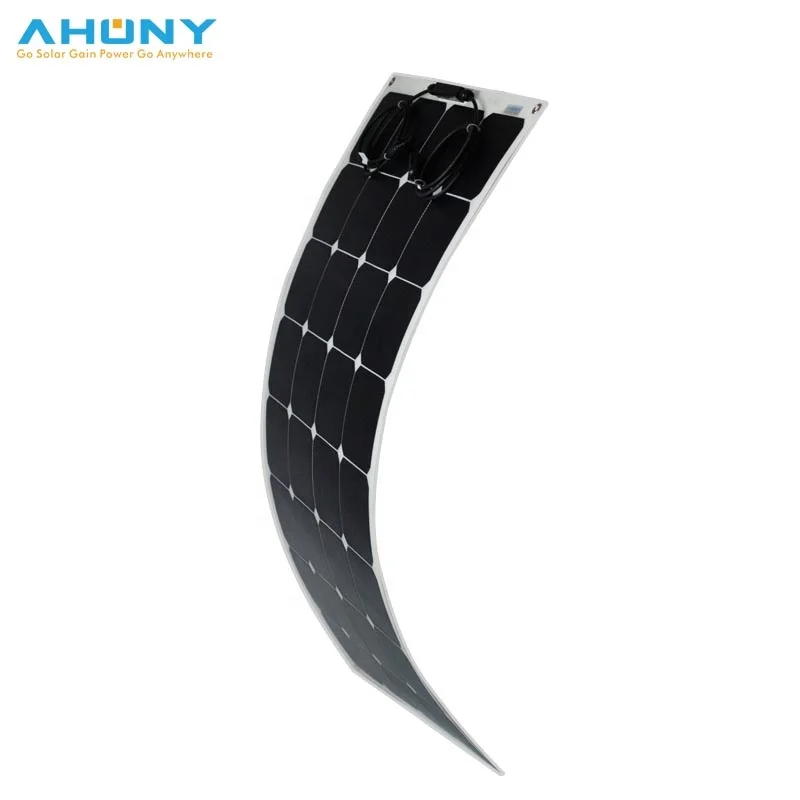

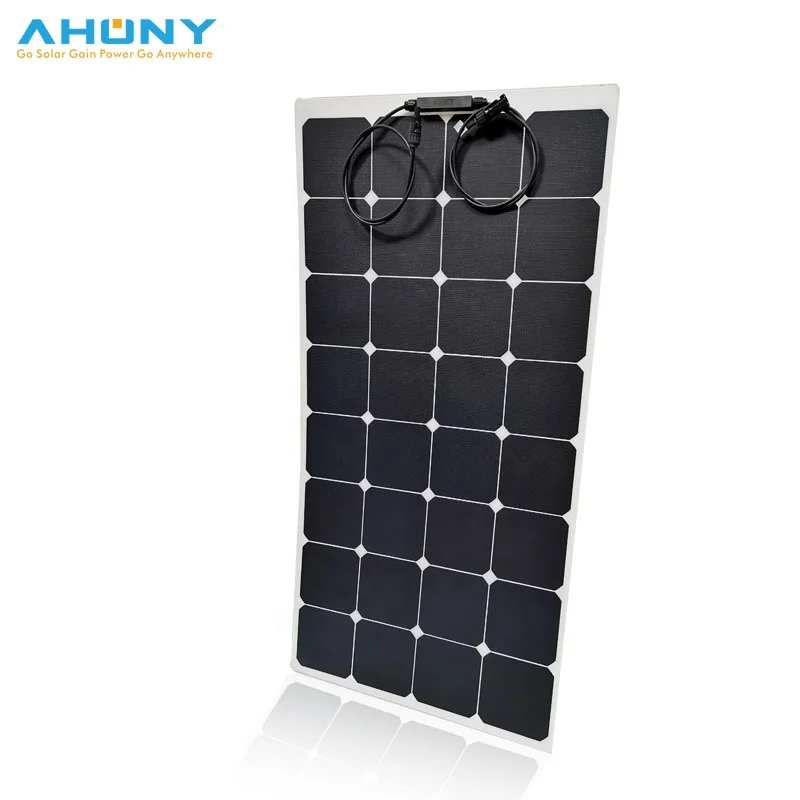

sunpower high efficiency12v ETFE flexible Solar Panel ultralight for camper trailer boater fishing
- Category: >>>
- Supplier: Shenzhen Ahony Power Co. Ltd.
Share on (62195784243):
Product Overview
Description
factory
Product Description
Welcome to view our ETFE Flexible Solar Panel 80w 100w 150w Ultra Lightweight solar for rv roof camper trailer motor home.

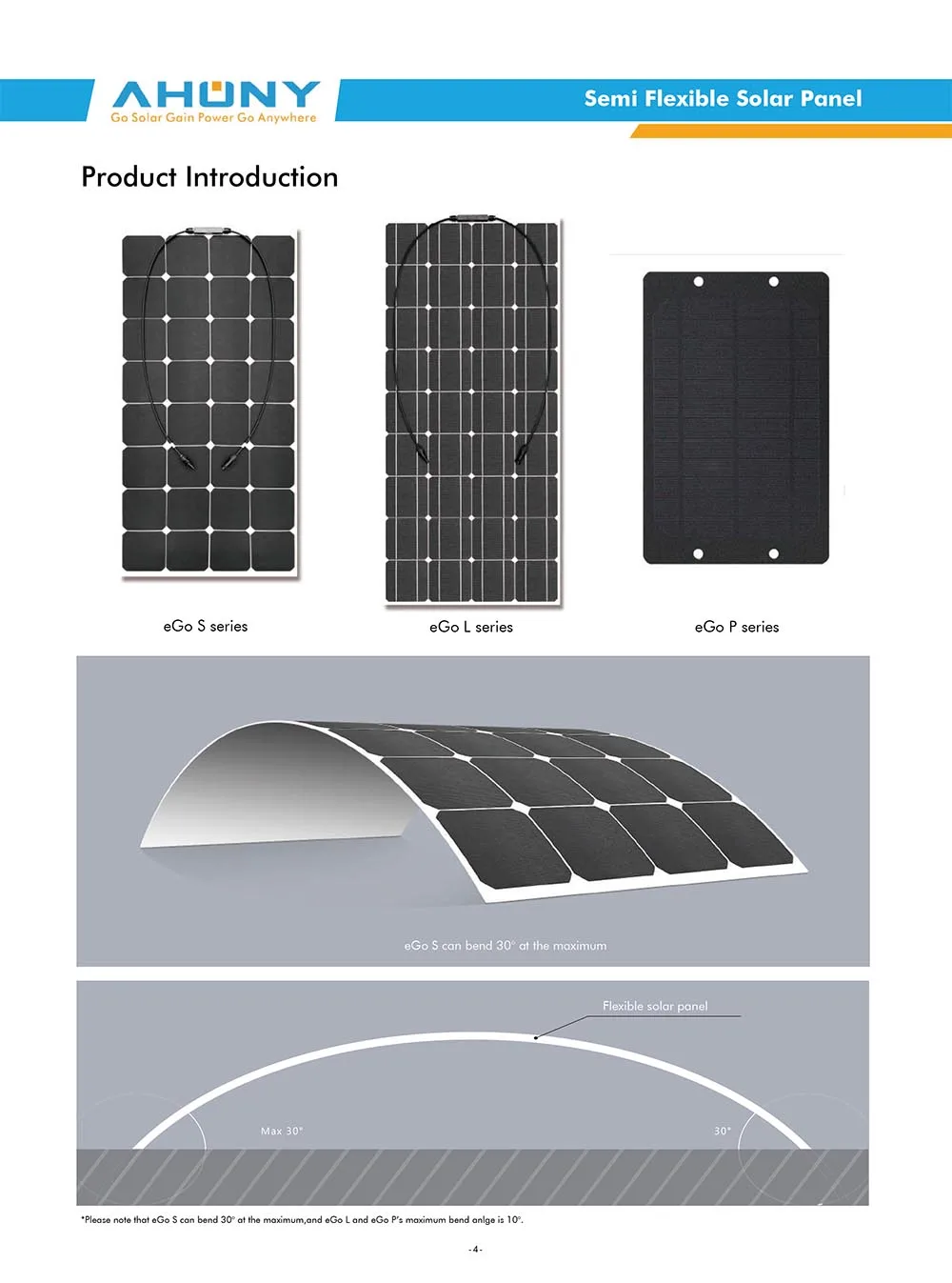

-With a flex range of up to 248 degrees, this panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.
-ETFE material has higher light transmittance, longer service life than PET material. ETFE flexible solar panel also has antifouling and self-cleaning abilities, ensure best performance day after day.
-Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze. The lightweight design also contributes to lower mpg on vehicles.
-Sleek and barely noticeable,100W flexible solar panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.

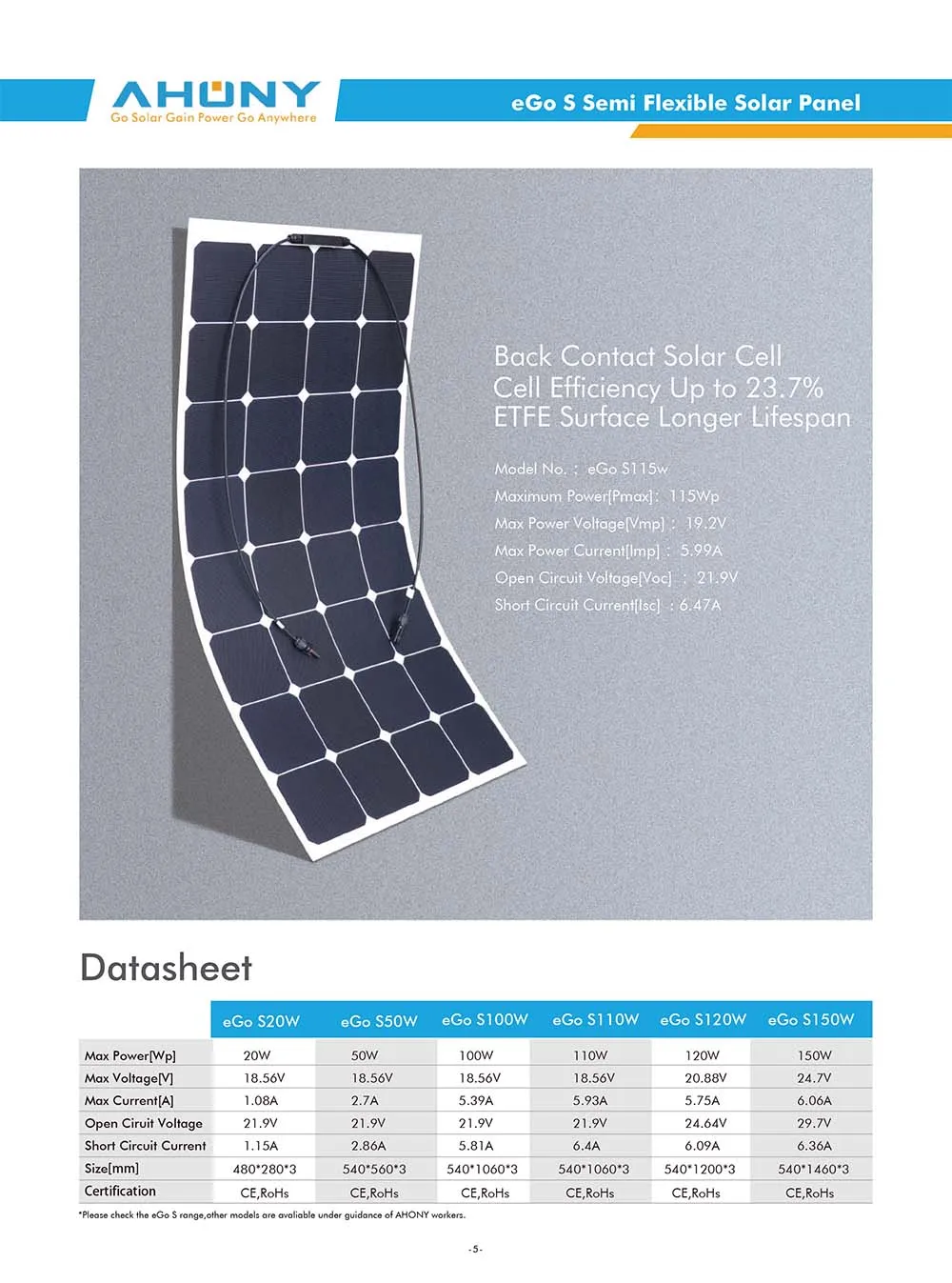

| Model No. | eGo S80w | eGo S100w | eGo S120w | eGo S150w |
| Product Name | 12 Volt ETFE Flexible Solar Panel 80w 100w 150w Ultra Lightweight solar for rv roof camper trailer motor home | |||
| Maximum Power[Wp] | 80 | 100 | 120 | 150 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell | |||
| Cell Array[Pcs] | 4*9 | 4*8 | 4*9 | 4*11 |
| Cell Efficiency | 22.60% | 22.60% | 22.60% | 22.60% |
| Size[mm] | 540x840x3 | 540x1060x3 | 540x1200x3 | 540x1460x3 |
| Max Power Voltage Vmp[V] | 18.56 | 18.56 | 20.88 | 25.52 |
| Max Power Current Imp[A] | 4.31 | 5.39 | 5.75 | 5.88 |
| Open Circuit Voltage Voc[V] | 21.90 | 21.90 | 24.64 | 30.11 |
| Short Circuit Current Isc[A] | 4.66 | 5.82 | 6.21 | 6.35 |
| Net.Weight[kg] | 1.1 | 1.5 | 1.9 | 2.8 |
| Power tolerance[%] | ±5% | ±5% | ±5% | ±5% |
| NOCT[℃] | 45±2 | 45±2 | 45±2 | 45±2 |
| Operating Temperature[℃] | -40/+85 | -40/+85 | -40/+85 | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 | -0.3 | -0.3 | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV | -1.74mV | -1.74mV | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum System Voltage[V] | 100 V | 100 V | 100 V | 100 V |
| Maximum Reverse Current[V] | 10A | 10A | 20A | 20A |
| Certification | CE ROHS | CE ROHS | CE ROHS | CE ROHS |
| Surface/Backsheet | Japan ETFE/white plastic | |||
| Maximum bend radius(θ) | 30° | 30° | 30° | 30° |

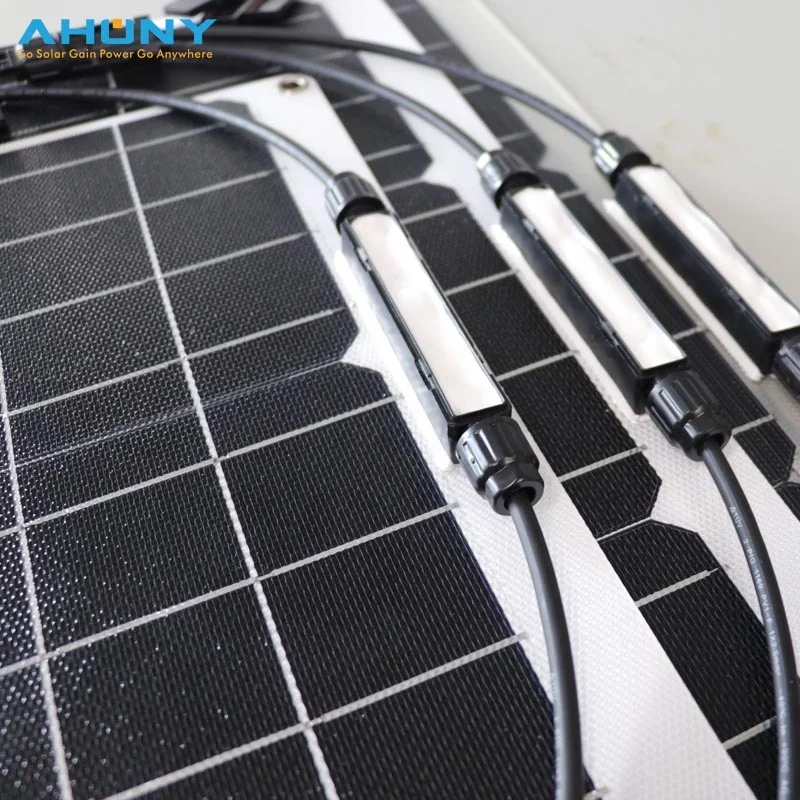

| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC7 connector | |||
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C | |||
| Other notes | round corner R10,with eyelets | |||
| Package | 1pcs/EPE Foam,1 carton box | |||
FAQ
Q:What is the warranty and life span of this ETFE flexible solar panel 100w 80w 150w?
A:Power output will be at least 95% after 5 years and more than 85% after 10 years,1 years repair/replacement.
