Mini 12V/24V DC Servo Electric Piston Linear Actuator With Remote Control for Electric Recliner Chair
- Category: Pneumatic & Hydraulic >>>
- Supplier: Shenzhen Superworker Technology Co. Ltd.
Share on (62195815326):
Product Overview
Description
Electric Linear Actuator for Electric Recliner Chair
DGREC39 Electric Piston Linear Actuator With Remote Control Technical Data
Product Series | DGREC39 |
Screw lead / pitch (mm) | 2 |
Max. Power of Motor (W) | 200 |
Max. Rated Thrust | 50(N)=11.2(lb) |
Max. Speed | 100(mm/s)=3.9(inch/s) |
Max. stroke | 500(mm)=19.7(inch) |
Rated Driving Torque (N.m) | 0.018 |
Max. Ball Screw Diameter (mm) | 8 |
Rated Dynamic Load of Ball Screw (kgf) | 135 |
Axial Backlash (mm) | 0.02-0.04 |
Lead Error Every 300mm (mm) | 0.023 |
Repeatability Accuracy (mm) | 0.02 |
Note:
1.If you need to know the ball screw life, please contact customer service for detailed consultation;
2.The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If above parameters can not meet your needs, please contact us, we can customize according to your requirements with NO MOQ.
DGREC39 Electric Piston Linear Actuator With Remote Control Motor Selection List
Product Series | DGREC39 | ||||
Flange Size of Optional Servo Motor Series (mm) | 40 | ||||
Flange Size of Optional Stepper Motor Series (mm) | 39/ 42 | ||||
Flange Size of Optional Gear Box Series (mm) | |||||
Note:
1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;
2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;
3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;
4. The cylinder can be equiped with or without a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;
Custom DC Servo Precision Positioning Ball Screw Electric Linear Actuator
Miniature Low Noise Stepper Motor High Quality Low Price Long Life Lifting Linear Actuator
2m Long Stroke 15KN Large Thrust Servo Electric Piston Cylinder for Simulator
Features of DGREC39 Electric Piston Actuator for Electric Recliner Chair | ||
Accuracy | High precision, repeatability up to 0.02mm. | |
Service life | Run over a distance of 100,000 km | |
Material Selection | 1.Aluminum alloy, Carbon Steel,Stainless Steel optional for cylinder body | |
2. Various surface treatment options (including: coating, azotizing, oxidation) | ||
3.Selected internationally-famous brands of motor, ball screws, bearings and gears | ||
Features | Rigid connection between the screw nut and the piston rod | |
Excellent Service | 1.DGR Electric cylinders can be fully customized for customer's particular application and requirements. | |
2. 1 year warranty and lifetime technical services | ||
Duty Cycle | The duty cycle is ensured to be greater than 50% or even 100% continuous operation. | |
Complete Testing | Professional inspection: including appearance, mechanical properties, stability, noise decibels, IP testing, etc. | |
DGREC39 Electric Linear Actuator for Electric Recliner Chair
DGR Electric Cylinder
Entertainment
Six degrees of freedom motion platform widely used in a variety of simulation, entertainment equipment, robotic arms, dynamic seats in movie theaters.
VR Simulations
Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator
Automobile industry
Electric cylinder servo press is widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;

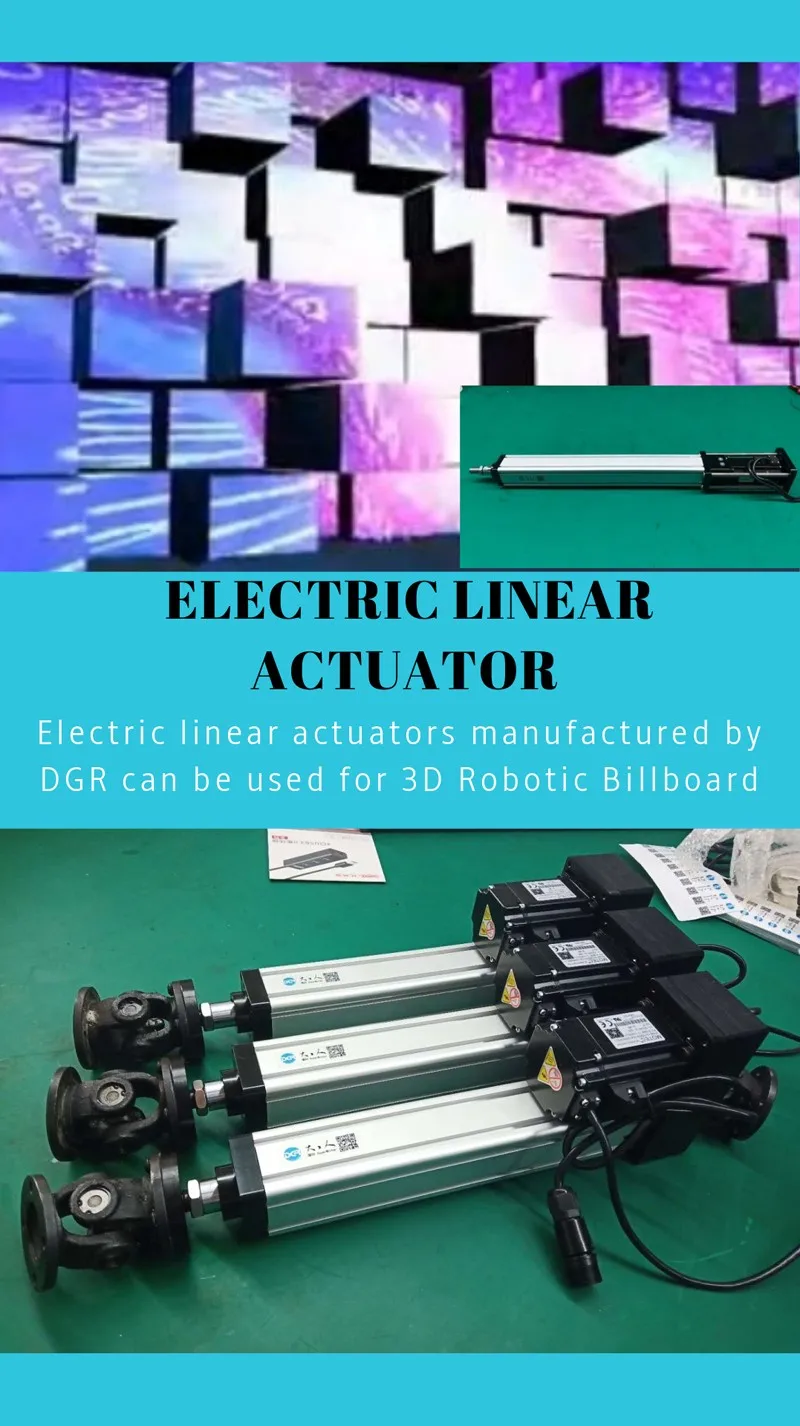

3D Robotic Billboard
The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.
Automation Industry
The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc
Solar Tracking Systems
The solar tracking system maximizes the solar system's electricity production by moving the solar panels by electric cylinders to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. The electric cylinder includes: motor (DC brushless motor, stepper motor, servo motor Etc.), worm gears, push rod, sensor systems, etc.
