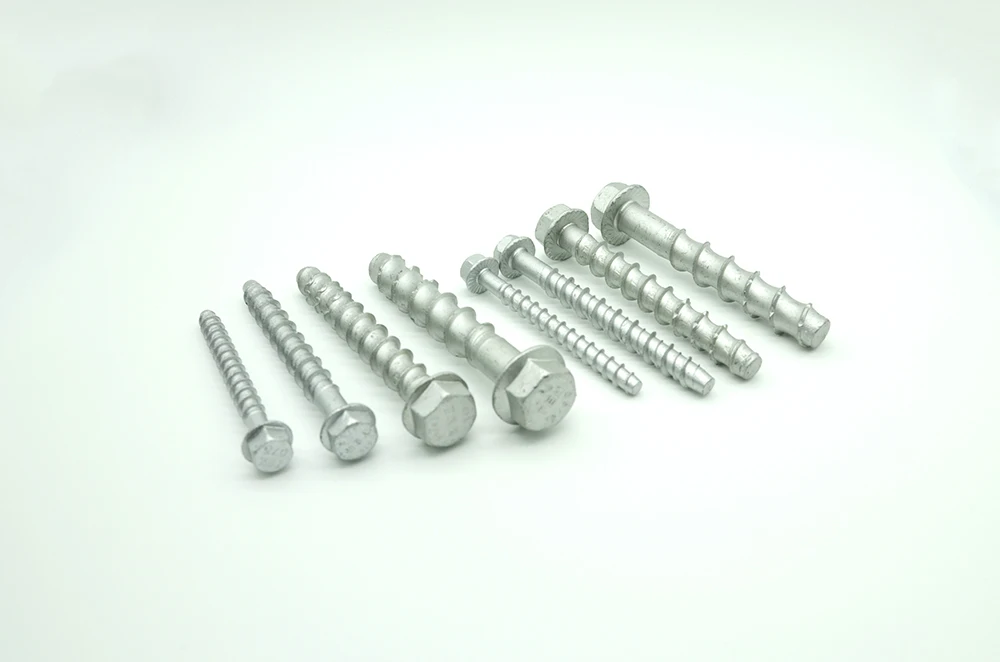

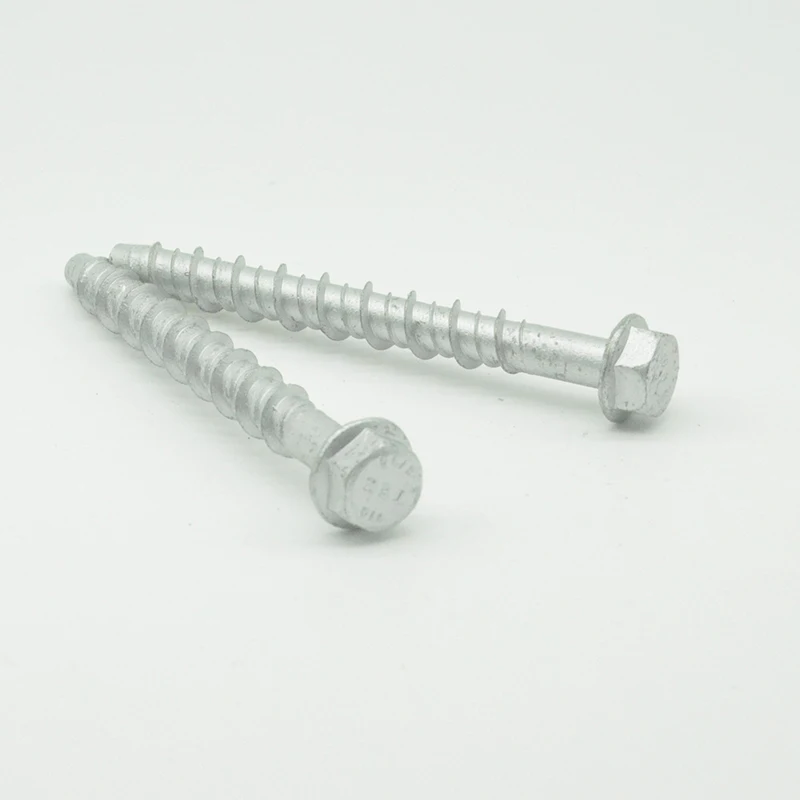

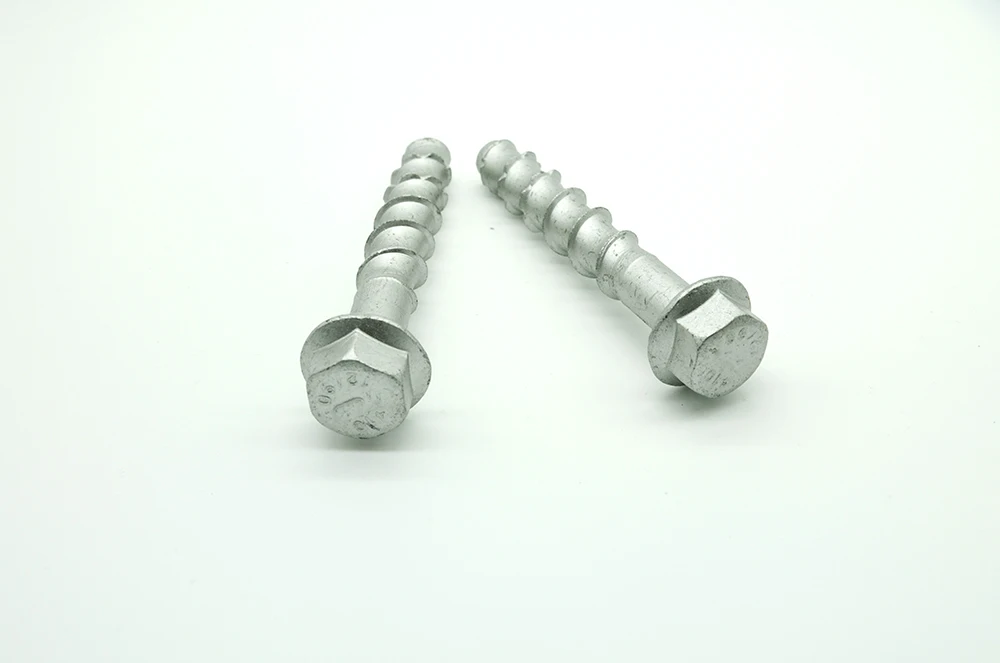

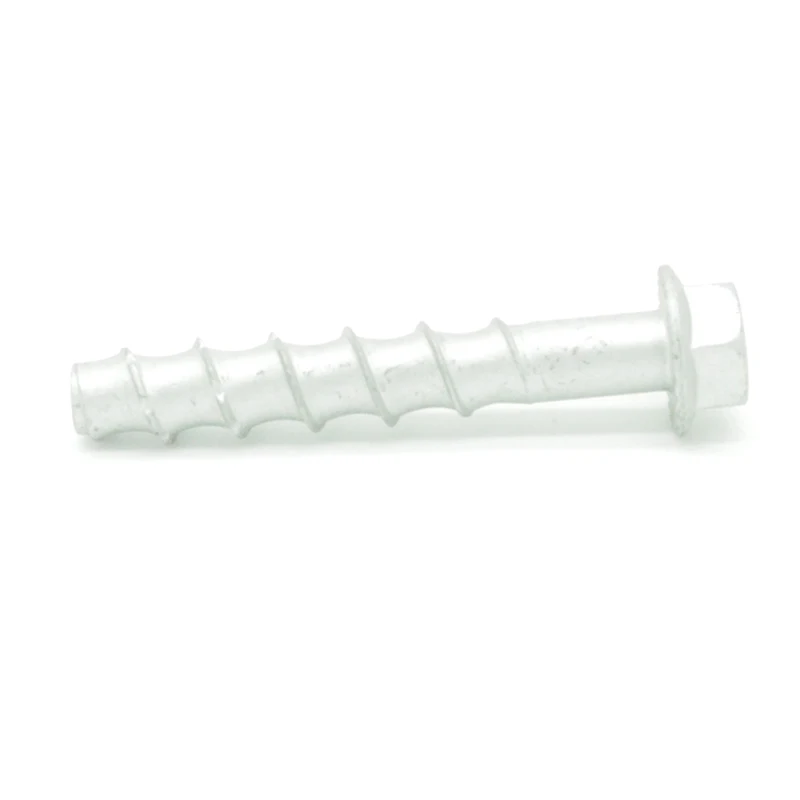

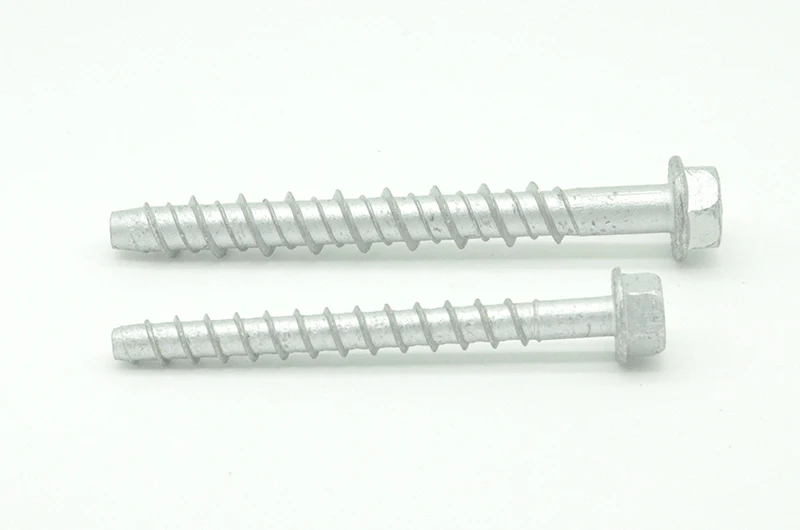

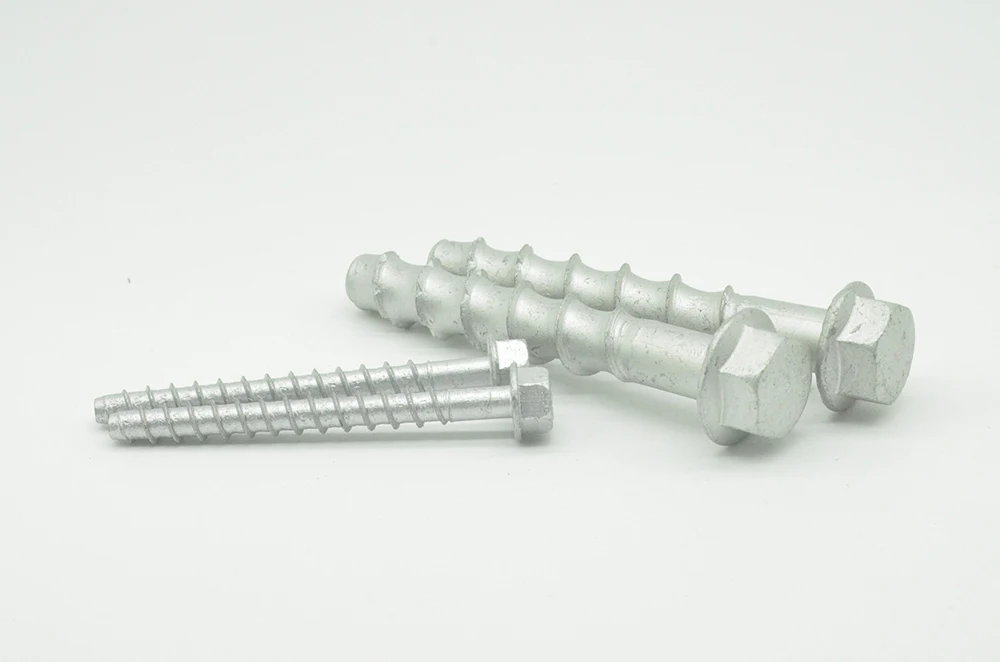

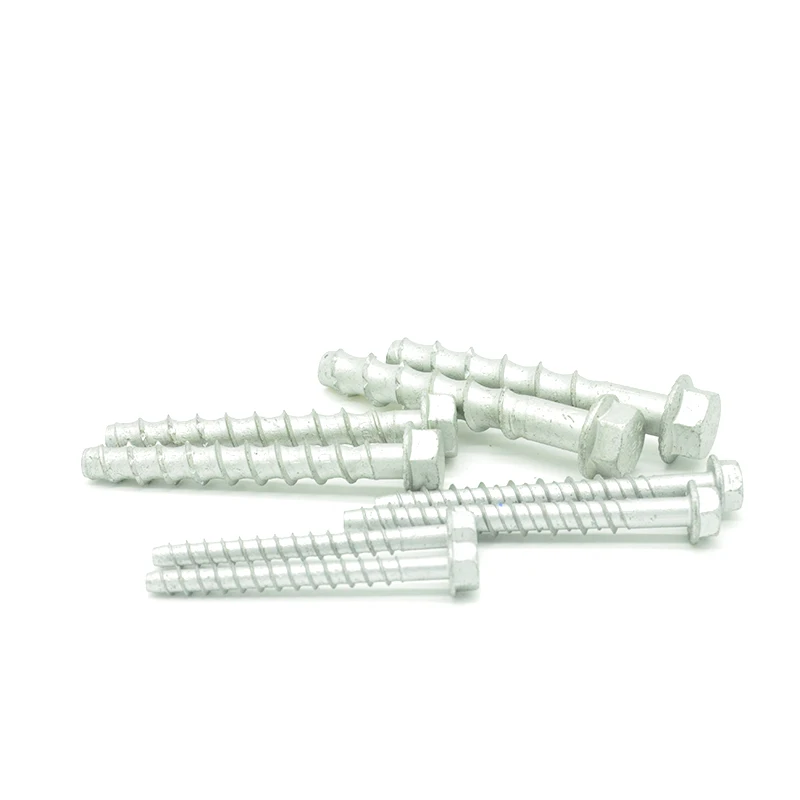

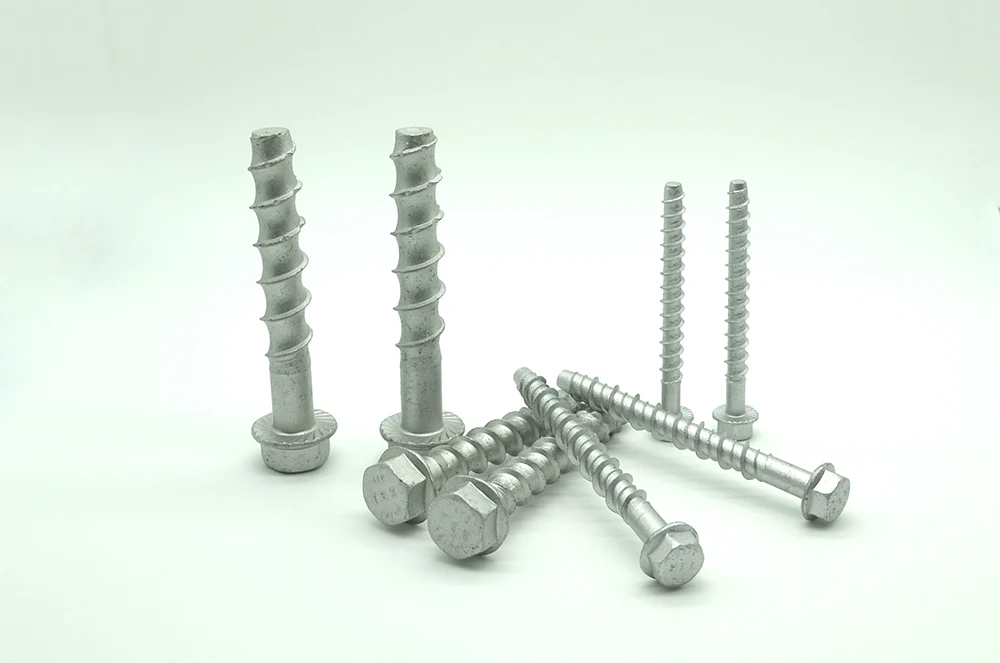

stainless steel SUS410 concrete screw anchor bolt
- Category: >>>
- Supplier: Ningbo Yongcheng Hardware Machinery Co. Ltd.
Share on (62195964535):
Product Overview
Description
Product Description
Material : SUS410 stainless steel
Surface treatment : Technik1000 (3 coating layers)
Features :
simple /easy installation ,does not need complex installation steps , saves time and labor
easy recognition and disassembly
vibration resisitance .
High tensile strength .
High corrosion resistant - 1000 hours with no red rust .
One type of design , which is a heavy load anchor bolt . suitable for a variety of substrates. The traditional expansion bolt has the external expansion, which can easily cause the crack of the base material . This anchor bolt overcomes these shortcomings.
Applicable to concrete and other substrates.
screw bolt | M6X35 | Flat thread | 35 | 10 | 6 | 11.2 | Technik1000 |
| M6X50 | 50 | 10 | |||||
| M6X75 | 75 | 10 | |||||
| M6X100 | 100 | 10 | |||||
| M8X50 | Hign-low thread | 50 | 10 | 8 | 13 | ||
| M8X70 | 70 | 15 | |||||
| M8X90 | 90 | 15 | |||||
| M8X100 | 100 | 15 | |||||
| M8X120 | 120 | 15 | |||||
| M10X75 | Arc bottom thread | 75 | 15 | 10 | 17 | ||
| M10X90 | 90 | 15 | |||||
| M10X100 | 100 | 15 | |||||
| M10X120 | 120 | 15 | |||||
| M10X150 | 150 | 15 | |||||
| M12X75 | Arc bottom thread | 75 | 15 | 12 | 19.1 | ||
| M12X100 | 100 | 15 | |||||
| M12X120 | 120 | 15 | |||||
| M12X150 | 120 | 15 | |||||
| M16X75 | High-low thread | 75 | 15 | 16 | 23.8 | ||
| M16X100 | 100 | 15 | |||||
| M16X120 | 120 | 15 | |||||
| M16X150 | 150 | 15 | |||||
| M16X200 | 200 | 15 |
