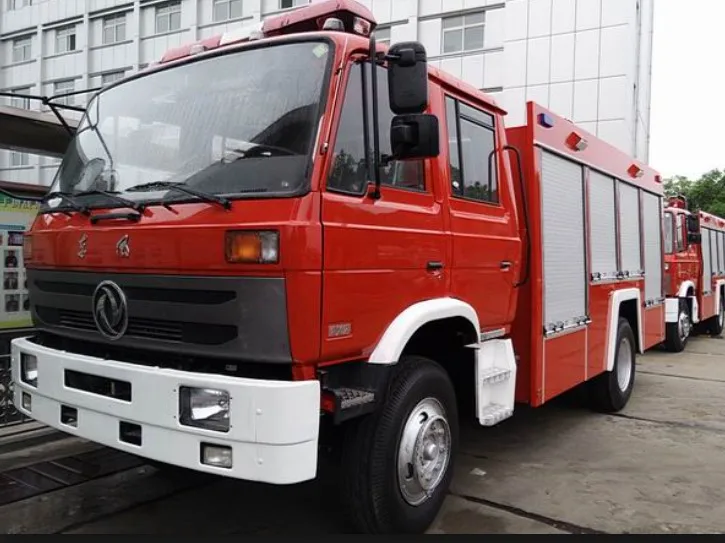

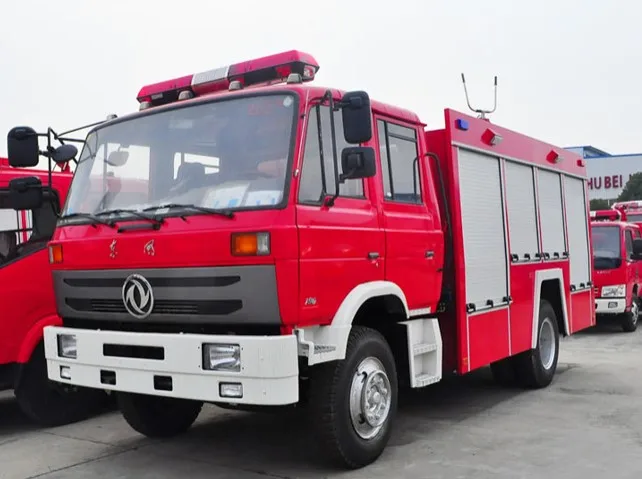

DONGFENG 4*2 210HP Fire Fighting Truck 8CBM

 Cabin

Driving type 4x2

Double Row Cab with Air condition

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

8300×2500×3600

Wheel base  (mm)

4700

Wheel track  (front/rear) (mm)

1940/1860

Weight in KGS

Tare Weight

9800

Payload

9000

Front axles loading capacity

1x7000

Rear axles loading capacity

1x13000

Max. driving speed(km/h)

95

Engine

Brand

CUMMINS

Model

B210

Type

4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled

Horse Power(HP)

210 HP

Emission standard

Euro Ⅱ

Gearbox

FAST, 8 Forwards gear & 2 reverse gear

Steering Gear

power steering, hydraulic steering with power assistance

Tire

11R22.5 tubeless tyre,11 pcs including one spare tire

Tank Capacity (L)

Water: 6,000

Foam: 2,000

Fire Pump

Model

CB20.10/30.60

Flow

60L/s at Low Pressure 1.0 MPa

30L/s at Middle Pressure 2.0 Mpa

Fire Monitor

Model

PL48

Pressure

1.0~1.2MPa

Flow

48L/S

Range

Water≥60 m

Foam≥50 m

Rotation angle

360° Horizontal

-30°~80° Pitch Angle
