High Output Rotary Die Head Double Winder Film Blowing Machine
Banner
This film blowing machine is designed to satisfy the customer's requirements of high quality and high output. Compared with kindred equipment, it has advantages such as more compact structure, higher output, better produce quality, less energy consumption, easier operation, etc. This machine can create a considerable economic benefit for you for sure.

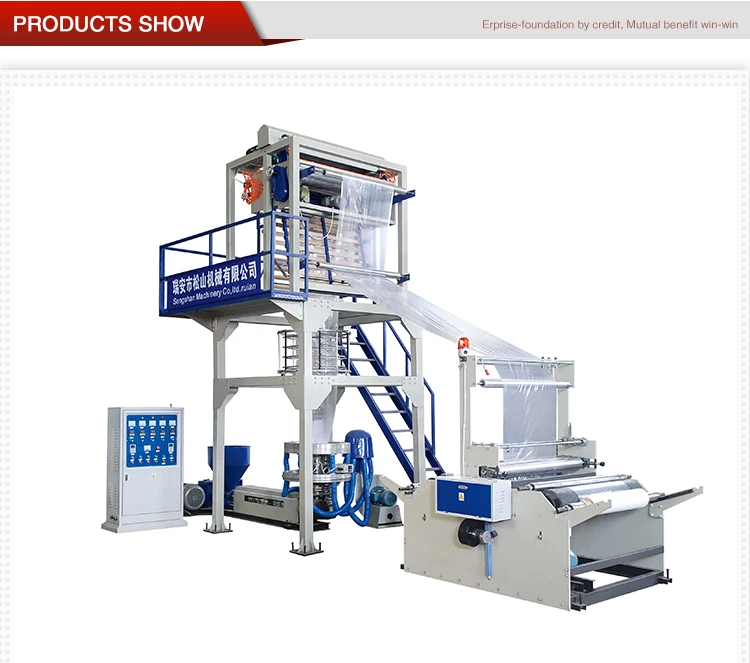

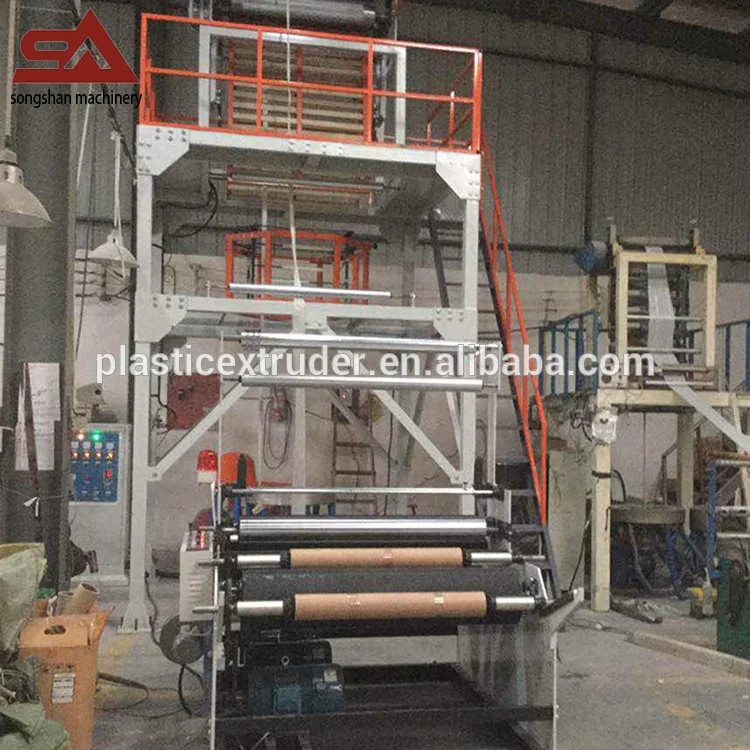

Rotary Die Head Double Winder Film Blowing Machine
Model | SJ-55 | SJ-65 | SJ-75 | |
Features | Raw Material | HDPE, LDPE, LLDPE; Virgin and Recycled | ||
Film Width | 800mm | 1200mm | 1500mm | |
Average Output | 45kg/h | 65kg/h | 85kg/h | |
Film Thickness | 0.008mm-0.15mm | |||
Dimension | 5×3.5×4.5m | 6×4×5.5m | 7×5×7m | |

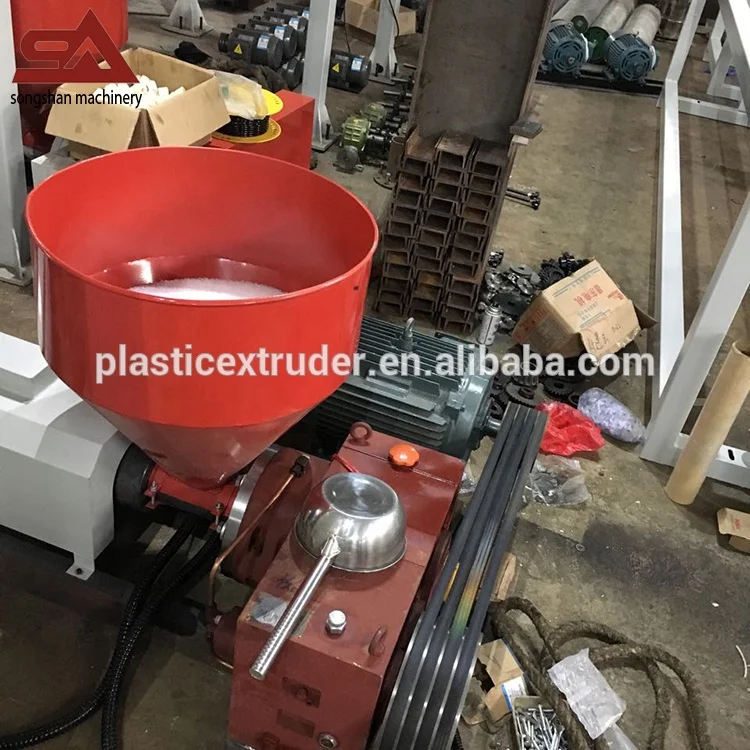

Extrusion Unit | Screw Diameter/LD ratio | 55mm | 65mm | 75mm |
Motor | 15KW | 22KW | 37KW | |
Gearbox | 146 | 173 | 200 | |

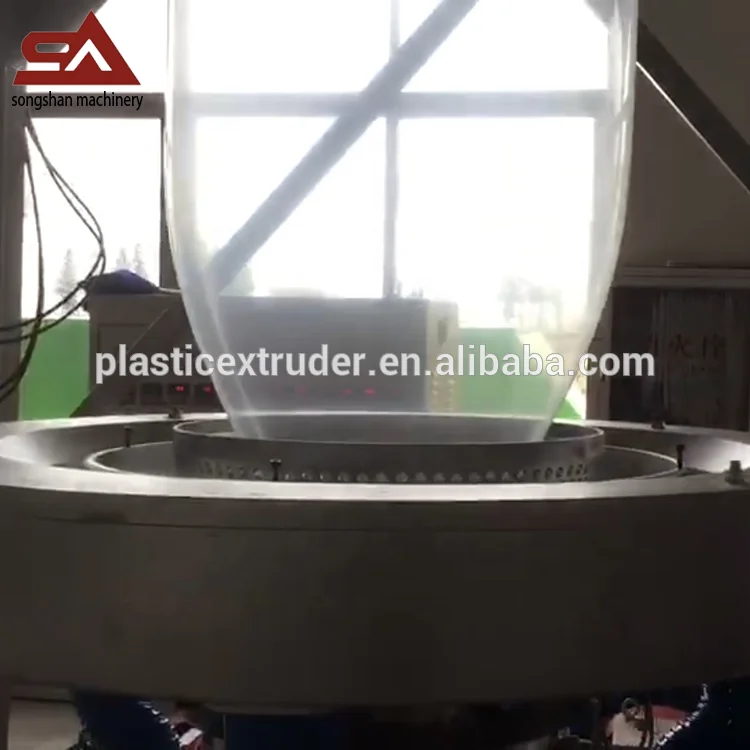

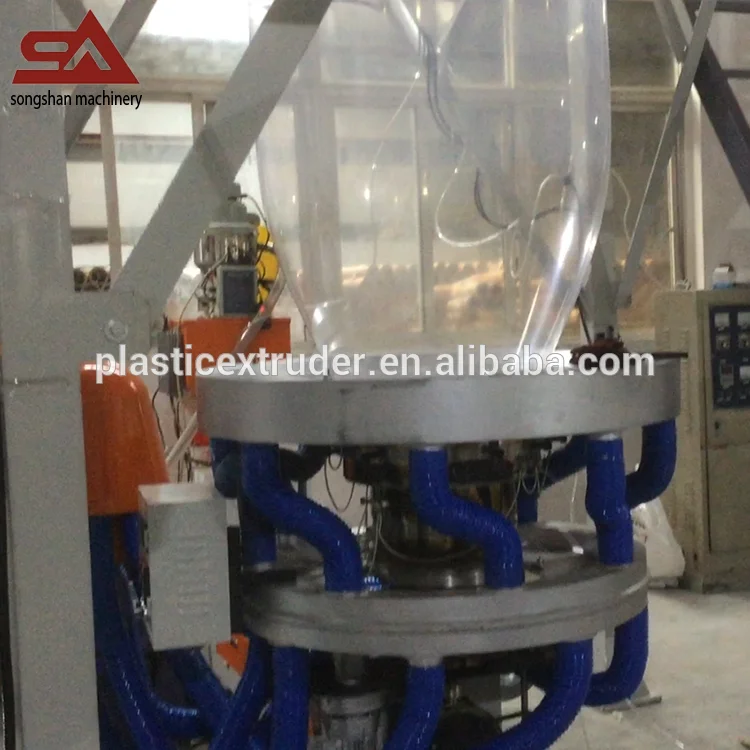

Die Head Type | Rotary Die Head | |||
Die Size | 80/160mm | 160/260mm | 400mm | |
Film | Upper Tower Type | Up and down; embossing roller and gusseting | ||
Roller Length | 900mm | 1400mm | 1800mm | |
Roller Working Way | Opened and Tightened by Air Cylinders | |||

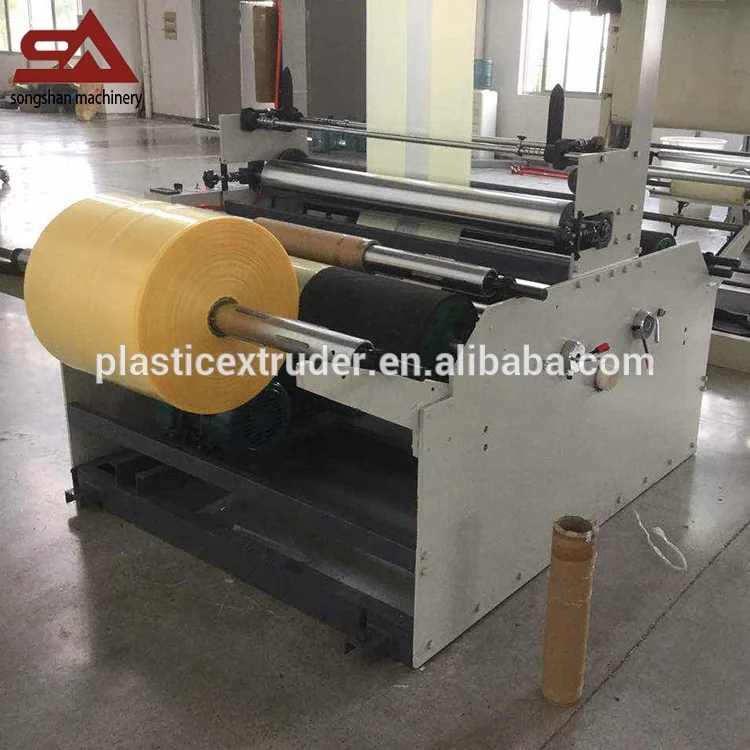

Winding Station | Winder Type | Double Winding Station Fraction Type | ||
Rollers | 900mm | 1400mm | 1700mm | |
Max. Winding Diameter | 650mm | |||
Control Panel
| Temperature Control | 5 Zone | ||
Electronics | Top China Brand | |||
