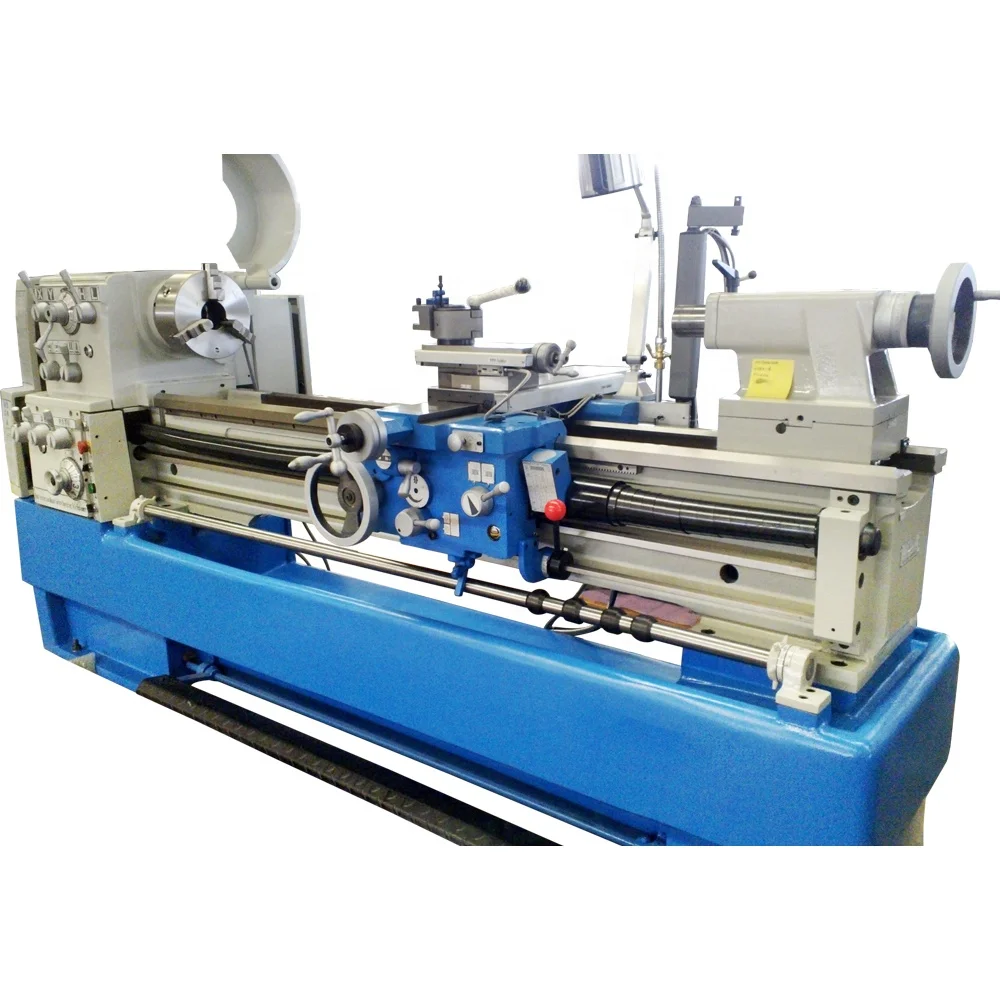

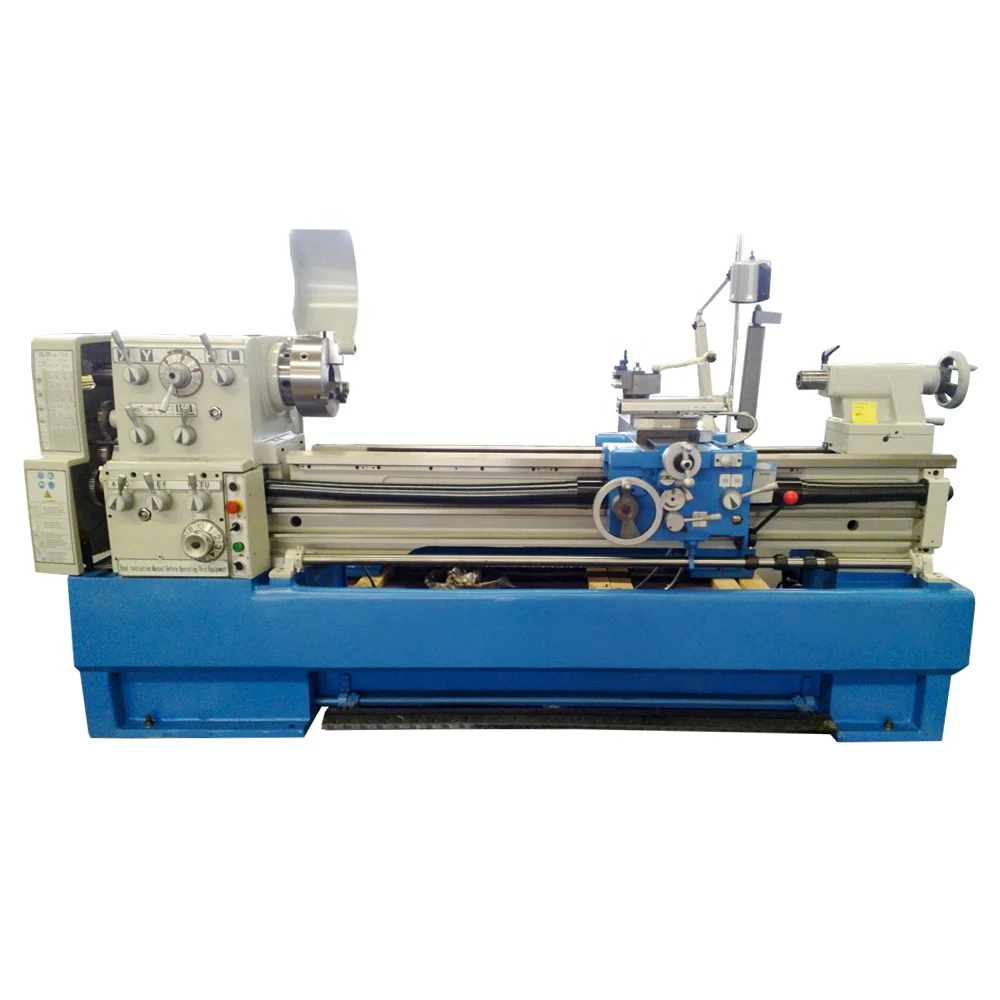

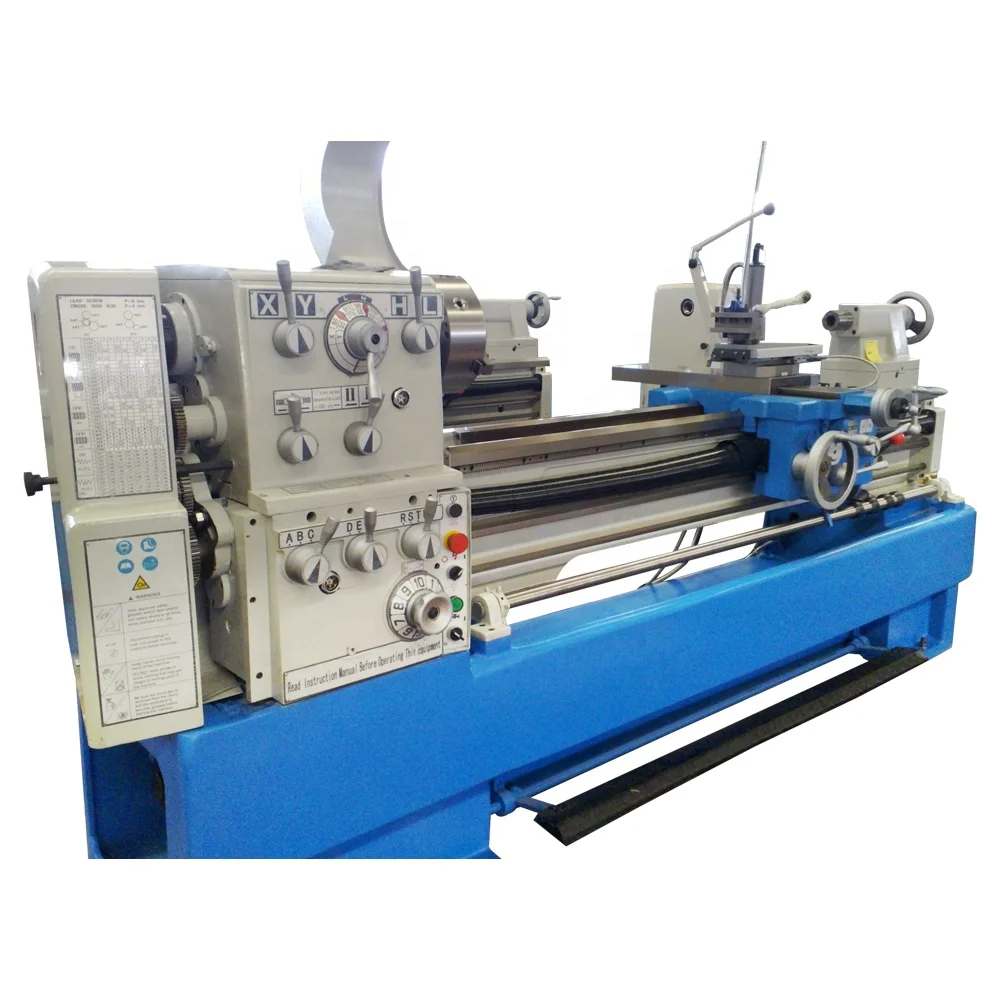

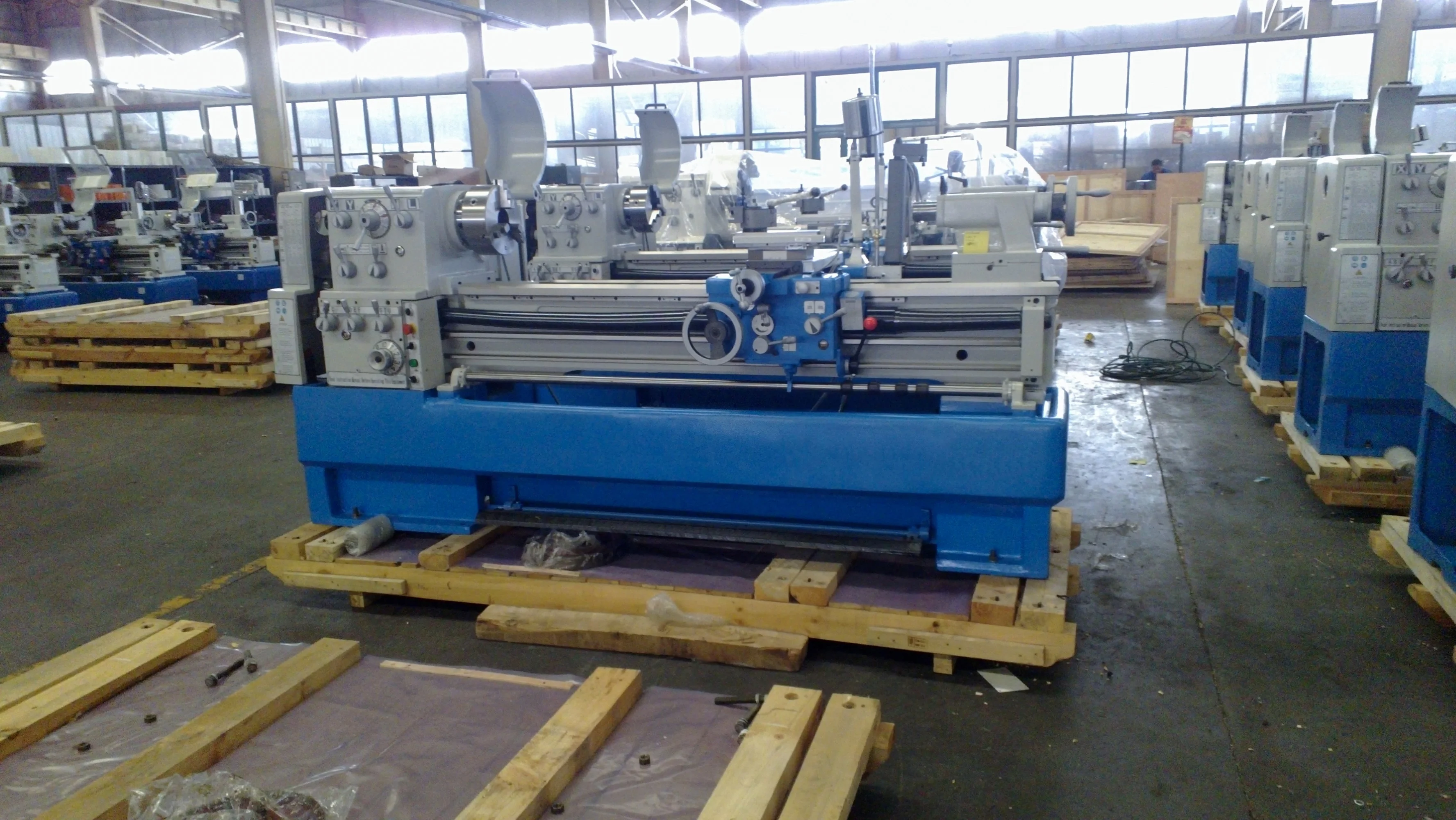

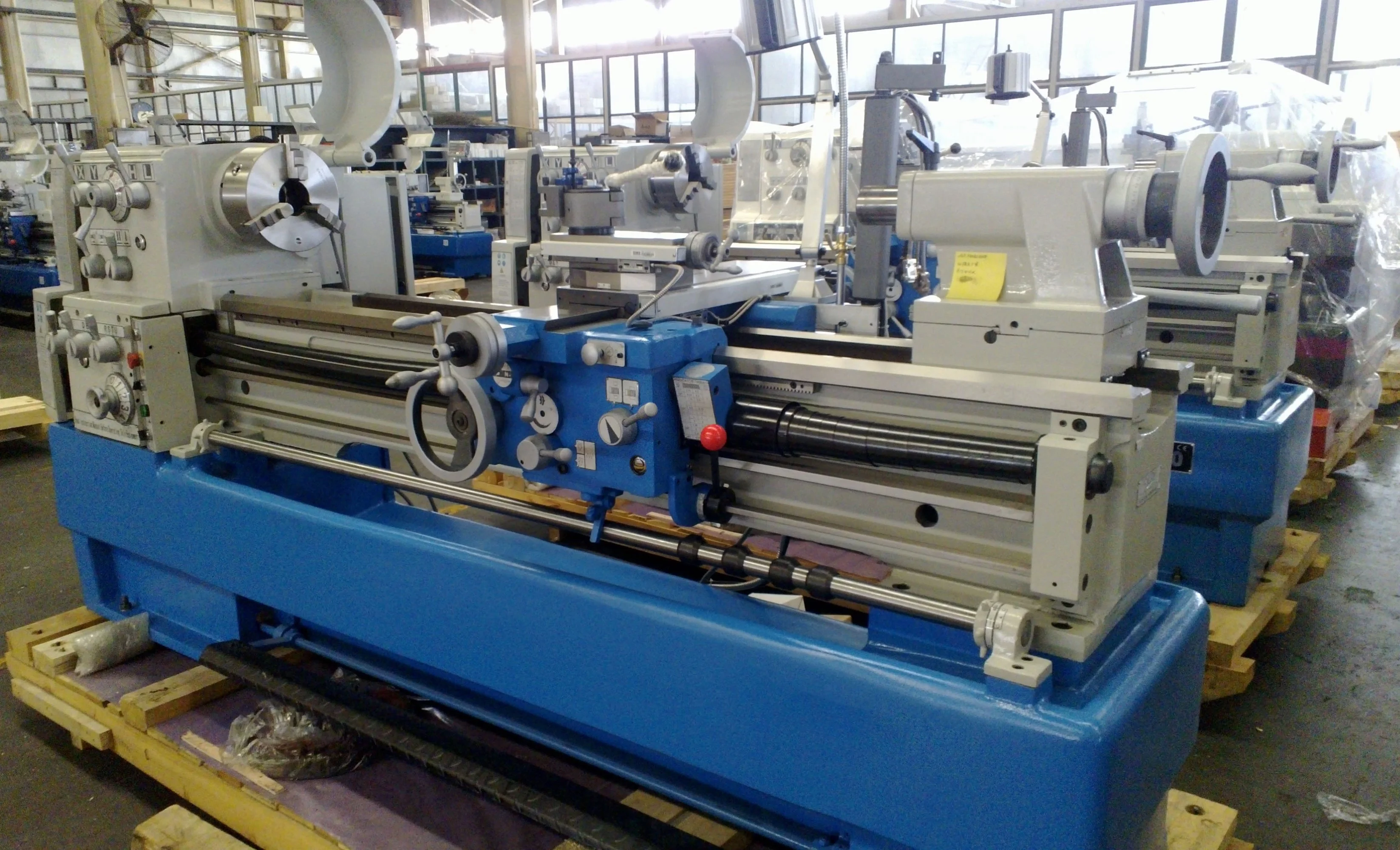

Professional C6241 Lathe 2 Meter Machine Metal 220V With Low Price

Specification

                                          Model

C6241

C6241V

Swing over bed

410mm(16”)

Swing over cross slide

220mm(8-13/16”)

Swing in gap diameter

640mm (25-1/8’‘)

Distance between centers

1000mm(40”) 1500mm(60”) 2000mm(80”)

Valid length of gap

165mm(6-1/2”)

Width of bed

300mm(11-13/16”)

Spindle nose

D1-6

Spindle bore

58mm(2-1/4”)

Taper of spindle bore

No.6 Morse

Range of spindle speed

12 changes, 25-2000r/min

30-3000r/min

Compound rest travel

128mm(5”)

Cross slide travel

285mm(11-1/4”)

Max. section of tool

25x25mm(1” x1’’)

Lead screw thread

6mm or 4T.P.I.

Longitudinal feeds range

42 kinds, 0.031 -1.7mm/rev (0.0011” -0.0633”/rev)

Cross feeds range

42 kinds, 0.014 -0.784mm/rev (0.00033” -0.01837”/rev)

Threads metric pitches

41 kinds, 0.1 -14mm

Threads imperial pitches

60kinds,2 -112T.P.I.

Threads diametral pitches

50kinds,4 -112DP

Threads module pitches

34 kinds, 0.1 -7MP

Quill diameter

60mm(2-5/16’’)

Quill travel

130mm(5”)

Quill taper

No.4 Morse

Main motor power

5.5kW(7.5HP)3PH

7.5kW(10HP) 3PH

Coolant pump power

0.1kW(1/8HP)3PH

Overall

dimension(LxWxH)

220x108x134cm

 275x108x134cm

325x108x134cm

Packing size(LxW H)

225x112x162cm

280x112x162cm

330x112x162cm

Net weight

1580kg

1745 kg

1900kg

Gross weight

1844kg

2049kg

2229kg
