Tobacco Shisha Bag packing machine

Product Overview

Description

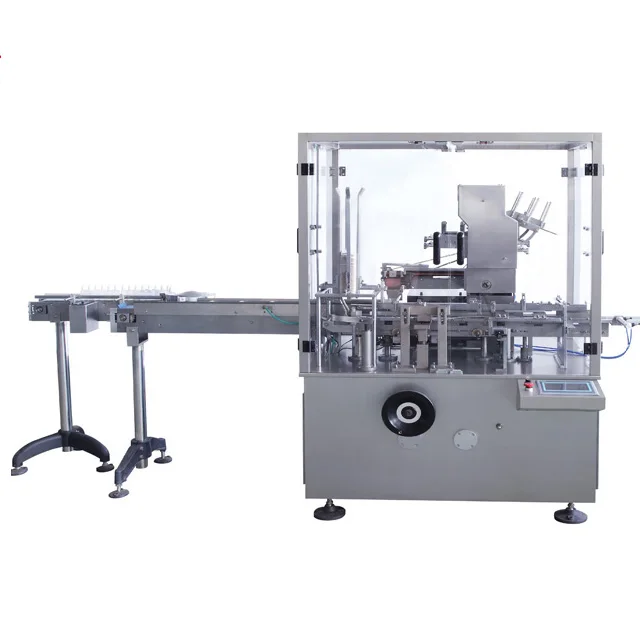

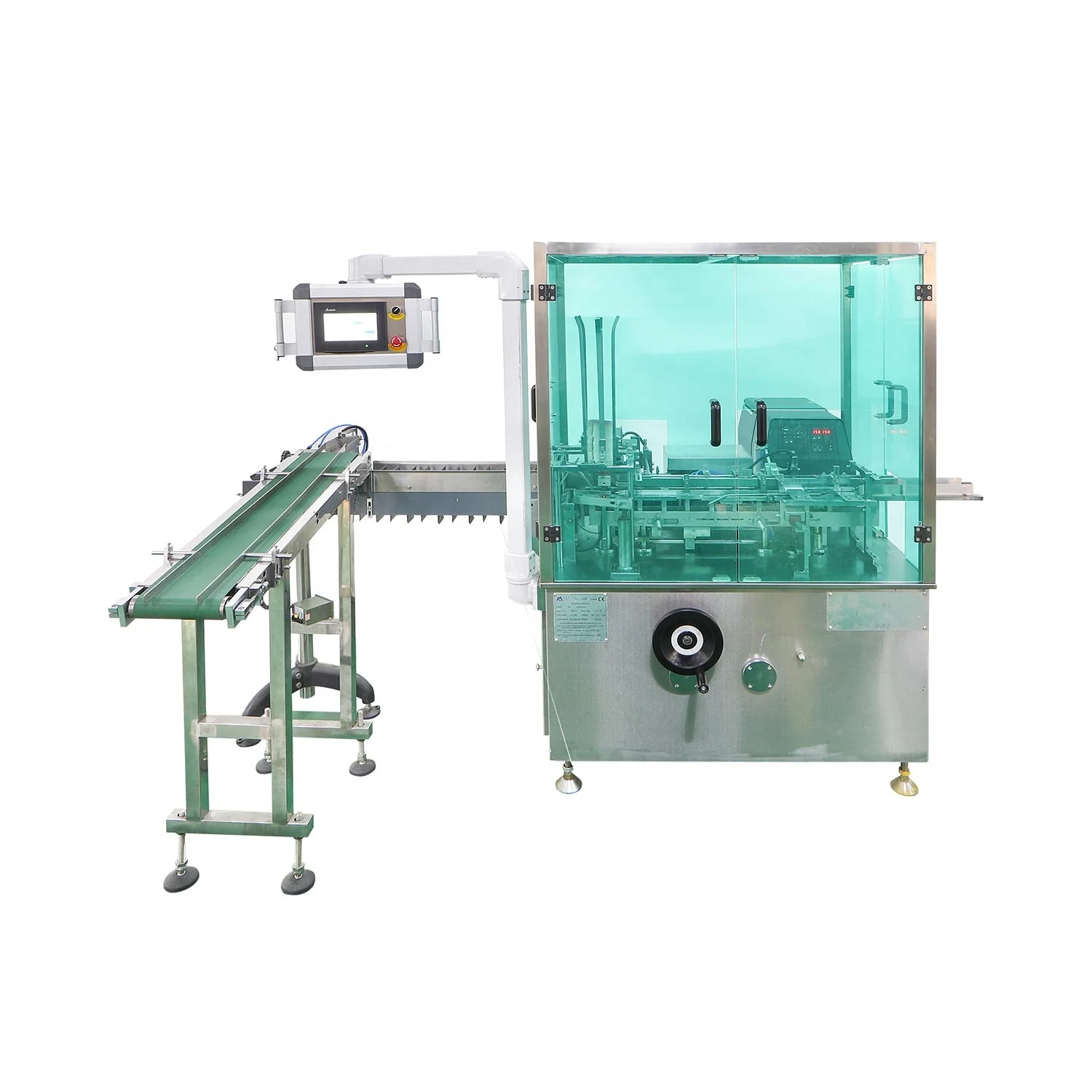

Cartoning machines are packaging systems which erect, close and/or erect, fill and close carton blanks or folded and side seam sealed cartons.

Cartons are one of the commonest forms of packaging. But while they almost all end up in a regular six-sided square or rectangular shape there are a number of different styles which are dictated by the filling and closing method. For example, some cartons are filled and closed via the end flaps; others are filled vertically and closed with a fold over 'lid'. Other important differences include the means of securing the carton in its erected form. Some are glued using adhesive; others have pre-cut tabs and slots, or are pre-coated with a heat sensitive material. Some applications use window cartons - a carton with a pre-cut area behind which transparent film has been fixed to allow the contents to be viewed



PARAMETER:

Item		Parameters
Encasing speed		50boxes /min
Box	Quality requirement	250-350g/m2[Base on carton size]
	Dimension range(L×W×H)	(65-160)mm×(30-90)mm×(15-55)mm
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		380v  50HZ
Main motor power		0.75kw
Machine dimension(L×W×H)		4100mm×1140mm×1800mm
Machine weight		900kg

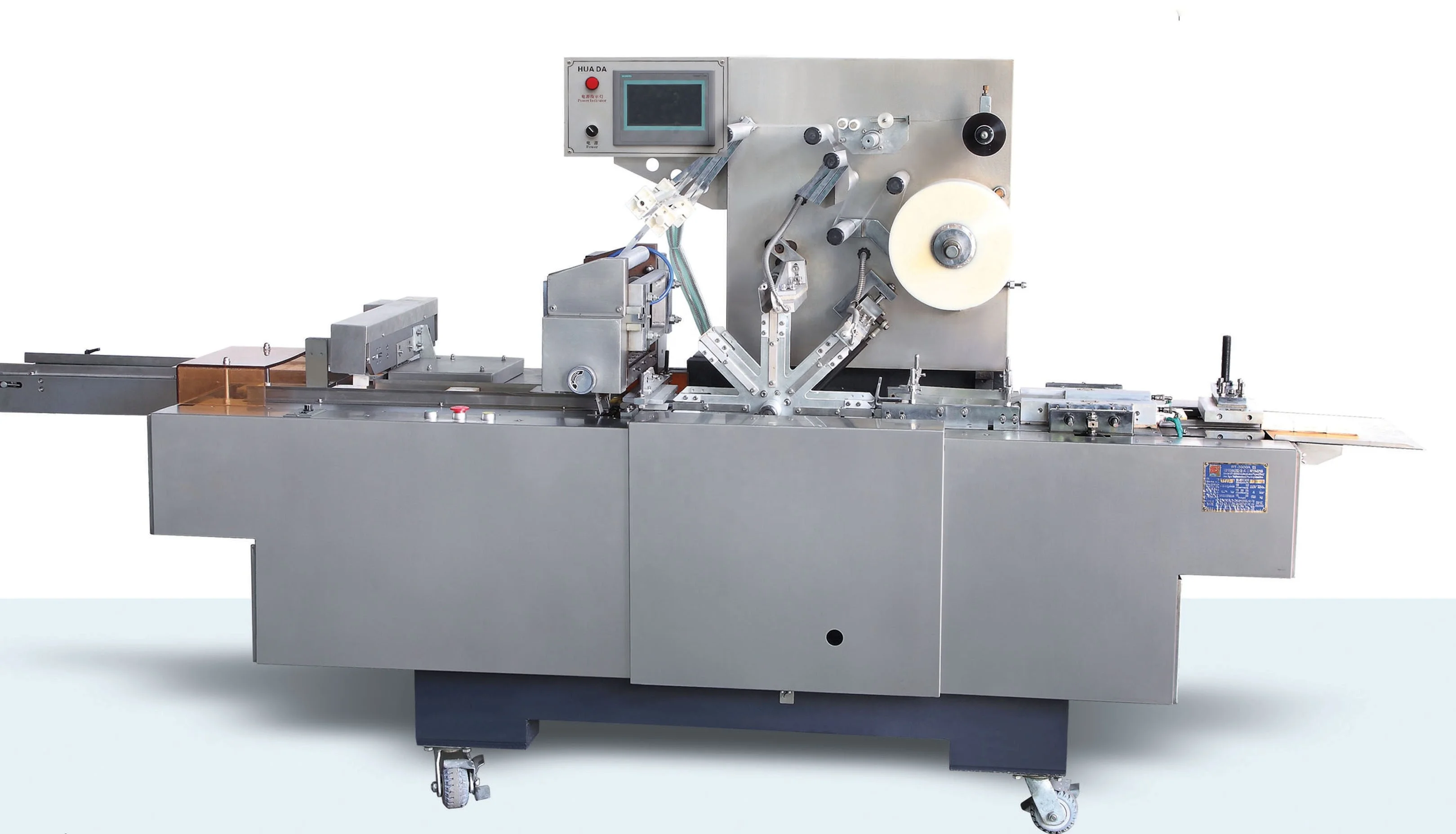

Cellophane packing machine

This machine is a universal equipment for overwrappping machine which can wrap the middle-size product which is square or rectangle shape. It is an ideal box type overwrapping machine.

1.2 Technical Data

Weight&Dimensians



Type	BT-2000L
Packing size	(30-160)mmx(20-80)mmx(10-40)mm
Max Capacity	60packs/min
Dimensions in mm	2250X1000X1800MM(LXWXH)
Weight in kg	837KG

Utilities

Standard power supply	220v,50/one phase
Power consumption in KW	4kw
Electric heating	0.75kw
