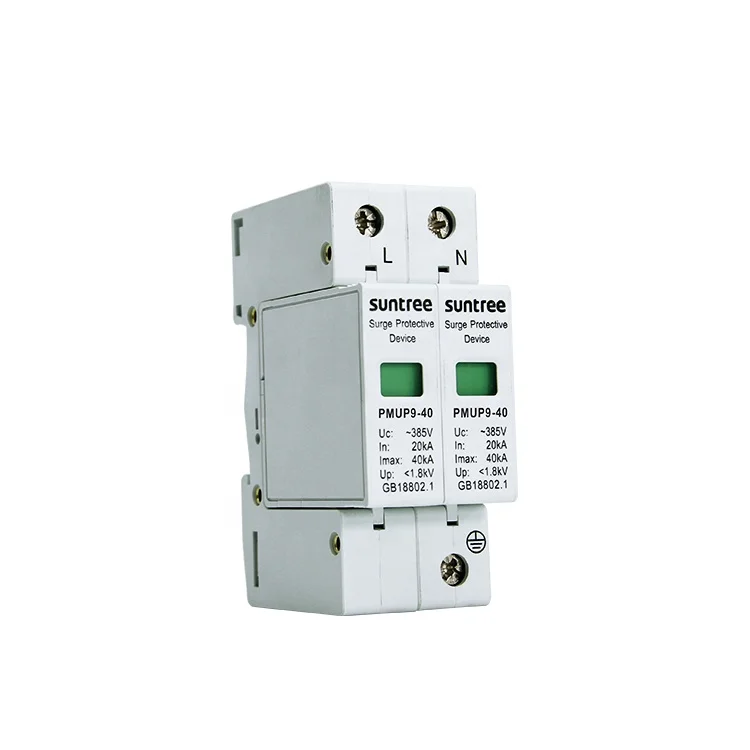

SUP1 AC SPD is suitably used in the TT, TN-S, TN-C, IT, TN-C-S and etc power supply system of AC 50/60Hz,<380V, installation om the joint of LPZ1 or LPZ2 and LPZ3, it is designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted in the module of surge protection device. When the SPD fails in breakdown for over-hart and over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal, green means normal, red means abnormal, it also could be replaced for the module when has operating voltage.
Protection level B,C,D Grade
Rated Operating Voltage Un(V)
Max continuous operating voltage Uc/V
Voltage protection level up(KV)
Maximum discharge current Imax(8/20μs)KA
Nominal discharge current In(8/20μs)KA
-40 degree to + 85 degree
Max Connection Line
35mm2 hard wire/35mm2 strand wire copper line
Recommended Connection Line
16mm2 hard wire/25mm2 strand wire copper line
Standard Rail 35mm
Material of outer covering
Burning -proof Nylon
Could be replaced for the module not need power cut.
Maximum current of endure the lightning stroke 50KA.
Time of response<100ns.
The color of visible window shows operating status, green means normal, red means abnormal.
